Description

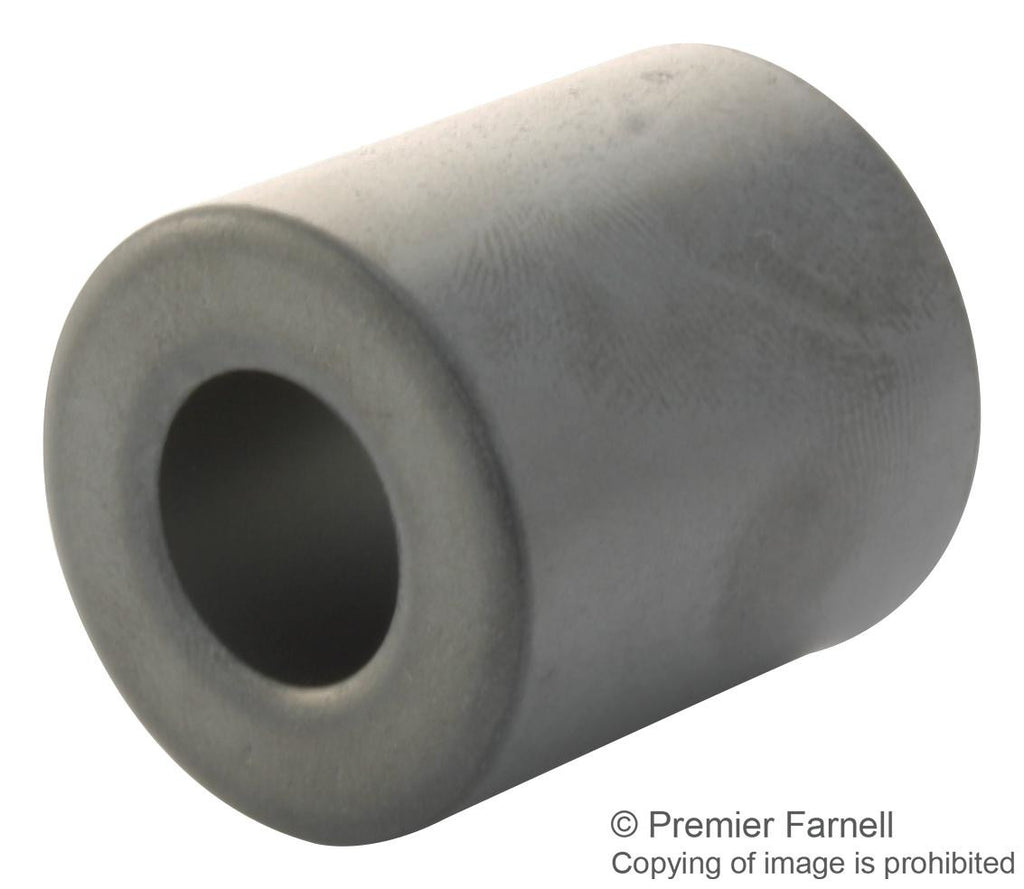

The 2631102002 is a round cable EMI Suppression Core for 25.9mm cable, guaranteed minimum impedance specification. Suppression core is controlled for impedance only. Minimum impedance values are specified for the + marked frequencies. The minimum impedance is typically the listed impedance less 20%. Single turn impedance tests for 31 material core is performed on the 4193A vector impedance meter.
- Supports lower and broadband frequencies (1 to 300MHz)
Applications
Communications & Networking
Product details
| Frequency Min | 1MHz |
| Inner Diameter | 12.8mm |
| Length | 28.6mm |
| Outer Diameter | 25.9mm |
| Impedance @ 100MHz | 260ohm |
| Product Range | - |
| Frequency Max | 300MHz |
Other details
| Brand | FAIR-RITE |
| Part Number | 2631102002 |
| Quantity | Each |
| Technical Data Sheet EN |  |
| Application Note EN | |
All product and company names are trademarks™ or registered® trademarks of their respective holders. Use of them does not imply any affiliation with or endorsement by them. Image is for illustrative purposes only. Please refer to product description.
Bulk Discount
| Quantity | Price |
| 2 | ₹ 462.96 |
| 3-5 | ₹ 458.24 |
| 5-10 | ₹ 448.79 |
| 10+ | ₹ 439.34 |
Bulk discount will be automatically applied during checkout based on quantity.
