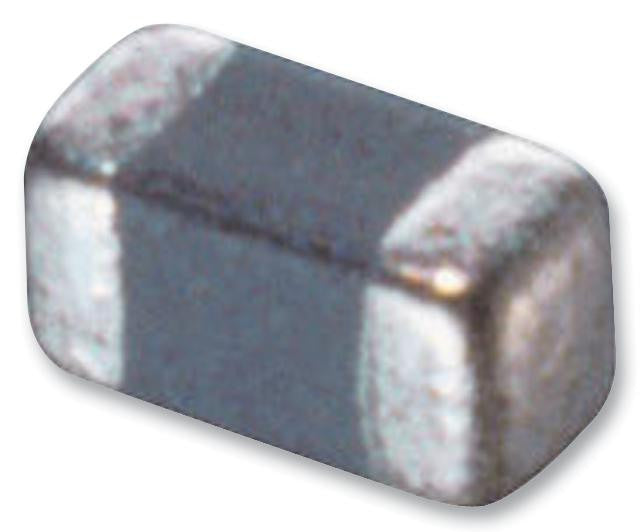

![FAIR-RITE 2512067007Y3 Ferrite Bead, 70 ohm, 1206 [3216 Metric], 3 A, 0.04 ohm, ± 25%](http://www.tanotis.com/cdn/shop/products/151575807-40_7f88703c-bdfc-4472-ad7a-efd3eede21fb_{width}x.jpg?v=1575993039)
![FAIR-RITE 2512067007Y3 Ferrite Bead, 70 ohm, 1206 [3216 Metric], 3 A, 0.04 ohm, ± 25%](http://www.tanotis.com/cdn/shop/products/151575807-40_7f88703c-bdfc-4472-ad7a-efd3eede21fb_1024x.jpg?v=1575993039)
| ₹ 18.6 includes GST and import duties. | |
| B2B customers can avail ₹ 2.84 ITC on this product | |
| 100% Secure Payments | 100% Genuine product |
Description
The 2512067007Y3 is a medium current Chip Bead with 1206 case, 100% matte tin-plated over nickel contacts. They can accommodate both reflow and wave soldering technologies. Chip bead is 100% tested for impedance and DC resistance. The suggested land patterns are in accordance to the latest revision of IPC-7351.
- Supports standard single speed
- -55 to 125°C Operating temperature
Applications
Industrial
Product details
| Impedance Tolerance | ± 25% |
| DC Current Rating | 3A |
| Impedance @ 100MHz | 70ohm |
| Ferrite Case Style | 1206 [3216 Metric] |
| Product Range | - |
| Automotive Qualification Standard | - |
| DC Resistance Max | 0.04ohm |
Other details
| Brand | FAIR-RITE |
| Part Number | 2512067007Y3 |
| Quantity | Each (Supplied on Cut Tape) |
| Technical Data Sheet EN |  |
All product and company names are trademarks™ or registered® trademarks of their respective holders. Use of them does not imply any affiliation with or endorsement by them. Image is for illustrative purposes only. Please refer to product description.
Bulk Discount
| Quantity | Price |
| 2 | ₹ 18.23 |
| 3-5 | ₹ 18.04 |
| 5-10 | ₹ 17.67 |
| 10+ | ₹ 17.3 |
Bulk discount will be automatically applied during checkout based on quantity.
