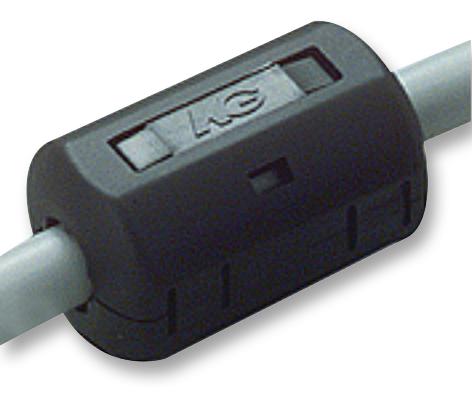

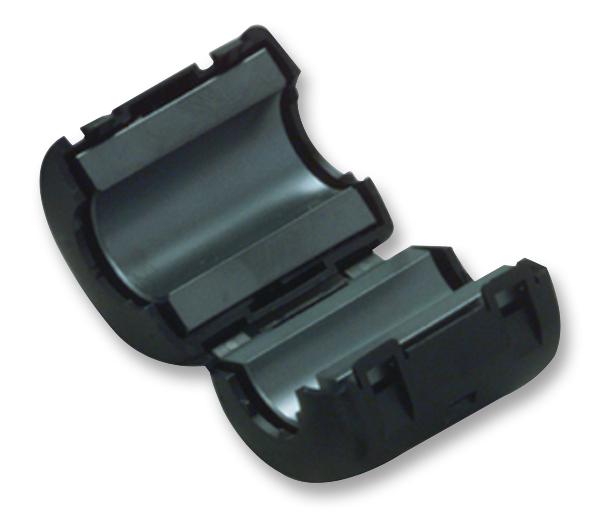

The 0443665806 is a round cable Snap-its Core can easily accommodate round cables or bundled wires with diameters from 2.5mm to 25.4mm. This assembly is available in 43 ferrite material class to suppress differential or common-mode conducted EMI from 1MHz into the GHz region. The polypropylene case meets the RoHS restriction of hazardous substances and has a flammability rating of UL94V-0. Round cable snap-it assembly is controlled for impedances only. Minimum impedance values are specified for the + marked frequencies. The minimum impedance is typically the listed impedance less 20%. The single turn impedance tests for the material are performed on the 4193A vector impedance analyzer and is suitable for use with cable components.
- Supports broadband frequencies (25 to 300MHz)
- 650 Hardness
Applications
Industrial, Communications & Networking
Product details
| Cable Diameter Max |
9.2mm |
| Frequency Min |
25MHz |
| Frequency Max |
300MHz |
| Impedance @ 100MHz |
88ohm |
| Product Range |
- |
Other details
| Brand |
FAIR-RITE |
| Part Number |
0443665806 |
| Quantity |
Each |
| Technical Data Sheet EN |
 |
