EZQuest X40031 Overview
-
1Description
-
2One Hub, Ten Connections
-
3Power Delivery 3.0
-
44K External Monitor Support
Connect your laptop to an external display, projector, and more with the EZQuest USB-C Multimedia 10-in-1 Gen 2 Hub. The built-in HDMI output supports display resolutions up to 3840 x 2160 at 60 Hz (4K60) for an immersive experience when streaming movies or an expanded workspace for multitasking or presentations.

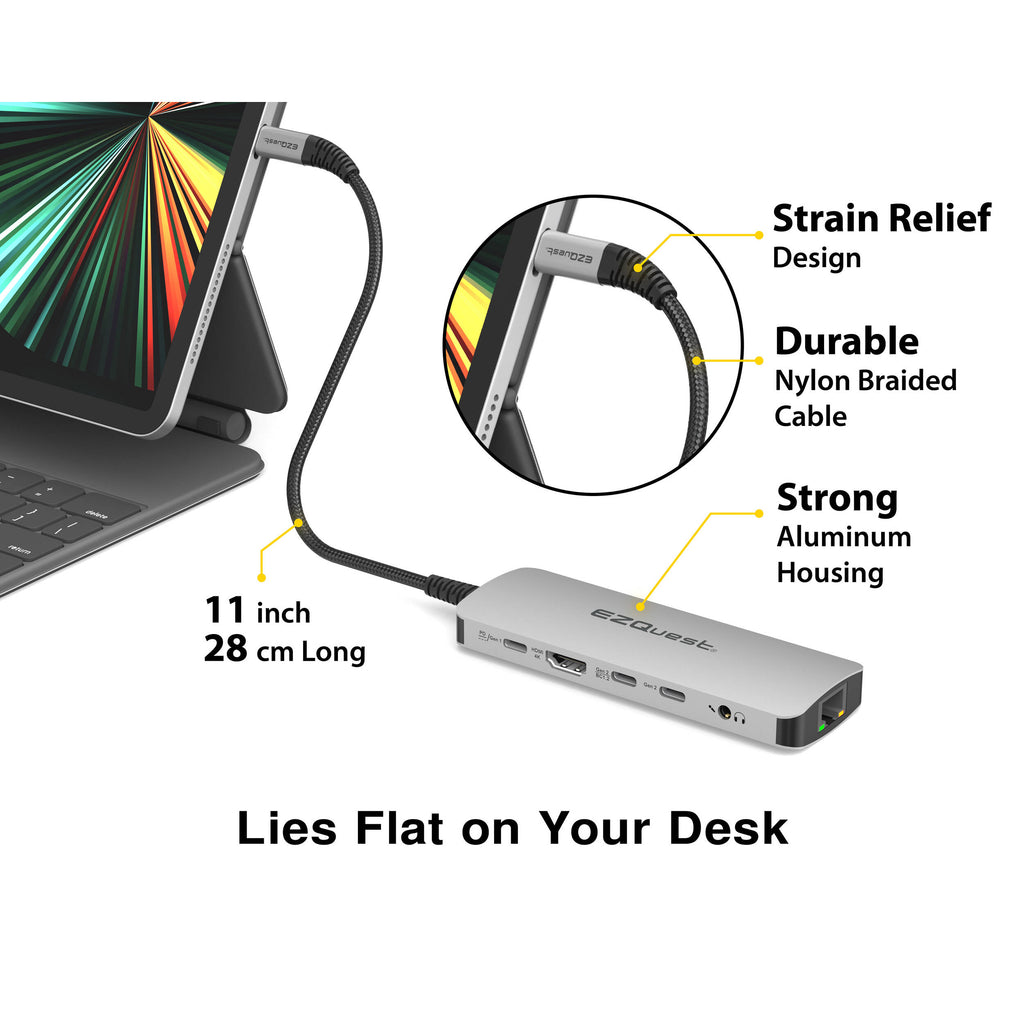

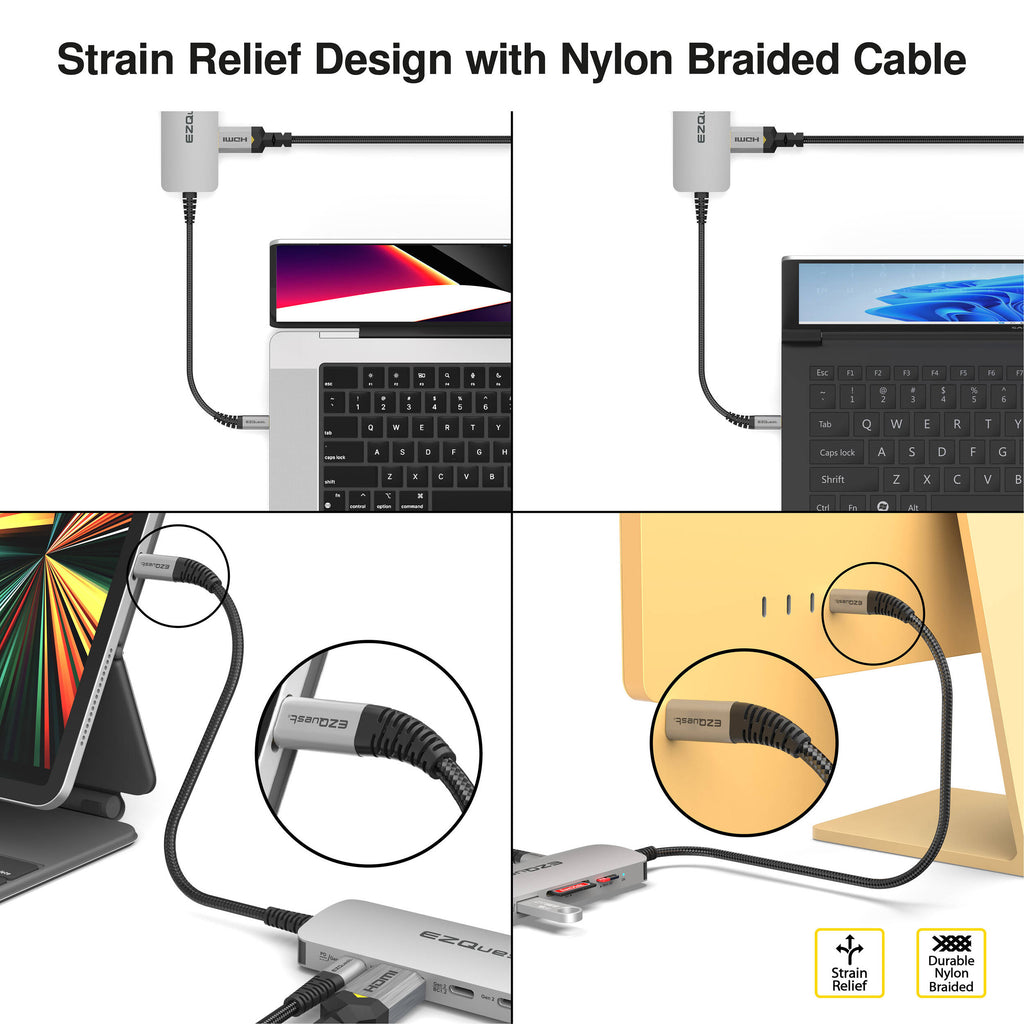

The hub has three USB-C ports and two USB-A ports for peripherals like a mouse, keyboard, and printer, and conveniences like the SDHC and microSDHC slots for photo transfer. Take advantage of the 3.5mm combo-audio jack for headphones or a microphone, and a Gigabit Ethernet port for a reliable network connection. This aluminum hub connects to your host system with an integrated 11" nylon braided USB-C 3.2 Gen 2 cable that delivers data transfer rates up to 10 Gb/s, while one of the USB-C ports allows pass-through charging up to 88W.
- HDMI output with 4K60 and HDCP support
- Two USB-C 3.2 Gen 2 5V/1.5A (7.5W)
- Two USB-A 3.2 Gen 1 5V/1.5A (7.5W)
- One USB-C 3.2 Gen 2 Power Delivery or data port
- 3.5mm combo-audio jack
- Gigabit Ethernet with LED indicator
- SDHC and microSDHC card slots
Note:

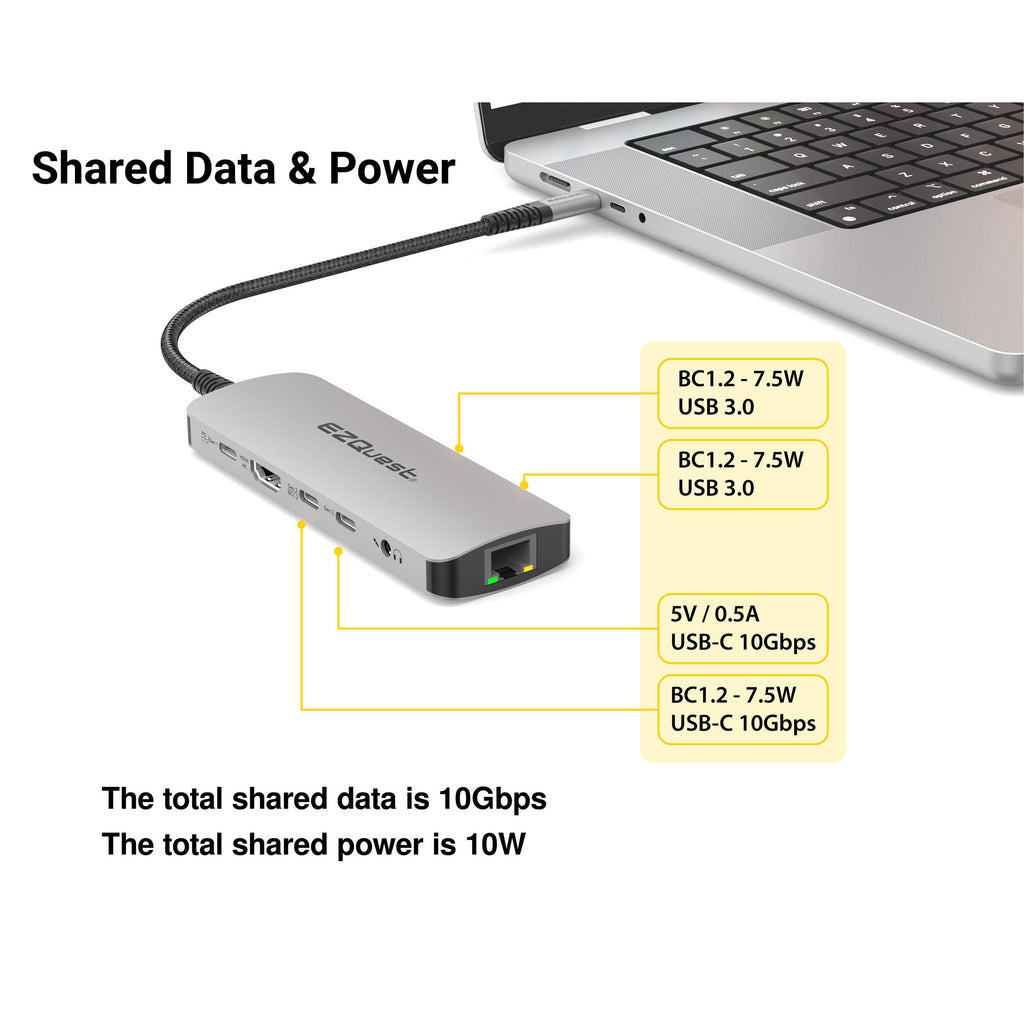

The USB ports have a total shared bandwidth of 10 Gb/s. The USB ports do not support the Apple SuperDrive.
No need to swap your peripherals when you have to charge your laptop. Connect your laptop's USB-C charger to the hub for pass-through power up to 100W, minus 12W for device operations.
Note:
A minimum 45W charger is recommended to deliver up to 33W pass-through charge while using other adapter functions.
4K External Monitor Support
Enjoy resolutions up to 3840 x 2160 (4K) at 60 Hz. This hub is also HDCP compliant, allowing protected content like Netflix to playback.
In the Box
- EZQuest USB-C Multimedia 10-in-1 Gen 2 Hub
- Limited 18-Month Manufacturer Warranty
Table of Contents
- Description
- One Hub, Ten Connections
- Power Delivery 3.0
- 4K External Monitor Support
EZQuest X40031 Specs
Ports
USB |
1 x USB-C USB 3.0 / 3.1/3.2 Gen 1 (100 W) 2 x USB-C USB 3.1/3.2 Gen 2 2 x USB-A USB 3.0 / 3.1/3.2 Gen 1 |
Thunderbolt |
None |
Ethernet |
1 x RJ45 (10/100/1000 Mb/s) |
Display |
1 x HDMI |
Audio |
1 x 1/8" / 3.5 mm Headphone/Microphone Combo Jack |
Media Card Reader |
1 x SDHC 1 x microSDHC |
Host Connections
Host Connection |
USB-C (USB4) |
Connection Type |
Integrated Cable |
Powered Connection |
88 W USB Power Delivery 3.0 |
General
Maximum Resolution Supported |
4096 x 2160 at 60 Hz |
HDCP Support |
No |
Power
Power Source |
Bus Powered |
Power I/O |
USB-C |
Maximum Power Consumption |
100 W |
Physical
Cable Length |
11" / 28 cm |
Enclosure Material |
Aluminum |
Lock Slot |
No |
Dimensions |
4.8 x 1.7 x 0.6" / 123 x 43 x 16 mm |
Weight |
3 oz / 85 g |
Packaging Info
Package Weight |
0.345 lb |
Box Dimensions (LxWxH) |
8 x 4.5 x 1.4" |
