EZQuest Ultimate Plus Overview

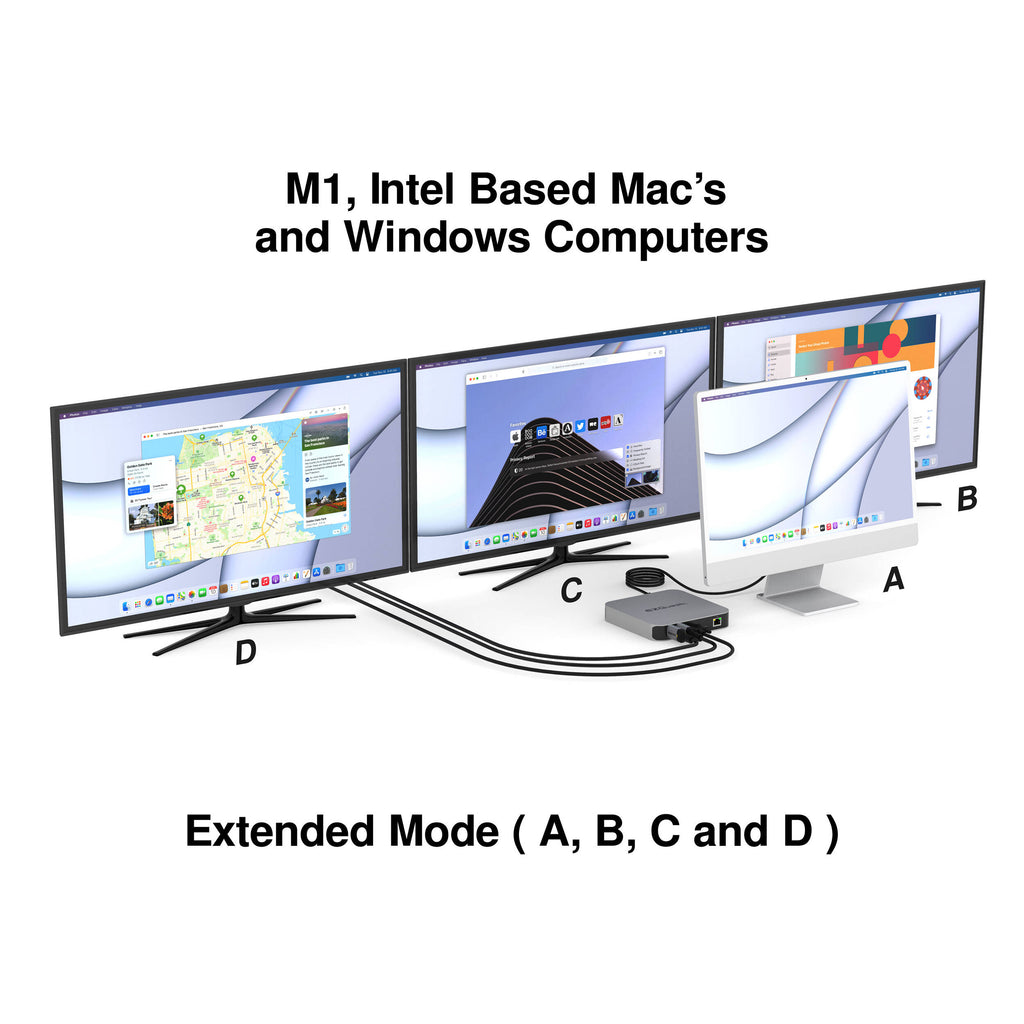

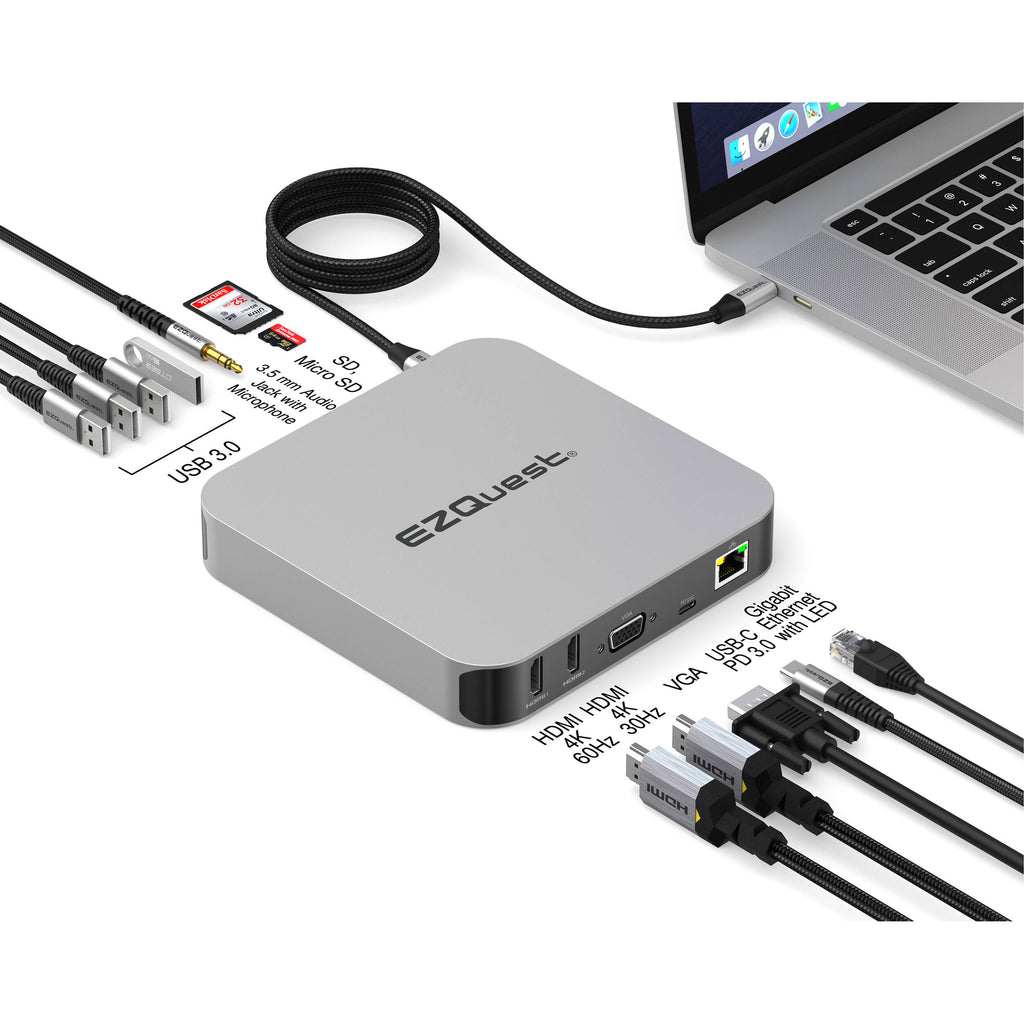

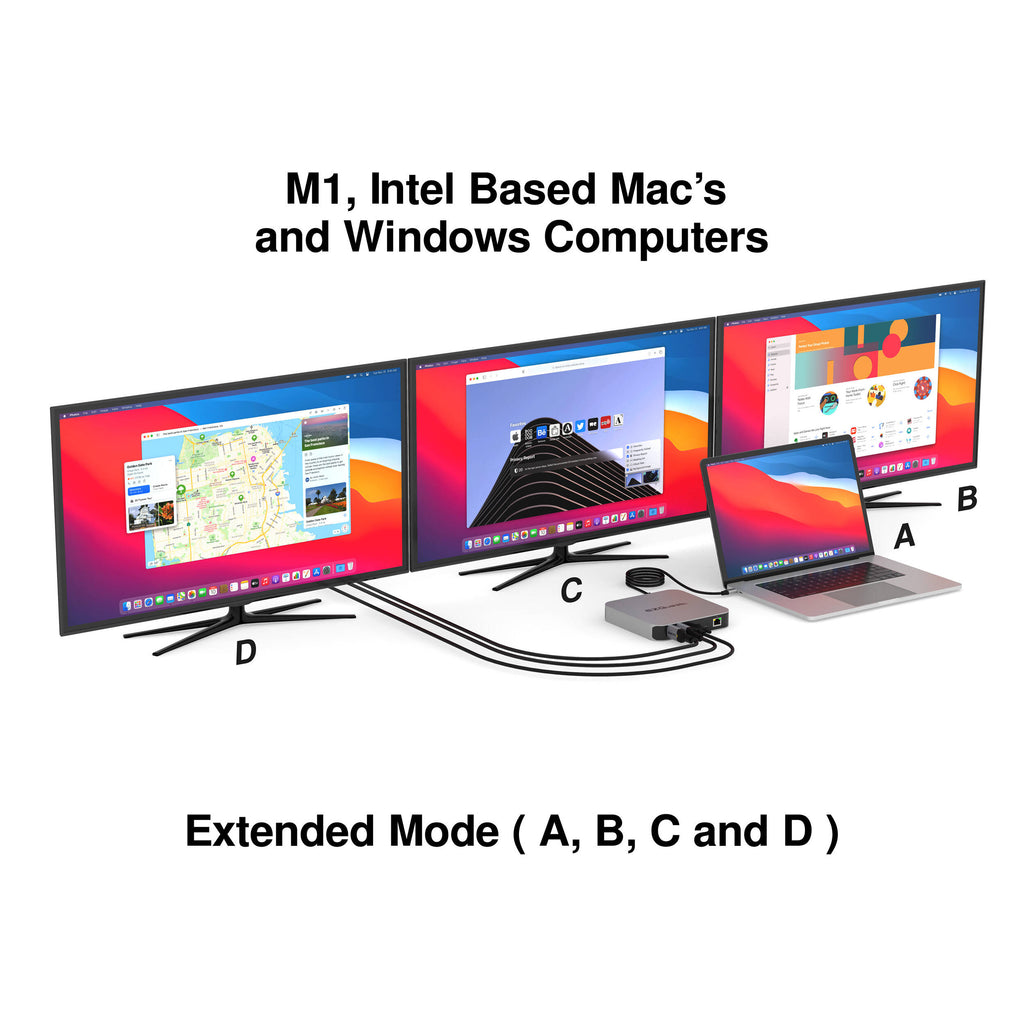

Enhance your workflow by expanding the capabilities of your USB Type-C compatible laptop with the EZQuest Ultimate Plus 12-Port USB Type-C Multimedia Hub. Compatible with both Windows and Mac systems, you simply connect this hub to your system using its included detachable USB Type-C cable to get started. This hub includes two HDMI ports, which allow you to add one or two 3840 x 2160 resolution 4K displays alongside a single 1080p monitor through the VGA port for larger viewing and efficient multitasking. Select MacBook Pros can add a fourth display using their built-in HDMI ports. The Ultimate Plus hub also includes four USB 3.1 Gen 1 Type-A ports, each of which can transfer up to 5 Gb/s with compatible flash drives and peripherals while supplying 4.5W of power to help keep mobile devices charged. Other features include SDHC and microSDHC card readers, an RJ45 Ethernet port, a 3.5mm audio, and a USB Type-C power port that can deliver up to 100W to compatible laptops when connected to a separately sold AC power adapter and cable.
USB 3.1 Gen 1 features a maximum throughput of 5 Gb/s. USB 3.1 Gen 1 and USB 3.0 are synonymous.
In the Box
- EZQuest Ultimate Plus 12-Port USB Type-C Multimedia Hub
- USB Type-C Cable (3.3')
EZQuest Ultimate Plus Specs
Ports
| USB |
4 x USB-A USB 3.0 / 3.1/3.2 Gen 1 (4.5 W)
1 x USB-C USB (Charging Only)
1 x USB-C USB 3.0 / 3.1/3.2 Gen 1 |
| Thunderbolt |
None |
| Ethernet |
1 x RJ45 (10/100/1000 Mb/s) |
| Display |
2 x HDMI
1 x VGA |
| Audio |
1 x 1/8" / 3.5 mm Headphone/Microphone Combo Jack |
| Media Card Reader |
1 x SDHC
1 x microSDHC |
Host Connections
| Host Connection |
USB-C 3.0 / 3.1/3.2 Gen 1 |
| Connection Type |
Detachable Cable |
| Powered Connection |
100 W USB Power Delivery 3.0 |
General
| Maximum Resolution Supported |
3840 x 2160 at 60 Hz |
| UASP Support |
Yes |
Physical
| Cable Length |
3.3' / 1 m |
| LED Indicator |
None |
| Lock Slot |
No |
| Dimensions |
2.1 x 2.1 x 1.1" / 53 x 53 x 29 mm |
Packaging Info
| Package Weight |
1.435 lb |
| Box Dimensions (LxWxH) |
9.1 x 8.6 x 1.9" |
