Description

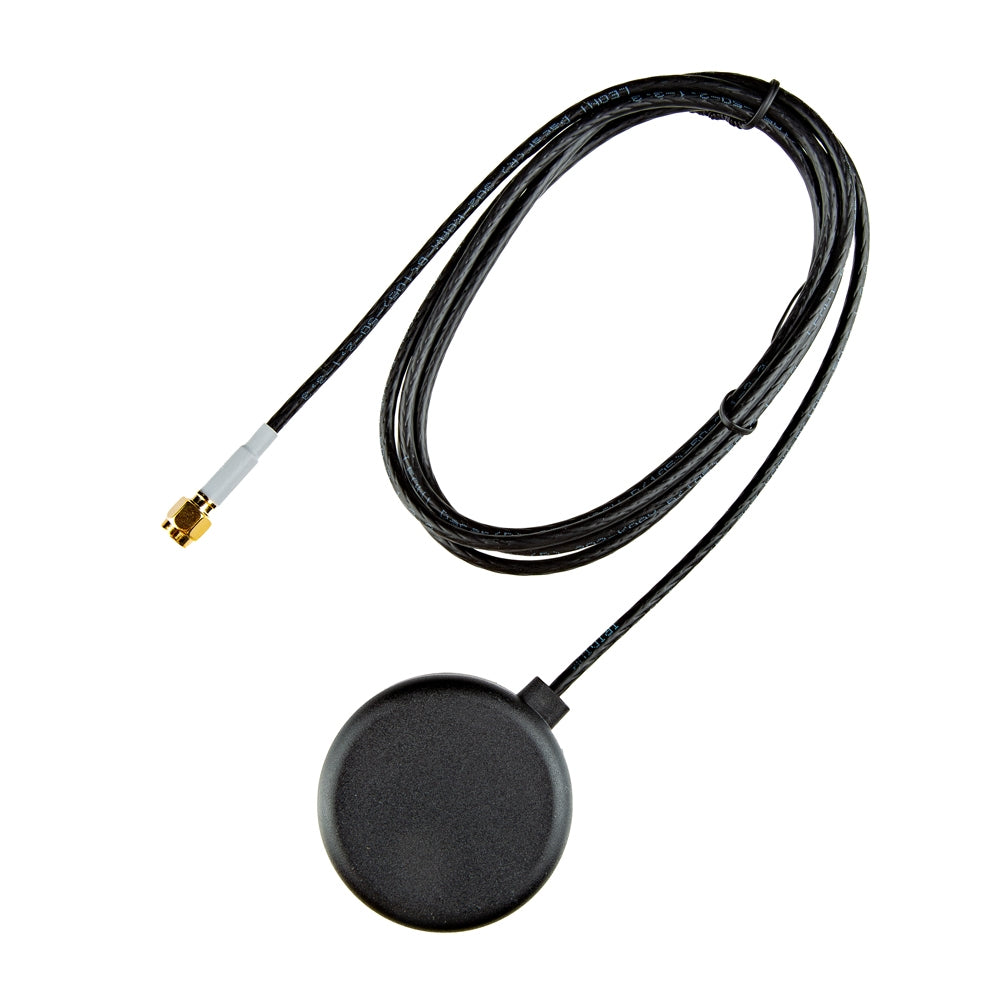

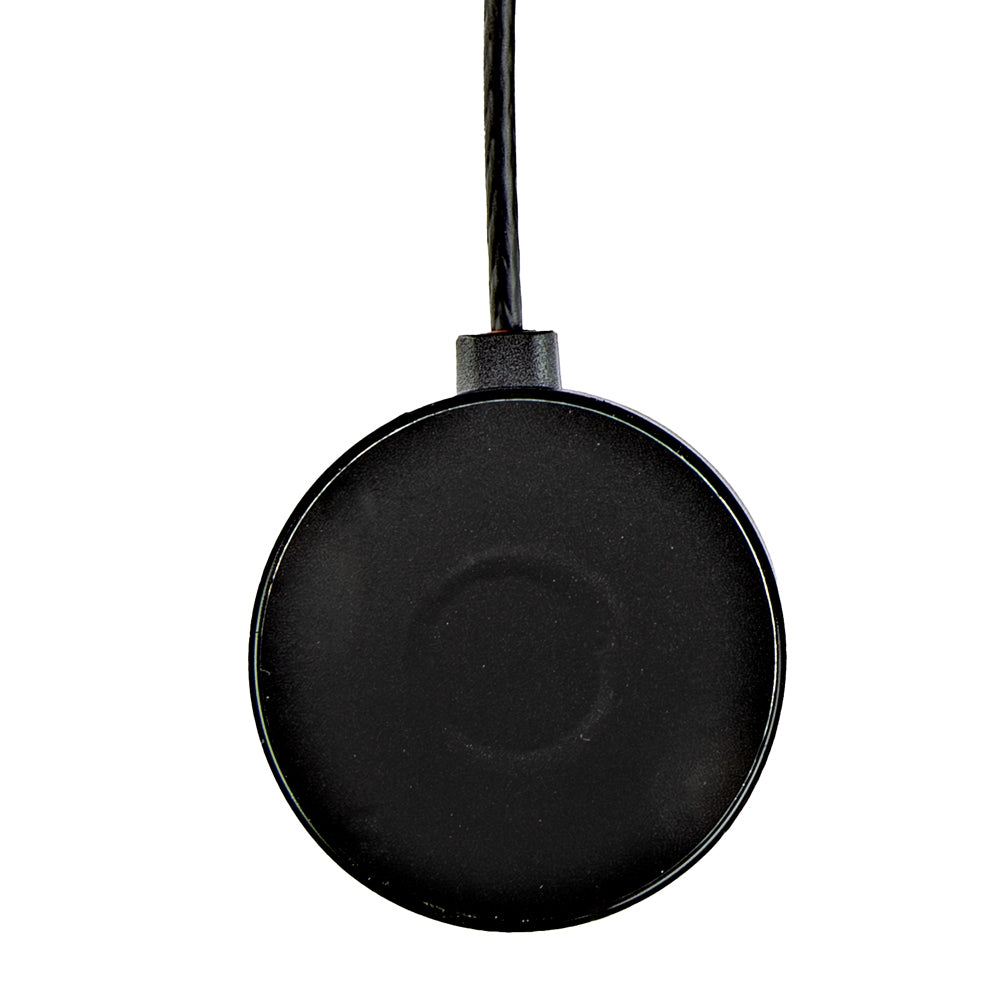

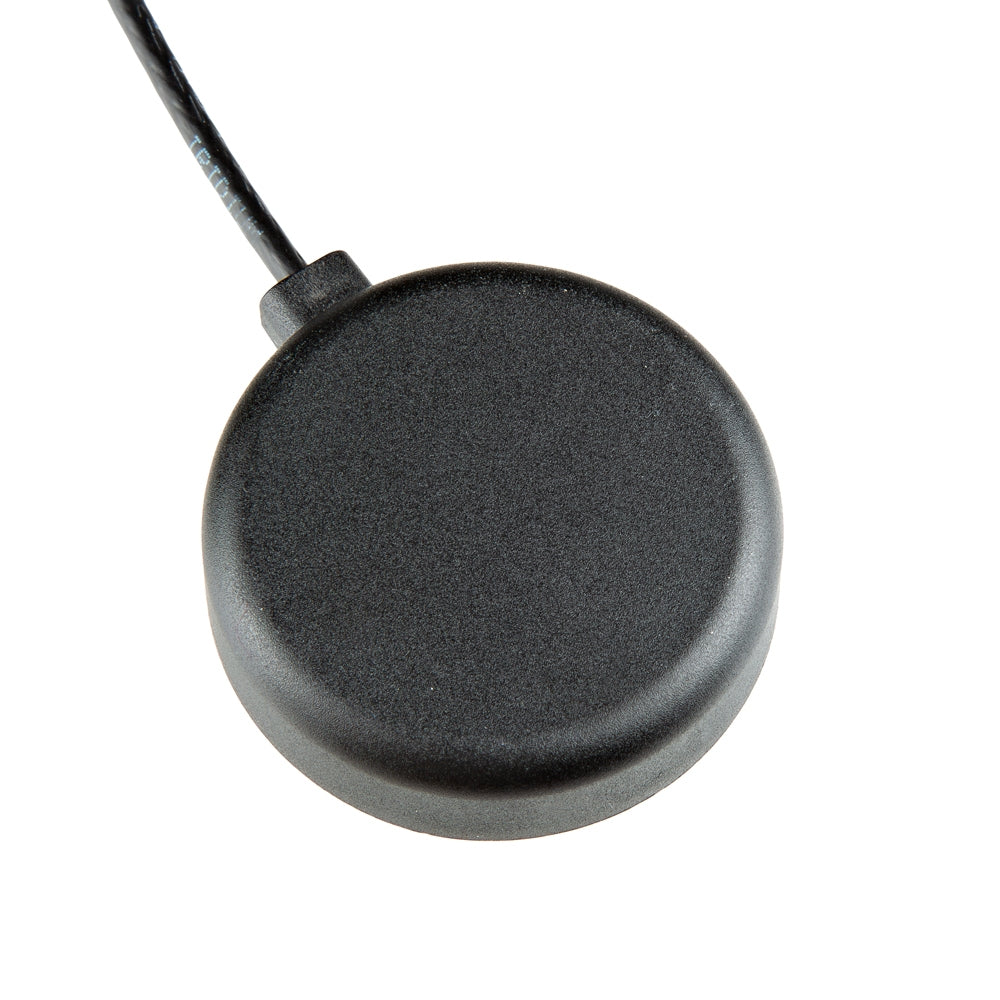

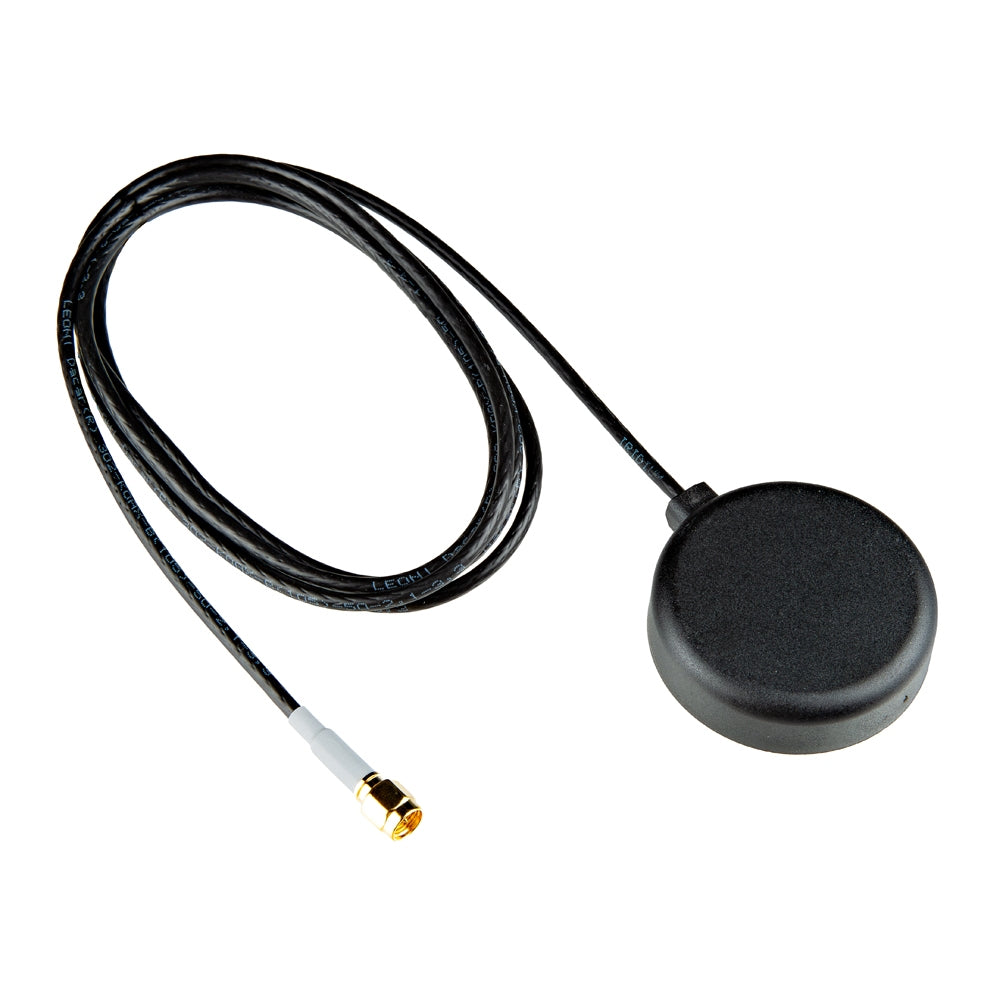

This powerful low-profile antenna has a peak gain of ~5.1 dBi and ~82.3% of efficiency.
Features & Specs

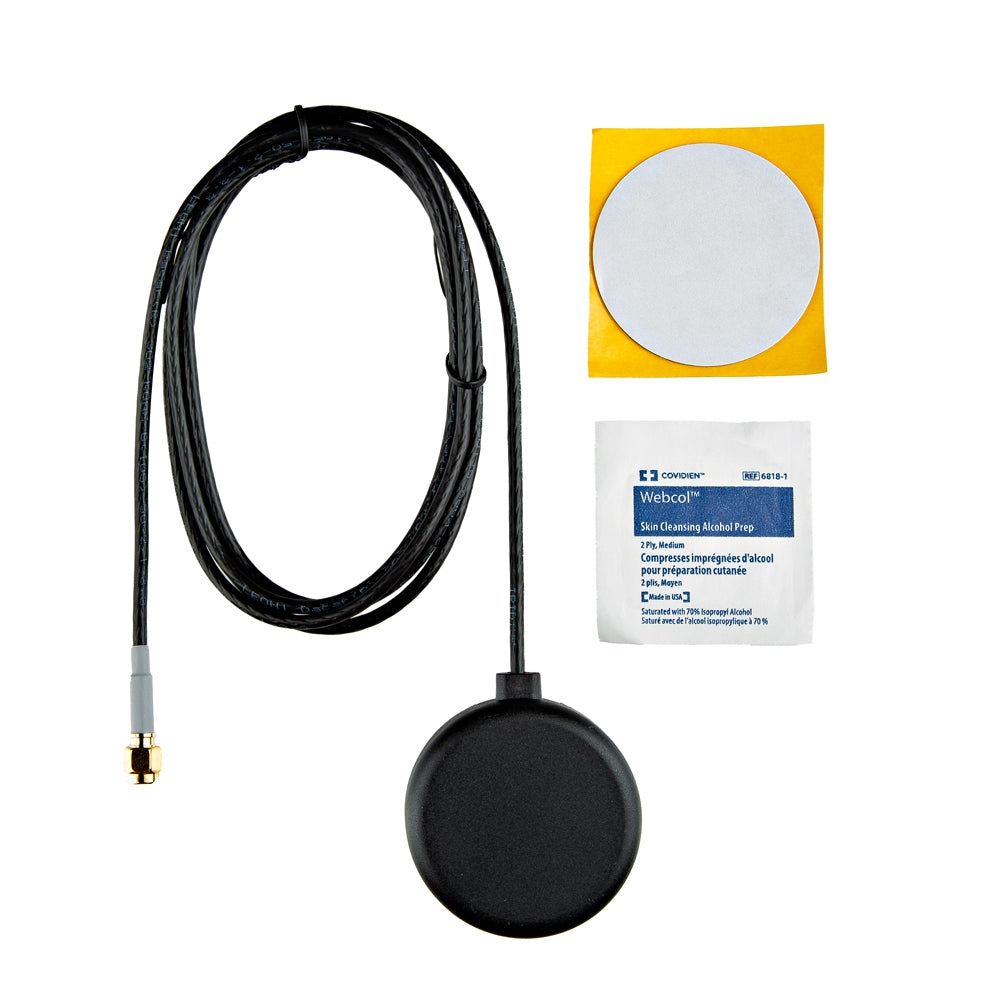

- Magnetic / Adhesive Mount

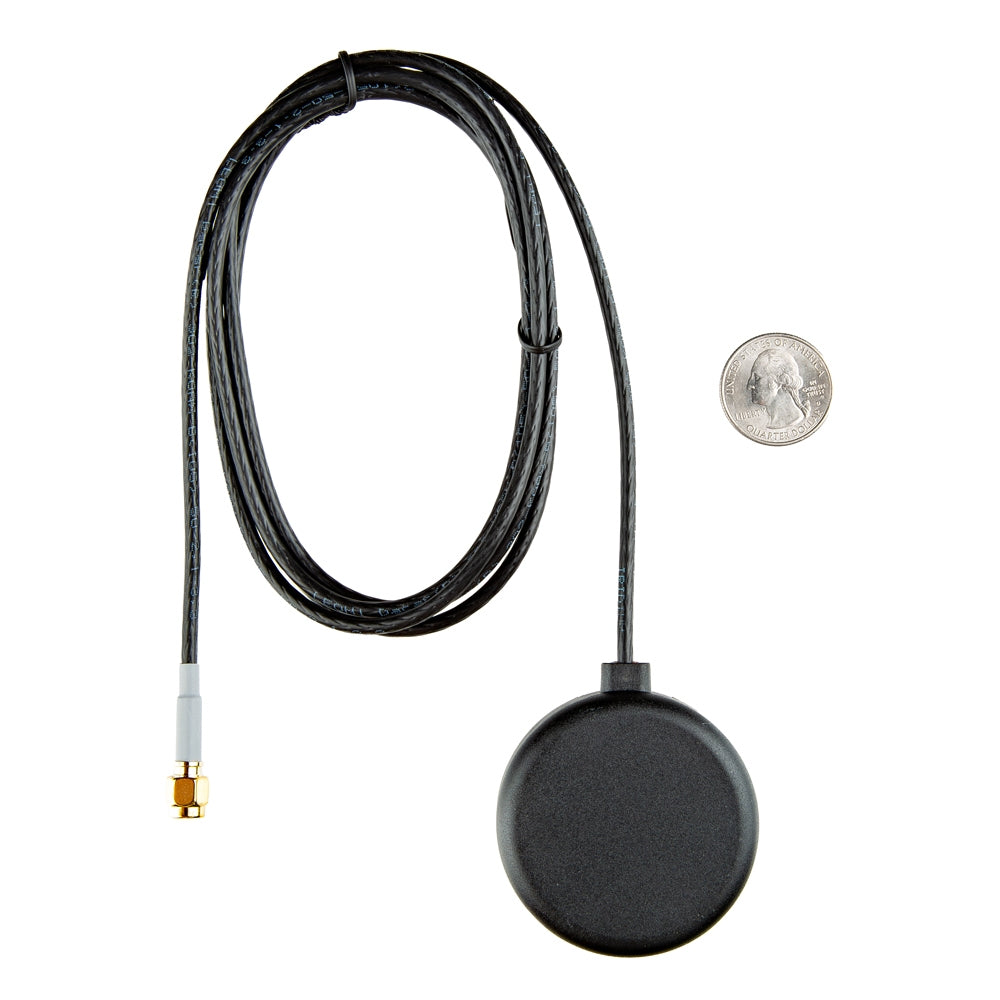

- Dimensions: 14.7mm (H) x 54mm (Ø)
- Operating Temperature: -40 to +85°C (-40 to 185°F)
- Ingress Protection: IP69
- Frequency Range: 1616 – 1626.5 MHz

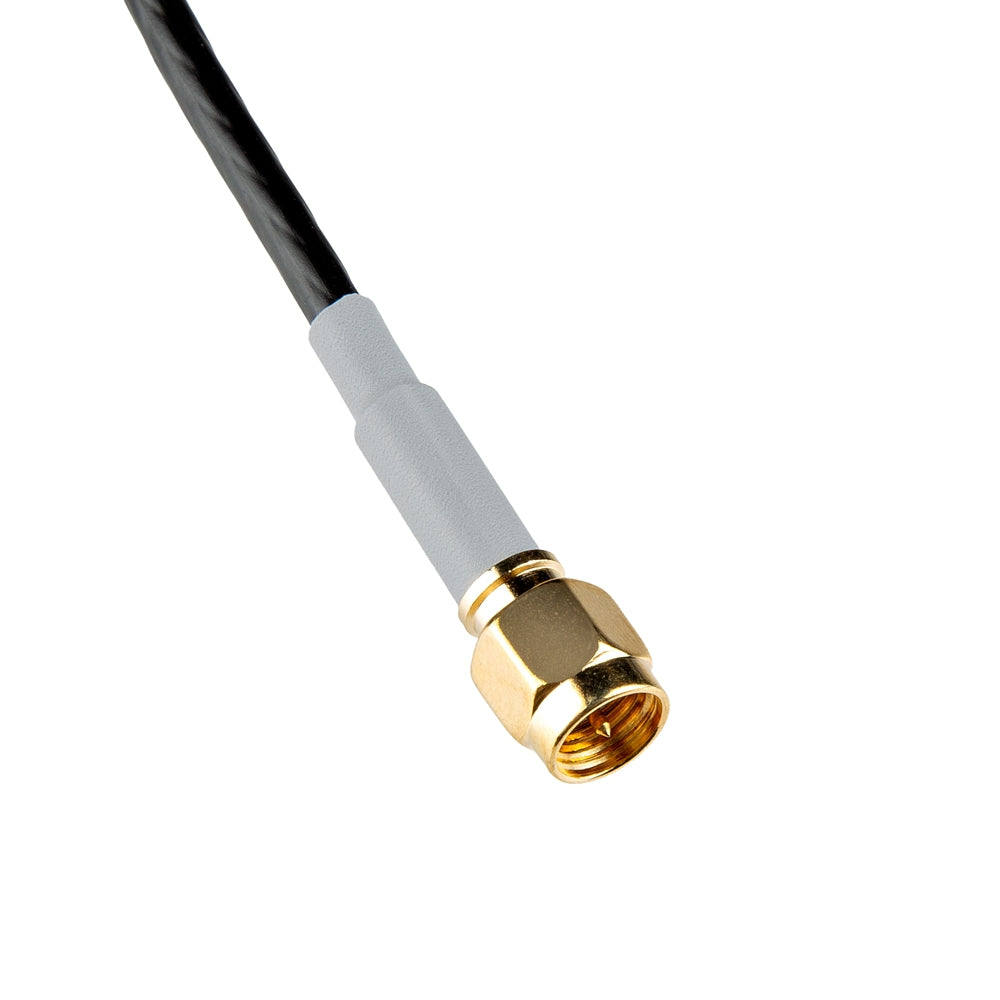

- Connector Type: SMA-Male
- Cable Length: 1.8m
- Cable Type: LL100
- Return Loss (dB): ∼-28.0
- VSWR: ∼1.1:1
- Efficiency: ∼82.3
- Peak Gain (dBI): ∼5.1
- Average Gain (dB): ∼-0.8
- I/O Impedance: 50 Ohm
- Radiation Pattern: Hemispherical
- Polarization: RHCP
Features & Specs
- Magnetic / Adhesive Mount
- Dimensions: 14.7mm (H) x 54mm (Ø)
- Operating Temperature: -40 to +85°C (-40 to 185°F)
- Ingress Protection: IP69
- Frequency Range: 1616 – 1626.5 MHz
- Connector Type: SMA-Male
- Cable Length: 1.8m
- Cable Type: LL100
- Return Loss (dB): ∼-28.0
- VSWR: ∼1.1:1
- Efficiency: ∼82.3
- Peak Gain (dBI): ∼5.1
- Average Gain (dB): ∼-0.8
- I/O Impedance: 50 Ohm
- Radiation Pattern: Hemispherical
- Polarization: RHCP
