Description

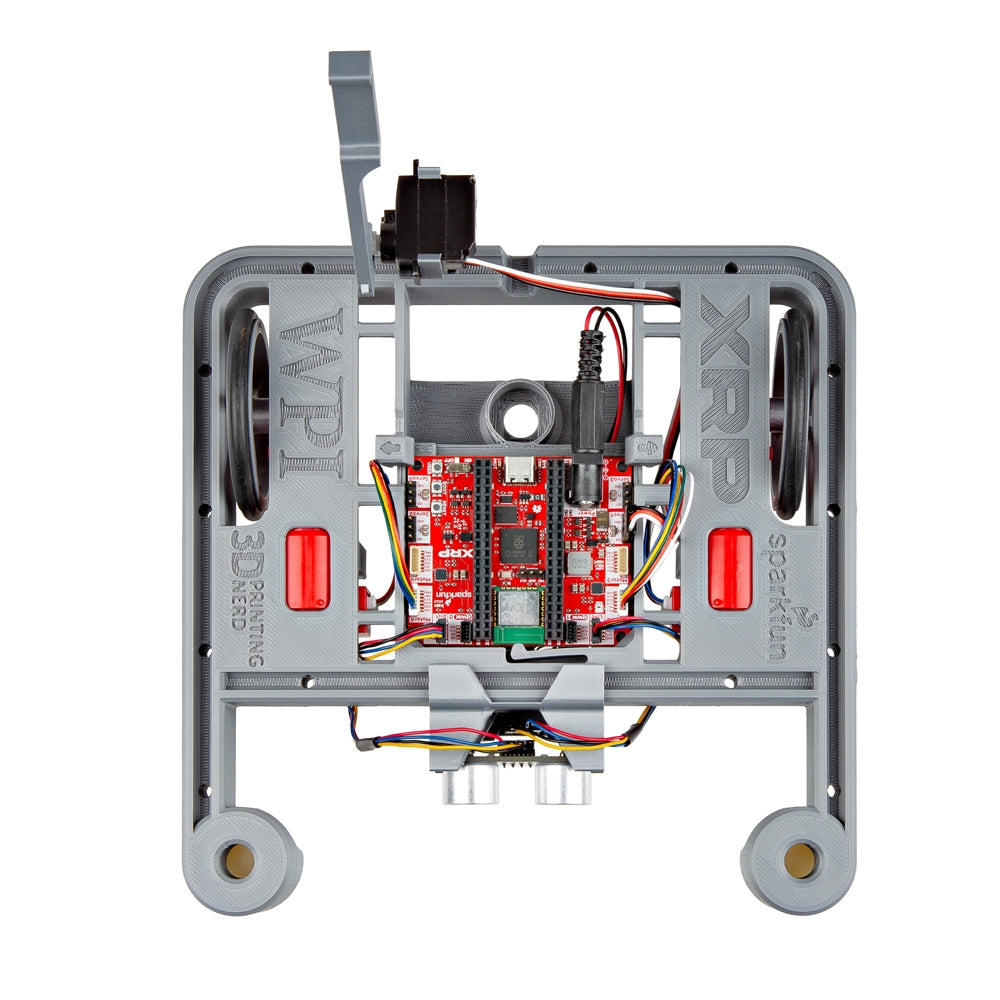

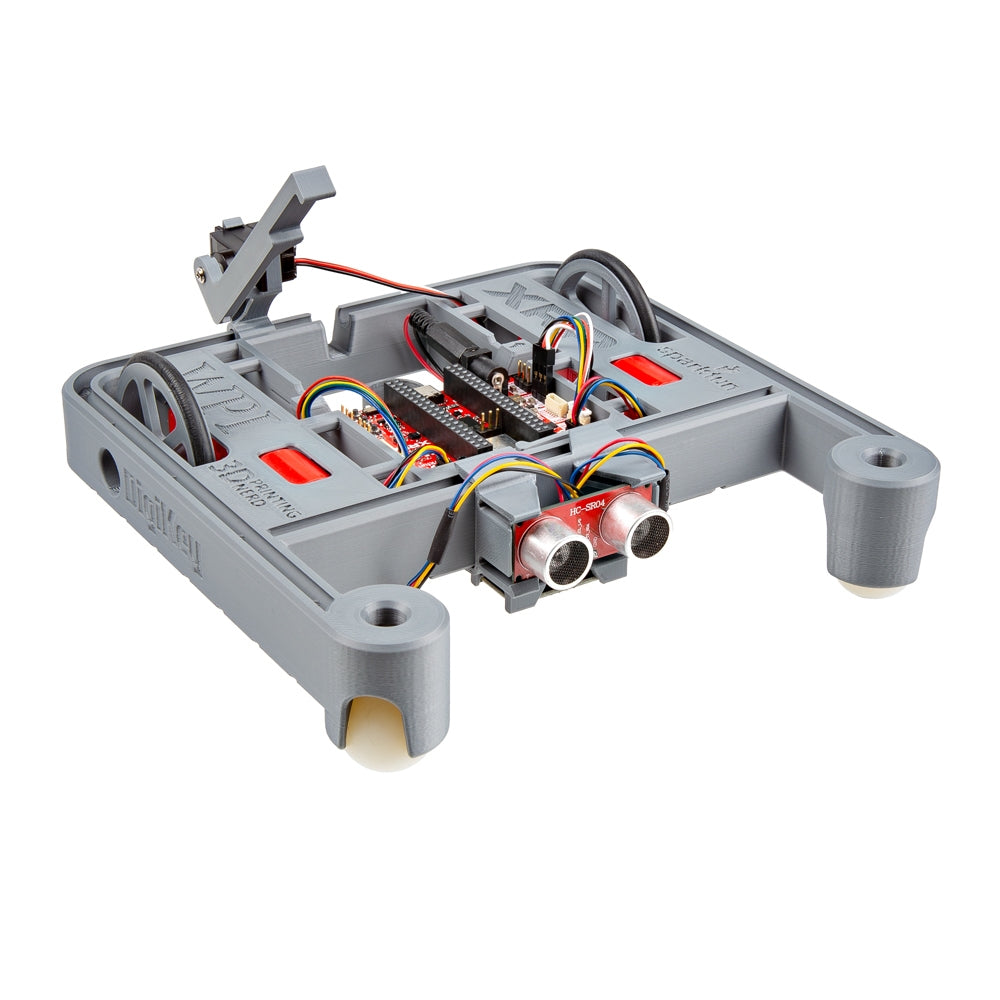

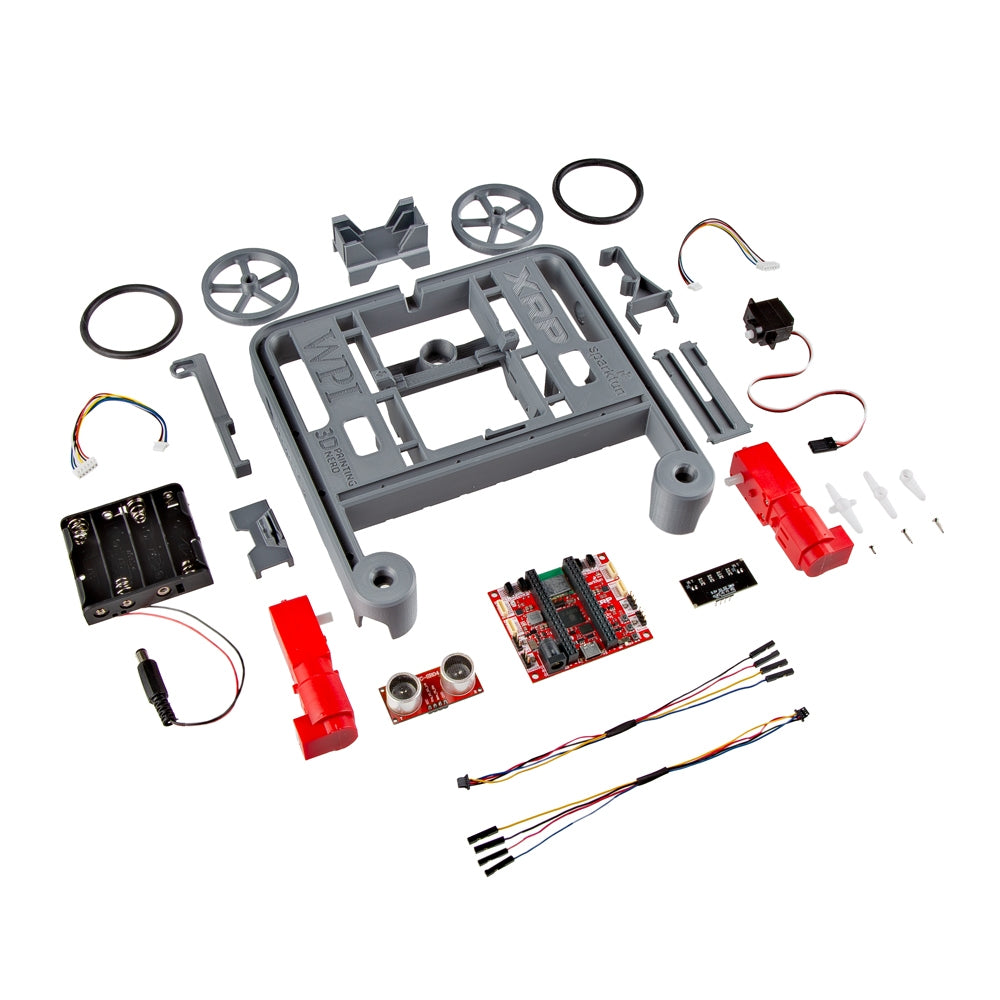

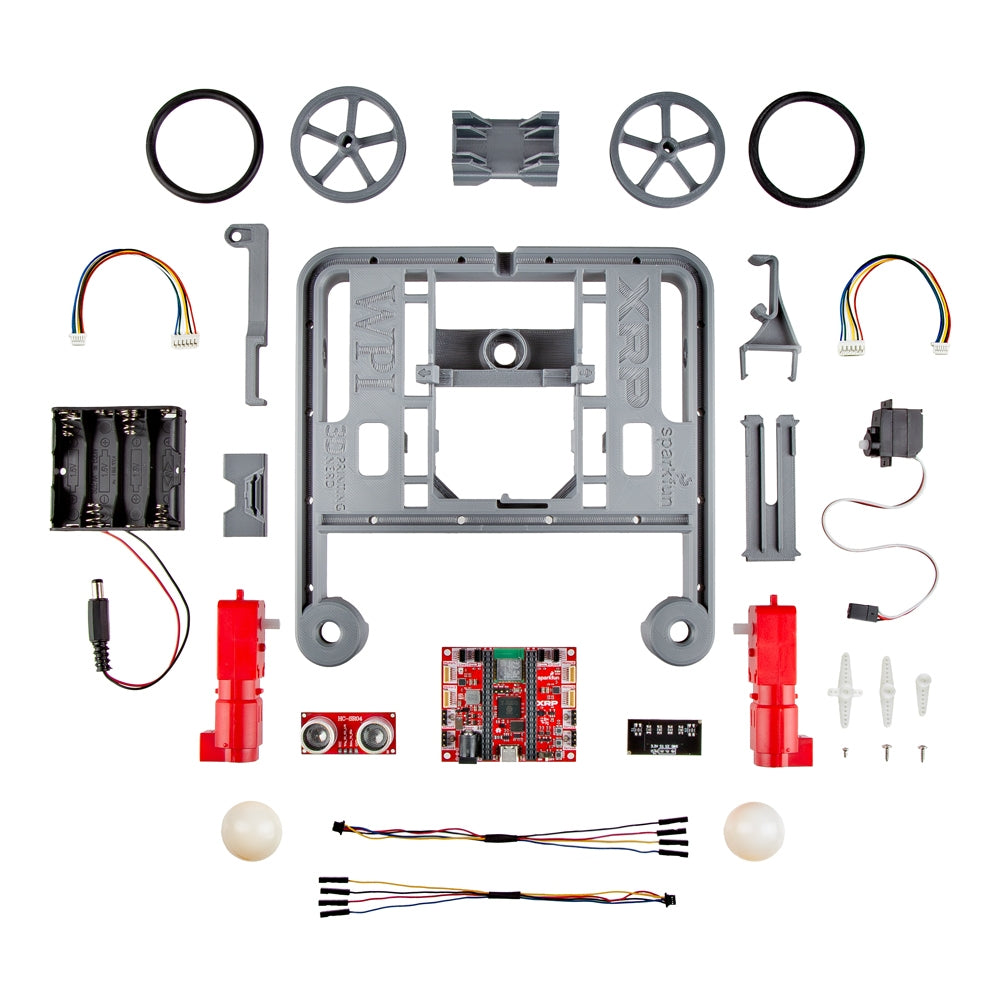

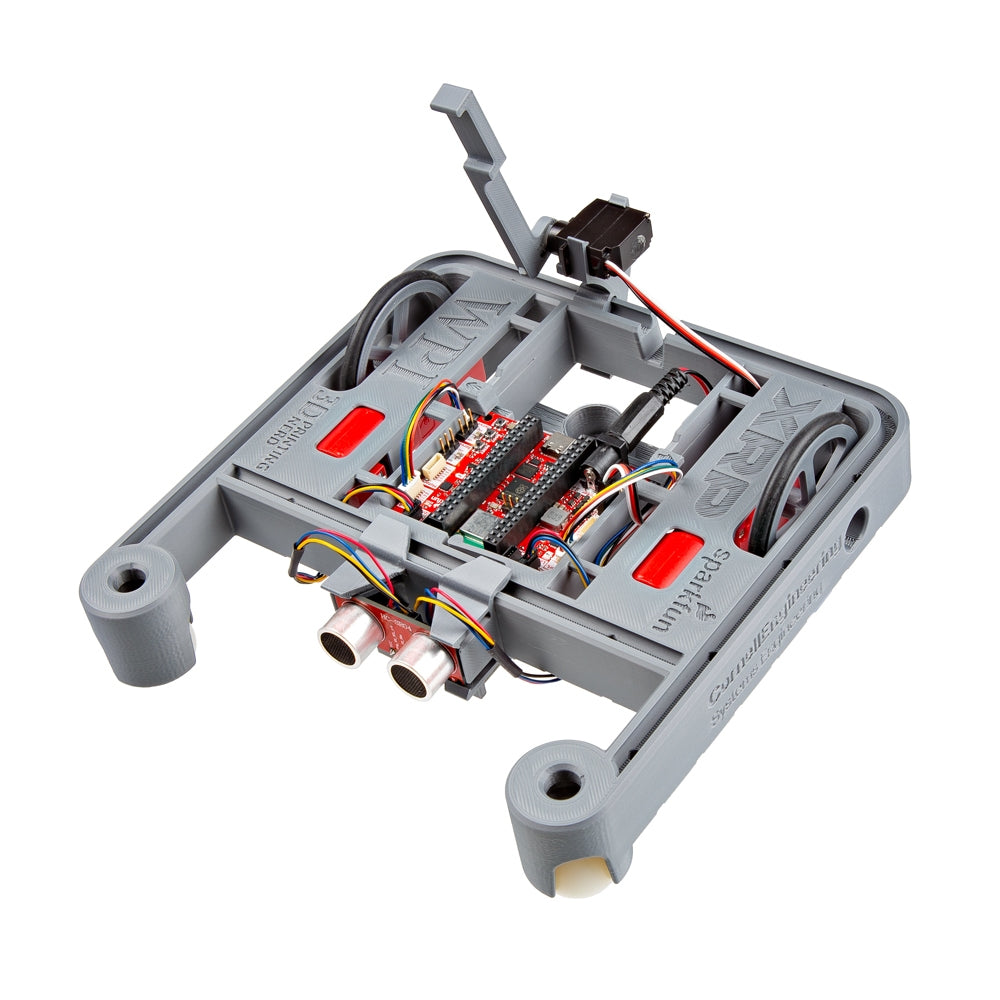

Experience comprehensive, hands-on robotics with the XRP Kit! Build, code, and customize your robot with tool-free assembly and powerful, expandable features. Apply for the educator discount.
Features & Specs
Raspberry Pi RP2350:
- Dual ARM CortexM33 and Hazard3 RISC-V Processors
- User-selectable for dual-cores
- 520kB integrated SRAM in 10 banks
- 3.3V-tolerant GPIO
- Peripherals
- 2x UART
- 2x SPI
- 2x I2C
- 24x PWM Channels
- 12x PIO State Machines
- 1 HSTX (High-speed transmit)
Raspberry Pi Radio Module 2:
- WiFi 4
- Bluetooth 5.2
- BDR (1 Mbps)
- EDR (2 or 3 Mbps)

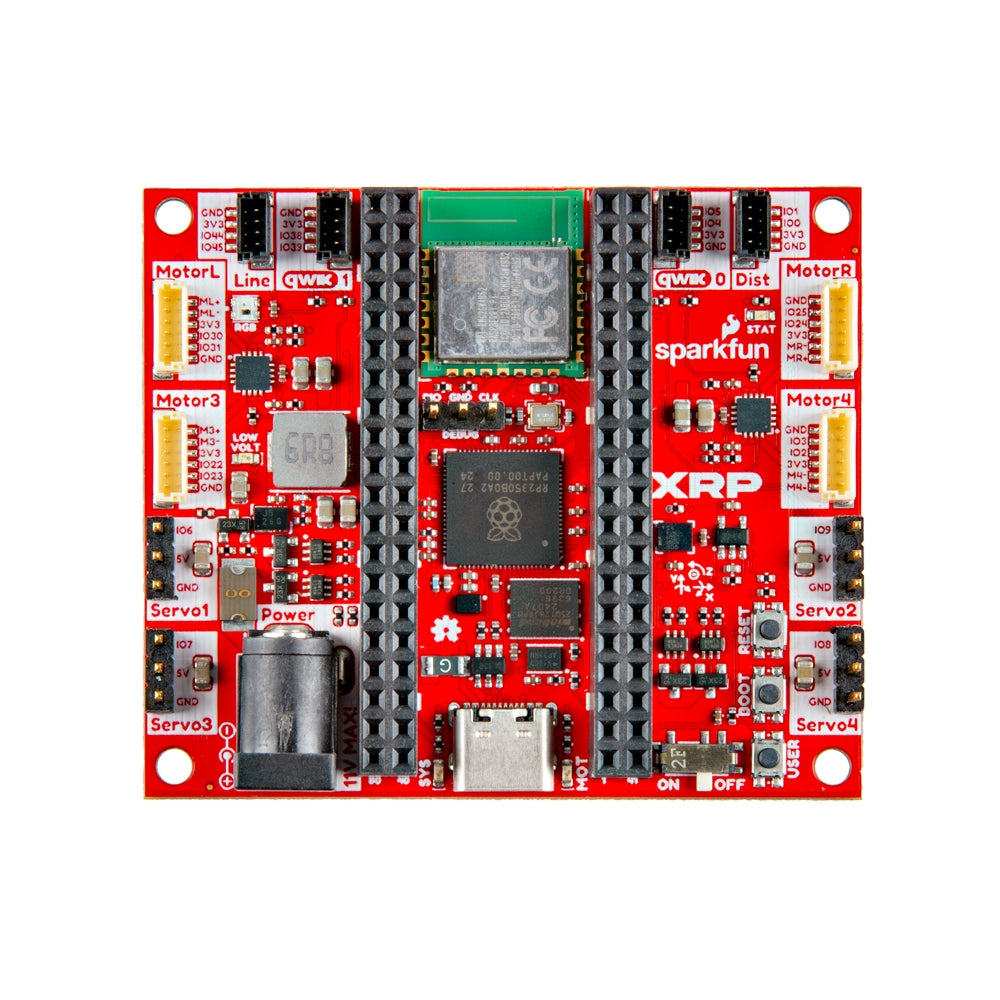

XRP Controller:
- LSM6DSO 6DoF IMU
- 2x DRV8411A H-Bridge Motor Drivers

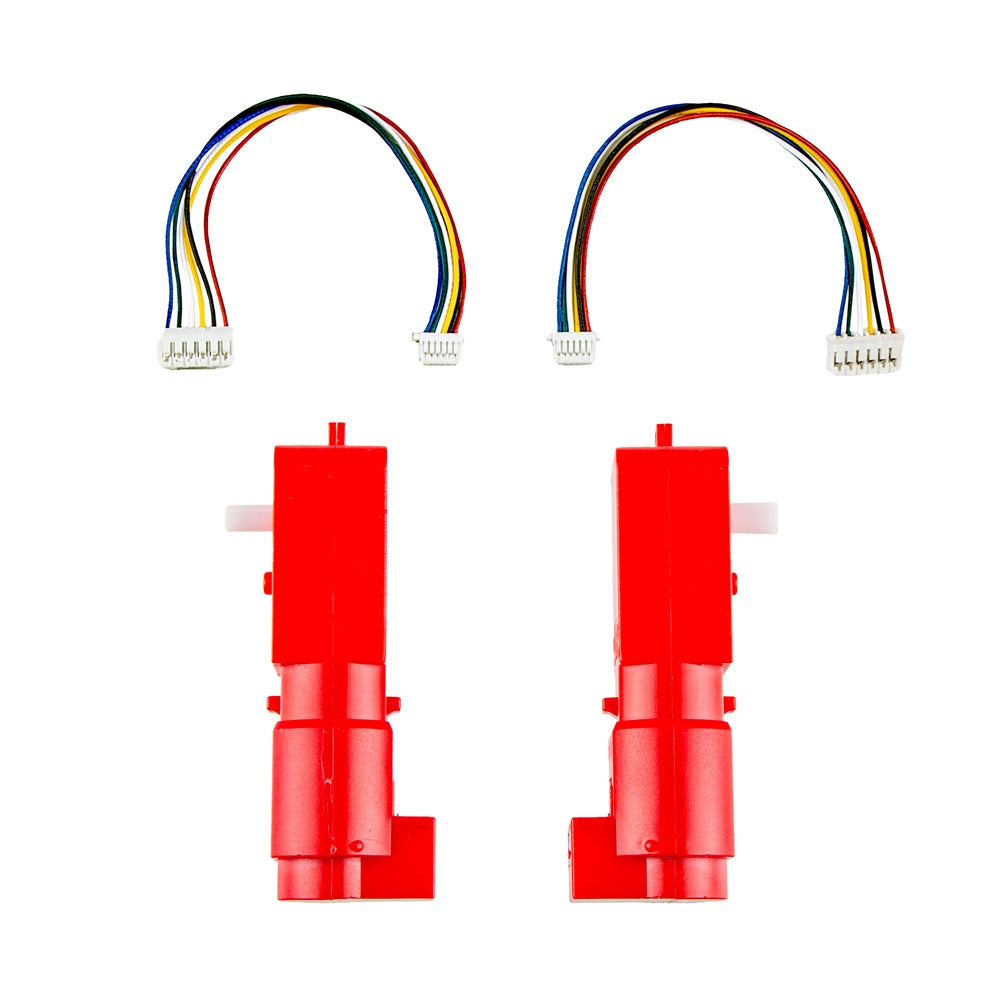

- 4x DC Motor Connectors

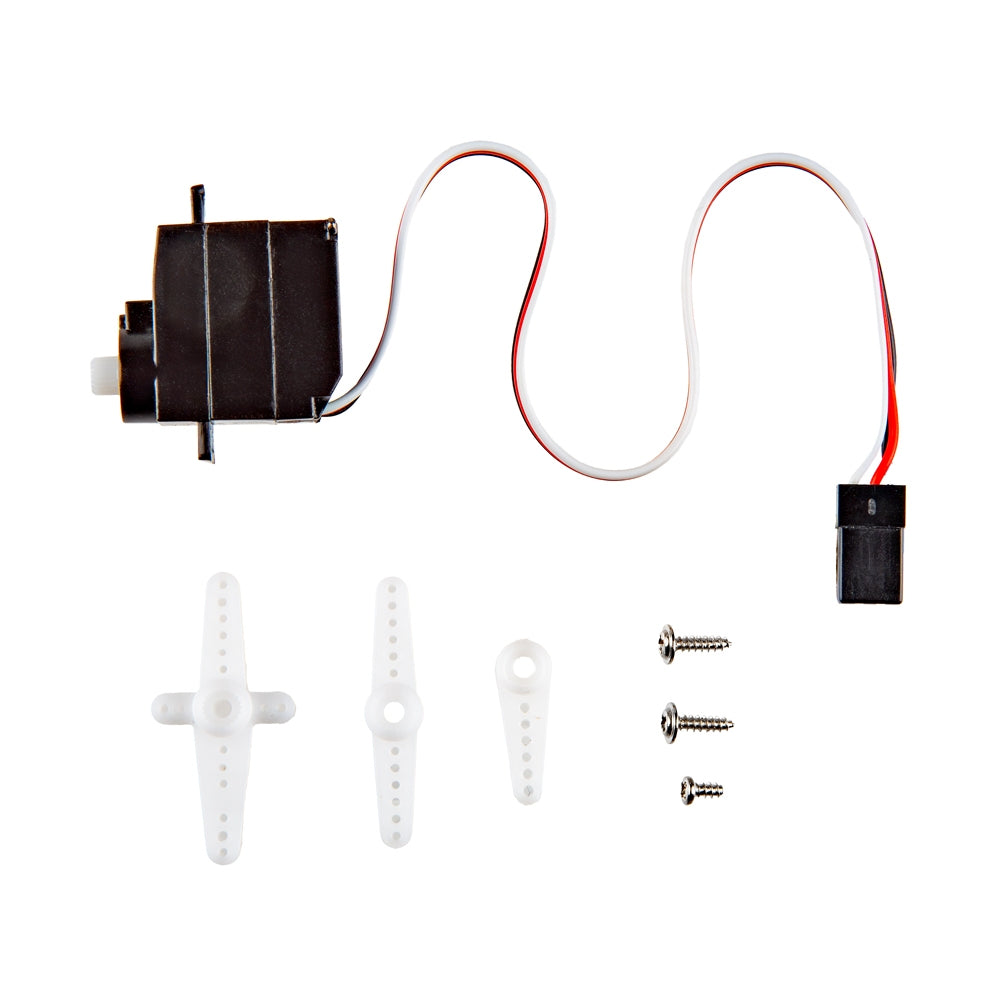

- 4x Servo Motor Connectors
- 2x Vertical Qwiic Connectors
- 1x Line Follower Connector

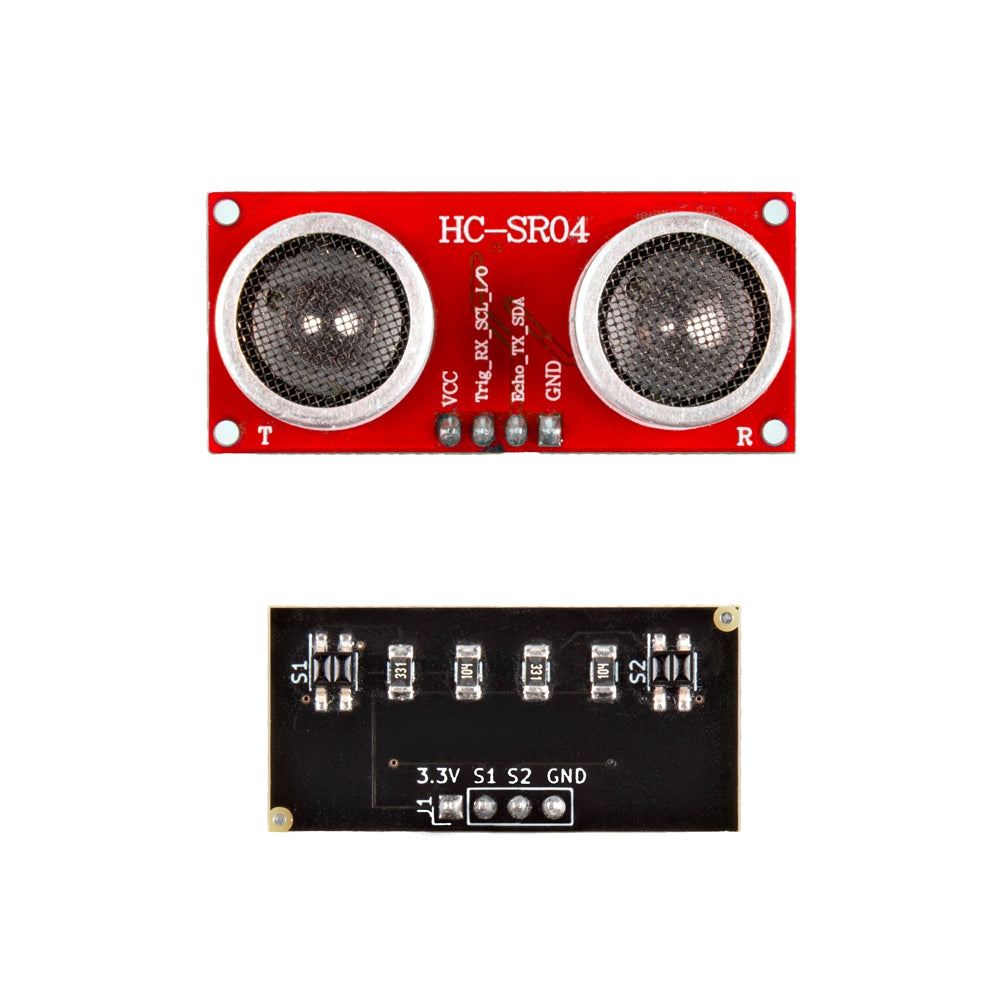

- 1x Range Sensor Connector
- 2x 40-pin Expansion Headers
- 1x 3-pin Debug Header
- 16MB Flash
- 8MB PSRAM
- Power
- Barrel Jack
- USB-C
- Power Switch
- Buttons
- RESET
- BOOT
- USER
- LEDs
- SYS - Red 3.3V Power Status LED
- MOT - Red 5V Power Status LED
- LOW VOLT - Red Battery Voltage Indicator LED
- STAT - Blue LED connected to RM2 IO0
- RGB - WS2812 RGB LED DataIn connects to RP2350 IO37
Features & Specs
Raspberry Pi RP2350:
- Dual ARM CortexM33 and Hazard3 RISC-V Processors
- User-selectable for dual-cores
- 520kB integrated SRAM in 10 banks
- 3.3V-tolerant GPIO
- Peripherals
- 2x UART
- 2x SPI
- 2x I2C
- 24x PWM Channels
- 12x PIO State Machines
- 1 HSTX (High-speed transmit)
Raspberry Pi Radio Module 2:
- WiFi 4
- Bluetooth 5.2
- BDR (1 Mbps)
- EDR (2 or 3 Mbps)
XRP Controller:
- LSM6DSO 6DoF IMU
- 2x DRV8411A H-Bridge Motor Drivers
- 4x DC Motor Connectors
- 4x Servo Motor Connectors
- 2x Vertical Qwiic Connectors
- 1x Line Follower Connector
- 1x Range Sensor Connector
- 2x 40-pin Expansion Headers
- 1x 3-pin Debug Header
- 16MB Flash
- 8MB PSRAM
- Power
- Barrel Jack
- USB-C
- Power Switch
- Buttons
- RESET
- BOOT
- USER
- LEDs
- SYS - Red 3.3V Power Status LED
- MOT - Red 5V Power Status LED
- LOW VOLT - Red Battery Voltage Indicator LED
- STAT - Blue LED connected to RM2 IO0
- RGB - WS2812 RGB LED DataIn connects to RP2350 IO37
Documentation
- XRP Robotics Platform Home Page (Online Modules, Coding Environment, and More Detailed Information)
- XRP Hardware Overview
- XRP Compliance Documentation
- XRP Controller GitHub Repository

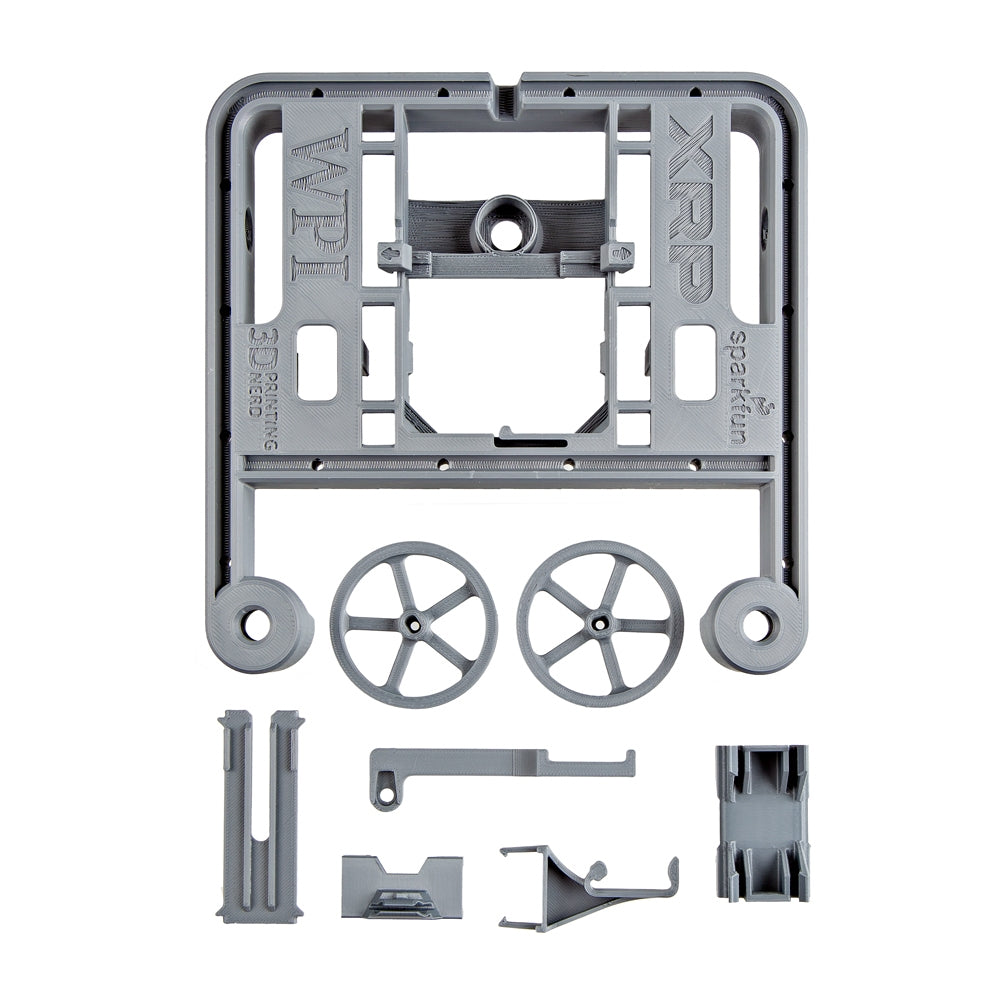

- XRP Chassis 3D Printing Files
WARNING: This product may contain chemicals known to the State of California to cause cancer and birth defects or other reproductive harm. See link below for more information. www.P65Warnings.ca.gov
