Evno Microphone Systems TPX2-W2 Dual-Channel Wireless Microphone System for Trumpet (902 to 928 MHz)

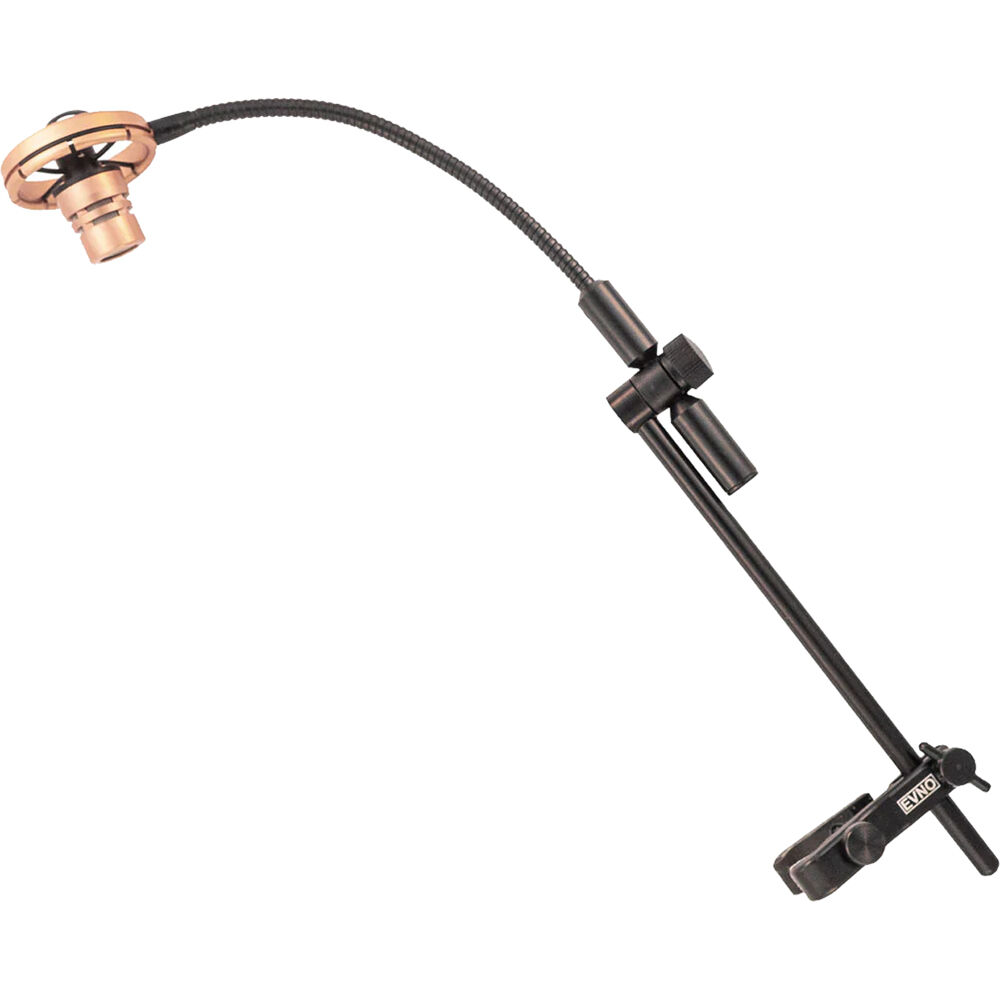

TPX2 Microphone for Trumpet and Flugelhorn

The TPX2 microphone is tuned specifically for trumpet and flugelhorn to capture the most authentic sound with maximum gain before feedback. It features a durable, vented aluminum body with a 7-point O-ring suspension for minimal handling noise and true acoustic accuracy.

The TPX2 system includes a 6.5? Flex-Stay gooseneck that provides precise positioning. Mount the microphone off the bell using the included TPX-CL lead-pipe clamp and extension rod or remove the rod and swap to an Evno Swivel Clamp (optional) for traditional bell-mount use. This dual configuration offers exceptional versatility for players who require both fixed and bell-mounted setups.

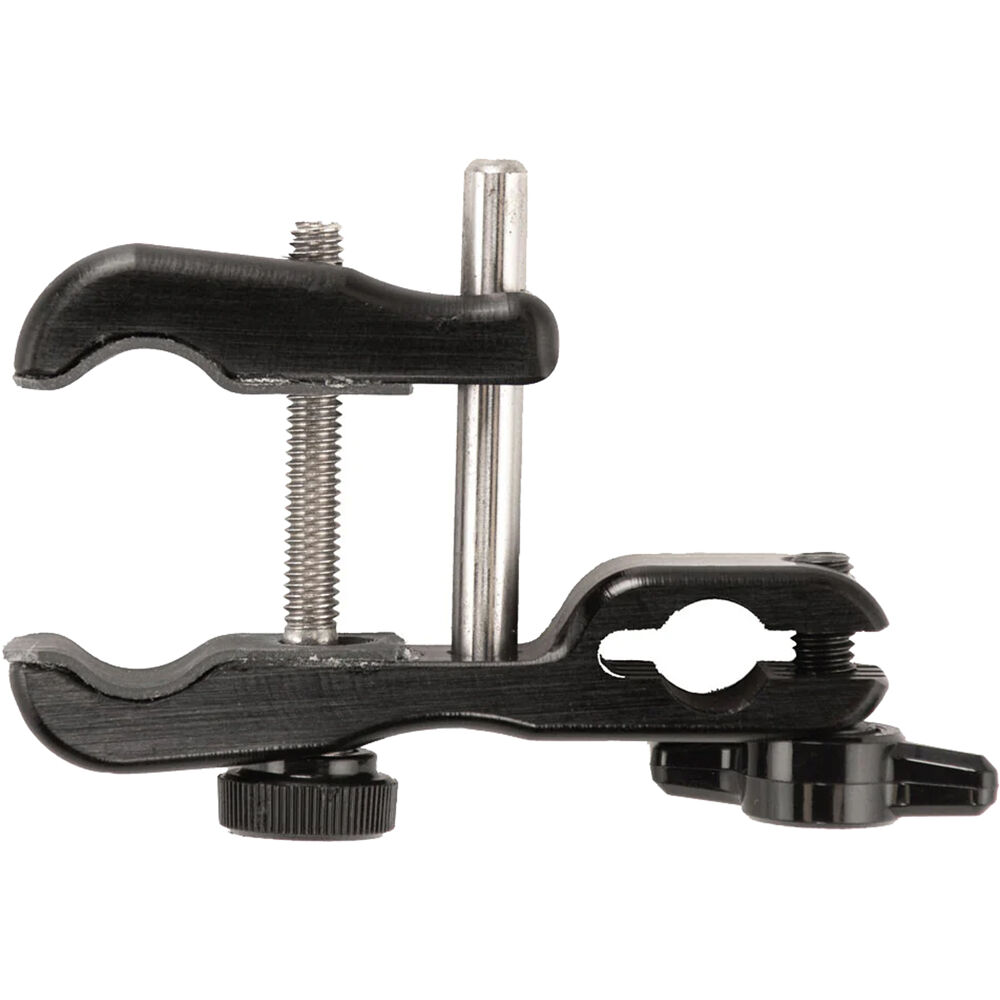

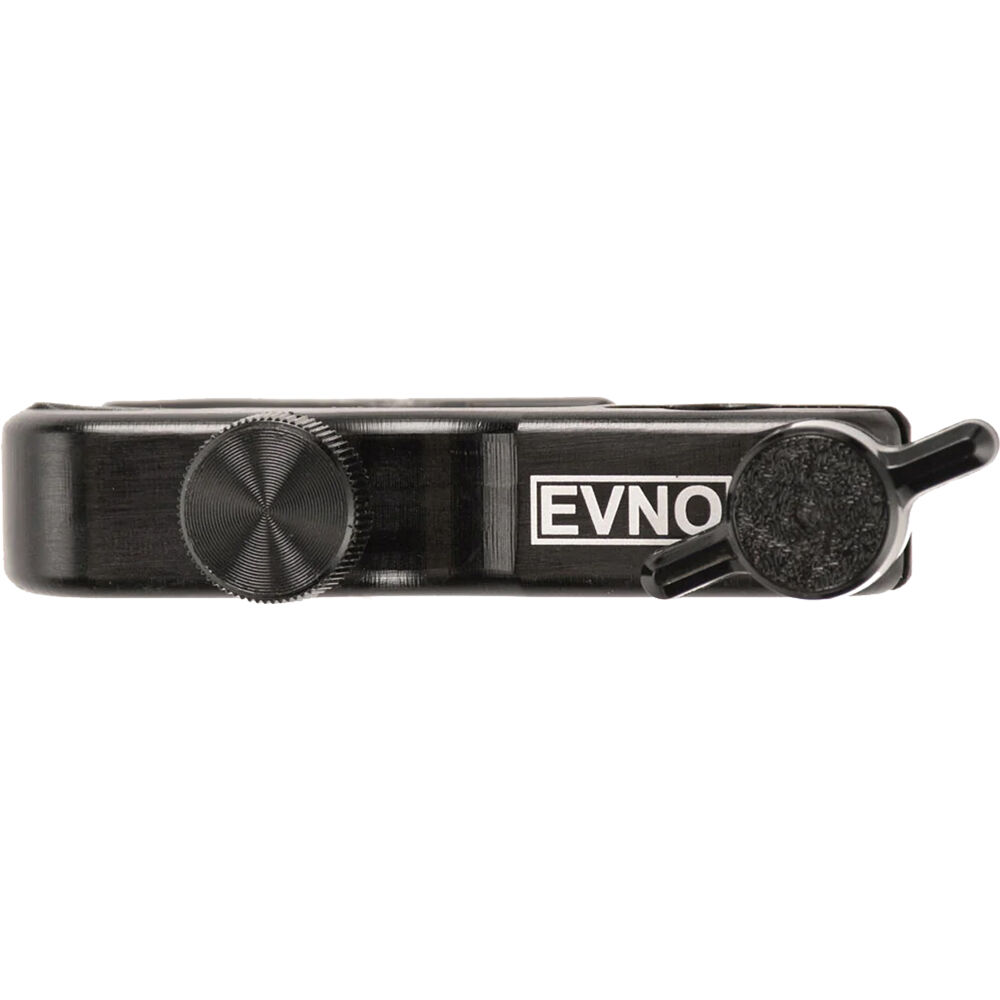

TPX-CL Off-Bell Clamp

The TPX-CL lead-pipe clamp securely attaches to the trumpet or flugelhorn lead-pipe, holding the microphone extension rod in place with quick and easy adjustment. Designed for rapid setup and removal, it ensures stable mic positioning without interfering with playing technique.

Dual Wireless with Separate Outputs

At the heart of the system is the W2 dual-channel receiver, which supports two microphone transmitters at once. Simply add an additional Evno mic and transmitter combination for compact, dual-channel performance that accommodates two performers simultaneously. Independent XLR outputs allow for separate EQ and volume control of each channel, with a 328-foot wireless range and diversity antennas providing stable, dropout-free performance. The system is well-suited for live shows, ensemble settings, and multi-instrument performances.

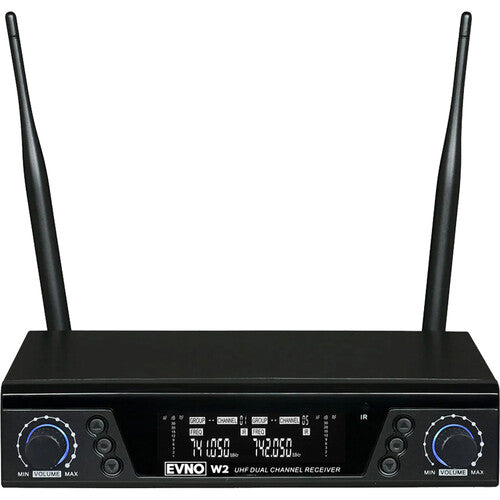

Compact Receiver with Rackmount Kit

The half-rack receiver is built into a metal chassis and includes a rack-mounting kit and BNC extension cables. The antennas feature BNC locking connectors for rear or remote mounting. An LCD display provides clear readings of frequency, audio, and RF levels, while XLR outputs and a 1/4" output offer flexible connection options.

Flexible, Expandable Design

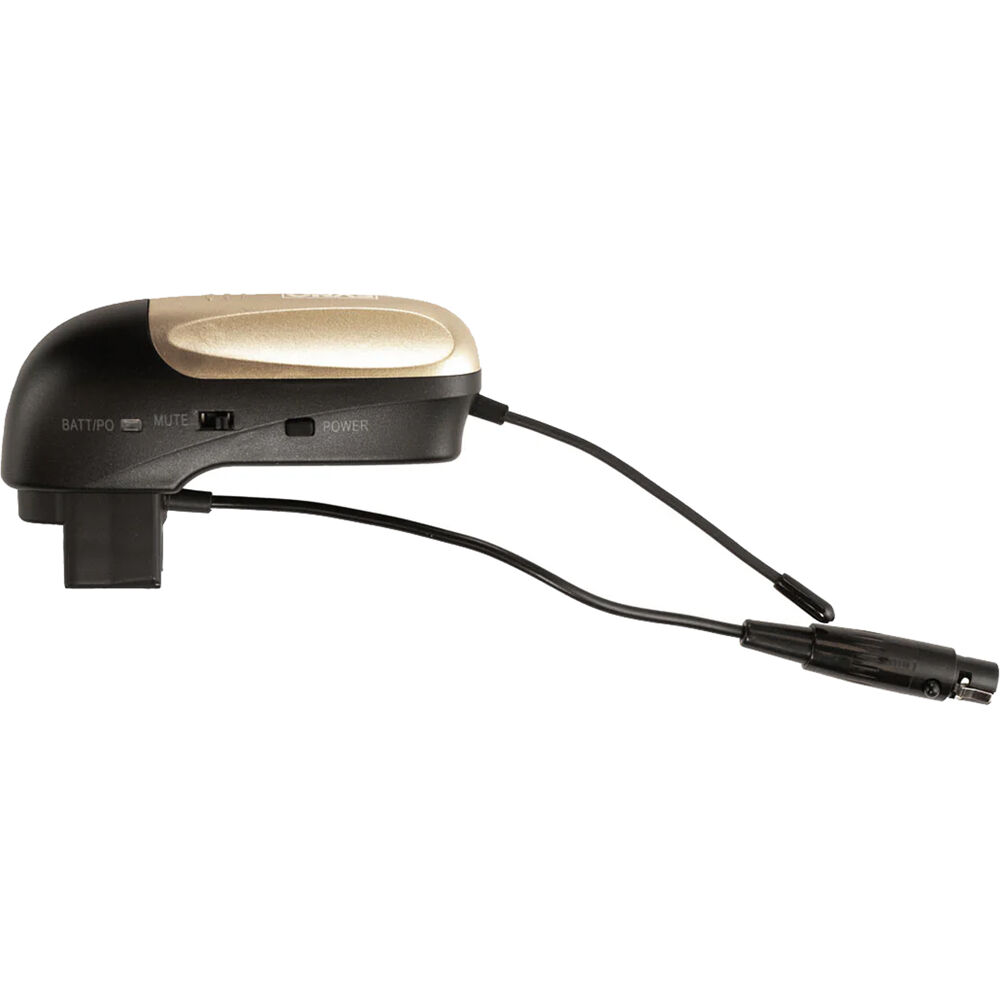

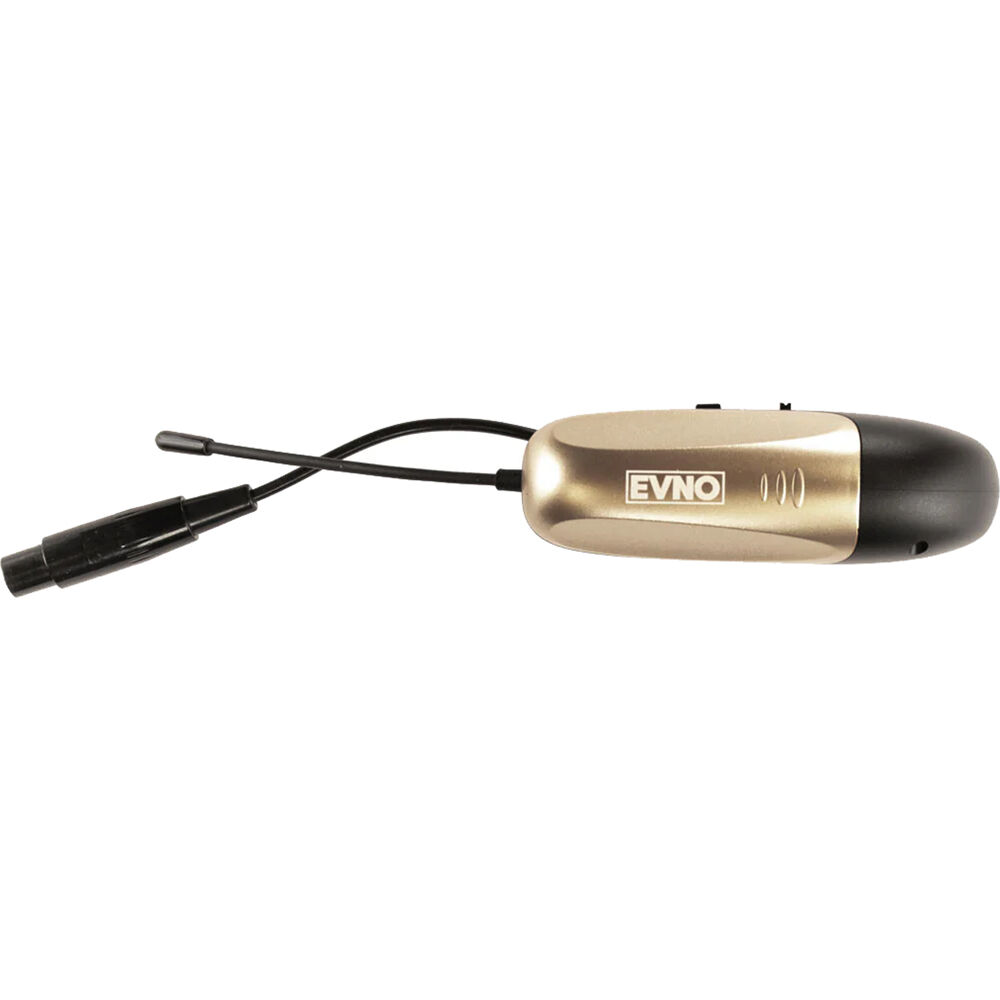

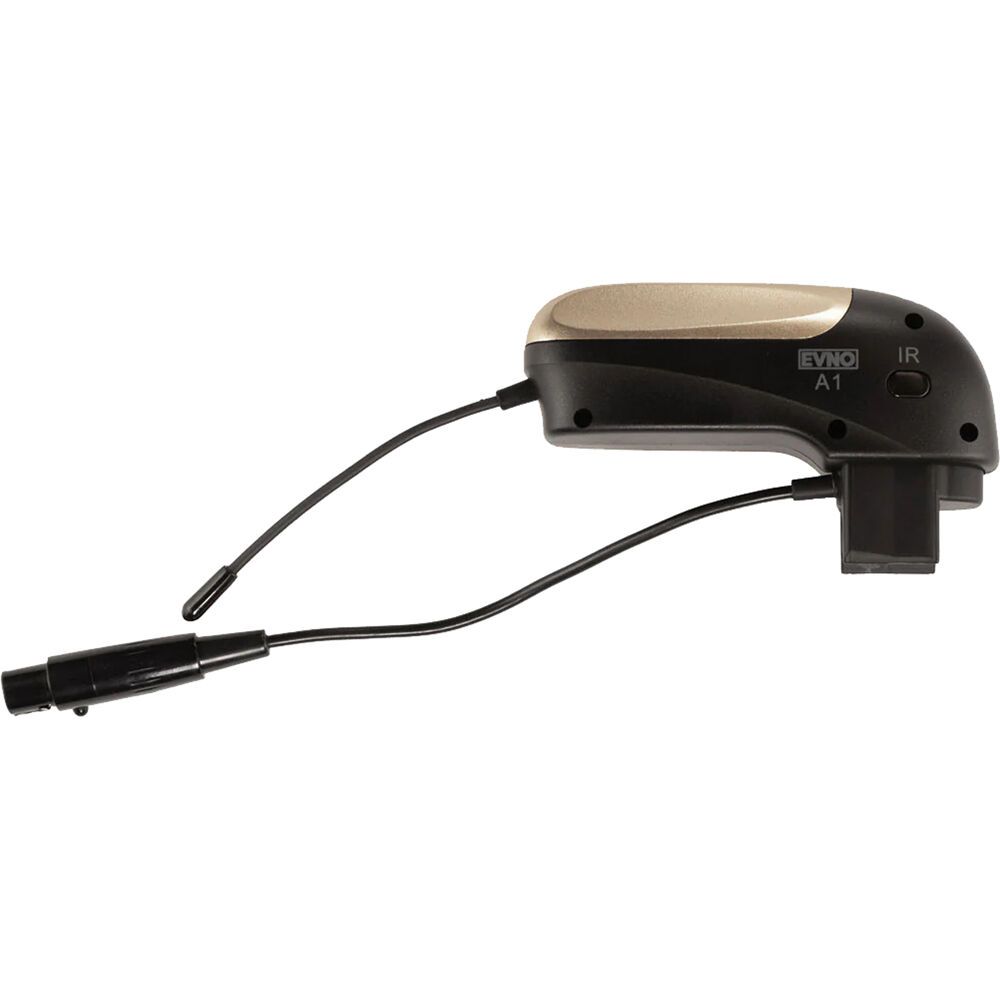

Operating in the 902 to 928 MHz UHF band for North America and Brazil, the W2 receiver is compatible with Evno A2, A4, and AH transmitters; add an additional mic and transmitter for dual-channel operation. With 99 IR-selectable channels, you can run up to 5-6 systems simultaneously, making it suitable for bands and ensembles using multiple Evno microphones.

Details

• High-SPL mic tuned for low-brass instruments
• Clamp-on mic and transmitter?no beltpack required
• Includes TPX-CL lead-pipe clamp with extension rod
• Precision-machined mic body with 7-point suspension
• Flex-Stay gooseneck for stable and precise positioning
• Suspension-mounted capsule with replaceable O-rings reduces handling noise
• Feedback resistant: high gain before feedback
• Dual-channel receiver with separate XLR outputs for each mic and transmitter combination
• 328' wireless range
• 99 selectable UHF channels and quick IR component sync
• Rackmount kit included
• Expandable: use with up to 5 systems simultaneously
• Receiver also works with A2, AH, and A4 transmitters
• Works alongside Air and W1 receivers
• Compatible with wired systems using PS95 (available separately)
• Made in the USA

Key Specs

System

Receiver

Transmitters

Microphones

Power

Charging Case

Physical

Packaging Info
