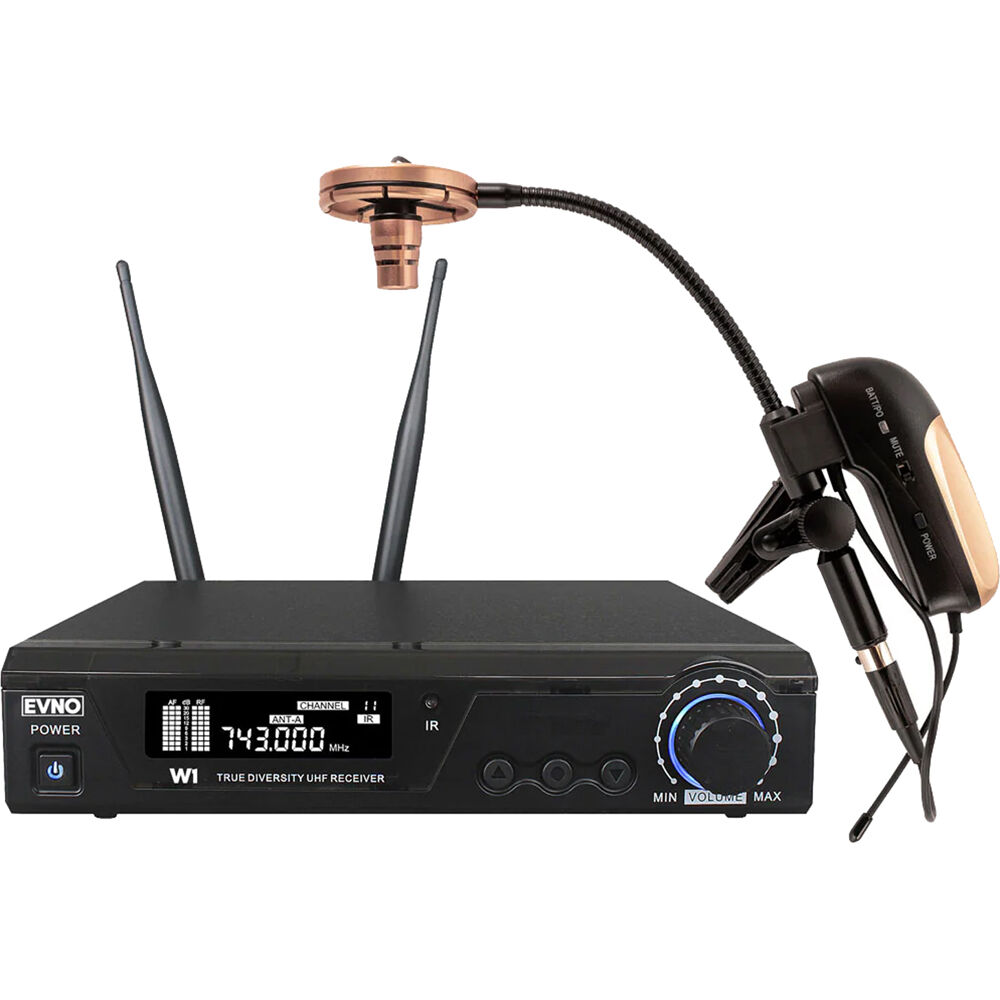

Evno Microphone Systems TBX-W1 Wireless Microphone System for Trombone (902 to 928 MHz)

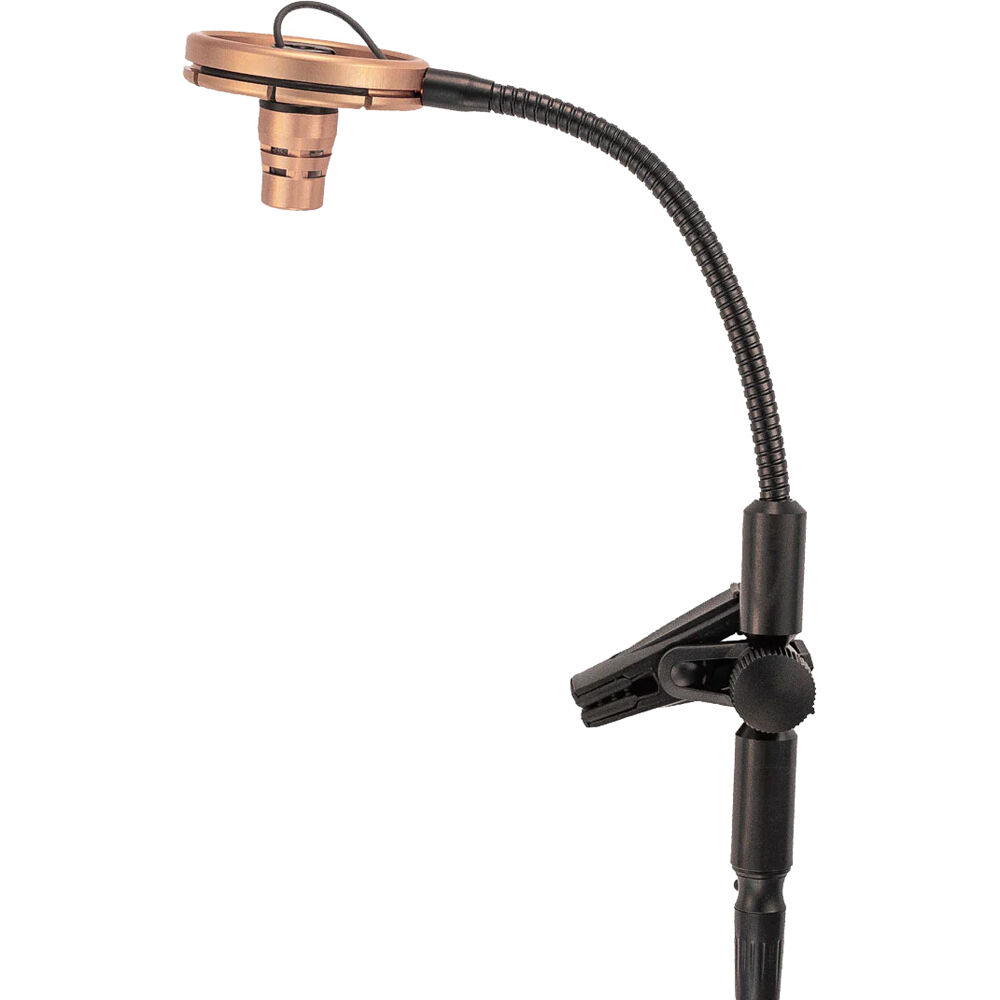

TBX Microphone for Trombone and Low Brass

The TBX microphone is specifically engineered to capture the full dynamic range and frequency spectrum of trombone and similar flanged-bell brass instruments. It features a precision-machined aluminum body with vented construction and a 7-point suspension system that minimizes handling noise while preserving tonal clarity. The Stay-Flex gooseneck allows precise mic positioning and stays securely in place throughout performance.

With a high SPL tolerance, the TBX handles loud, energetic playing without distortion?making it ideal for soloists, brass sections, and high-volume environments. The mic connects via a 3-pin mini-XLR and supports both wireless and wired use through compatible accessories.

Evno Swivel Clamp

The included Swivel Clamp provides fast, stable mounting to trombone bells and other low-brass instruments. Its spring-loaded jaws offer quick attachment and removal, while the precision clamp angle ensures the mic stays at the correct axis point. This clamp enables fast transitions between instruments without shifting or rotating out of position.

Flagship Wireless Performance with True Diversity

At the heart of the TBX-W1 is the Evno W1 True-Diversity System, providing maximum wireless stability and long-range performance up to 492 feet. Using two antennas and dual receivers, the single-channel system automatically selects the strongest signal for seamless audio without dropouts. Ideal for professional musicians and demanding stage environments, the W1 ensures your instrument sounds natural and full-range across any performance scenario.

Built for Professional Rigs

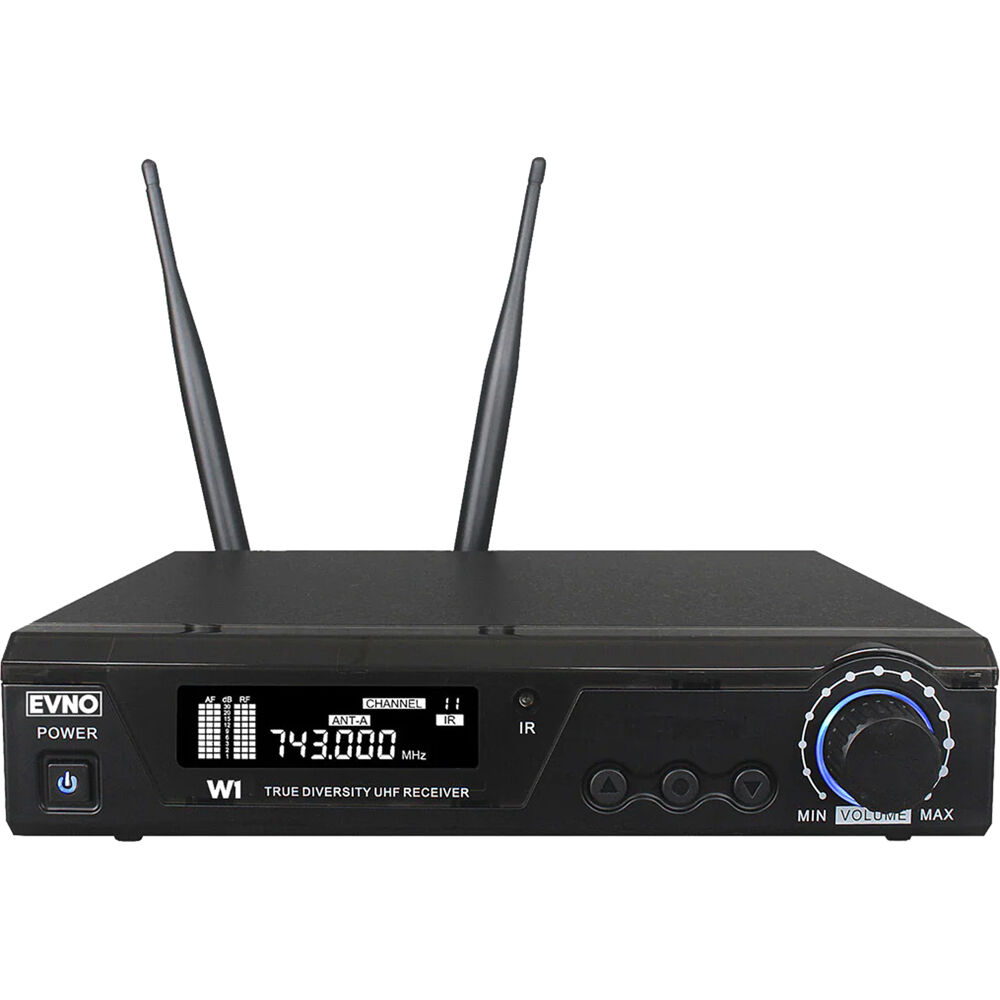

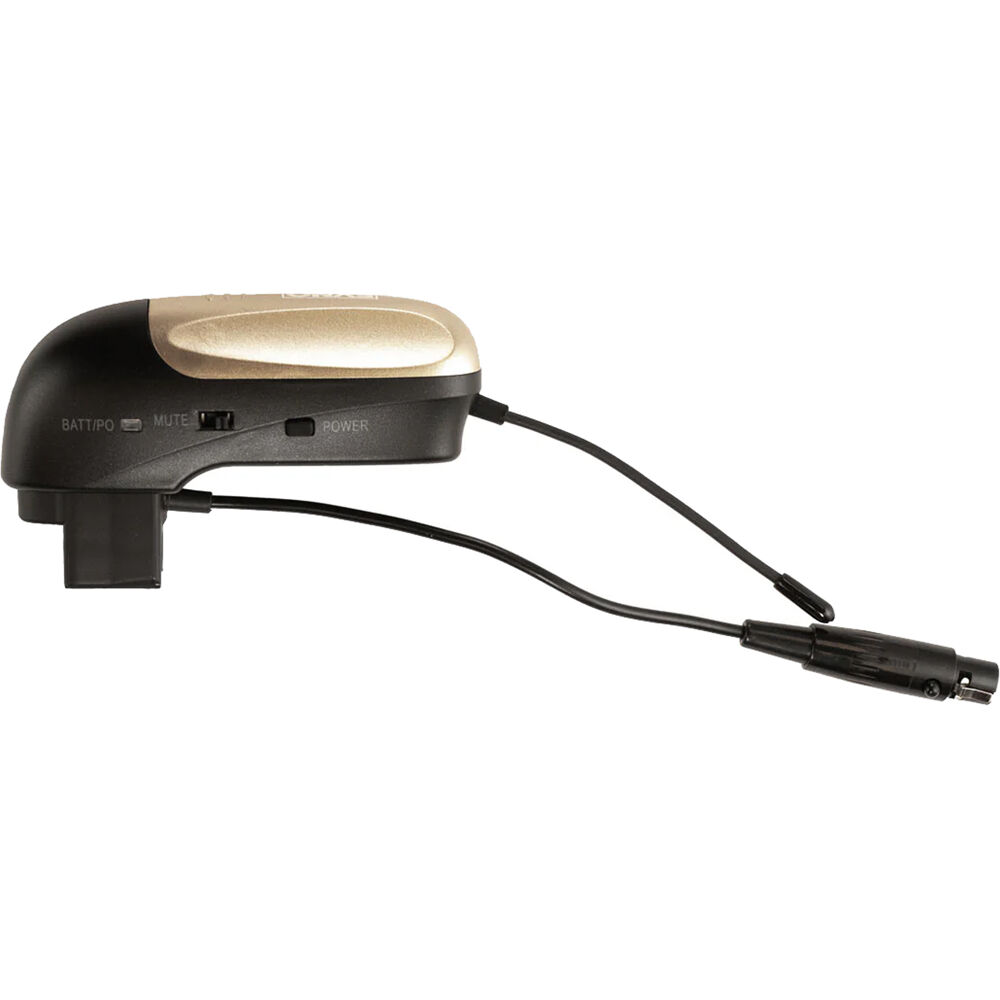

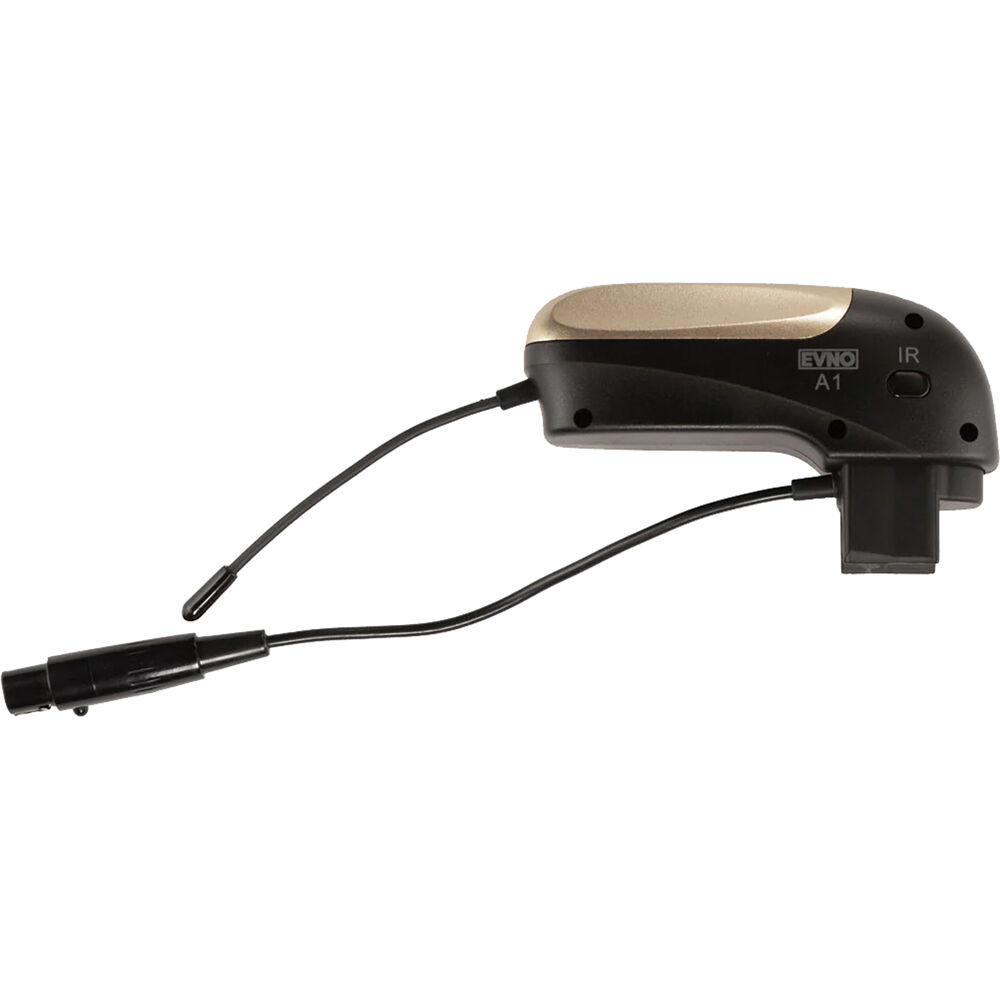

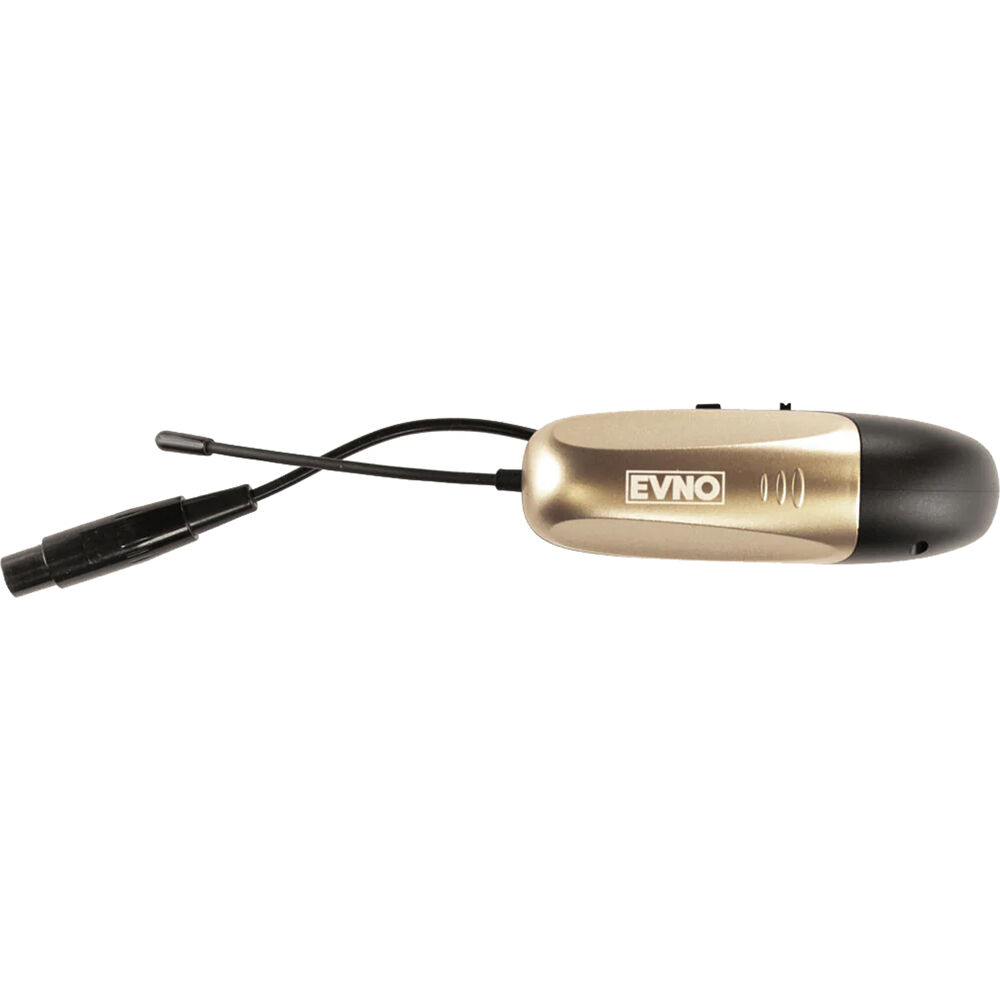

The W1 receiver features a metal chassis with XLR and 1/4" outputs and comes rack-mountable with included rack kit and extension cables. Antennas can be front- or remotely mounted via BNC connectors, making it easy to integrate into any rack setup. The A1 transmitter clips directly to the microphone setup for a beltpack-free, wire-free playing experience. A total of 99 selectable frequencies allow multiple systems to run simultaneously without interference, with quick pairing via IR sync.

Details

• High-SPL mic tuned for low-brass instruments
• Clamp-on mic and transmitter?no beltpack required
• Spring-loaded clamp with swivel alignment
• Precision-machined mic body with 7-point suspension and replaceable O-rings
• 5.5" Flex-Stay gooseneck for stable and precise positioning
• True-diversity system for maximum stability and range
• 99 selectable UHF channels and quick IR component sync
• Rackmount receiver with XLR and 1/4" outputs
• Compatible with wired systems using PS95 (available separately)
• Expandable: Use with up to 5 systems simultaneously
• Receiver also works with A2, AH, and A4 transmitters; works alongside Air and W2 receivers
• Made in the USA

Key Specs

System

Receiver

Transmitters

Microphones

Power

Physical

Packaging Info
