Description

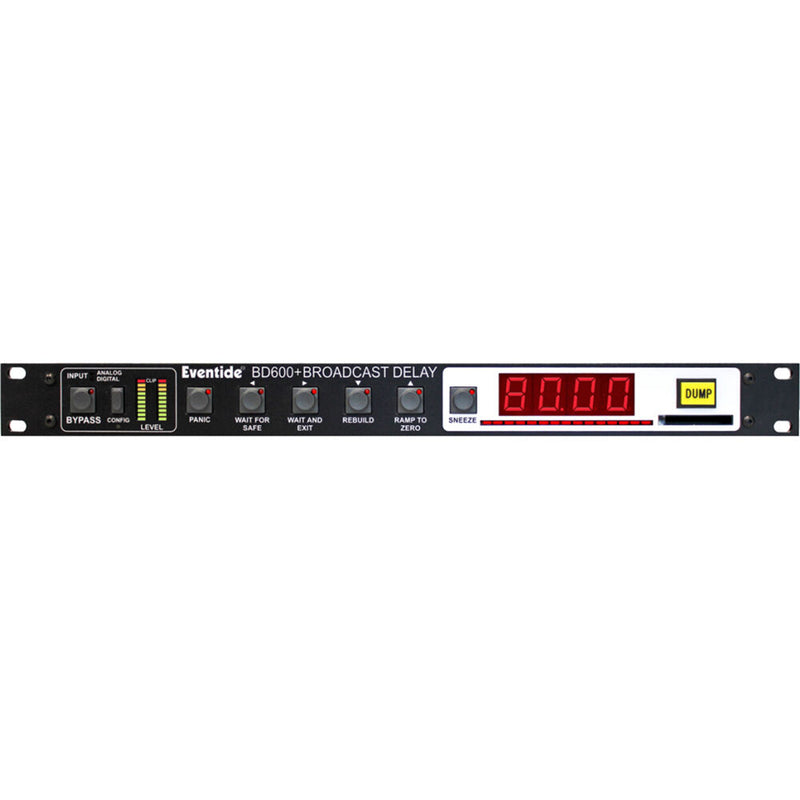

Eventide BD600E+ Overview
Protect your broadcast from careless trash-talk with the BD600E+ from Eventide, an easy-to-use digital profanity delay with expanded remote capabilities that offers an exceptional 80 seconds of high-quality revenue and license-protecting delay designed to provide a seamless experience for listeners.
The delay buffer length can be customized from four to 80 seconds. Dump can be customized in half-second increments up to 10 seconds. Each time the dump button is pressed, only one segment is deleted. For example, if a unit is set to the full 80 seconds of delay buffer, and is set up to provide 8-second dumps, you will have ten separate dump segments. Pushing the Dump button the first time cuts out one 8-second segment. You still have 72 seconds of delay protection. If this is followed by more problem comments, push the Dump button again and you still have over a minute of delay protection. The Sneeze button momentarily edits audio entering the delay, allowing the host to sneeze, cough, or make a short comment without being heard on-air�and without dead air.
MicroPrecision Delay with Panic Back Up
- For stations upgrading to HD, providing a high-quality subsample adjustable delay for synchronizing analog and digital is the holy grail for maintaining a seamless experience for listeners. The MicroPrecision Delay can be adjusted on air and ramped in and out for clean transitions without audible artifacts.
- The BD600E+ adds more delay protection, improves fidelity, and expands remote options while maintaining the user interface and yellow Dump button familiar to all radio engineers. It is the culmination of thirty years of designing and manufacturing highly reliable delays for broadcast. Featuring 80 seconds of delay, 24-bit digital and analog I/O, plus a host of new features, the BD600E+ sets a new standard for protection
- If 80 seconds of delay protection were not enough, the BD600E+ has a secondary backup called Panic. This plays a WAV file stored on a compact flash card. While the file�a jingle, ID, or another message�is played, delay is being built up in real-time, allowing programming to continue in safety as soon as the jingle is over. This can also be used for painless entry into delay.
Expanded Remote Capability
- The BD600E+ Expanded Remote is perfect for more sophisticated automated broadcast chains.
- 16 bipolar opto-isolated inputs may be configured to drive BD600E+ functions and general-purpose delay inputs.
- 16 open-collector outputs may be configured to output BD600E+ status indicators or to pass through delayed versions of the inputs.
- An RS-232 output provides a delayed version of the input, useful for driving a time display or for other control purposes.
Key Features
- Microprecision delay mode for HD synchronization
- 80 seconds of delay protection
- USB remote control
- Panic function allows WAV file playback during delay rebuild
- 24-bit AES/EBU digital I/O with optional wordclock sync
- 24-bit analog XLR I/O
- User-defined Dump length segmentation
- Sneeze button for momentary edit
- Remote control capability
- RS-232 I/O
- Programmable I/O
- 16 bipolar opto-isolated inputs and 16 open-collector outputs
In the Box
- Eventide BD600E+ Broadcast Profanity Delay with Expanded Remote Capability
- Limited 1-Year Manufacturer Warranty
Additional Resources
Eventide BD600E+Specs
General
| Compatibility |
Not Specified by Manufacturer
|
Display
| Panel Type |
Single-Color LED
|
| Display Size |
Not Specified by Manufacturer
|
| Touchscreen |
No
|

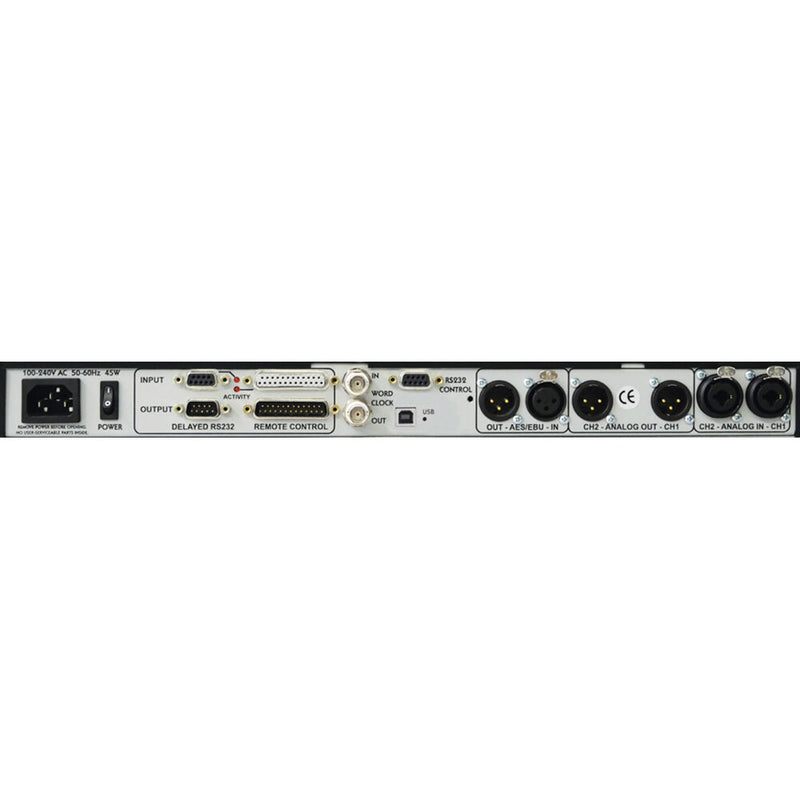

Inputs/Outputs
| USB I/O |
1 x USB-B Female Input/Output
|
| Audio I/O |
2x Combo XLR-1/4" 3-Pin Line Input
2x XLR 3-Pin Line Output 1x XLR 3-Pin AES3 Input 1x XLR 3-Pin AES3 Output |
| Media/Memory Card Slot |
Yes
|
| Impedance |
Input/Output: 20 Kilohms (Bridging)
|
| Input Level |
Full Scale Input Level: +26 dBu
|
| Output Level |
Full Scale Output Level: +65 dBu
|
| Dynamic Range |
Input: >104 dB
Output: >108 dB |
| THD+N |
<0.003 at 1 kHz, -3 dBFS
|
| Crosstalk |
< -100 dB at 20 Hz to 20 kHz, -1 dBFS
|
| Frequency Response |
Live or Bypass: 20 Hz to 20 kHz ±0.1 dB
HD Micro-Precision Delay Mode: 10 Hz to 19 kHz ±0.25 dB Broadcast Profanity Delay Mode: 10 Hz to 20 kHz ±0.1 dB (While Delay is Chaining: 10 Hz to 19 kHz ±1.5 dB) |
| Delay |
Profanity Delay Maximum Length: Set to 4, 6, 8, 12, 16, 20, 30, 40, 60, or 80 seconds
Micro Precision Fixed Delay: Set from .010 seconds to 9.999,999 seconds in Microsecond Steps |
| Remote Control |
Remote Control Inputs: RS-232 Control Input and Output, USB Remote Control
General Remote Inputs: DB-25 with 16 Bipolar Opto-isolated Inputs General Remote Outputs: DB-25 with 16 Open Collector Outputs Delayed RS-232 Input: DB-9 Delayed RS-232 Output: DB-9 |
| Flash Media Slot |
Supports Type I and Type II Compact Flash Cards for .WAV Sample Playback and Software Update
|
| Sample Rate |
48 kHz, 44.1 kHz, Wordclock, AES/EBU
2 Channels of 24-bit AES/EBU |
| Wordclock |
BNC Wordclock Input
BNC Wordclock Output |
Wireless
| Mobile App Compatible |
No
|
Power
| Power Source |
AC Input (Included)
|
| AC Input Power |
100 to 240 VAC, 50 / 60 Hz
|
| Power Consumption |
40 W
|
Physical
| Mounting |
Side: 2x Rack Ears
|
| Color |
Black
|
| Cable Length |
Not Specified by Manufacturer
|
| Dimensions |
19 x 10.5 x 1.8" / 48.3 x 26.7 x 4.5 cm
|
| Weight |
9 lb / 4.1 kg
|
