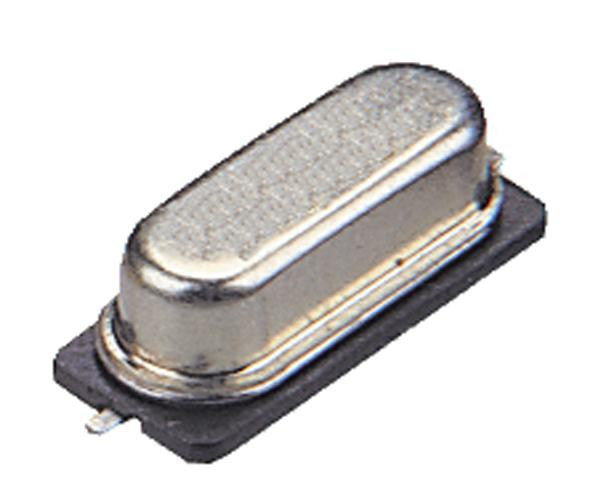

This is a Crystal, 18.432 MHz, SMD, 12.4mm x 4.5mm, 50 ppm, 18 pF, 30 ppm, 49USMX Series product from EUROQUARTZ with the model number 18.432MHZ 49USMX/30/50/40/18PF/ATF
Product details
| Frequency Nom |
18.432MHz |
| Crystal Case |
SMD, 12.4mm x 4.5mm |
| Frequency Stability + / - |
50ppm |
| Load Capacitance |
18pF |
| Frequency Tolerance + / - |
30ppm |
| Product Range |
49USMX Series |
| Operating Temperature Min |
-40°C |
| Operating Temperature Max |
85°C |
Other details
| Brand |
EUROQUARTZ |
| Part Number |
18.432MHZ 49USMX/30/50/40/18PF/ATF |
| Quantity |
Each (Supplied on Cut Tape) |
| Technical Data Sheet EN |
 |
