Description

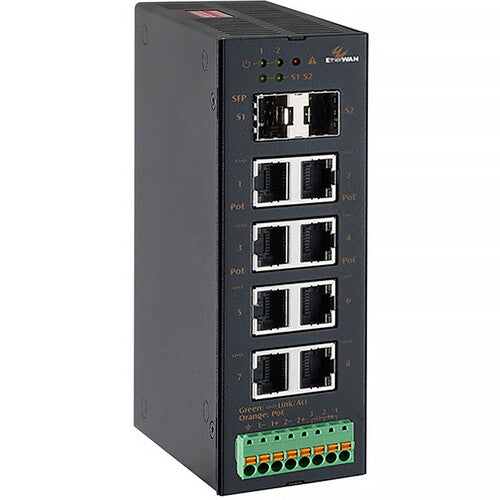

EtherWAN TG103H-0802 Overview
Designed for harsh, industrial environments with limited space, the TG103H 8-Port Gigabit PoE++ Compliant Hardened Unmanaged Switch can operate in temperatures between -40 and 167°F while silently providing power to PoE compatible devices.
Each of the eight PoE++ compliant Gigabit Ethernet ports deliver up to 90W of power to compatible devices with a total budget of 270W. Features such as PoE watchdog help to ensure that unresponsive devices are rebooted. Two SFP ports are also available for Gigabit-speed fiber uplinks. With a 1.488 Mpps forwarding rate and 1.5Mb buffer, this switch is designed to provide smooth data transfers while installed onto a DIN rail. The metal housing efficiently and silently dissipates heat for optimal performance. Simply connect this switch to your network to get started. No complicated configuration is required.
In the Box
- EtherWAN TG103H 8-Port Gigabit PoE++ Compliant Hardened Unmanaged Industrial Switch
- Limited Lifetime Warranty
EtherWAN TG103H-0802 Specs
| Inputs/Outputs |
8 x RJ45 Gigabit Ethernet PoE++ (Type 4)
2 x SFP Gigabit Ethernet |
| PoE Power Budget |
270 W
|
| Inputs/Outputs |
8 x RJ45 Gigabit Ethernet PoE++ (Type 4)
2 x SFP Gigabit Ethernet |
| Supported Protocols |
Auto-MDIX/MDI
|
| Transmission Method |
Store-and-Forward
|
| MAC Address Table Size |
4K
|
| Supported IEEE Standards |
802.1p, 802.3, 802.3ab, 802.3af (PoE 15.4 W), 802.3at (PoE+ 30 W), 802.3az, 802.3bt Type 3 (PoE++ 60 W), 802.3u, 802.3z
|
| Forwarding Rate |
1.4 Mpps
|
| Packet Buffer |
1.5 Mb
|
| Power Draw |
9.72 W
|
| DC Input Power |
46 to 57 VDC
|
| AC Input Power |
No
|
| PoE Power Budget |
270 W
|
| PoE per Port |
90 W
|
| Operating Temperature |
-40 to 167°F / -40 to 75°C
|
| Operating Humidity |
5 to 95%
|
| Storage Temperature |
-40 to 185°F / -40 to 85°C
|
| Certifications |
FCC, VCCI, EN, ICES, UL, ISO
|
| Material of Construction |
Metal
|
| Indicator Lights |
Diagnostic, Link/Activity, Power
|
| Dimensions |
5.7 x 4.9 x 1.8" / 145 x 125 x 45 mm
|
| Weight |
1.3 lb / 577 g
|
