Description
EtherWAN EX41941 Overview

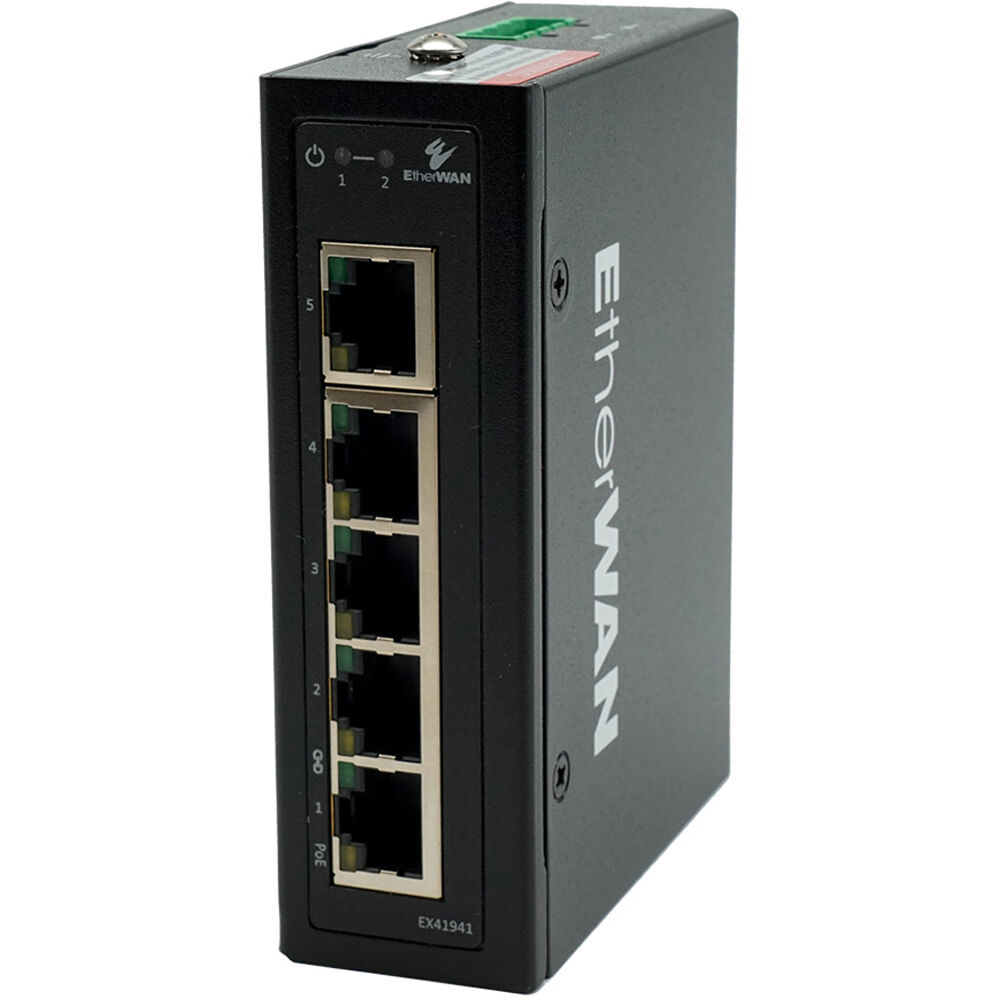

This is a hardened, unmanaged PoE Ethernet Switch from EtherWAN in a compact vertical housing that can be wall or DIN-rail mounted. Four Gigabit PoE ports provide up to 30W output per port with a PoE power budget of 120W, ensuring that the maximum possible power is delivered to every device at all times. One RJ45 uplink port provides flexibility for data transmission and cascading. This switch is suitable for various security and network applications.
UPC: 847653005774
In the Box
- EtherWAN Hardened Unmanaged 4-Port Gigabit PoE & 1-Port Gigabit RJ45 Ethernet Switch (Vertical Housing)
- Limited Lifetime Warranty
EtherWAN EX41941 Specs
Key Specs
| Inputs/Outputs |
5 x RJ45 Gigabit Ethernet PoE
|
| PoE Power Budget |
120 W
|
Interfaces
| Inputs/Outputs |
5 x RJ45 Gigabit Ethernet PoE
|
Protocols
| Supported Protocols |
Auto-MDIX/MDI
|
| Transmission Method |
Store-and-Forward
|
| Jumbo Frames Support |
9000 Bytes
|
| MAC Address Table Size |
2K
|
Standards
| Supported IEEE Standards |
802.3, 802.3ab, 802.3af (PoE 15.4 W), 802.3at (PoE+ 30 W), 802.3u, 802.3x, 802.3z
|
Performance
| Forwarding Rate |
1.4 Mpps
|
| Switching Bandwidth |
10 Gb/s
|
| Packet Buffer |
1 Mb
|
Electrical
| Power Draw |
5.7 W
|
| DC Input Power |
48 to 56 VDC
|
| AC Input Power |
No
|
| PoE Power Budget |
120 W
|
| PoE per Port |
30 W
|
Environmental
| Operating Temperature |
-40 to 167°F / -40 to 75°C
|
| Operating Humidity |
5 to 95%
|
| Storage Temperature |
-40 to 185°F / -40 to 85°C
|
General
| Certifications |
ISO, FCC, EN, UL, IEC
|
| Material of Construction |
Aluminum
|
| Indicator Lights |
Link/Activity, Power
|
| Dimensions |
6.5 x 4.6 x 0.9" / 166 x 118 x 23.2 mm
|
| Weight |
1 lb / 0.5 kg
|
