Description

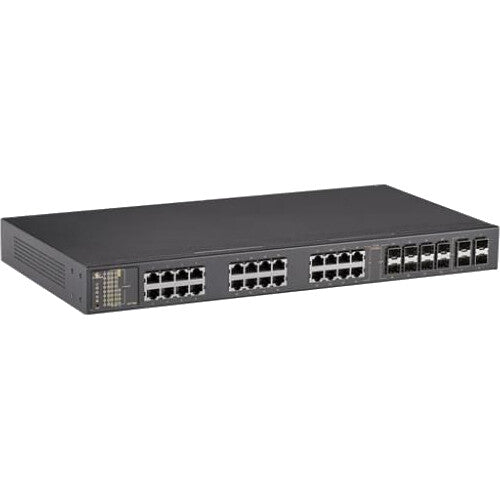

EtherWAN EX77964-8VB Overview
From EtherWAN, this Hardened Managed Ethernet Switch features 16 10/100/1000BASE-TX ports, eight RJ45/SFP combo ports, and four 1G/10G SFP+ ports in a 1 RU rackmount design. This 28-port switching platform combines the advantages of Layer 3 routing protocols with robust management features and hardened specifications. With support for static routing, Routing Information Protocol (RIP) V1/V2, and Virtual Router Redundancy Protocol (VRRP), the switch delivers flexibility and security in a high performance and cost-effective package. A broad range of management features and options includes port security, IGMP snooping, port-based VLAN, GARP protocols, and more. The supported operating temperature range is -40 to 167°F.
In the Box
- EtherWAN Hardened Managed Ethernet Switch with 16 x 10/100/1000BASE-TX, 8 x RJ45/SFP Combo & 4 x 1G/10G SFP+ Ports
EtherWAN EX77964-8VB Specs
| Inputs/Outputs |
16 x RJ45 Gigabit Ethernet
8 x RJ45/SFP Combo Gigabit Ethernet 4 x SFP+ 10 GbE 1 x RJ45 (LAN) 1 x USB-A |
| Inputs/Outputs |
16 x RJ45 Gigabit Ethernet
8 x RJ45/SFP Combo Gigabit Ethernet 4 x SFP+ 10 GbE 1 x RJ45 (LAN) 1 x USB-A |
| Layer Services Supported |
Layer 2, Layer 3
|
| Supported Protocols |
Auto-MDIX/MDI
DHCP Server IPv4 IPv6 MAC Filtering Port Mirroring RADIUS |
| Queuing |
Weighted Round Robin (WRR)
|
| Transmission Method |
Store-and-Forward
|
| MAC Address Table Size |
16K
|
| Security Features |
RADIUS Authentication
Storm Control |
| SNMP Support |
1, 2c, 3
|
| Supported IEEE Standards |
802.1p, 802.1q, 802.1w, 802.1x, 802.3, 802.3ab, 802.3u, 802.3x, 802.3z
|
| Forwarding Rate |
148.8 Mpps
|
| Power Draw |
31.08 W
|
| DC Input Power |
12 to 24 VDC
|
| AC Input Power |
No
|
| Operating Temperature |
-40 to 167°F / -40 to 75°C
|
| Operating Humidity |
5 to 95%
|
| Storage Temperature |
-49 to 185°F / -45 to 85°C
|
| Certifications |
ISO, FCC, VCCI, EN, UL, IEC, NEMA
|
| Material of Construction |
Metal
|
| Indicator Lights |
Link/Activity, Power
|
| Dimensions |
16.9 x 10 x 1.7" / 430 x 254 x 44.2 mm
|
| Weight |
7.25 lb / 3.29 kg
|
