| ₹ 590325.0 includes GST and import duties. | |
| B2B customers can avail ₹ 90024.56 ITC on this product | |
| 100% Secure Payments | 100% Genuine product | |
| The product is eligible for Free Shipping |
Description

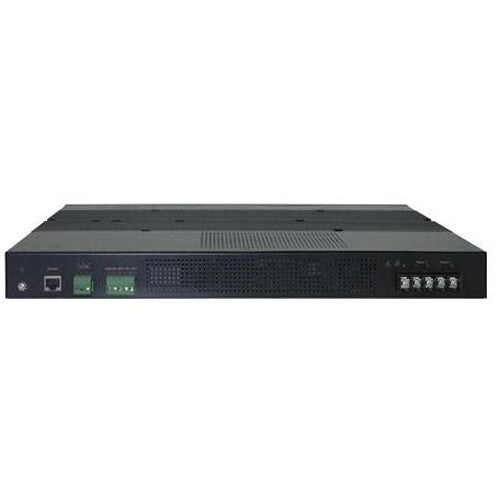

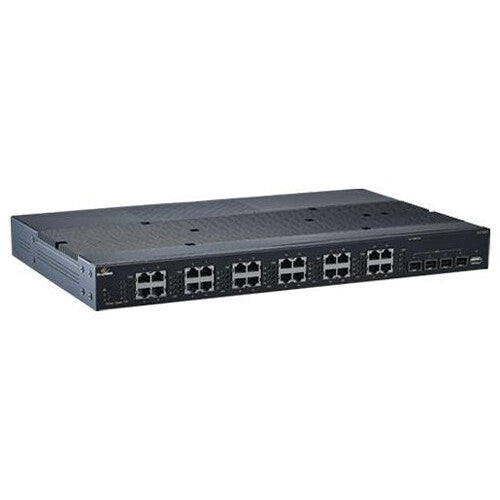

EtherWAN EX75964-0VTU Overview
From EtherWAN, the Hardened Managed 24-Port 10/100/1000BASE-T PoE + 4-Port 1/10-Gigabit SFP Switch is a rackmounted 28-port gigabit switching platform with 60W PoE ports and a total power budget of 720W. It's designed as a versatile solution for connecting with PoE powered devices with different bandwidth and power consumption requirements, such as outdoor PTZ dome cameras, wireless access points, PoE LED lights, and way-side communication devices. Available PoE features allow for more installation scenarios and less truck rolls. These include a long-distance PoE mode which extends the maximum installation distance to 820'. The supported operating temperature range is -40 to 167°F.
In the Box
- EtherWAN Hardened Managed 24-Port 10/100/1000BASE-T PoE + 4-Port 1/10-Gigabit SFP Switch
EtherWAN EX75964-0VTU Specs
| Inputs/Outputs |
24 x RJ45 Gigabit Ethernet PoE+
4 x SFP 10 GbE 1 x RJ45 1 x USB-A |
| PoE Power Budget |
720 W
|
| Inputs/Outputs |
24 x RJ45 Gigabit Ethernet PoE+
4 x SFP 10 GbE 1 x RJ45 1 x USB-A |
| Layer Services Supported |
Layer 2, Layer 3
|
| Supported Protocols |
Auto-MDIX/MDI
DHCP Server IPv4 IPv6 Link Aggregation MAC Filtering Port Mirroring RADIUS |
| Transmission Method |
Store-and-Forward
|
| Jumbo Frames Support |
9000 Bytes
|
| MAC Address Table Size |
16K
|
| Security Features |
RADIUS Authentication
Storm Control |
| SNMP Support |
1, 2c, 3
|
| Supported IEEE Standards |
802.1ab, 802.1d, 802.1p, 802.1q, 802.1s, 802.1w, 802.1x, 802.3, 802.3ab, 802.3ad, 802.3ae, 802.3af (PoE 15.4 W), 802.3at (PoE+ 30 W), 802.3bt Type 3 (PoE++ 60 W), 802.3u, 802.3x, 802.3z
|
| Forwarding Rate |
95.23 Mpps
|
| Switching Bandwidth |
128 Gb/s
|
| Priority Queues |
8
|
| Packet Buffer |
12 Mb
|
| Flash Memory |
1 GB
|
| Memory |
2 GB DDR3
|
| Power Draw |
25.12 W
|
| DC Input Power |
46 to 57 VDC
|
| AC Input Power |
No
|
| PoE Power Budget |
720 W
|
| PoE per Port |
60 W
|
| Operating Temperature |
-49 to 167°F / -45 to 75°C
|
| Operating Humidity |
5 to 95%
|
| Storage Temperature |
-49 to 185°F / -45 to 85°C
|
| Certifications |
ISO, VCCI, EN, UL, IEC, FCC
|
| Mean Time Between Failures (MTBF) |
1,444,959 Hours
|
| Material of Construction |
Metal
|
| Indicator Lights |
Link/Activity, PoE, Power
|
| Dimensions |
17.4 x 10.6 x 1.7" / 442 x 270 x 44.2 mm
|
| Weight |
11.2 lb / 5.1 kg
|
All product and company names are trademarks™ or registered® trademarks of their respective holders. Use of them does not imply any affiliation with or endorsement by them.
Bulk Discount
| Quantity | Price |
| 2 | ₹ 578518.5 |
| 3-5 | ₹ 572615.25 |
| 5-10 | ₹ 560808.75 |
| 10+ | ₹ 549002.25 |
Bulk discount will be automatically applied during checkout based on quantity.
