Description
EtherWAN EX78934X-0VB Overview

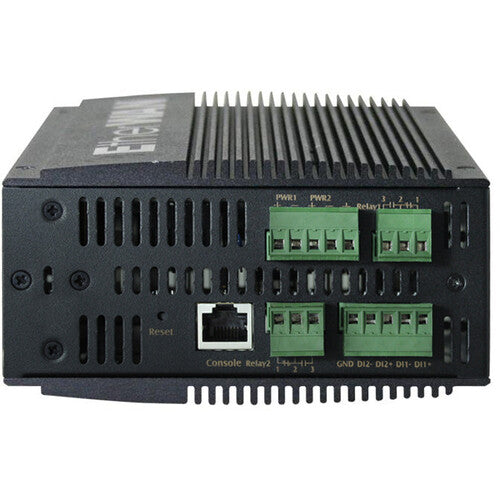

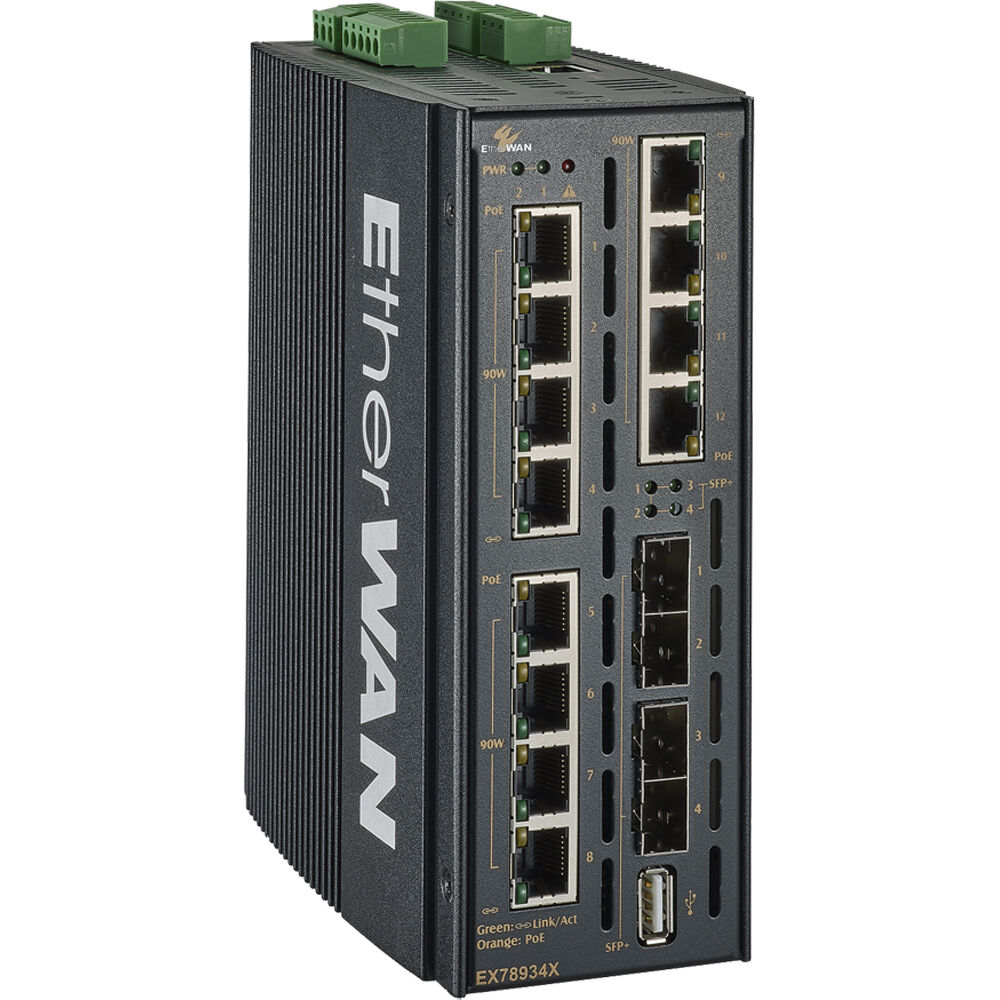

This 12-Port Gigabit 90W PoE and 4-Port 10G SFP+ Ethernet Switch from EtherWAN is a hardened DIN-rail mounted managed switch platform. It features 12 gigabit PoE ports with 90W power and the IEEE 802.3bt protocol, and has a 360W PoE power budget. It also has four dual-rate 10 gigabit SFP+ ports. This switch is designed to provide flexibility, speed, and reliability for networks in urban infrastructure, transportation, security, and other areas where connectivity is crucial. Other features include two digital inputs and two relay outputs.
UPC: 847653005156
In the Box
- EtherWAN Hardened Managed 12-Port Gigabit 90W PoE and 4-Port 10G SFP+ Ethernet Switch
EtherWAN EX78934X-0VB Specs
Key Specs
| Inputs/Outputs |
12 x RJ45 Gigabit Ethernet PoE++ (Type 4)
4 x SFP+ 10 GbE |
| PoE Power Budget |
360 W
|
Interfaces
| Inputs/Outputs |
12 x RJ45 Gigabit Ethernet PoE++ (Type 4)
4 x SFP+ 10 GbE |
Protocols
| Layer Services Supported |
Layer 2, Layer 3
|
| Supported Protocols |
Auto-MDIX/MDI
DHCP Server IPv4 IPv6 Link Aggregation MAC Filtering Port Mirroring RADIUS TLS |
| Transmission Method |
Store-and-Forward
|
| Jumbo Frames Support |
9000 Bytes
|
| MAC Address Table Size |
16K
|
| VLAN Groups |
256
|
| VLAN IDs |
4096
|
Security
| Security Features |
RADIUS Authentication
Storm Control |
| SNMP Support |
1, 2c, 3
|
Standards
| Supported IEEE Standards |
802.1ab, 802.1d, 802.1p, 802.1q, 802.1qaz, 802.1s, 802.1w, 802.1x, 802.3, 802.3ab, 802.3ad, 802.3af (PoE 15.4 W), 802.3at (PoE+ 30 W), 802.3bt Type 3 (PoE++ 60 W), 802.3u, 802.3x, 802.3z
|
Performance
| Forwarding Rate |
75.29 Mpps
|
| Switching Bandwidth |
104 Gb/s
|
| Priority Queues |
8
|
Computer
| Flash Memory |
1 GB
|
| Memory |
2 GB DDR3
|
Electrical
| Power Draw |
20.00 W
|
| DC Input Power |
46 to 57 VDC
|
| AC Input Power |
No
|
| PoE Power Budget |
360 W
|
| PoE per Port |
90 W
|
Environmental
| Operating Temperature |
-40 to 167°F / -40 to 75°C
|
| Operating Humidity |
5 to 95%
|
| Storage Temperature |
-49 to 185°F / -45 to 85°C
|
General
| Certifications |
ISO, FCC, VCCI, EN, UL, NEMA, IEC
|
| Mean Time Between Failures (MTBF) |
1,496,987 Hours
|
| Material of Construction |
Aluminum
|
| Indicator Lights |
Link/Activity, PoE, Power
|
| Dimensions |
6.7 x 5.5 x 2.8" / 170 x 140 x 72 mm
|
| Weight |
3.3 lb / 1.5 kg
|
