Description

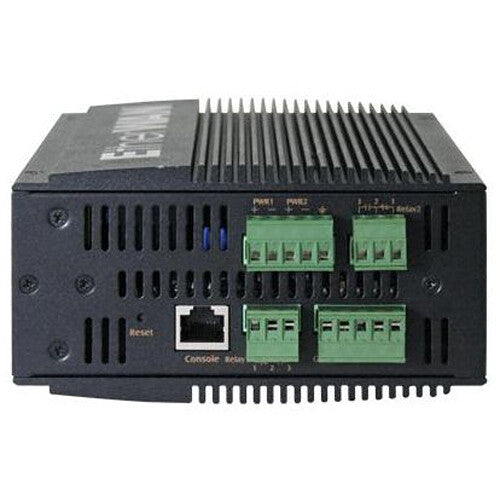

EtherWAN EX78922E-0VB Overview
From EtherWAN, this is a DIN-rail mounted Hardened Managed 8-Port Gigabit 60W PoE and 2-Port Dual-Rate Gigabit SFP Ethernet Switch with 60W PoE power per port and a total power budget of 240W. This versatility allows connecting PoE devices with different bandwidth and power consumption requirements, such as outdoor PTZ dome cameras, wireless access points, PoE LED lights, and way-side communication devices. Available PoE features allow for more installation scenarios and less truck rolls. These include a long distance PoE mode which extends the maximum installation distance to 820'. With hardened specifications, this switch supports an operating temperature range of -40 to 167°F.
In the Box
- EtherWAN EX78900E Series Hardened Managed 8-Port Gigabit 60W PoE and 2-Port Dual-Rate Gigabit SFP Ethernet Switch
EtherWAN EX78922E-0VB Specs
| Inputs/Outputs |
8 x RJ45 Gigabit Ethernet PoE+
2 x SFP Gigabit Ethernet |
| PoE Power Budget |
240 W
|
| Inputs/Outputs |
8 x RJ45 Gigabit Ethernet PoE+
2 x SFP Gigabit Ethernet |
| Supported Protocols |
Auto-MDIX/MDI
Link Aggregation |
| Transmission Method |
Store-and-Forward
|
| Supported IEEE Standards |
802.1ab, 802.1d, 802.1p, 802.1q, 802.1s, 802.1w, 802.1x, 802.3, 802.3ab, 802.3ad, 802.3af (PoE 15.4 W), 802.3at (PoE+ 30 W), 802.3az, 802.3bt Type 3 (PoE++ 60 W), 802.3u, 802.3x, 802.3z
|
| Forwarding Rate |
14.8 Mpps
|
| Flash Memory |
1 GB
|
| Memory |
2 GB DDR3
|
| DC Input Power |
46 to 57 VDC
|
| AC Input Power |
No
|
| PoE Power Budget |
240 W
|
| PoE per Port |
60 W
|
| Operating Temperature |
-40 to 167°F / -40 to 75°C
|
| Operating Humidity |
5 to 95%
|
| Storage Temperature |
-49 to 185°F / -45 to 85°C
|
| Certifications |
ISO, FCC, VCCI, EN, UL, NEMA, IEC
|
| Mean Time Between Failures (MTBF) |
1,108,382 Hours
|
| Material of Construction |
Aluminum
|
| Indicator Lights |
Link/Activity, PoE, Power
|
| Dimensions |
6.7 x 5.5 x 2.8" / 170 x 140 x 72 mm
|
| Weight |
3.3 lb / 1.5 kg
|
