Description
EtherWAN EX73922X-0VB Overview

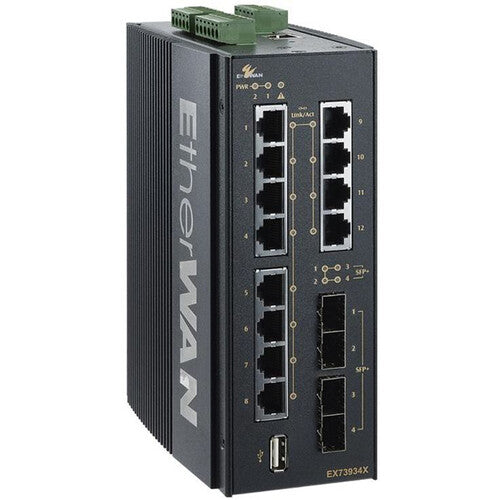

From EtherWAN, this is a DIN-rail mounted Hardened Managed 8-Port Gigabit and 2-Port 10G SFP+ Ethernet Switch designed to provide flexibility, speed, and reliability to support networks for urban infrastructure, transportation, security, power substations, and other areas where connectivity is crucial. It supports full capacity switching running at full duplex. The operating temperature range is -40 to 167°F. Key features include fanless operation and high impact, thermal shock, and electrical noise resistance.
UPC: 847653005194
In the Box
- EtherWAN EX73900X Series Hardened Managed 8-Port Gigabit and 2-Port 10G SFP+ Ethernet Switch
- Limited Lifetime Warranty
EtherWAN EX73922X-0VB Specs
Key Specs
| Inputs/Outputs |
8 x RJ45 Gigabit Ethernet
2 x SFP+ 10 GbE |
Interfaces
| Inputs/Outputs |
8 x RJ45 Gigabit Ethernet
2 x SFP+ 10 GbE |
Protocols
| Layer Services Supported |
Layer 2, Layer 3
|
| Supported Protocols |
Auto-MDIX/MDI
DHCP Server IGMP Snooping IPv4 IPv6 MAC Filtering Port Mirroring RADIUS |
| Queuing |
Strict Priority, Weighted Round Robin (WRR)
|
| Transmission Method |
Store-and-Forward
|
| Jumbo Frames Support |
9000 Bytes
|
| MAC Address Table Size |
16K
|
| VLAN IDs |
4096
|
Security
| Security Features |
DHCP Snooping
RADIUS Authentication Storm Control |
| SNMP Support |
1, 2c, 3
|
Standards
| Supported IEEE Standards |
802.1ab, 802.1d, 802.1p, 802.1q, 802.1s, 802.1w, 802.1x, 802.3, 802.3ab, 802.3ad, 802.3az, 802.3u, 802.3x, 802.3z
|
Performance
| Forwarding Rate |
75.29 Mpps
|
| Switching Bandwidth |
104 Gb/s
|
| Packet Buffer |
12 Mb
|
Computer
| Flash Memory |
1 GB
|
| Memory |
2 GB DDR3
|
Electrical
| Power Draw |
20.00 W (Max)
|
| DC Input Power |
10 to 48 VDC
|
| AC Input Power |
No
|
| Power Supply Type |
Redundant
|
Environmental
| Operating Temperature |
-40 to 167°F / -40 to 75°C
|
| Operating Humidity |
5 to 95% ()
|
| Storage Temperature |
-49 to 185°F / -45 to 85°C
|
General
| Certifications |
ISO, FCC, VCCI, EN, UL, NEMA, IEC
|
| Material of Construction |
Aluminum
|
| Indicator Lights |
Diagnostic, Link/Activity, Power
|
| Dimensions |
6.7 x 5.5 x 2.8" / 170.2 x 139.7 x 71.1 mm
|
| Weight |
3.08 lb / 1.4 kg
|
