Description
EtherWAN EX73922E-0VB Overview

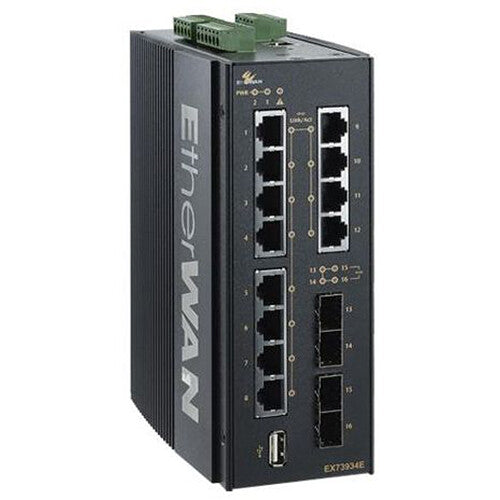

From EtherWAN, this is a DIN-rail mounted Hardened Managed 8-Port 10/100/1000BASE-T(X) + 2-Port 100/1000BASE SFP Ethernet Switch designed to provide flexibility, speed, and reliability to support networks for urban infrastructure, transportation, security, power substations, and other areas where connectivity is crucial. The operating temperature range is -40 to 167°F. The processing types are store-and-forward, auto-negotiation, half-duplex back-pressure and full-duplex flow control, and auto MDI/MDIX. The switch features reverse polarity and overload current protection.
UPC: 847653005484
In the Box
- EtherWAN EX73900E Series Hardened Managed 8-Port 10/100/1000BASE-T(X) + 2-Port 100/1000BASE SFP Ethernet Switch
- Limited Lifetime Warranty
EtherWAN EX73922E-0VB Specs
Key Specs
| Inputs/Outputs |
8 x RJ45 Gigabit Ethernet
2 x SFP Gigabit Ethernet 1 x RJ45 (LAN) 1 x USB-A |
Interfaces
| Inputs/Outputs |
8 x RJ45 Gigabit Ethernet
2 x SFP Gigabit Ethernet 1 x RJ45 (LAN) 1 x USB-A |
Protocols
| Layer Services Supported |
Layer 2, Layer 3
|
| Supported Protocols |
Auto-MDIX/MDI
DHCP Server IGMP Snooping IPv4 IPv6 Link Aggregation Port Mirroring RADIUS TLS |
| Transmission Method |
Store-and-Forward
|
| Jumbo Frames Support |
9000 Bytes
|
| MAC Address Table Size |
16K
|
| VLAN Groups |
256
|
| VLAN IDs |
4096
|
Security
| Security Features |
DHCP Snooping
RADIUS Authentication Storm Control |
| SNMP Support |
1, 2c, 3
|
Standards
| Supported IEEE Standards |
802.1ab, 802.1d, 802.1p, 802.1q, 802.1s, 802.1w, 802.1x, 802.3, 802.3ab, 802.3ad, 802.3u, 802.3x, 802.3z
|
Performance
| Forwarding Rate |
23.5 Mpps
|
| Switching Bandwidth |
32 Gb/s
|
| Priority Queues |
8
|
| Packet Buffer |
12 Mb
|
Computer
| Flash Memory |
1 GB
|
| Memory |
2 GB DDR3
|
Electrical
| Power Draw |
20.00 W (Max)
|
| DC Input Power |
12 to 48 VDC
|
| AC Input Power |
No
|
Environmental
| Operating Temperature |
-40 to 167°F / -40 to 75°C
|
| Operating Humidity |
5 to 95%
|
| Storage Temperature |
-49 to 185°F / -45 to 85°C
|
General
| Certifications |
ISO, FCC, VCCI, EN, UL, NEMA, IEC
|
| Material of Construction |
Aluminum
|
| Indicator Lights |
Link/Activity, Power
|
| Dimensions |
6.7 x 5.5 x 2.8" / 170 x 140 x 72 mm
|
| Weight |
3.08 lb / 1.4 kg
|
