| ₹ 89580.0 includes GST and import duties. | |
| B2B customers can avail ₹ 13660.95 ITC on this product | |
| 100% Secure Payments | 100% Genuine product | |
| The product is eligible for Free Shipping |
Description
EtherWAN EX42395BT Overview

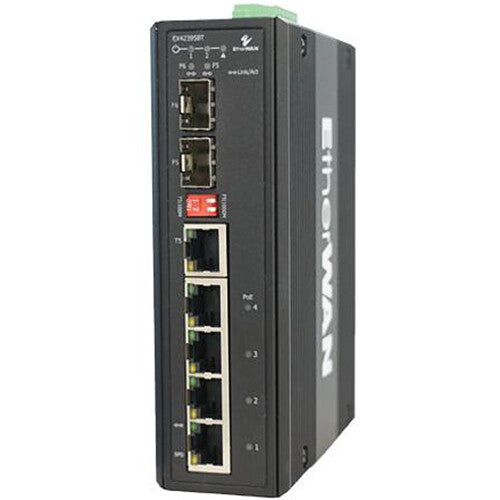

The EtherWAN EX42395BT is a compact hardened unmanaged DIN-rail mounted PoE switch featuring four gigabit PoE ports and providing up to 90W of power per port. It also offers two dual-rate gigabit SFP ports. This switch provides the power required to support various security, LED lighting, and other network applications, along with flexibility, speed, and reliability to support networks where connectivity is crucial. It uses the latest IEEE 802.3bt PoE technology.
UPC: 847653004814
In the Box
- EtherWAN EX42395BT Hardened Unmanaged 6-Port Gigabit PoE Switch
- Set of Mounting Brackets
- Set of Screws
- 6-Pin Terminal Block
- Limited Lifetime Warranty
EtherWAN EX42395BT Specs
Key Specs
| Inputs/Outputs |
4 x RJ45 Gigabit Ethernet PoE+
1 x SFP Gigabit Ethernet (WAN) 1 x RJ45/SFP Combo Gigabit Ethernet PoE+ |
| PoE Power Budget |
240 W
|
Interfaces
| Inputs/Outputs |
4 x RJ45 Gigabit Ethernet PoE+
1 x SFP Gigabit Ethernet (WAN) 1 x RJ45/SFP Combo Gigabit Ethernet PoE+ |
Protocols
| Supported Protocols |
Auto-MDIX/MDI
|
| Transmission Method |
Store-and-Forward
|
| Jumbo Frames Support |
9000 Bytes
|
| MAC Address Table Size |
1K
|
Standards
| Supported IEEE Standards |
802.3, 802.3ab, 802.3af (PoE 15.4 W), 802.3at (PoE+ 30 W), 802.3bt Type 3 (PoE++ 60 W), 802.3u, 802.3x
|
Performance
| Forwarding Rate |
1488.1 Mpps
|
| Switching Bandwidth |
12 Gb/s
|
| Packet Buffer |
1 Mb
|
Electrical
| DC Input Power |
48 to 56 VDC
|
| AC Input Power |
No
|
| PoE Power Budget |
240 W
|
| PoE per Port |
90 W
|
| Power Supply Type |
External
|
Environmental
| Operating Temperature |
-40 to 167°F / -40 to 75°C
|
| Operating Humidity |
5 to 95%
|
| Storage Temperature |
-49 to 185°F / -45 to 85°C
|
General
| Certifications |
ISO, FCC, EN, UL, IEC
|
| Mean Time Between Failures (MTBF) |
500,000 Hours
|
| Material of Construction |
Aluminum
|
| Dimensions |
5.6 x 4.1 x 1.7" / 142 x 105 x 43 mm
|
| Weight |
1.5 lb / 0.7 kg
|
All product and company names are trademarks™ or registered® trademarks of their respective holders. Use of them does not imply any affiliation with or endorsement by them.
Bulk Discount
| Quantity | Price |
| 2 | ₹ 87788.4 |
| 3-5 | ₹ 86892.6 |
| 5-10 | ₹ 85101.0 |
| 10+ | ₹ 83309.4 |
Bulk discount will be automatically applied during checkout based on quantity.
