Description
EtherWAN EG97244-4VCR Overview

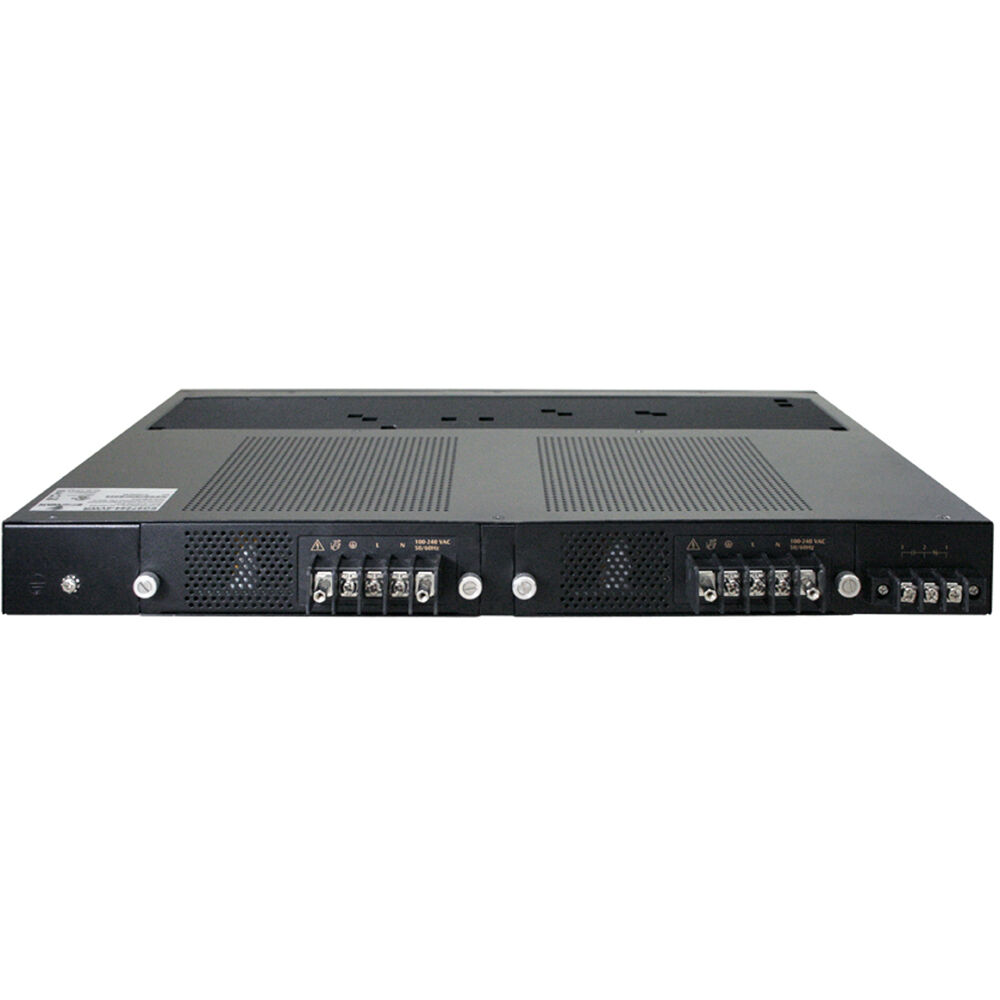

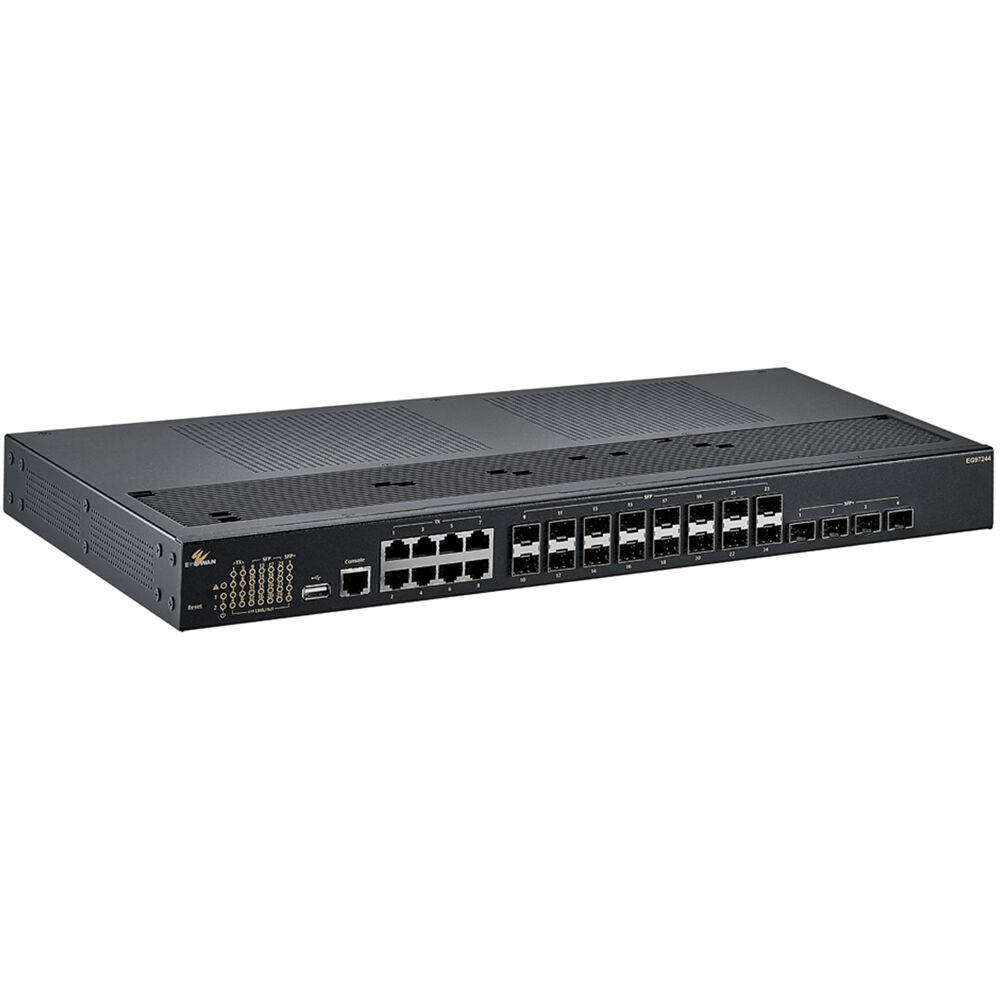

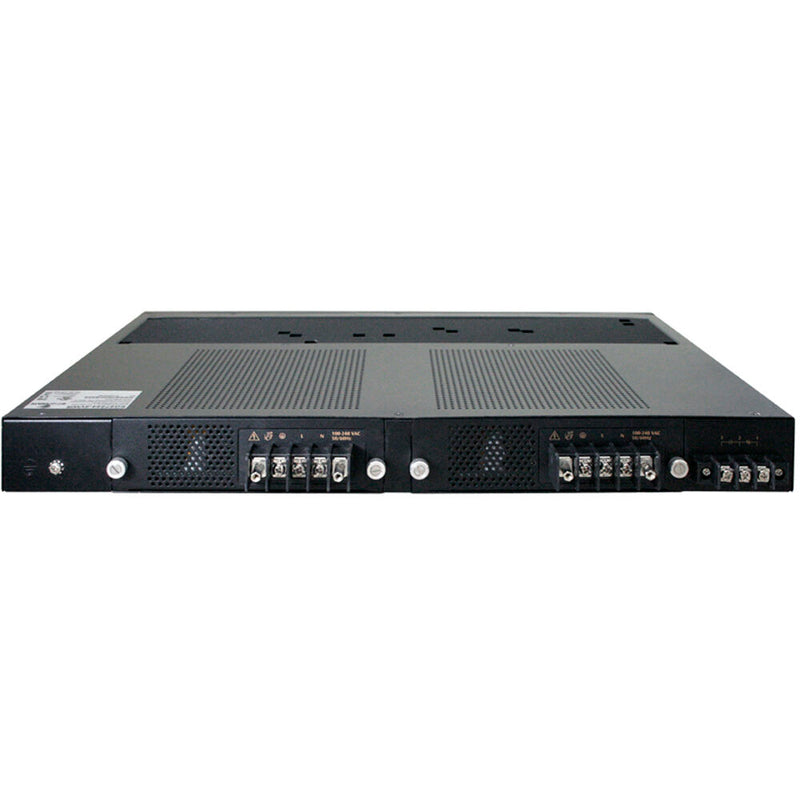

The EG97244-4VCR Hardened Managed 28-Port Layer 3 Ethernet Switch from EtherWAN is a rackmount switch supporting a hardened-grade operating temperature of -40 to 167°F and offering eight GE RJ45, 16 x GE 100/1000 SFP, and four 1G/10G SFP+ ports. It features a redundant internal universal 100-240VAC power supply with an IEC connector.
UPC: 850047425133
In the Box
- EtherWAN EG97244-4VCR Hardened Managed 28-Port Layer 3 Ethernet Switch
EtherWAN EG97244-4VCR Specs
Key Specs
| Inputs/Outputs |
16 x SFP Gigabit Ethernet
8 x RJ45 Gigabit Ethernet 4 x SFP+ 10 GbE 1 x RJ45 (LAN) 1 x USB-A |
Interfaces
| Inputs/Outputs |
16 x SFP Gigabit Ethernet
8 x RJ45 Gigabit Ethernet 4 x SFP+ 10 GbE 1 x RJ45 (LAN) 1 x USB-A |
Protocols
| Layer Services Supported |
Layer 2, Layer 3
|
| Supported Protocols |
Auto-MDIX/MDI
Link Aggregation |
| Transmission Method |
Store-and-Forward
|
Standards
| Supported IEEE Standards |
802.1ab, 802.1d, 802.1p, 802.1q, 802.1s, 802.1w, 802.1x, 802.3, 802.3ab, 802.3ad, 802.3u, 802.3x, 802.3z
|
Performance
| Forwarding Rate |
14.8 Mpps
|
Computer
| Flash Memory |
2 GB
|
| Memory |
4 GB DDR3
|
Electrical
| Power Draw |
75.00 W
|
| DC Input Power |
48 VDC
|
| AC Input Power |
100 to 240 VAC, 50 / 60 Hz
|
Environmental
| Operating Temperature |
-40 to 167°F / -40 to 75°C
|
| Operating Humidity |
5 to 95%
|
| Storage Temperature |
-49 to 185°F / -45 to 85°C
|
General
| Certifications |
ISO, EN, FCC, VCCI, UL, NEMA, IEC
|
| Mean Time Between Failures (MTBF) |
1,143,890 Hours
|
| Material of Construction |
Aluminum
|
| Indicator Lights |
Link/Activity, Power
|
| Dimensions |
17.4 x 12.8 x 1.7" / 442 x 325 x 44 mm
|
| Weight |
12.3 lb / 5.6 kg
|
