Description
EtherWAN EASYPOEBOX2C Overview

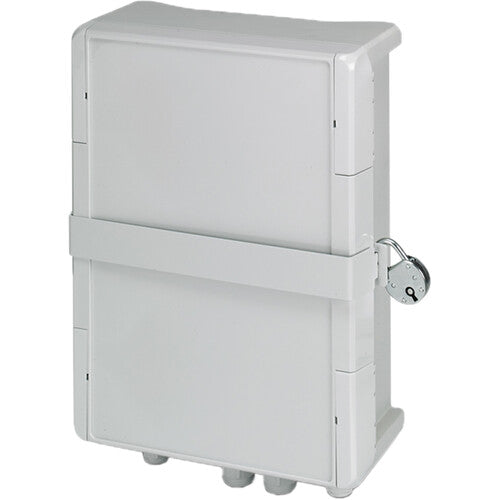

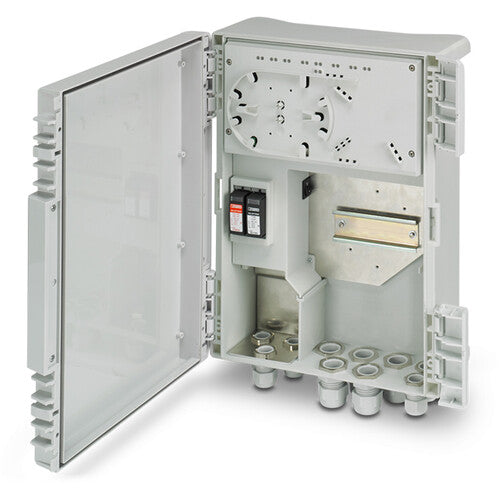

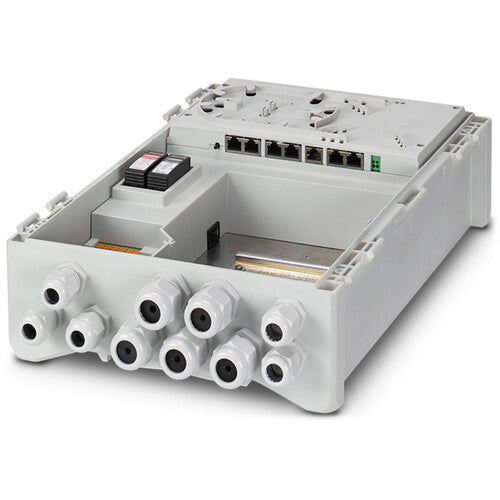

From EtherWAN, this is an EasyPoE Box Series 2-Port 10/100/1000BASE-T PoE + 2-Port 10/100/1000BASE-T Managed Ethernet Switch in a NEMA 4X rated indoor/outdoor design for non-ventilated and harsh environments. It's futureproof with 90W power delivery per PoE port and backward-compatibility with 60W/30W/15W PoE protocols. An integrated splicing tray ensures safe fiber connection storage. The switch features preinstalled bulkheads for cable connections and DIN-rails for additional devices/accessories.
UPC: 847653005224
In the Box
- EtherWAN EasyPoE Box Series 2-Port 10/100/1000BASE-T PoE + 2-Port 10/100/1000BASE-T Managed Ethernet Switch
- Limited Lifetime Warranty
EtherWAN EASYPOEBOX2C Specs
Key Specs
| Inputs/Outputs |
2 x RJ45 Gigabit Ethernet PoE+
2 x RJ45 Gigabit Ethernet |
| PoE Power Budget |
165 W
|
Interfaces
| Inputs/Outputs |
2 x RJ45 Gigabit Ethernet PoE+
2 x RJ45 Gigabit Ethernet |
Protocols
| Supported Protocols |
Auto-MDIX/MDI
DHCP Server IPv4 IPv6 MAC Filtering Port Mirroring RADIUS |
| Transmission Method |
Store-and-Forward
|
| MAC Address Table Size |
8K
|
Security
| Security Features |
RADIUS Authentication
Storm Control |
| SNMP Support |
1, 2
|
Standards
| Supported IEEE Standards |
802.1ab, 802.1w, 802.1x, 802.3, 802.3ab, 802.3af (PoE 15.4 W), 802.3at (PoE+ 30 W), 802.3bt Type 3 (PoE++ 60 W), 802.3p, 802.3q, 802.3u, 802.3x
|
Performance
| Forwarding Rate |
14.8 Mpps
|
Electrical
| DC Input Power |
20 VDC
|
| AC Input Power |
100 to 240 VAC, 50 / 60 Hz
|
| PoE Power Budget |
165 W
|
| PoE per Port |
30 W
|
| Power Supply Type |
Internal
|
Environmental
| Operating Temperature |
-40 to 167°F / -40 to 75°C
|
| Operating Humidity |
5 to 95%
|
| Storage Temperature |
-40 to 185°F / -40 to 85°C
|
General
| Certifications |
FCC, VCCI, ICES, EN, UL, IEC
|
| Mean Time Between Failures (MTBF) |
805,920 Hours
|
| Indicator Lights |
Link/Activity, PoE, Power
|
| Dimensions |
14.3 x 11.2 x 4.8" / 363.2 x 284.5 x 121.9 mm
|
| Weight |
9.5 lb / 4.3 kg
|
