Description

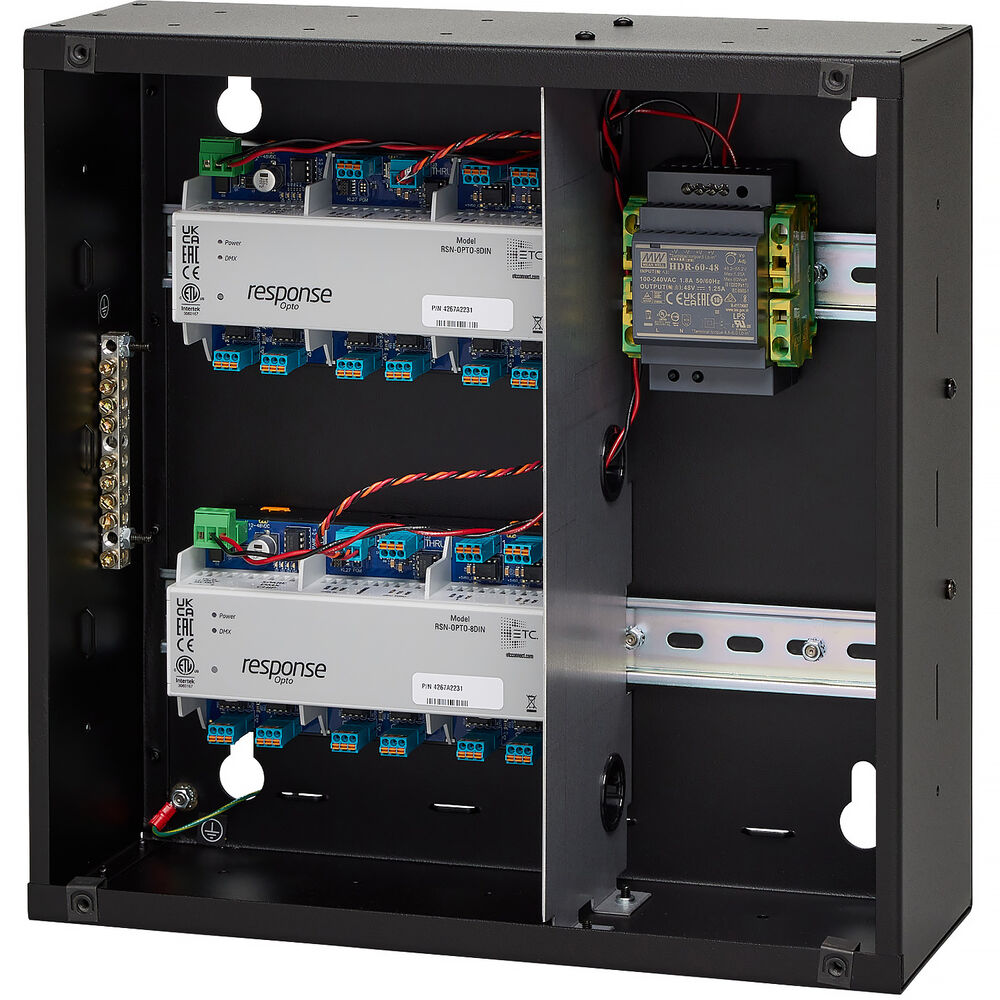

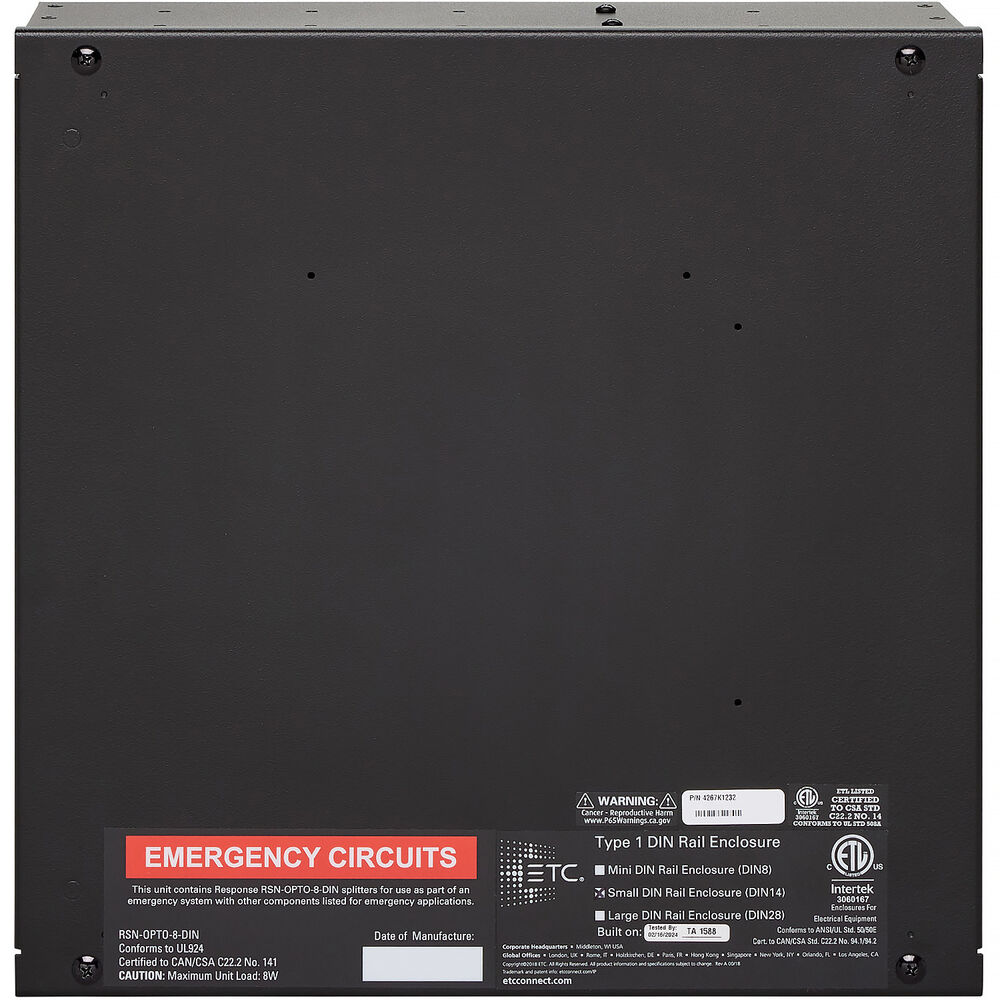

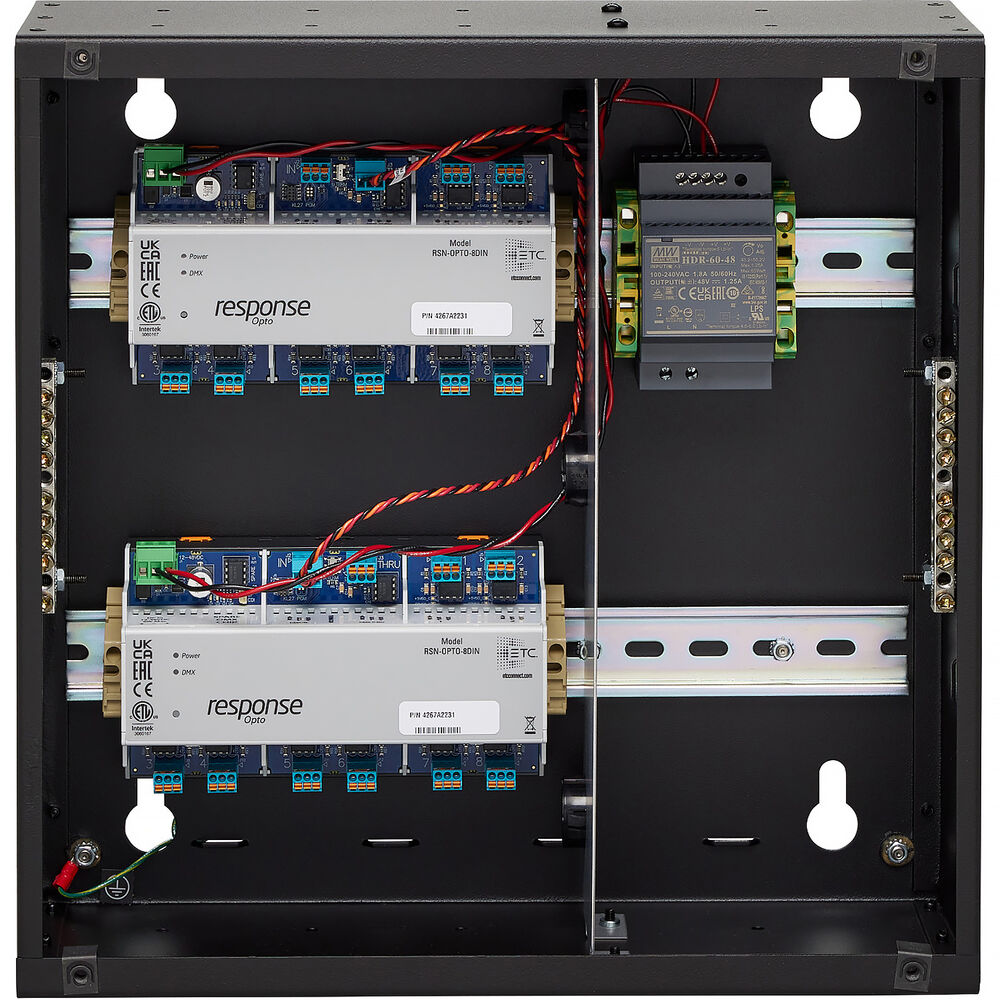

ETC Opto-Splitter Overview
The DIN box ETC Response Opto 16-Output Splitter features DMX input and throughput ports and provides reliable DMX data distribution. Using DMX and RDM protocols, the splitter is offered as a solution that unlocks the power of your DMX system. It has optically isolated DMX512 ports and supports DMX512, DMX512 (1990), and DMX512-A. It supports ANSI E1.20 RDM and up to 256 total RDM devices.
Items Included
- ETC Response Opto 16-Output Splitter (DIN Box)
Additional Resources
No additional resources available
ETC Opto-Splitter Specs
Key Specs
| Inputs/Outputs |
16x Terminal 3-Pin (DMX) Output
1x Terminal 3-Pin (DMX) Input 1x Terminal 3-Pin (DMX) Throughput |
| Channels |
512 (DMX)
|
| Power Source |
AC Adapter
|
| Protocol |
DMX512, RDM
|
General
| Inputs/Outputs |
16x Terminal 3-Pin (DMX) Output
1x Terminal 3-Pin (DMX) Input 1x Terminal 3-Pin (DMX) Throughput |
| Channels |
512 (DMX)
|
| Dimming |
Optional
|
| Cooling System |
No
|
Power
| Power Source |
AC Adapter
|
| Power Consumption |
8 W
|
| Input Power |
12 to 48 VDC
|
Compatibility
| Protocol |
DMX512, RDM
|
Physical
| Operating Conditions |
14 to 149°F / -10 to 65°C at 5 to 95% Humidity
|
| Storage Conditions |
14 to 158°F / -10 to 70°C
|
| Certifications |
cETLus, CE, RoHS, WEEE
|
| Environmental Resistance |
No
|
| Material of Construction |
Aluminum, Plastic
|
| Dimensions |
14.0 x 14.0 x 5.1" / 35.6 x 35.6 x 13.0 cm
|
| Weight |
14.5 lb / 6.6 kg
|
