ETC HPU Rackmountable Console / DMX Processor

Roll over image to zoom in

ETC HPU Rackmountable Console / DMX Processor


	₹ 1948190.0 includes GST and import duties.
	B2B customers can avail ₹ 297098.98 ITC on this product
	100% Secure Payments \| 100% Genuine product
	The product is eligible for Free Shipping

Brand:	ETC
SKU:	7440572678229
MPN:	6204A1001

Share this product

ETC HPU Overview

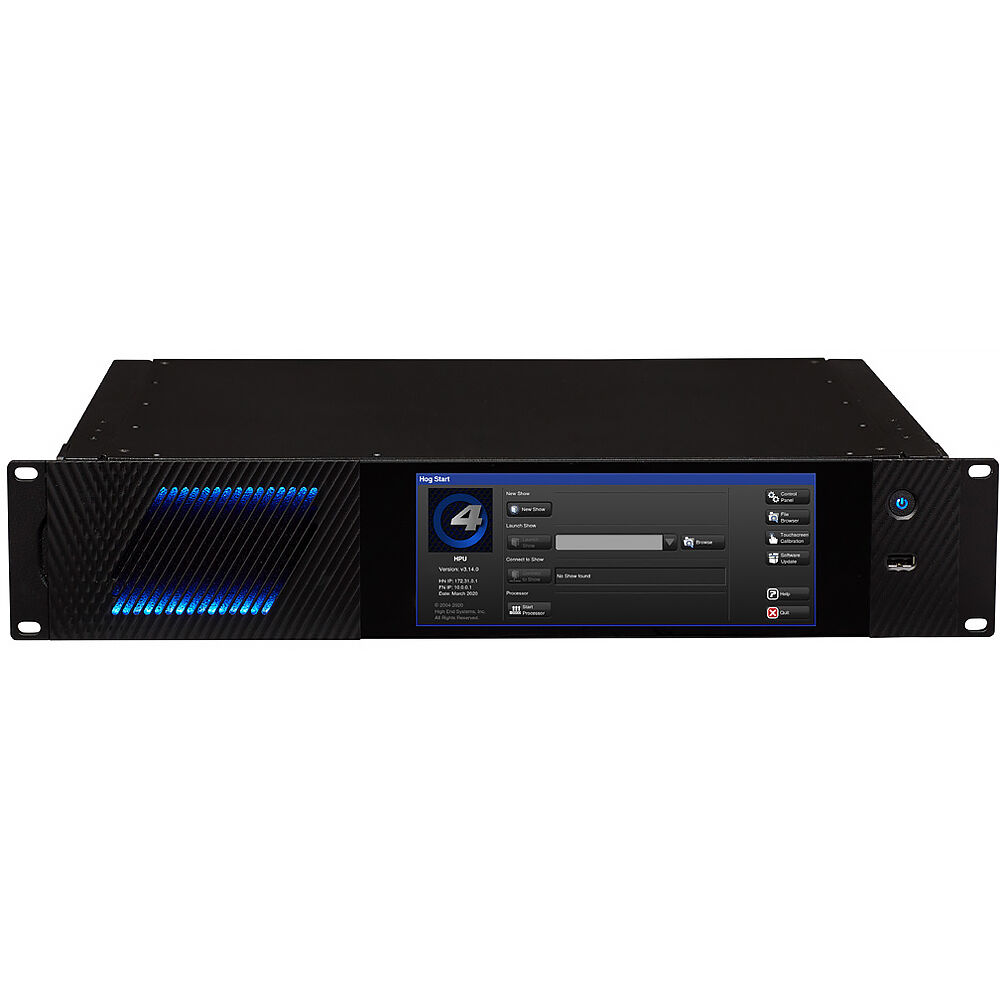

A versatile, compact rackmounted device, the HPU Rackmountable Console / DMX Processor from ETC is a hybrid processor unit for the Hog family. Meaning the HPU acts either as a rackmounted console or as a DMX processor when connected to another Hog console. In console mode, the HPU can work as a backup solution. The HPU offers 64 universes for an impressive number (32,768) of output channels, all from a single 2 RU 19" rackmount unit. With eight XLR 5-pin DMX ports, sACN and Art-Net support, and expandable capabilities, the HPU is ideal for architectural lighting installations and other applications where permanent hardware front-panel interfaces are not necessary. Other highlights are the device's built-in 8" full-color multitouch display and various USB ports for flashdrives, pointing devices, and keyboards.

System Capacity

32,768 parameters (64 universes) in console mode via local processing and 32,768 parameters (64 universes) in DMX processor mode.

Expandable

The HPU is fully expandable using Response Network Gateways, Interfaces, or additional HPU units. Users can plug a Gig Hog into the HPU or add up to two external DisplayPort monitors/touchscreens for a complete, stable control system that will elevate the potential of any show. Find dual RJ45 Ethernet connections for HogNet and FixtureNet and an optional port replicator that can bring all connections to the front of the equipment rack if needed.

Display Functions

Functionalities include user configurable displays with recordable views, dedicated views to access most-used items quickly, palette, list, views, scenes, batches, effect directories, programmer window, plot views, output window, fixture schedule and patch windows, and three color schemes for daylight, regular, or dark environment use.

Programming Settings

Programming settings include command-line interface, programmer window displays selected and adjusted fixtures, lists constructed with +/-, thru, or selection softkeys, next, back, and all commands, intensity set with command keypad, full key, and intensity palettes, ordered groups, comprehensive fanning using segments and buddying, media picker window, Hog color system, programmer window, groups for simplified fixture selection, palettes intensity, position, color, beam, effects, effects engine, pixel mapping effects, park, undo, delete, move, and copy commands, highlight, lowlight, and rem dim commands, cue level and parameter level timing, record, update, and merge commands, knockout and clear commands, and set command for text labels and data entry.

Playback Control

Find unlimited fader pages, comment and keystroke macros, virtual masters, scenes, batch controllers, group masters, triggering via commands, playback expansion via Gig Hog, OSC input/output, MIDI messages, MIDI show control, and MIDI/LTC timecode via USB MIDI/LTC widgets.

Additional Details

Hog OS operating system
Local DMX512 with eight 5-pin XLR outputs
Expandable DMX512 outputs via Response Network Gateways
Local Art-Net and E1.31 / sACN outputs with a single 1 GB/s Ethernet port
Local HogNet 1 GB/s Ethernet port
Unlimited DMX512, Art-Net and E1.31/sACN universes via additional HPU units
MIDI and LTC inputs via MIDI and LTC inputs via USB MIDI/LTC Widgets
Connectivity with visualizers via Fixture-Net
OSC (Open Sound Control) for remote control and integration
Six rear and single front USB 3.0 ports
ETL, CETL, and CE compliant
100 to 250 VAC mains power
Includes IEC power cable
Includes two USB drives for show storage and console recovery
19 x 14 x 3.5" compact design at 15 lb

Items Included

ETC HPU Rackmountable Console / DMX Processor
Alphanumeric Keyboard
Mouse
IEC Power Cable
2 x USB Drive
Limited 2-Year Manufacturer Warranty

Additional Resources

No additional resources available

ETC HPU Specs

Key Specs

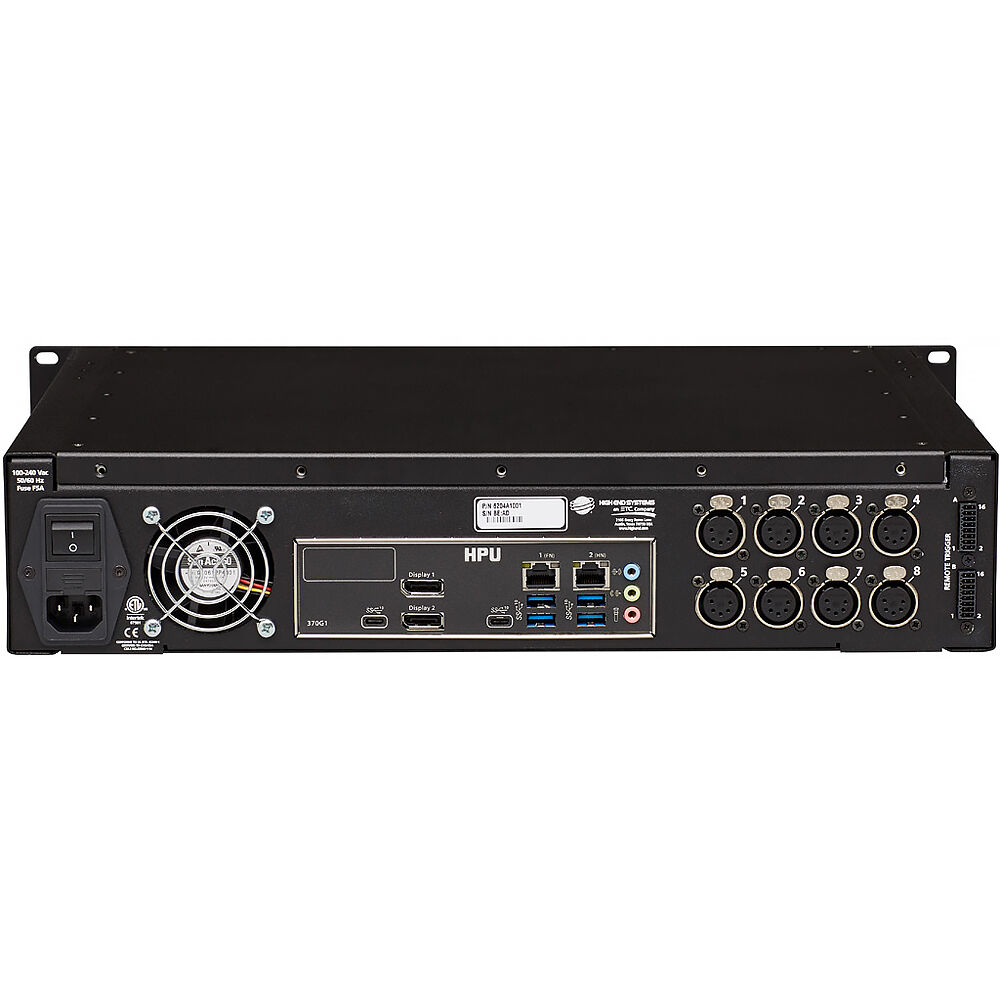

Inputs/Outputs	8x XLR 5-Pin (DMX) Female Output 2x DisplayPort Monitor Female Output 2x RJ45 (Gigabit Ethernet) 5x USB-A Female 2x USB-C Female 1x IEC Power Locking Male Input 2x Terminal (Remote) Input/Output
Channels	32,768 (DMX)
Power Source	AC Power
Protocol	ArtNet, DMX512, OSC, sACN

General

Inputs/Outputs	8x XLR 5-Pin (DMX) Female Output 2x DisplayPort Monitor Female Output 2x RJ45 (Gigabit Ethernet) 5x USB-A Female 2x USB-C Female 1x IEC Power Locking Male Input 2x Terminal (Remote) Input/Output
Channels	32,768 (DMX)
Dimming	Optional
Cooling System	Active

Power

Power Source	AC Power
Power Consumption	120 W
Input Power	100 to 250 VAC, 50 / 60 Hz
Fuse	5 A / Slow-Blow

Compatibility

Protocol

ArtNet, DMX512, OSC, sACN

Physical

Certifications	ETL, cETL
Environmental Resistance	No
Material of Construction	Metal
Rack Mount	2 U
Dimensions	19.1 x 14.0 x 3.5" / 48.5 x 35.6 x 8.9 cm
Weight	15 lb / 6.8 kg
