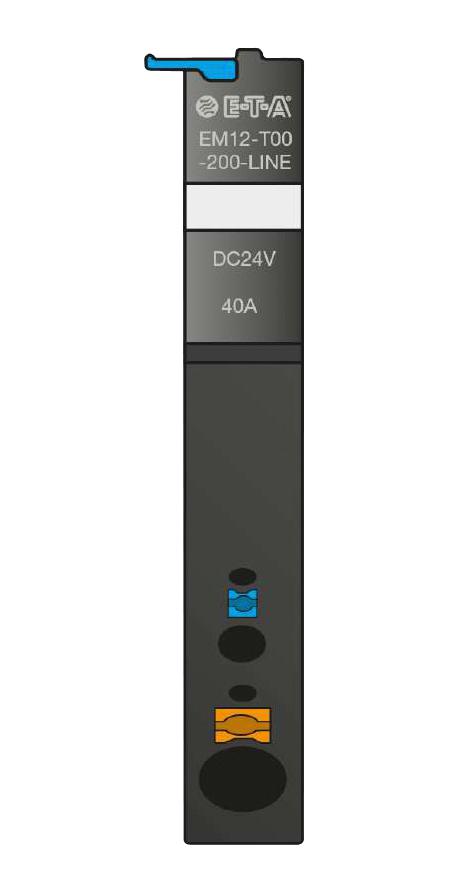

EM12-T00-100-LINE-40A is an EM12-T supply module (centre/right - LINE, LINE connected ). This receives the DC 24V supply voltage, e.g. from a switch mode power supply, and distributes it to the mounted circuit protectors via the integral connector arm of the REX12-T. The potential-free auxiliary contact in this indicates any detected failures through the circuit protector,e.g. to the superordinate control unit (CPU).
- Rail mounting method, without signal version communication, interface
- Rated current is 40A
- 0.8KV / pollution degree 2 insulation co-ordination
- UL 1059, File # E335289 approval
- Dimensions (W x H x D) is 12.5 x 80 x 98mm
Product details
| For Use With:
ETA REX12 Electronic Circuit Protectors
|
| Accessory Type:
Supply Module
|
| Product Range:
EM12 Series
|
Other details
| Brand |
ETA |
| Part Number |
EM12-T00-100-LINE-40A |
| Quantity |
Each |
| Technical Data Sheet EN |
 |
