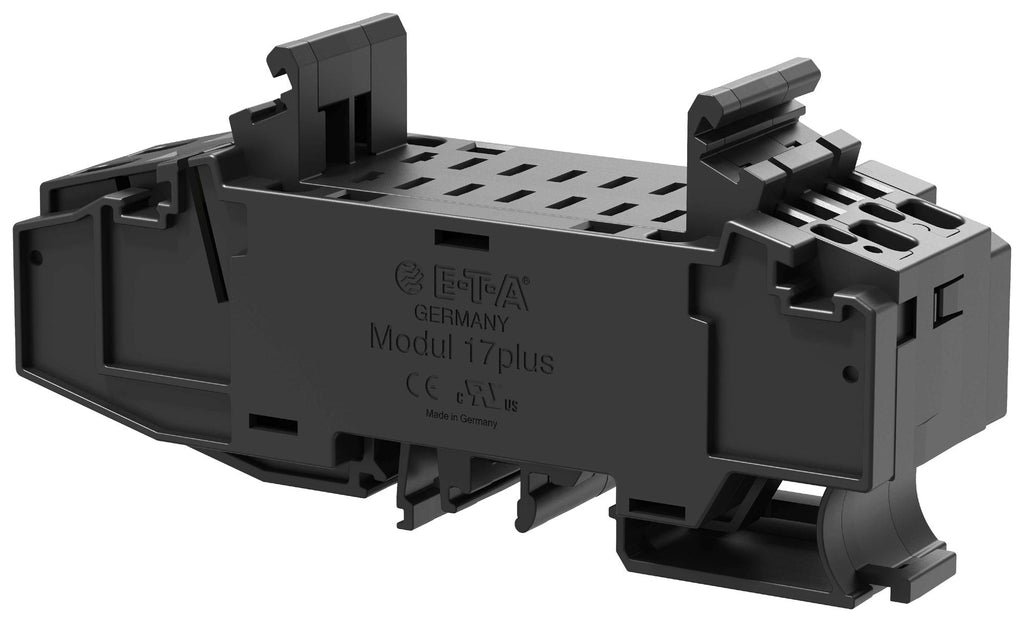

17PLUS-Q02-00 is a module 17plus, centre piece. This module accommodates two breakers with an individual housing width of 12.5mm and fits onto all industry-standard mounting rails. The two-way module is mounted side-by-side to provide as many ways as required with a terminal block fitted at each end for the connection of signalling circuits. Electrical connections are by means of screwless spring-loaded terminals. Fitting a busbar on the terminal side of the modules provides power distribution onto the individual ways with a common line entry. When plugging in multipole circuit breakers, the busbar cannot be used. In this case, each pole has to be individually connected.
- Voltage rating (without circuit breaker) IS AC 250V; 3 AC 433V; DC 65V
- Current rating (without circuit breaker) is 50A (line feed (1.1/1.2)
- UL 60950 standard approval
Product details
| For Use With:
ETA ESS30-S, ESX10 and ESX10-S Electronic Circuit Breakers and Protectors
|
| Accessory Type:
Module 17plus Power Distribution System
|
| Product Range:
-
|
Other details
| Brand |
ETA |
| Part Number |
17PLUS-Q02-00 |
| Quantity |
Each |
| Technical Data Sheet EN |
 |
