Description
ESE ES-188F-NTP6 Overview

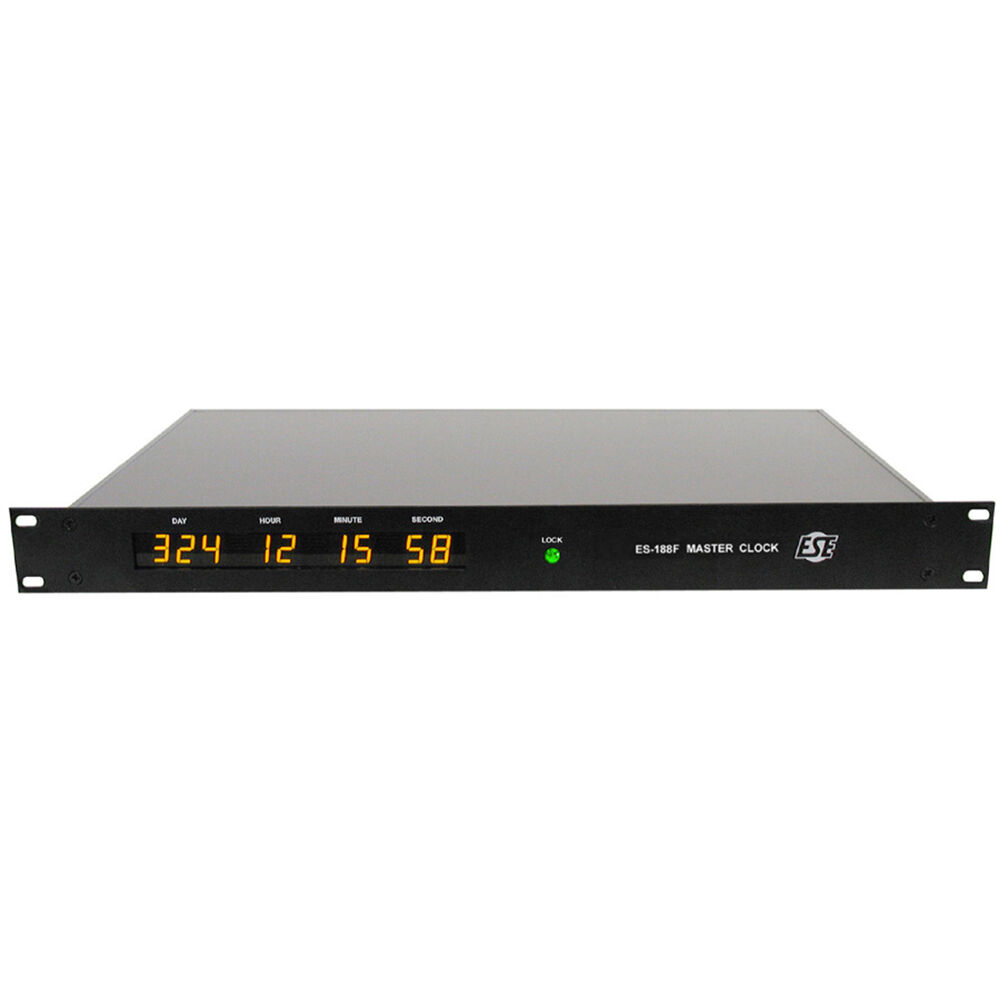

The ES-188F/NTP6 Master Clock/Timecode Generator/NTP Server from ESE generates multiple types of timecode. It features a nine-digit display fed by a user-selected NTP (Network Time Protocol) server that can be referenced even while not connected to the internet. The SMPTE/EBU LTC, ESE-TC90/TC89, ASCII (RS-232C and USB), IRIG-B, and 1PPS signal outputs enable the ES-188F/NTP6 to easily interface with new or existing computers, automation devices, and clock systems.
Versatile Output
The ES-188F/N TP6 enables you to update your computer's Windows clock to the time available on the USB port. It also enables you to select DF, NDF, EBU, or real-time SMPTE modes, offset the displayed/output time zone, and advance or delay the time output for syncing purposes.
Applications
The ES-188F/N TP6 is ideal for basements and locations where it is difficult to get a reliable GPS signal, locations where using an antenna is cost prohibitive or not permitted, or facilities like multiple-campus universities or affiliated radio stations that need to be synced to a remote location through NTP.
- ESE ES-188F/NTP6 Master Clock/Timecode Generator/NTP Server (NTP6)
- AC Power Supply
- Limited 5-Year Manufacturer Warranty
ESE ES-188F-NTP6 Specs
Display
| Panel Type |
Single-Color LED
|
| Size |
Not Specified by Manufacturer
|
| Touchscreen |
No
|

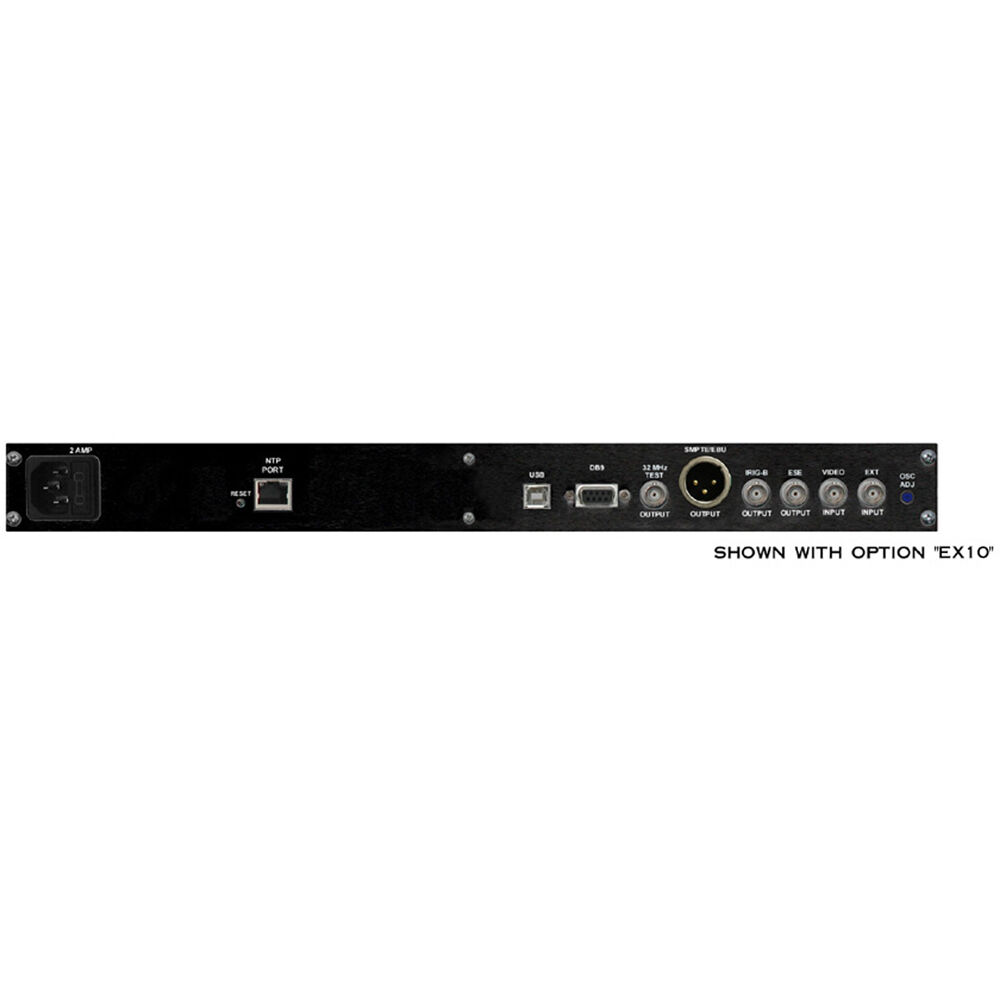

Inputs/Outputs
| USB I/O |
1 x USB-B 2.0 Female Output
|
| Video I/O |
1x BNC Input
|
| Other Input/Output |
PPS, RS-232C Out: 1 x DB-9
ESE Timecode Out: 1 x BNC, TC89/TC90 Selectable SMPTE Timecode Out: 1 x XLR IRIG-B Timecode Out: 1 x BNC |
| Timecode |
Drift: 33 ms/Day
Accuracy: 1 PPS at 5 ms ESE TC at 17 ms IRIG-B at 5 ms SMPTE at 0 Frames with Respect to Video Sync or NTP (RT Mode) Option NTP6: NTP Output at 15 ms |
Power
| Power Source |
Battery, AC Input
|
| AC Input Power |
90 to 264 VAC, 50 / 60 Hz at 15
|
| DC Input Power |
12 to 35 VDC at 1 A
|
Physical
| Mounting |
Side: 2x Rack Ears
|
| Color |
Black
|
| Material of Construction |
Anodized Aluminum
|
| Certifications |
UL
|
| Dimensions |
19 x 9.5 x 1.75" / 48.3 x 24.1 x 4.45 cm
|
