Description

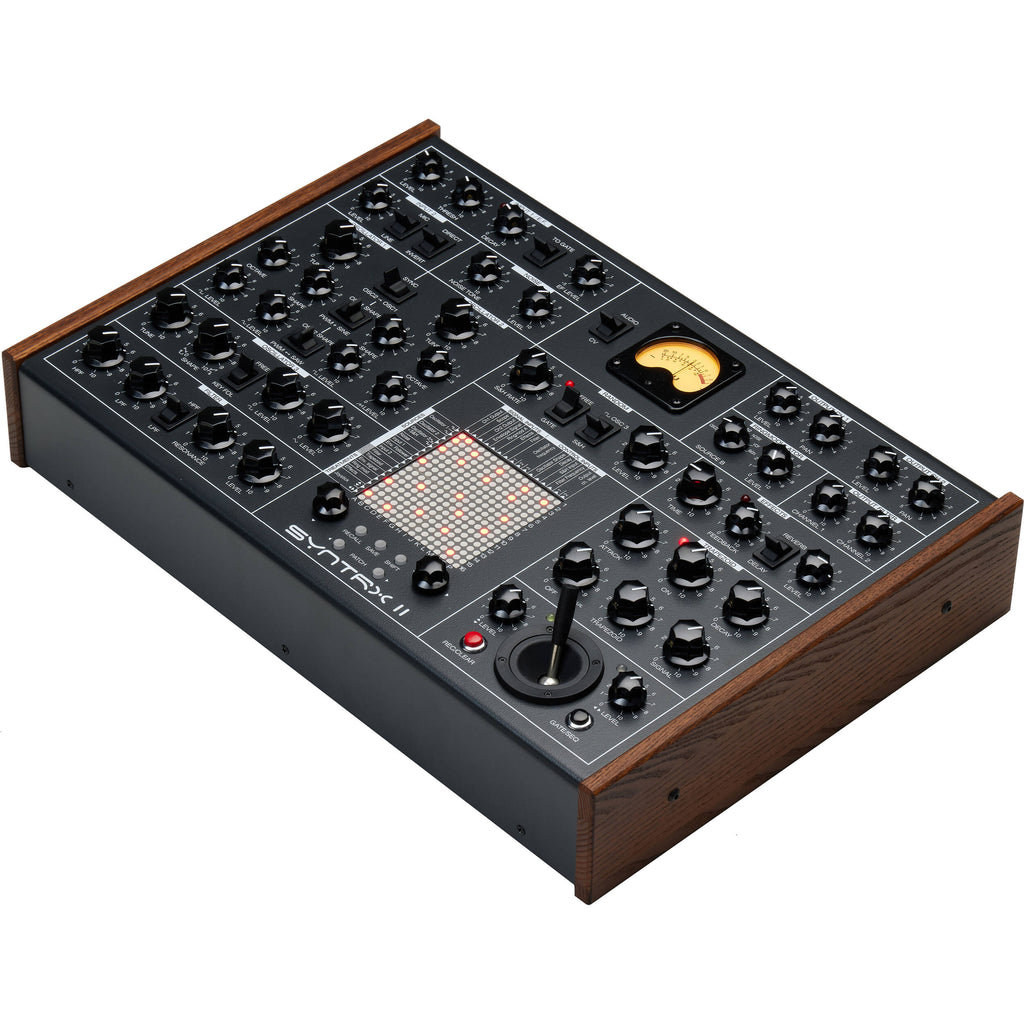

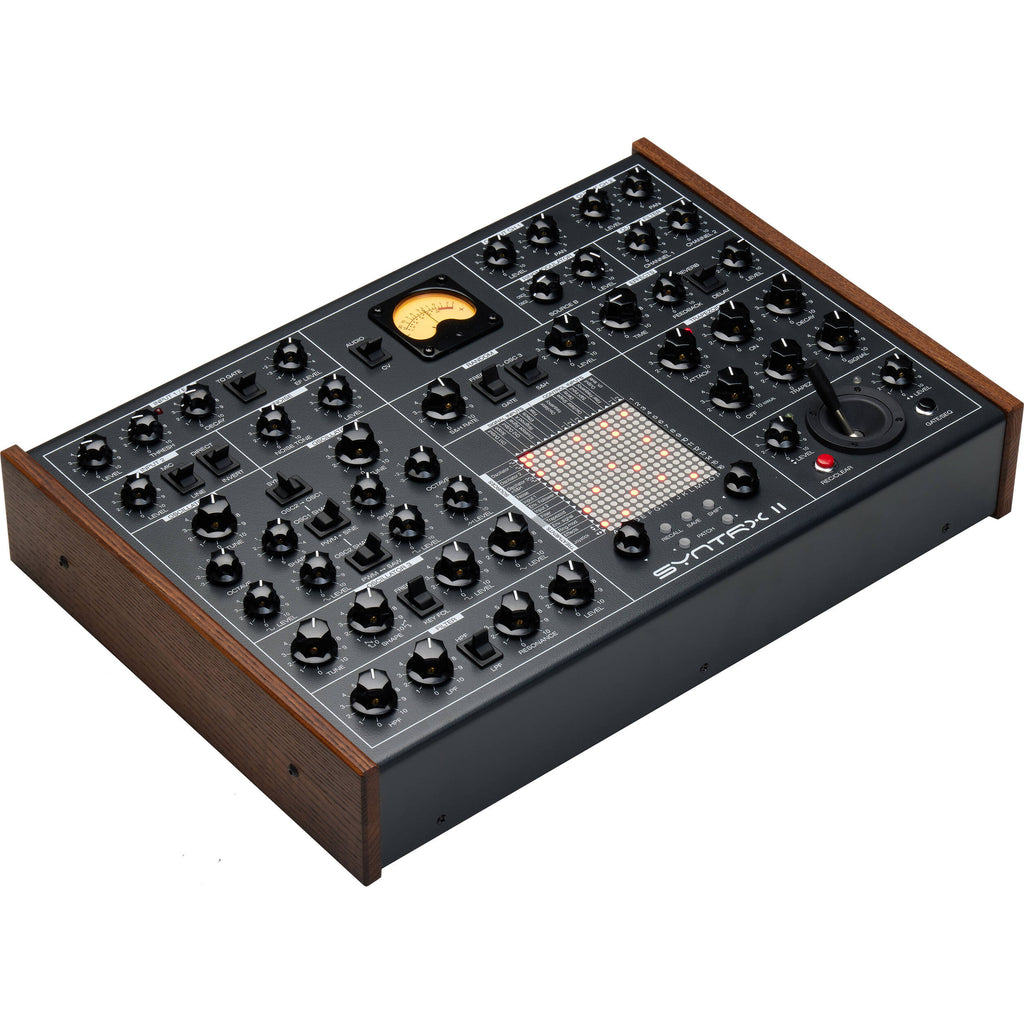

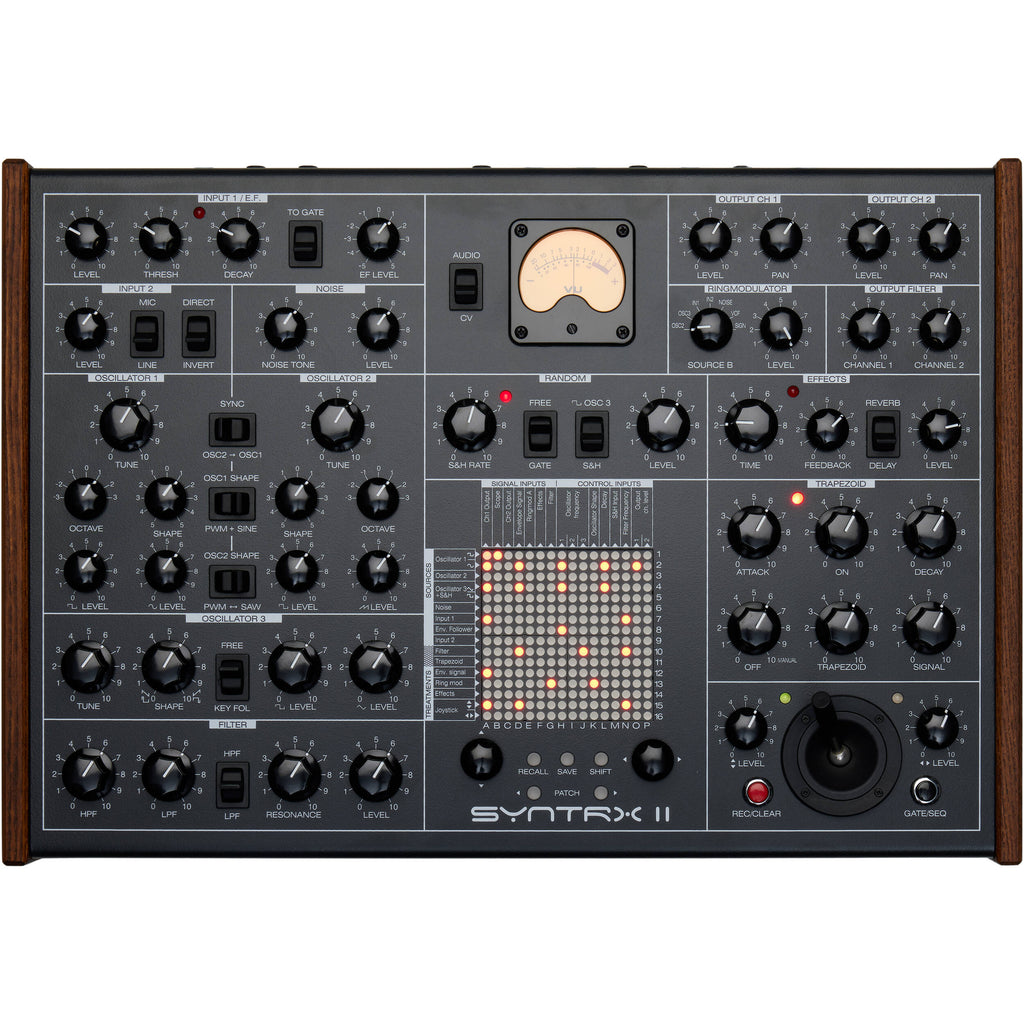

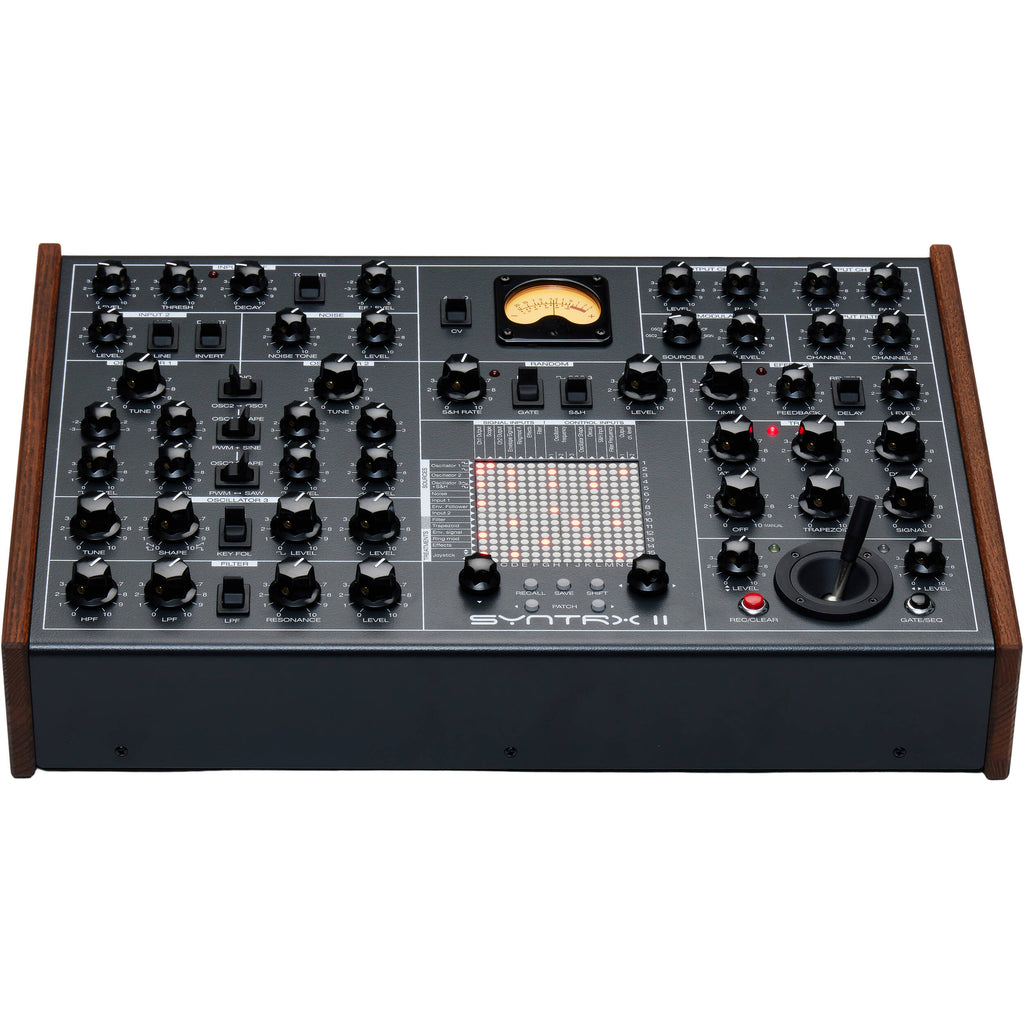

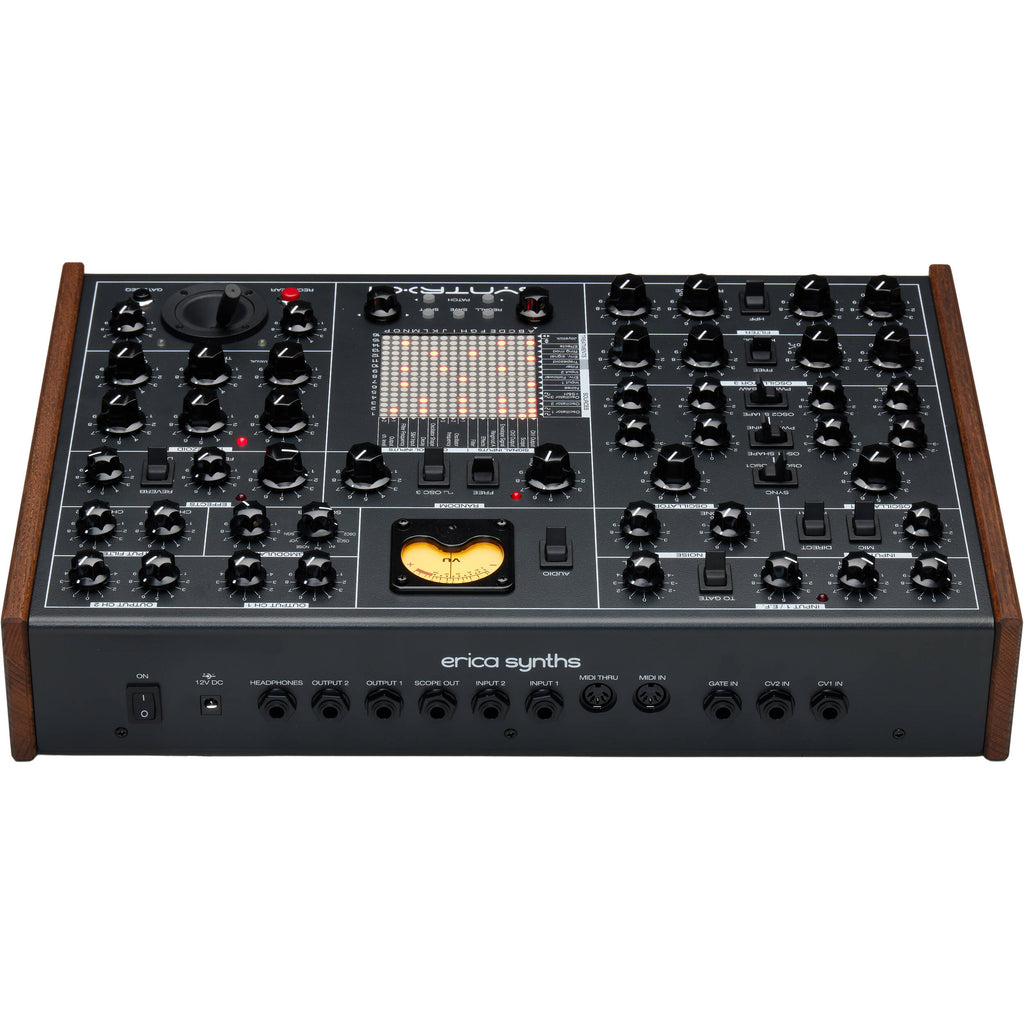

Erica Synths Syntrx II Overview
Musicians, producers, and sound designers looking for an inspirational audio synthesis playground will be thrilled with this USA-version of the erica synths SYNTRX II, a classic analog subtractive synthesizer that's inspired by the legendary EMS Synthi AKS. Although it is not a clone of the original Synthi, the SYNTRX II shares many design functions including the dedicated 16x16 analog patch matrix, which is similar to a patchable modular synthesizer, but without pins or patch cables.
The instrument offers many advanced features including an assignable and recordable joystick, allowing you to record and playback up to 8 seconds of joystick movement, a built-in envelope follower on input 1, and an inversion circuit on input 2. The patch matrix on the SYNTRX II can be used as a piano-roll sequencer that allows you to create up to 16-step sequences with notes within a 3 octave range. Additionally, you can record the delay time knob and two MIDI CC inputs to an 8-second motion sequencer. The SYNTRX II is designed to integrate deeply into contemporary electronic and experimental music setups and cover sonic territory from daunting drones, to powerful basslines, to glitched noisescapes.
- Two stable main oscillators with CV controlled waveforms
- Modulation oscillator with variable waveforms
- High-pass and low-pass filters in series
- Free-running or gate-synced sample-and-hold circuit
- Multicolor noise generator
- DC-coupled instrument inputs with signal inversion and envelope follower
- Ring-modulator of unique design
- Looping trapezoid envelope generator and VCA
- Two output VCAs
- Signal meter with a dedicated audio/CV output
- FX section with great sounding delay and reverb
- Recordable joystick
- Analog patch matrix with 3 attenuation levels in each patch point
- 256 patch memory
- Piano-roll sequencer
- DIN5 MIDI input (CV and gate) and MIDI thru
- Two assignable outputs
- Headphone output
In the Box
- Erica Synths SYNTRX II Desktop Analog Synthesizer (USA Plug)
- USA Power Adapter
- 10 Patch Note Stencils
- Limited 2-Year Manufacturer Warranty
Erica Synths Syntrx II Specs
| Sound Generation |
Analog
|
| Number of Sounds, Kits, or Samples |
256x User Sound Preset
|
| Maximum Polyphony |
Not Specified by Manufacturer
|
| Audio I/O |
2x 1/4" TS Unbalanced Mono Line Output
2x 1/4" TS Unbalanced Mono Mic/Line/Instrument Input |
| MIDI I/O |
1x DIN 5-Pin Input
1x DIN 5-Pin Thru |
| CV/Gate I/O |
2x 1/4" CV Input
1x 1/4" Gate Input |
| Patch Points |
No
|
| Item Type |
Desktop Synth Module
|
| Sound Generation |
Analog
|
| Keyboard |
No
|
| Expression Controls |
1x Joystick
|
| Number of Pads |
No
|
| Display |
No
|
| Number of Sounds, Kits, or Samples |
256x User Sound Preset
|
| Maximum Polyphony |
Not Specified by Manufacturer
|
| Built-In Effects |
1x Delay
1x Reverb |
| Performance Functions |
Sequencer
|
| Built-In Speaker |
No
|
| Oscillators |
1x Fixed (Sine, Square)
1x Fixed (Sawtooth, Square) |
| Mixer |
Oscillator, Oscillator 2, Oscillator 3, Noise, Ring Modulation, External Audio
|
| Amplifiers |
2x VCA
|
| Envelopes |
1x VCA/VCF/VCO/Assignable Envelope Generator: Attack, Hold, Decay
|
| Filters |
Number of Filters: 2 per Patch
Characteristic: Analog Type: Low-Pass, Band-Pass, High-Pass Key Tracking: Yes Controls: Cutoff, Resonance, Mode |
| LFOs |
Number of LFOs: 1x Global
Waveforms: Sawtooth, Square LFO Rate: 0.05 to 500 Hz Controls/Modes: Amount to VCO, Pitch, Filter, Amp |
| Modulation Matrix |
256-Slot per Patch (16 Sources / 16 Destinations)
|
| Glide/Portamento |
Yes
|
| Sequencer |
Number of Steps: 16x Step
Number of Sequencer Patterns: 256x User |
| Motion Sequencing |
Up to 3 Parameters per Pattern
|
| Arpeggiator |
No
|
| Audio I/O |
2x 1/4" TS Unbalanced Mono Line Output
2x 1/4" TS Unbalanced Mono Mic/Line/Instrument Input |
| Pedal Support |
No
|
| MIDI I/O |
1x DIN 5-Pin Input
1x DIN 5-Pin Thru |
| CV/Gate I/O |
2x 1/4" CV Input
1x 1/4" Gate Input |
| Patch Points |
No
|
| Sync I/O |
No
|
| Network I/O |
No
|
| USB I/O |
No
|
| Media/Memory Card Slot |
No
|
| Included Software |
No
|
| Mobile App Compatible |
No
|
| Power Requirements |
AC/DC Power Adapter (Included)
|
| AC Input Power |
100 to 240 VAC, 50 / 60 Hz
|
| AC/DC Power Adapter |
12 VDC (Included)
|
| Color |
Black
|
| Included Accessories |
No
|
| Dimensions |
18 x 12.2 x 4.5" / 45.7 x 30.9 x 11.5 cm
|
| Weight |
8.6 lb / 3.9 kg
|
| Package Weight |
11.59 lb
|
| Box Dimensions (LxWxH) |
23.6 x 14.9 x 5.3"
|
