Description

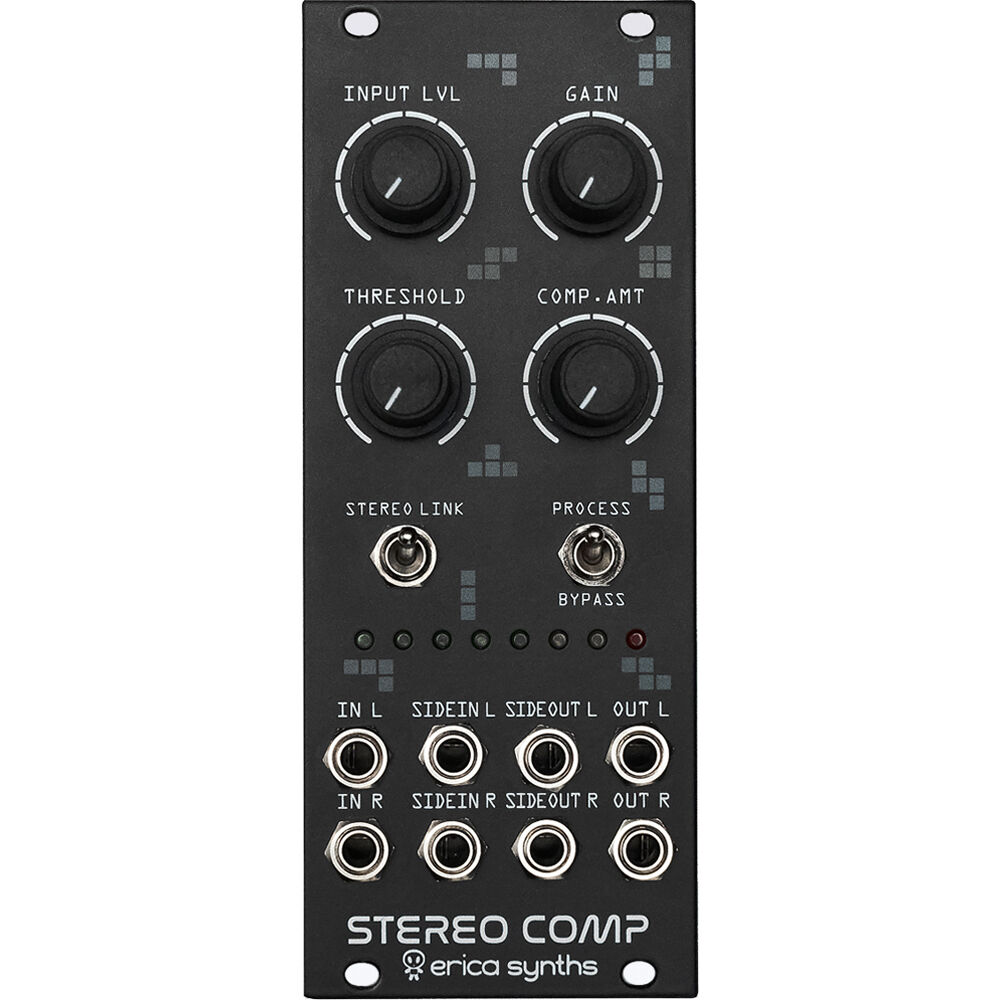

Erica Synths 4751030821511 Overview
Add pressure to your drum and synth sounds with the erica synths Stereo Compressor, a Eurorack compatible module that features the THAT chip-based compression circuit to keep your modular mix nimble and tight. The Stereo Compressor features stereo sidechain inputs and outputs that can be used to animate melodic layers on the beat and truly bring your basslines to life. The module is optimized for percussion sounds and will be a great addition to any Erica Synths Drum module rig. The Stereo Compressor ships with a ribbon power cable and a set of mounting screws.
At a Glance
- THAT chip-based stereo compressor
- DC-coupled sidechain
- Gain, Threshold, and Compression amount (Ratio) settings
- Stereo Link for level detectors
- Bypass switch
- 8 segment output level VU meter
- Power consumption: 60mA at +12V, 22mA at -12V
- Module Depth: 1.4" / 35mm
Compression Controls
- Audio input level: -5 to +5V
- Threshold: -40 to +10dB
- Makeup gain: -12 to +12dB
- Ratio: 1:1 to ?
In the Box
- Erica Synths Stereo Compressor Eurorack Module (10 HP)
- Ribbon Power Cable
- Set of Mounting Screws
- Limited 2-Year Manufacturer Warranty
Not in the Box
- Essential Eurorack Cases (Not Included)
Erica Synths 4751030821511 Specs
Key Specs
| Sound Generation |
Analog
|
| Maximum Polyphony |
Not Specified by Manufacturer
|
| Audio I/O |
2x 1/8" / 3.5 mm TS Unbalanced Mono Modular/Eurorack Input (Eurorack Compatible)
2x 1/8" / 3.5 mm TS Unbalanced Mono Modular/Eurorack Output (Eurorack Compatible) 2x 1/8" / 3.5 mm TS Unbalanced Mono Modular/Eurorack Input (Eurorack Compatible) 2x 1/8" / 3.5 mm TS Unbalanced Mono Modular/Eurorack Output (Eurorack Compatible) |
| MIDI I/O |
No
|
| CV/Gate I/O |
No
|
| Patch Points |
No
|
| Eurorack Current Consumption |
60 mA on +12 V Rail
22 mA on -12 V Rail |
| Horizontal Pitch |
10 HP
|
General
| Item Type |
Eurorack Module
|
| Sound Generation |
Analog
|
| Keyboard |
No
|
| Expression Controls |
No
|
| Number of Pads |
No
|
| Display |
No
|
Sounds
| Maximum Polyphony |
Not Specified by Manufacturer
|
| Built-In Effects |
1x Dynamic FX: Compressor with Sidechain
|
| Built-In Speaker |
No
|
Synthesis
| Oscillators |
No
|
| Mixer |
No
|
| Amplifiers |
No
|
| Envelopes |
No
|
| Filters |
No
|
Sequencing & Recording
| Sequencer |
No
|
| Arpeggiator |
No
|
Connectivity
| Audio I/O |
2x 1/8" / 3.5 mm TS Unbalanced Mono Modular/Eurorack Input (Eurorack Compatible)
2x 1/8" / 3.5 mm TS Unbalanced Mono Modular/Eurorack Output (Eurorack Compatible) 2x 1/8" / 3.5 mm TS Unbalanced Mono Modular/Eurorack Input (Eurorack Compatible) 2x 1/8" / 3.5 mm TS Unbalanced Mono Modular/Eurorack Output (Eurorack Compatible) |
| Pedal Support |
No
|
| MIDI I/O |
No
|
| CV/Gate I/O |
No
|
| Patch Points |
No
|
| Sync I/O |
No
|
| Network I/O |
No
|
| USB |
No
|
| Media/Memory Card Slot |
No
|
Audio Performance
| Maximum Input Level |
+5 dB
|
| Included Software |
No
|
| Mobile App Compatible |
No
|
Power
| Power Requirements |
Eurorack Power
|
| Eurorack Current Consumption |
60 mA on +12 V Rail
22 mA on -12 V Rail |
Physical
| Color |
Black
|
| Horizontal Pitch |
10 HP
|
| Included Accessories |
No
|
Packaging Info
| Package Weight |
0.455 lb
|
| Box Dimensions (LxWxH) |
7.8 x 3.9 x 2.4"
|
