Description

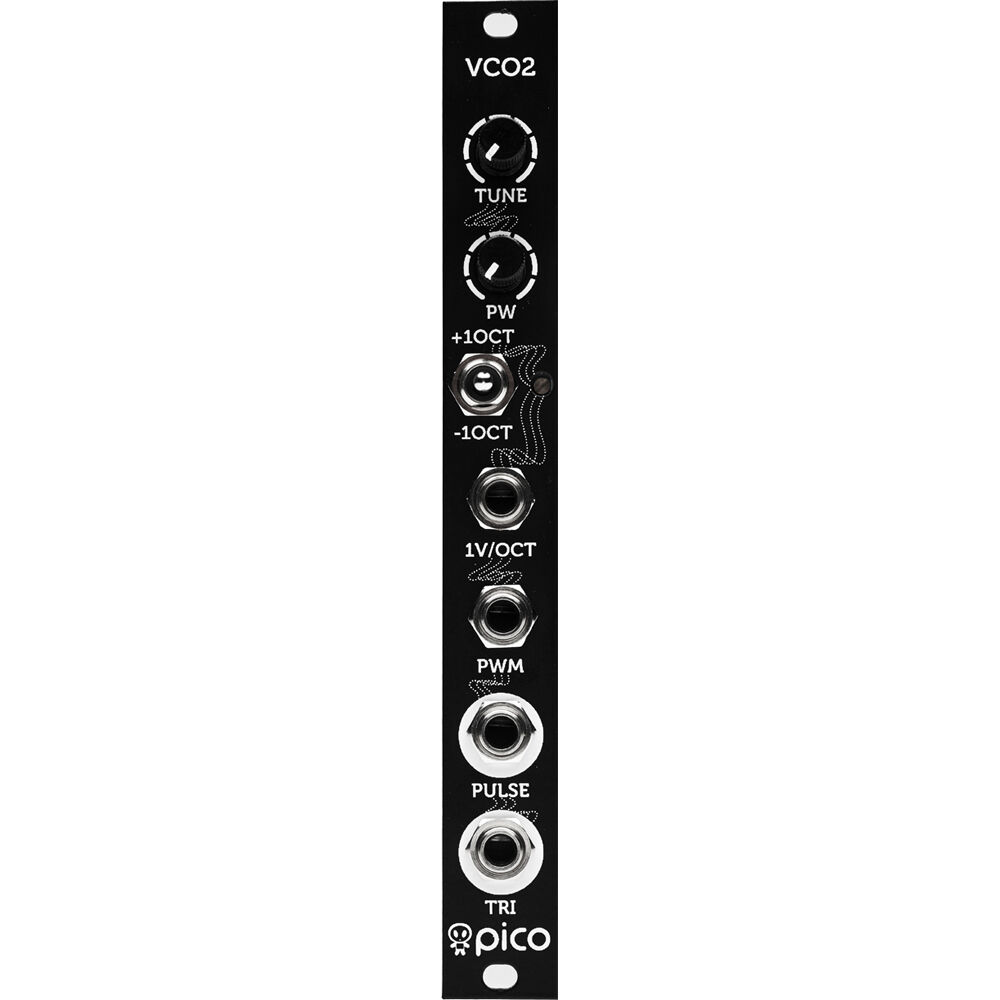

Erica Synths VCO2 Overview
Modular synthesizer enthusiasts looking for a powerful fully analog VCO in a tiny footprint will be thrilled with the erica synths Pico VCO2, a compact Eurorack VCO with triangle and PWM outputs that provides great tracking over 8 octaves. The PWM CV input provides motion to the PWM waveform for a more dynamic sound. The module includes a power ribbon cable and a set of mounting screws.
- Manual Tune and PWM controls
- +/-1 octave switch
- 1 V/oct input with good tracking across 8 octaves
- PWM CV input
- Pulse and triangle waveform outputs
- Input protection against overvoltage
- Protection against reverse PSU connection
- Power consumption: +21mA / -19mA
- Module depth: 1.4" / 35mm
In the Box
- Erica Synths Pico VCO2 Eurorack Module (3 HP)
- Ribbon Power Cable
- Set of Mounting Screws
- Limited 2-Year Manufacturer Warranty
Not in the Box
- Essential Eurorack Cases (Not Included)
Erica Synths VCO2 Specs
Key Specs
| Sound Generation |
Analog
|
| Maximum Polyphony |
Not Specified by Manufacturer
|
| Audio I/O |
2x 1/8" / 3.5 mm TS Unbalanced Mono Instrument Output
|
| MIDI I/O |
No
|
| CV/Gate I/O |
2x 1/8" / 3.5 mm TS CV Input
|
| Patch Points |
No
|
| Eurorack Current Consumption |
21 mA on +12 V Rail
19 mA on -12 V Rail |
| Horizontal Pitch |
3 HP
|
General
| Item Type |
Eurorack Module
|
| Sound Generation |
Analog
|
| Keyboard |
No
|
| Expression Controls |
No
|
| Number of Pads |
No
|
| Display |
No
|
Sounds
| Maximum Polyphony |
Not Specified by Manufacturer
|
| Built-In Effects |
No
|
| Performance Functions |
No
|
| Built-In Speaker |
No
|
Synthesis
| Oscillators |
1x Fixed (Square, Triangle)
|
| Mixer |
No
|
| Amplifiers |
No
|
| Envelopes |
No
|
| Filters |
No
|
| LFOs |
No
|
Sequencing & Recording
| Sequencer |
No
|
| Arpeggiator |
No
|
Connectivity
| Audio I/O |
2x 1/8" / 3.5 mm TS Unbalanced Mono Instrument Output
|
| Pedal Support |
No
|
| MIDI I/O |
No
|
| CV/Gate I/O |
2x 1/8" / 3.5 mm TS CV Input
|
| Control Voltage Level |
±5 V
|
| Patch Points |
No
|
| Sync I/O |
No
|
| Network I/O |
No
|
| USB I/O |
No
|
| Media/Memory Card Slot |
No
|
Audio Performance
| Maximum Output Level |
5 V p-p
|
| Included Software |
No
|
| Mobile App Compatible |
No
|
Power
| Power Requirements |
Eurorack Power
|
| Eurorack Current Consumption |
21 mA on +12 V Rail
19 mA on -12 V Rail |
Physical
| Color |
Black
|
| Horizontal Pitch |
3 HP
|
| Included Accessories |
No
|
Packaging Info
| Package Weight |
0.2 lb
|
| Box Dimensions (LxWxH) |
8.2 x 2.6 x 2.15"
|
