| ₹ 79770.0 includes GST and import duties. | |
| B2B customers can avail ₹ 12164.93 ITC on this product | |
| 100% Secure Payments | 100% Genuine product | |
| The product is eligible for Free Shipping |
Description

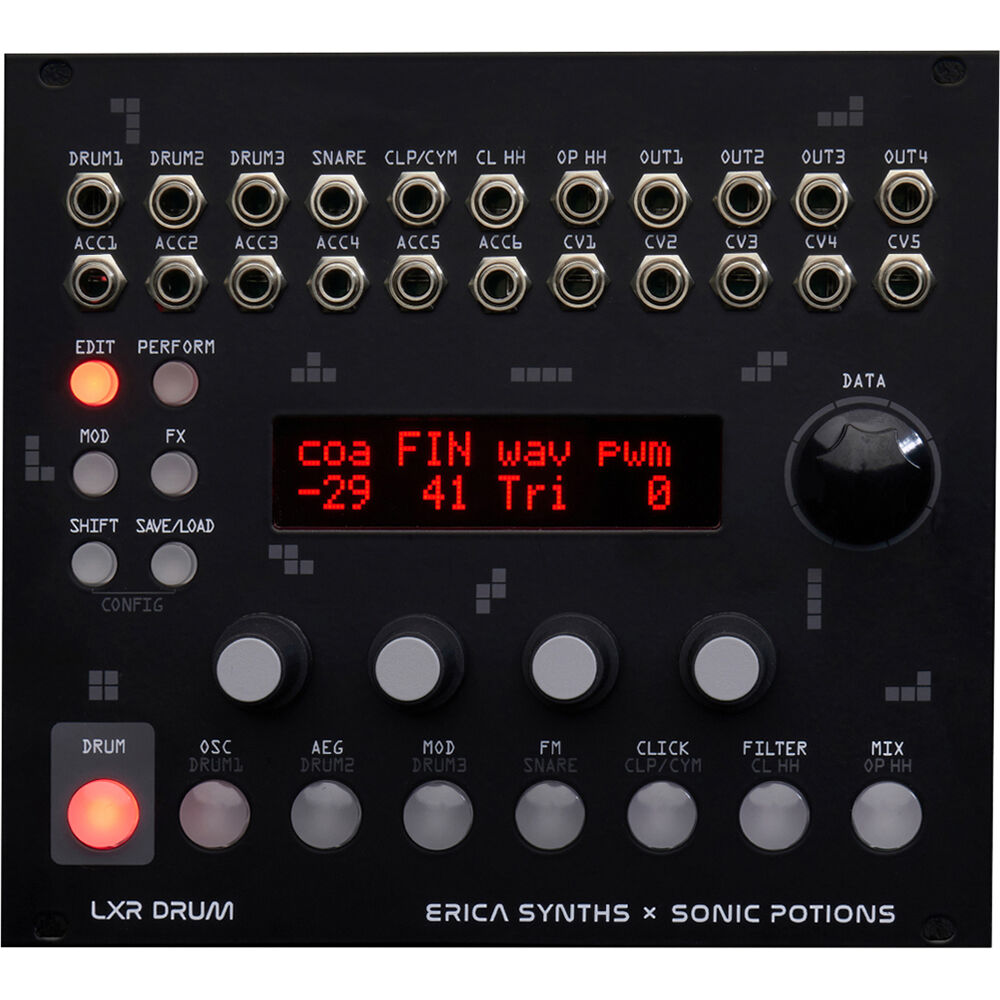

Erica Synths LXR Overview
Modular synthesizer enthusiasts in search of a next-level percussion synthesizer will be impressed with the erica synths LXR Drum Module. The LXR2 was developed in cooperation with Sonic Potions and ports their LXR-02 drum machine sound engine into a compact Eurorack modular with six different instrument voices, each with over 30 parameters to tweak. The module can produce a wide variety of sounds from classic analog emulations to full-on crunchy digital mayhem.
With no onboard sequencer, the LXR is best paired with a percussion sequencer like the erica synths Drum Sequencer. Drums 1-3 offer 1V/oct tracking for use as basslines and melodic sequences. There are 7 drum trigger inputs with accents which control the 6 voices. Triggers 6 and 7 share the hi-hat voice and offer independent decay times to create the open and closed hi-hat sound.
Each voice features a 3-slot modulation matrix with 17 sources (5 CVs inputs, 6 LFOs, and 6 accent signals), which can be routed to any of the voice parameters. There is a single FX slot with four effects to choose from (Drive, Ringmod, Comp, Delay) plus a performance mode that allows you to morph between two kits in real time. The LXR includes a ribbon power cable and mounting screws.
- 6 drum/percussion voices
- 7 trigger inputs with accents
- 5 assignable CV inputs
- 4 assignable outputs
- 3 voices can be used as basslines due to 1V/oct tuning
- Over 30 adjustable parameters per voice
- Insert FX section
- Kit memory
- SD card for Kit exchange and easy firmware updates
- Kits compatible with the LXR-02
- Power consumption: +118mA / -61mA
- Module depth: 1.4" / 35mm
In the Box
- Erica Synths LXR Eurorack Drum Module (28 HP)
- Ribbon Power Cable
- Set of Mounting Screws
- Limited 2-Year Manufacturer Warranty
Not in the Box
- Essential Eurorack Cases (Not Included)
Additional Resources
Erica Synths LXRSpecs
| Sound Generation |
Digital
|
| Number of Sounds, Kits, or Samples |
1000x User Drum Kit
|
| Maximum Polyphony |
Not Specified by Manufacturer
|
| Audio I/O |
4x 1/8" / 3.5 mm TS Unbalanced Mono Instrument Output
|
| MIDI I/O |
No
|
| CV/Gate I/O |
7x 1/8" / 3.5 mm TS Trigger Input
5x 1/8" / 3.5 mm TS CV Input 5x 1/8" / 3.5 mm TS Assignable Input |
| Patch Points |
No
|
| Eurorack Current Consumption |
160 mA on +12 V Rail
12 mA on -12 V Rail |
| Horizontal Pitch |
28 HP
|
| Item Type |
Eurorack Module
|
| Sound Generation |
Digital
|
| Keyboard |
No
|
| Expression Controls |
No
|
| Number of Pads |
6x Pad (with LED Indicators)
|
| Display |
Monochrome OLED
|
| Number of Sounds, Kits, or Samples |
1000x User Drum Kit
|
| Maximum Polyphony |
Not Specified by Manufacturer
|
| Built-In Effects |
No
|
| Performance Functions |
No
|
| Built-In Speaker |
No
|
| Oscillators |
6x Variable (FM, Noise, Sawtooth, Sine, Square, Triangle)
|
| Mixer |
No
|
| Amplifiers |
6x DCA
|
| Envelopes |
1x Amp/Assignable Envelope Generator per Voice
|
| Filters |
Number of Filters: 1 per Voice
Characteristic: Digital Type: Multi-Filter Slope: 2-Pole/12 dB (HPF/LPF/BPF) |
| LFOs |
Number of LFOs: 1 per Voice
Waveforms: Sine, Sawtooth, Reverse Sawtooth, Sawtooth Up, Sawtooth Down, Square, Triangle, Random Controls/Modes: LFO Sync |
| Modulation Matrix |
3-Slot per Voice (17 Sources)
|
| Sequencer |
No
|
| Arpeggiator |
No
|
| Audio I/O |
4x 1/8" / 3.5 mm TS Unbalanced Mono Instrument Output
|
| Pedal Support |
No
|
| MIDI I/O |
No
|
| CV/Gate I/O |
7x 1/8" / 3.5 mm TS Trigger Input
5x 1/8" / 3.5 mm TS CV Input 5x 1/8" / 3.5 mm TS Assignable Input |
| Control Voltage Level |
CV In: -5 to +5 V
|
| Patch Points |
No
|
| Sync I/O |
No
|
| Network I/O |
No
|
| USB I/O |
No
|
| Media/Memory Card Slot |
Slot 1: SD/SDHC
|
| I/O Impedance |
Outputs:
100 Ohms (Unbalanced) |
| Maximum Output Level |
10 V p-p
|
| Included Software |
No
|
| Mobile App Compatible |
No
|
| Power Requirements |
Eurorack Power
|
| Eurorack Current Consumption |
160 mA on +12 V Rail
12 mA on -12 V Rail |
| Color |
Black
|
| Horizontal Pitch |
28 HP
|
| Included Accessories |
No
|
| Package Weight |
0.875 lb
|
| Box Dimensions (LxWxH) |
8.4 x 8.15 x 2.75"
|
All product and company names are trademarks™ or registered® trademarks of their respective holders. Use of them does not imply any affiliation with or endorsement by them.
Bulk Discount
| Quantity | Price |
| 2 | ₹ 78174.6 |
| 3-5 | ₹ 77376.9 |
| 5-10 | ₹ 75781.5 |
| 10+ | ₹ 74186.1 |
Bulk discount will be automatically applied during checkout based on quantity.
Customer Reviews
Great module for percussion and leads. My to go module for most of my percussion needs for the style when required!
As for Tanotis, perhaps consider a little more price friendly perspective!? I understand after customs and IGST and freight plus other customs related expenses there is still a margin of around ₹4,000 to ₹5,000 - perhaps consider narrowing this margin down so more musicians in India can rely on your site entirely to purchase such synths or modules! Overall good service provided!
