Description

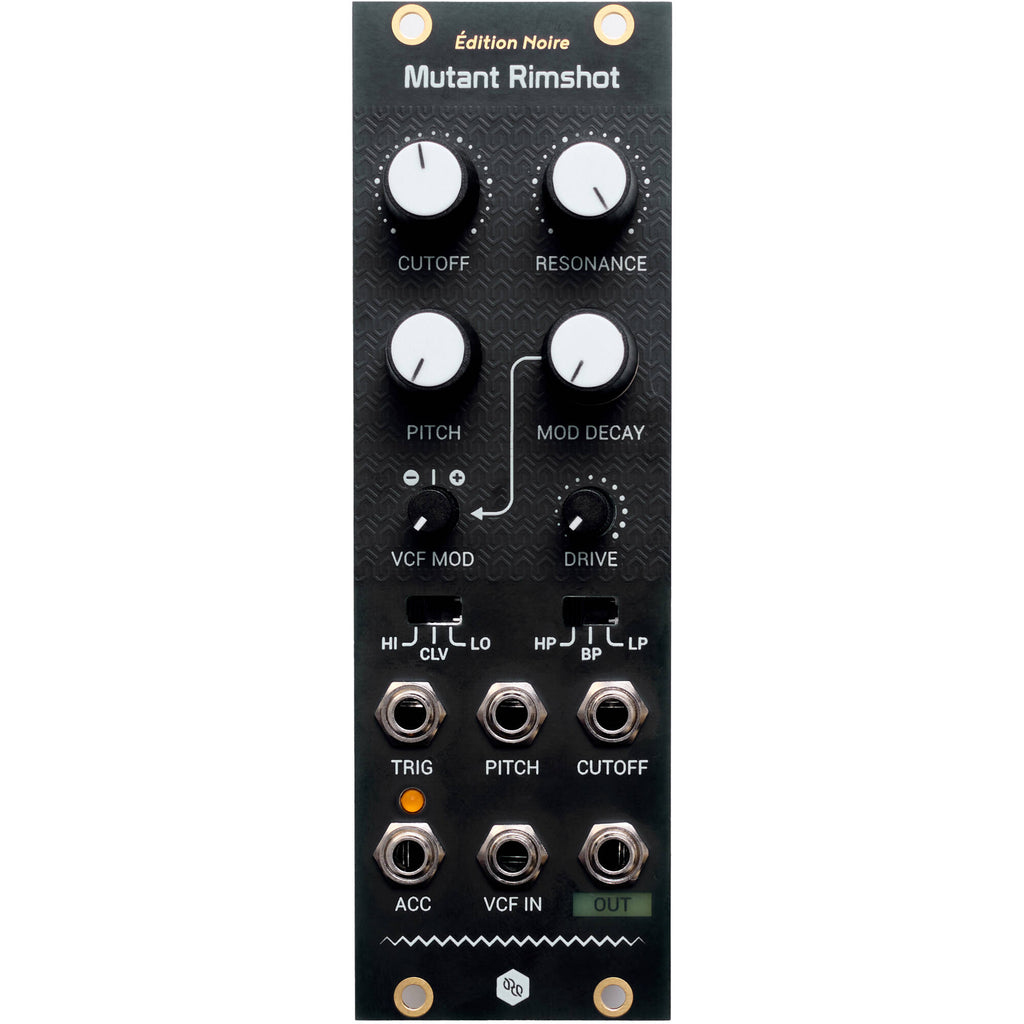

Erica Synths HEXINVERTER Rimshot Overview
Add the sounds of the TR-909 rimshot to your modular rig with the erica synths Hexinverter Mutant Rimshot, a fully analog rimshot and clave generator an 8 HP Eurorack module. The module was inspired by the legendary 909 drum machine and features a triple bridged-T oscillator coupled with a state variable filter. The clave sound (not a feature of the original 909 rimshot) is achieved by using just one of the oscillators. The Mutant Rimshot ships with a ribbon power cable and mounting screws.
Three Oscillator Modes
- Rimshot HI: Brings classic rimshot sounds
- Rimshot LO: Gives a lower pitch range; try playing with the filter on this setting to get low tom and kickdrum sounds
- CLV (Clave): Uses just one of the oscillators to give you a brighter, higher percussive sound.
- A switch on the back lets you select between original and extended pitch modes. Original mode can give you rimshots exactly modeling that of classic machines (in Rimshot Hi mode), whereas extended mode gives a wider range of pitch, at the expense of classic accuracy.
Three Filter Modes
- Use the low-pass or high-pass filter modes for classic sounding rimshots
- Hi-pass and bandpass can give a wider range of clave and rimshot sounds, as well as completely different percussive elements (especially when turning the resonance up)
- VCF IN lets you blend the clave or rimshot with other sounds. Try adding some filtered noise for a more acoustic sounding rimshot, or for pseudo-snare type sounds.
Novel Decay and Filter Mod Controls
- The MOD DECAY envelope controls the decay of the VCA envelope
- The VCF MOD attenuverter allows you to modulate the filter cutoff with the MOD DECAY envelope
- Alternatively, a switch on the back lets you modulate the filter cutoff with the pitch-controlled internal VCO, for filter FM style percussive hits.
Eurorack Ready
- Width: 8 HP
- Depth: 1.2" / 30mm
- Includes power ribbon cable with Eurorack power headers and mounting screws
- Power Consumption: +12V: 45mA / -12V: 50mA
Items Included
- Erica Synths Hexinverter Mutant Rimshot Eurorack Module (8 HP)
- Ribbon Power Cable
- Set of Mounting Screws
- Limited 2-Year Manufacturer Warranty
Not Included
- Essential Eurorack Cases
Additional Resources
Erica Synths HEXINVERTER Rimshot Specs
| Power |
Current Draw: +12V 45 mA, -12V 50 mA
|
| Dimensions |
Width: 8 HP
Depth: 1.2" / 30.0 mm |
| Weight |
Not Specified by Manufacturer
|
Packaging Info
| Package Weight |
0.465 lb
|
| Box Dimensions (LxWxH) |
7.7 x 4.7 x 2.5"
|
