Description

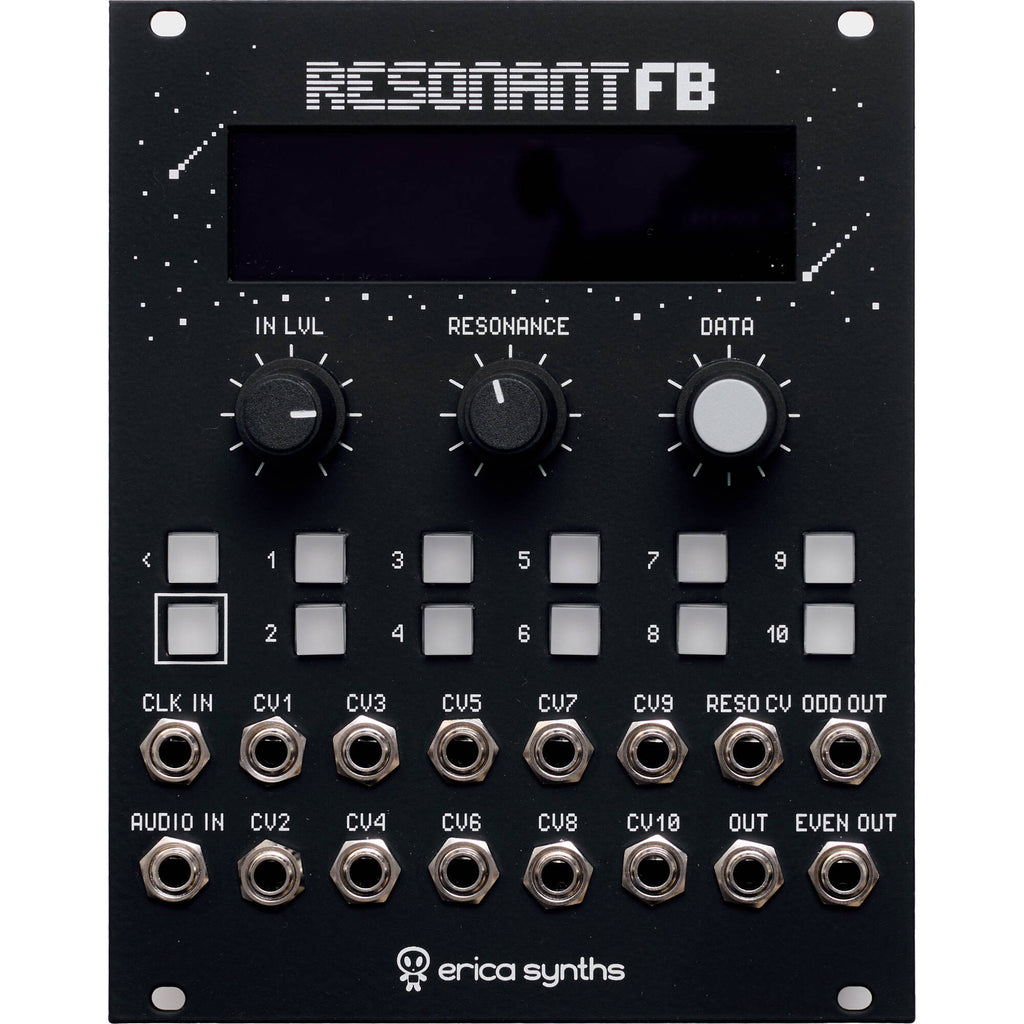

Erica Synths Graphic Resonant Filterbank Overview
Capable of generating a plethora of unique sounds from a variety of different modes, the erica synths Resonant FB is a 10-band analog filterbank in Eurorack format. The module features digital control over each bands' boost or cut, and each band can be controlled individually via CV or manually. Complex control configurations turn the filterbank into an unconventional multimode filter and even an instrument in its own right when played with various resonance settings.
The Graphic Resonant Filter Bank features 128 savable presets for filterbank, filter mode, dynamic EQ, and resonant settings. An optional Expander module (works exclusively with the Graphic Resonant Filterbank and is available separately) provides hands-on adjustment of boost and cut for all bands. The module includes a power ribbon cable and mounting screws.
- Analog 10 band filterbank
- Saveable presets for filterbank, filter modes, dynamic EQ, and resonance settings
- Main, even and odd outputs
- Manual and voltage-controlled band boost/cut
- Configurable resonance feedback loops
- Manual and voltage-controlled resonance
- Clock input for synchronization of events with a master clock source
- Multimode filter mode
- Spectral analyzer mode
- Dynamic spectral compressor mode
- Discrete and morphing pattern change
- Configurable CV inputs
- Expander module for immediate access to band levels
- Skiff-friendly design
- 29 Hz
- 61 Hz
- 115 Hz
- 218 Hz
- 411 Hz
- 777 Hz
- 1.5 kHz
- 2.8 kHz
- 5.2 kHz
- 11 kHz
- Width: 20 HP
- Depth: 1.2" / 3cm
- Includes power ribbon cable with Eurorack power headers and mounting screws
- Power Consumption: +12V: 138mA, -12V: 50mA
Items Included
- Erica Synths Graphic Resonant Filterbank Eurorack Module (20 HP)
- Ribbon Power Cable
- Set of Mounting Screws
- Limited 2-Year Manufacturer Warranty
Additional Resources
Guides & Manuals
Erica Synths Graphic Resonant Filterbank Specs
| Sound Generation |
Analog
|
| Number of Sounds, Kits, or Samples |
128x User Sound Preset
|
| Audio I/O |
1x 1/8" / 3.5 mm TS Unbalanced Mono Modular/Eurorack Input
3x 1/8" / 3.5 mm TS Unbalanced Mono Modular/Eurorack Output |
| MIDI I/O |
No
|
| CV/Gate I/O |
11x 1/8" / 3.5 mm TS CV Input
|
| Patch Points |
13x 1/8" / 3.5 mm TS Input
3x 1/8" / 3.5 mm TS Output |
| Eurorack Current Consumption |
138 mA on +12 V Rail
50 mA on -12 V Rail |
| Horizontal Pitch |
20 HP
|
| Item Type |
Eurorack Module
|
| Sound Generation |
Analog
|
| Expression Controls |
No
|
| Number of Pads |
No
|
| Number of Sounds, Kits, or Samples |
128x User Sound Preset
|
| Built-In Speaker |
No
|
| Sequencer |
No
|
| Arpeggiator |
No
|
| Audio I/O |
1x 1/8" / 3.5 mm TS Unbalanced Mono Modular/Eurorack Input
3x 1/8" / 3.5 mm TS Unbalanced Mono Modular/Eurorack Output |
| MIDI I/O |
No
|
| CV/Gate I/O |
11x 1/8" / 3.5 mm TS CV Input
|
| Control Voltage Level |
±10 V
|
| Patch Points |
13x 1/8" / 3.5 mm TS Input
3x 1/8" / 3.5 mm TS Output |
| Sync I/O |
1x 1/8" / 3.5 mm TS Clock Input
|
| Power Requirements |
Eurorack Power
|
| Eurorack Current Consumption |
138 mA on +12 V Rail
50 mA on -12 V Rail |
| Horizontal Pitch |
20 HP
|
| Included Accessories |
No
|
| Package Weight |
0.925 lb
|
| Box Dimensions (LxWxH) |
9 x 8.2 x 2.7"
|
