Description
Erica Synths Sequencer Kit Overview

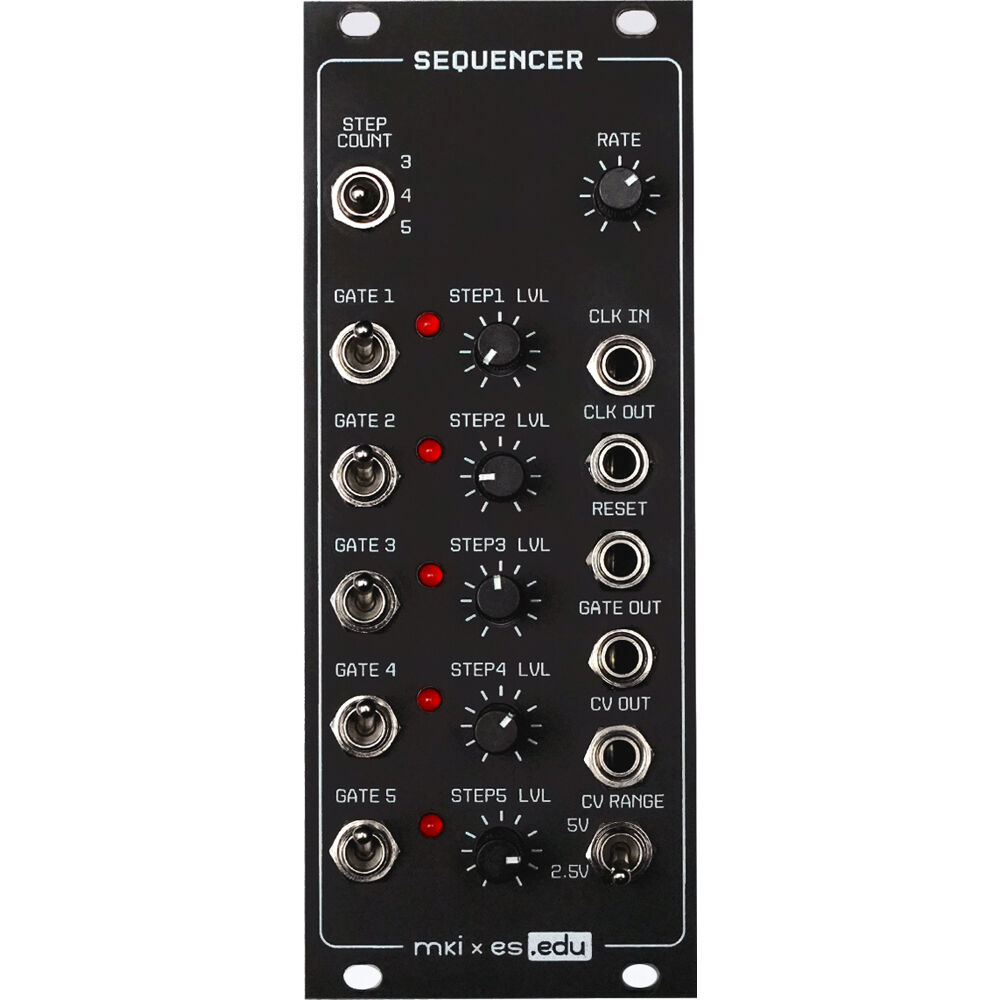

Modular synthesizer enthusiasts looking to learn how to build a sequencer module from scratch will appreciate the erica synths EDU DIY Sequencer Module Kit, an analog sequencer module in Eurorack format with an internal clock and an external clock input, output, and reset. The 5-step sequencer offers a step counter (3, 4, 5 step) and individual gate switches, which act as rests when turned off. The sequencer features a CV and Gate output plus a CV scale with CV range input.
This sequencer module is part of a DIY educational series that's designed to not only build a synthesizer from scratch but delves into the design and how components are chosen. The included 65-page manual takes you through the circuit-design process step-by-step, explaining every choice that was made and how it impacts the finished module. The kit includes the circuit board, electronic components, and mounting hardware. If you've ever wanted to learn how to build a synthesizer but were intimidated by the process, these educational DIY kits are your perfect solution.
- 5-step sequencer
- Adjustable step count (3, 4, or 5)
- Internal clock source with rate control
- External clock out
- Clock reset
- Scalable CV output with CV control
- Gate output
- Individual Gate switches provide rests in sequence
- Includes all necessary components and circuit board
- Includes 65-page manual
- Access to free CircuitJS, a browser-based circuit simulator
Items Included
- Erica Synths EDU DIY Sequencer Eurorack Module Kit
- Set of Electronic Components
- Circuit Board
- Faceplate
- Ribbon Power Cable
- Set of Mounting Screws
Additional Resources
Erica Synths Sequencer Kit Specs
| Sound Generation |
Analog
|
| Maximum Polyphony |
Not Specified by Manufacturer
|
| Audio I/O |
No
|
| MIDI I/O |
No
|
| CV/Gate I/O |
2x 1/8" / 3.5 mm TS CV Input
3x 1/8" / 3.5 mm TS CV Output |
| Patch Points |
No
|
| Eurorack Current Consumption |
Not Specified by Manufacturer
|
| Horizontal Pitch |
Not Specified by Manufacturer
|
| Item Type |
Eurorack Module
|
| Sound Generation |
Analog
|
| Keyboard |
No
|
| Expression Controls |
No
|
| Number of Pads |
No
|
| Display |
No
|
| Maximum Polyphony |
Not Specified by Manufacturer
|
| Built-In Effects |
No
|
| Built-In Speaker |
No
|
| Oscillators |
No
|
| Mixer |
No
|
| Amplifiers |
No
|
| Envelopes |
No
|
| Filters |
No
|
| Sequencer |
Yes
|
| Arpeggiator |
No
|
| Audio I/O |
No
|
| Pedal Support |
No
|
| MIDI I/O |
No
|
| CV/Gate I/O |
2x 1/8" / 3.5 mm TS CV Input
3x 1/8" / 3.5 mm TS CV Output |
| Patch Points |
No
|
| Sync I/O |
No
|
| Network I/O |
No
|
| USB I/O |
No
|
| Media/Memory Card Slot |
No
|
| Included Software |
No
|
| Mobile App Compatible |
No
|
| Power Requirements |
Eurorack Power
|
| Eurorack Current Consumption |
Not Specified by Manufacturer
|
| Color |
Black
|
| Horizontal Pitch |
Not Specified by Manufacturer
|
| Included Accessories |
No
|
| Package Weight |
0.3 lb
|
| Box Dimensions (LxWxH) |
5.85 x 3 x 1.55"
|
