Description

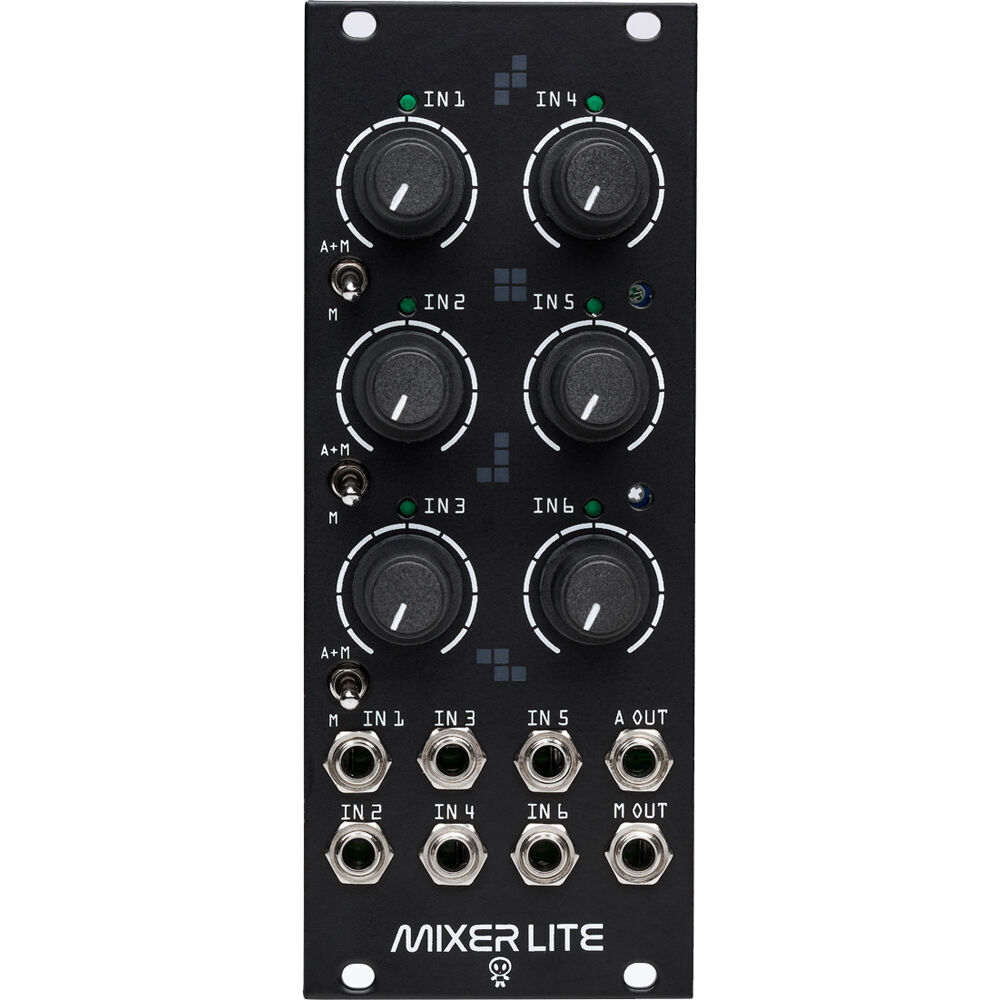

Erica Synths Drum Mixer Lite Overview
Modular synthesizer enthusiasts looking for a simple mixer for drums will be impressed with the erica synths Drum Mixer Lite, a Eurorack compatible module with six mono inputs. Channels 1 to 3 can be routed to either the main output or to an auxiliary send output. The Drum Mixer Lite includes LEDs for each input to give visual feedback about the signal level. A ribbon power cable and mounting screws are included.
- 6 inputs
- Three inputs assignable to main or aux send outputs
- Main and Aux Send outputs
- Signal level indicator LEDs
- Power Consumption: 59mA at +12V, 36mA at -12V
- Module Depth: 1.4" / 35mm
In the Box
- Erica Synths Drum Mixer Lite Eurorack Module (10 HP)
- Ribbon Power Cable
- Set of Mounting Screws
- Limited 2-Year Manufacturer Warranty
Not in the Box
- Essential Eurorack Cases (Not Included)
Erica Synths Drum Mixer Lite Specs
Key Specs
| Sound Generation |
Analog
|
| Audio I/O |
6 x 1/8" / 3.5 mm TS Unbalanced Mono Instrument Input (Eurorack Compatible)
2 x 1/8" / 3.5 mm TS Unbalanced Mono Instrument Output (Eurorack Compatible) |
| Eurorack Current Consumption |
59 mA on +12 V Rail
36 mA on -12 V Rail |
| Horizontal Pitch |
10 HP
|
General
| Item Type |
Eurorack Module
|
| Sound Generation |
Analog
|
| Keyboard |
No
|
| Expression Controls |
No
|
| Number of Pads |
No
|
| Display |
No
|
Sounds
| Maximum Polyphony |
Not Specified by Manufacturer
|
| Built-In Effects |
No
|
| Built-In Speaker |
No
|
Synthesis
| Oscillators |
No
|
| Mixer |
External Audio (Level)
|
| Amplifiers |
No
|
| Envelopes |
No
|
| Filters |
No
|
Sequencing & Recording
| Sequencer |
No
|
| Arpeggiator |
No
|
Connectivity
| Audio I/O |
6 x 1/8" / 3.5 mm TS Unbalanced Mono Instrument Input (Eurorack Compatible)
2 x 1/8" / 3.5 mm TS Unbalanced Mono Instrument Output (Eurorack Compatible) |
| Pedal Support |
No
|
| MIDI I/O |
No
|
| CV/Gate I/O |
No
|
| Patch Points |
No
|
| Sync I/O |
No
|
| Network I/O |
No
|
| USB |
No
|
| Media/Memory Card Slot |
No
|
Audio Performance
| Maximum Input Level |
+6 dB (Mixer Gain)
|
| Included Software |
No
|
| Mobile App Compatible |
No
*As of June, 2023: Check with manufacturer for the most up-to-date compatibility |
Power
| Power Requirements |
Eurorack Power
|
| Eurorack Current Consumption |
59 mA on +12 V Rail
36 mA on -12 V Rail |
Physical
| Color |
Black
|
| Horizontal Pitch |
10 HP
|
| Included Accessories |
No
|
