Description

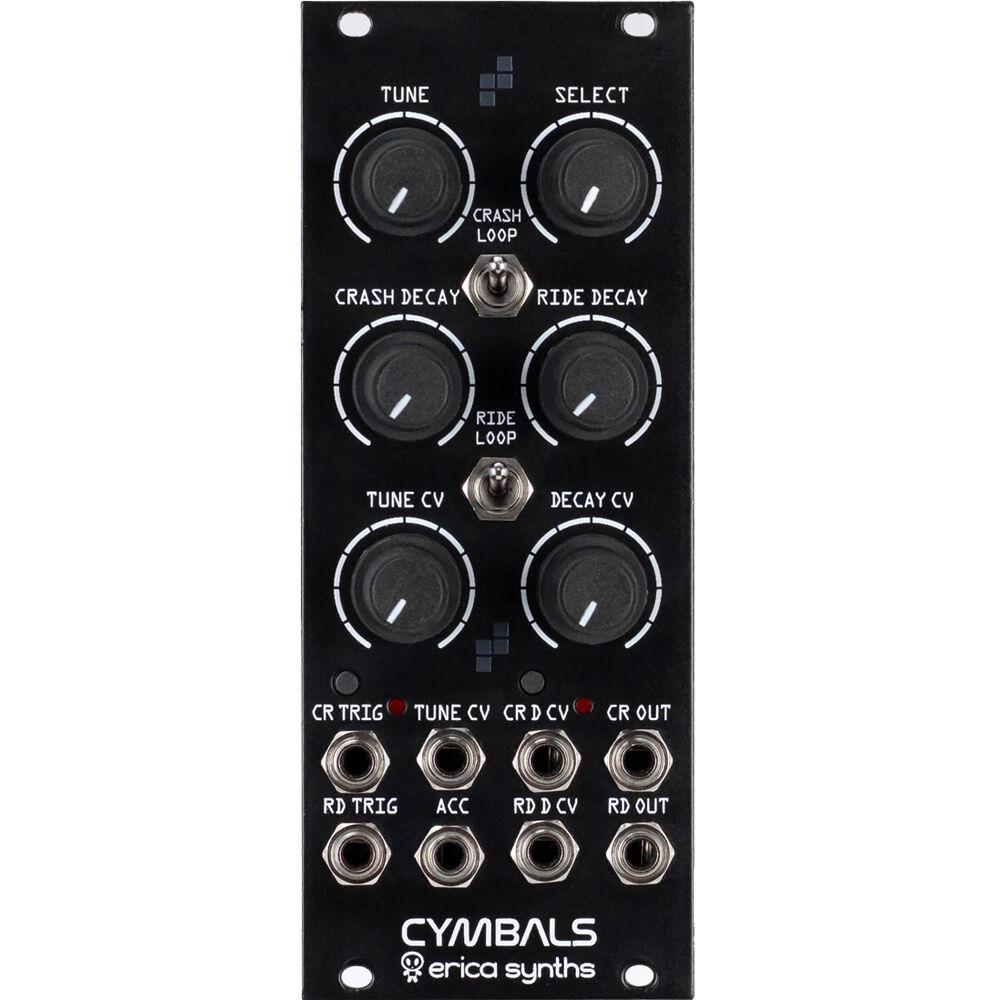

Erica Synths Cymbals Overview
Modular synthesizer enthusiasts looking to add some a variety of cymbal sounds to their setup will be impressed with the erica synths Cymbals, a hybrid digital/analog Eurorack module where cymbal samples are passed through an AS3330-based VCA and controlled via envelope generators of unique design.
The module features 10 sets of custom Crash and Ride cymbal samples with a Tune control and individual Decay control. Accent and CV control over Tone and Decay allow you to create lot of variations in each cymbal. A sample looping circuit loops a certain part of the sample, while the envelope decay is on, thus creating a distinct, delay-like effect. Cymbal samples are developed by producer and musician Nero Bellum. The module includes a power ribbon cable and a set of mounting screws.
- 10 sets of custom cymbal samples
- Analog VCA and EG
- Tune and Decay controls
- CV control with attenuators for Tune and Decay
- Sample loop for Crash and Ride
- Manual triggers
- Accent for better expression
- Power consumption: +95mA / -36mA
- Module depth: 1.8" / 45mm
In the Box
- Erica Synths Cymbals Eurorack Module (10 HP)
- Ribbon Power Cable
- Set of Mounting Screws
- Limited 2-Year Manufacturer Warranty
Not in the Box
- Essential Eurorack Cases (Not Included)
Additional Resources
Erica Synths CymbalsSpecs
| Sound Generation |
Analog/Digital Hybrid
|
| Maximum Polyphony |
Not Specified by Manufacturer
|
| Audio I/O |
2x 1/8" / 3.5 mm TS Unbalanced Mono Instrument Output
|
| MIDI I/O |
No
|
| CV/Gate I/O |
4x 1/8" / 3.5 mm TS CV Input
2x 1/8" / 3.5 mm TS Trigger Input |
| Patch Points |
No
|
| Eurorack Current Consumption |
95 mA on +12 V Rail
36 mA on -12 V Rail |
| Horizontal Pitch |
10 HP
|
| Item Type |
Eurorack Module
|
| Sound Generation |
Analog/Digital Hybrid
|
| Keyboard |
No
|
| Expression Controls |
No
|
| Number of Pads |
No
|
| Display |
No
|
| Maximum Polyphony |
Not Specified by Manufacturer
|
| Built-In Effects |
No
|
| Performance Functions |
No
|
| Built-In Speaker |
No
|
| Oscillators |
No
|
| Mixer |
No
|
| Amplifiers |
No
|
| Envelopes |
No
|
| Filters |
No
|
| LFOs |
No
|
| Sequencer |
No
|
| Arpeggiator |
No
|
| Audio I/O |
2x 1/8" / 3.5 mm TS Unbalanced Mono Instrument Output
|
| Pedal Support |
No
|
| MIDI I/O |
No
|
| CV/Gate I/O |
4x 1/8" / 3.5 mm TS CV Input
2x 1/8" / 3.5 mm TS Trigger Input |
| Control Voltage Level |
±5 V
|
| Patch Points |
No
|
| Sync I/O |
No
|
| Network I/O |
No
|
| USB I/O |
No
|
| Media/Memory Card Slot |
No
|
| Maximum Output Level |
5 V p-p
|
| Included Software |
No
|
| Mobile App Compatible |
No
|
| Power Requirements |
Eurorack Power
|
| Eurorack Current Consumption |
95 mA on +12 V Rail
36 mA on -12 V Rail |
| Color |
Black
|
| Horizontal Pitch |
10 HP
|
| Included Accessories |
No
|
| Package Weight |
0.46 lb
|
| Box Dimensions (LxWxH) |
7.75 x 4.2 x 2.5"
|
