Description

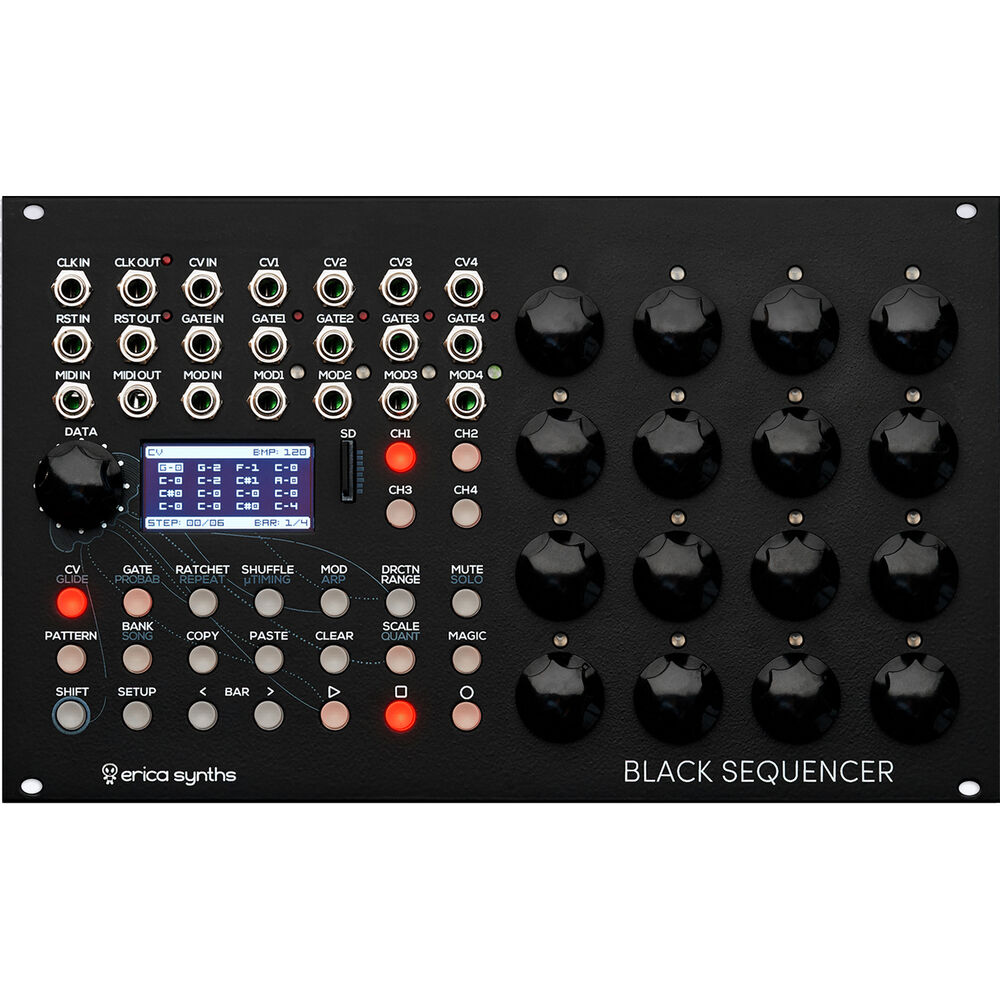

Erica Synths Sequencer Device Overview
Modular synthesizer enthusiasts looking for powerful live performance sequencer will be thrilled with the erica synths Black Sequencer, an easy-to-use 4-channel sequencer that's designed to control up to four distinct voices in your Eurorack system. Each of the four channels provides CV, Gate, and modulation outputs. Each sequence can be up to 64 steps and up to 64 patterns can be chained in song mode with each pattern repeating up to 32 times. Each track has independent time divisions, multiplications, and lengths.
The built in quantizer makes sure your control voltages are in tune, while the integrated LFO, envelope generators, and parameter randomizations provide essential functions for composing and performing electronic and experimental music. The sequencer also includes MIDI I/O for sync and control from external devices and controllers. The Black Sequencer provides many programmable parameters per step, yet it is intuitive, easy, and straightforward to use. The module includes a power ribbon cable and a set of mounting screws.
- 4 CV/gate/modulation tracks
- MIDI in and MIDI out
- Clock and Reset in/out
- 16 encoders for easy sequence input
- Up to 64 steps per pattern
- Song mode: Up to 64 patterns in chain, each pattern can be repeated up to 32 times
- Note, glide, gate length and modulation adjustment per step
- Probability, repeats, and ratcheting per step
- Microtonal tuning
- Adjustable shuffle per track, shuffle mode customization
- Timing divisions/multiplications per track
- Built-in quantizer
- Random pattern generator
- 16 banks of 16 pattern memory
- SD card slot for backup and firmware updates
- Power Consumption: +145 mA, -25 mA
- Module Width 42 HP
- Module Depth: 1" / 25mm
In the Box
- Erica Synths Black Sequencer Eurorack Module (42 HP)
- Ribbon Power Cable
- Set of Mounting Screws
- Limited 2-Year Manufacturer Warranty
Not in the Box
- Essential Eurorack Cases (Not Included)
Erica Synths Sequencer Device Specs
| Sound Generation |
Analog / Digital
|
| Maximum Polyphony |
Not Specified by Manufacturer
|
| Audio I/O |
No
|
| MIDI I/O |
1x 1/8" / 3.5 mm TRS Input
1x 1/8" / 3.5 mm TRS Output |
| CV/Gate I/O |
4x 1/8" / 3.5 mm TS Pitch CV Output
4x 1/8" / 3.5 mm TS Gate Output 4x 1/8" / 3.5 mm TS Modulation CV Output 1x 1/8" / 3.5 mm TS CV Input 1x 1/8" / 3.5 mm TS Gate Input 1x 1/8" / 3.5 mm TS Modulation CV Input |
| Patch Points |
No
|
| Eurorack Current Consumption |
145 mA on +12 V Rail
25 mA on -12 V Rail |
| Horizontal Pitch |
42 HP
|
| Item Type |
Eurorack Module
|
| Sound Generation |
Analog / Digital
|
| Keyboard |
No
|
| Expression Controls |
No
|
| Number of Pads |
No
|
| Display |
No
|
| Number of Rhythm Pattern Presets |
256x User Pattern
|
| Maximum Polyphony |
Not Specified by Manufacturer
|
| Built-In Effects |
No
|
| Performance Functions |
No
|
| Built-In Speaker |
No
|
| Oscillators |
No
|
| Mixer |
No
|
| Amplifiers |
No
|
| Envelopes |
No
|
| Filters |
No
|
| LFOs |
Number of LFOs: 2x Global
Waveforms: Sine, Sawtooth, Square, Triangle, Sample & Hold Controls/Modes: LFO Sync, Amp, BPM |
| Sequencer |
Number of Steps: 64x Step
Number of Step Buttons: 16 Number of Parts: 4 Number of Sequencer Patterns: 256x User Pattern Length: 1 to 4 Bars Pattern Chaining: Yes, Up to 64 Patterns Note Resolution: 4 ppq Time Divisions: 1/32, 1/16, 1/8, 1/4 Input/Record Modes: Real-Time Record, Step Record Playback & Features: Accent, Active Step, Controller Scaling, CV, Forward/Reverse, Gated, Swing Setting(s), Trigger |
| Arpeggiator |
No
|
| Audio I/O |
No
|
| Pedal Support |
No
|
| MIDI I/O |
1x 1/8" / 3.5 mm TRS Input
1x 1/8" / 3.5 mm TRS Output |
| CV/Gate I/O |
4x 1/8" / 3.5 mm TS Pitch CV Output
4x 1/8" / 3.5 mm TS Gate Output 4x 1/8" / 3.5 mm TS Modulation CV Output 1x 1/8" / 3.5 mm TS CV Input 1x 1/8" / 3.5 mm TS Gate Input 1x 1/8" / 3.5 mm TS Modulation CV Input |
| Patch Points |
No
|
| Sync I/O |
1x 1/8" / 3.5 mm TS Clock Input
1x 1/8" / 3.5 mm TS Clock Output |
| Network I/O |
No
|
| USB I/O |
No
|
| Media/Memory Card Slot |
No
|
| Included Software |
No
|
| Mobile App Compatible |
No
|
| Power Requirements |
Eurorack Power
|
| Eurorack Current Consumption |
145 mA on +12 V Rail
25 mA on -12 V Rail |
| Color |
Black
|
| Horizontal Pitch |
42 HP
|
| Included Accessories |
No
|
| Package Weight |
1.405 lb
|
| Box Dimensions (LxWxH) |
11.05 x 7.1 x 3.3"
|
