Ergotron 98-009-026 Overview

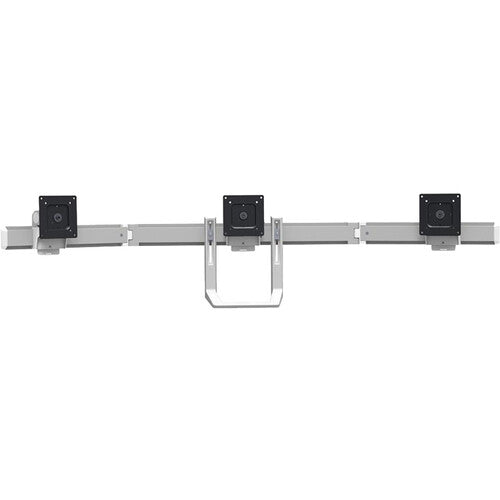

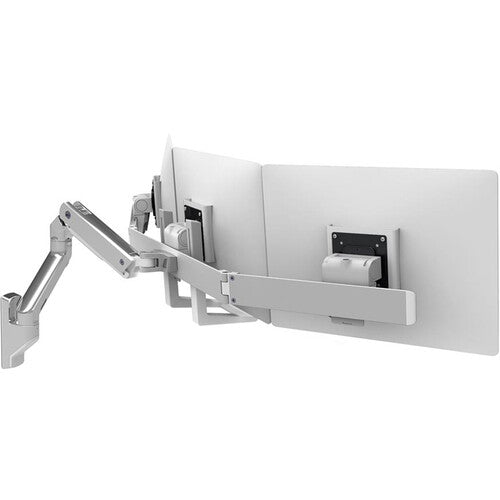

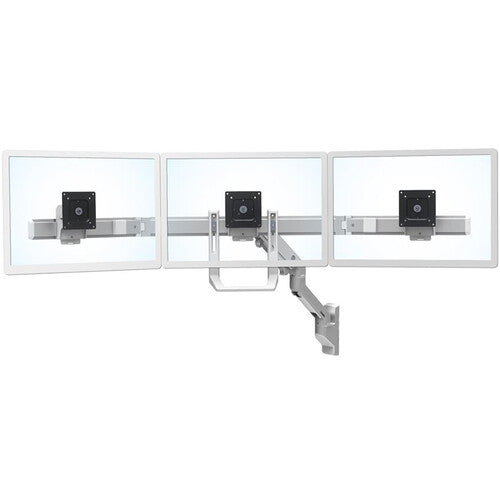

    The polished aluminum Ergotron HX Triple Monitor Bow Kit upgrades an HX arm to hold three monitors and includes a handle for easy positioning. It's the perfect accessory to expand your view across multiple screens while taking advantage of the HX arm's adjustment capabilities. This kit is compatible with 45-475-026, 45-478-026, 45-476-026, and 45-479-026 HX arm mounts.





   ![]()

    UPC: 698833061024





   In the Box

    - Ergotron HX Triple Monitor Bow Kit (Polished Aluminum)
- Limited 10-Year Warranty










Ergotron 98-009-026 Specs



      General




        | Supported Screen Sizes | Up to 24" / 61.0 cm |

        | Number of Displays Supported | 3, Side-by-Side |

        | Load Capacity | 6 to 30.6 lb / 2.7 to 13.9 kg (Total) 2 to 10.2 lb / 0.9 to 4.6 kg (Per Arm)
 |

        | Mounting-Hole Pattern | 75 x 75 to 100 x 100 mm |

        | Orientation | Landscape, Portrait |

        | Position Locking | Yes |





      Adjustments




        | Rotation Adjustment | 360° |

        | Tilt Adjustment | 75° (-70 to 5°) |

        | Swivel Adjustment | 180° |

        | Screen Pivot (Arm) | -40 to +90° |

        | Roll (Level Alignment) | None |

        | Height Adjustment | 11.9" / 30.2 cm |

        | Max Arm Extension Length | 24.5" / 62.2 cm |





      Physical




        | Material of Construction | Aluminum |

        | Weight | 13.7 lb / 6.2 kg |
