Description

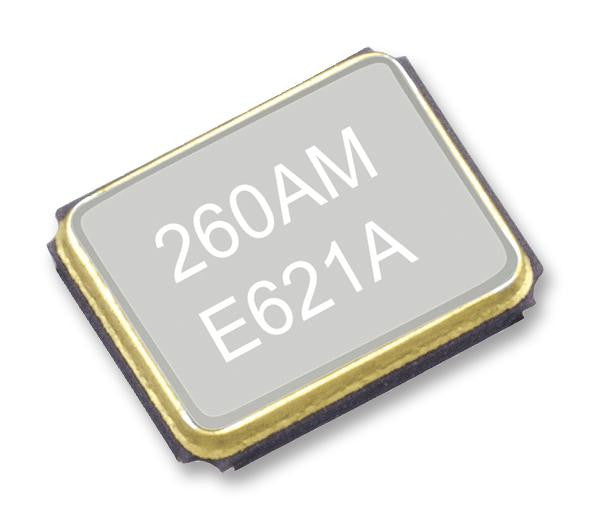

The Q24FA20H00396 FA-20H 40MHZ 8PF is a 2.5 x 2.0 x 0.5mm MHz Range Crystal with frequency range of 12 to 54MHz. Load capacitance of 8pF and frequency tolerance at ±10ppm.
- Ageing ±1ppm per year (maximum)
- Fundamental mode
- 40R ESR
Applications
Communications & Networking, Consumer Electronics, Clock & Timing, Wireless, Automotive
Product details
| Load Capacitance | 8pF |
| Operating Temperature Min | -40°C |
| Operating Temperature Max | 85°C |
| Crystal Case | SMD, 2.5mm x 2mm |
| Product Range | FA-20H Series |
| Frequency Stability + / - | - |
| Frequency Tolerance + / - | - |
| Frequency Nom | 40MHz |
Other details
| Brand | EPSON |
| Part Number | Q24FA20H00396 FA-20H 40MHZ 8PF |
| Quantity | Each (Supplied on Cut Tape) |
| Technical Data Sheet EN |  |
