Description

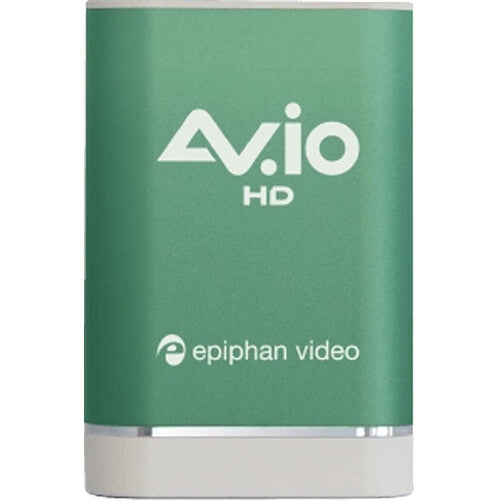

Epiphan AV.IO HD+ Overview
Take video and audio from HDMI compatible cameras and audio mixers and capture via USB 3.0 connection using this AV.IO HD+ USB Portable Video Grabber from Epiphan. One HDMI input and one 3.5mm input connect to the recording devices of your choice, while the USB Type-B output connects to your computer to deliver 1080p video to a compatible program.
The AV.IO HD+ is compatible with Windows, macOS, and Linux operating systems as well as programs like Zoom and Microsoft teams. Its ultracompact size makes it easy to take on the go and its metal exterior ensures it remains durable for repeated use.
Features at a Glance
- Compatible with Windows, macOS, and Linux systems
- Powered via USB Type-B
- Automatically adjust image based on the software you're using, delivering superior quality even when swapping sources
- Compatible with any program that accepts USB as a video source like Zoom, Microsoft Teams, Wirecast and OBS
- High-quality audio capture via HDMI source or 3.5mm input from a mixer or external source
- One LED light indicates power, readiness, and operation status
UPC: 793888508279
Epiphan AV.IO HD+ Specs
| System Connection | USB-B 3.0 / 3.1/3.2 Gen 1 |
| Video Inputs | 1 x HDMI Female |
| Audio Inputs | 1 x 1/8" / 3.5 mm TRS Stereo Analog |
| Input Video Format | HDMI (4:2:2 YUV) WUXGA (1920 x 1200) |
| Input Audio Format | LPCM (Linear Pulse-Code Modulation): 48 kHz / 24-Bit |
| Output Video Format | USB-B (4:2:2 YUV) WUXGA (1920 x 1200) up to 60 fps 1080p up to 60 fps WUXGA+ (1680 x 1050) up to 60 fps HD+ (1600 x 900) up to 60 fps UXGA (1600 x 1200) up to 60 fps WXGA+ (1440 x 900) up to 60 fps FWXGA (1366 x 768) up to 60 fps 1360 x 768 up to 60 fps 1280 x 960 up to 60 fps WXGA (1280 x 800) up to 60 fps 1280 x 720 (Non-Standard WXGA) up to 60 fps SXGA (1280 x 1024) up to 60 fps XGA+ (1152 x 864) up to 60 fps XGA (1024 x 768) up to 60 fps 1024 x 576 up to 60 fps 960 x 540 up to 60 fps 856 x 480 up to 60 fps SVGA (800 x 600) up to 60 fps 576i / 625 lines up to 60 fps 720 x 576 up to 60 fps 720 x 480 up to 60 fps VGA (640 x 480) up to 60 fps 640 x 360 up to 60 fps QVGA (320 x 240) up to 60 fps |
| Output Audio Format | Analog: 48 kHz / 16-Bit |
| Embedded Audio | HDMI/USB |
Standards
| HDR Compatibility | None |
| OS Compatibility | Windows 7 or Later macOS 10.10 or Later Linux 3.5.0 or Later *As of July, 2022: Check with manufacturer for the most up-to-date compatibility |
| Power Consumption | Device: 200 mA |
General
| Dimensions | 3.54 x 2.36 x 0.91" / 89.92 x 59.94 x 23.11 mm |
Packaging Info
| Package Weight | 0.89 lb |
| Box Dimensions (LxWxH) | 6.5 x 6.5 x 2.7" |
