Description

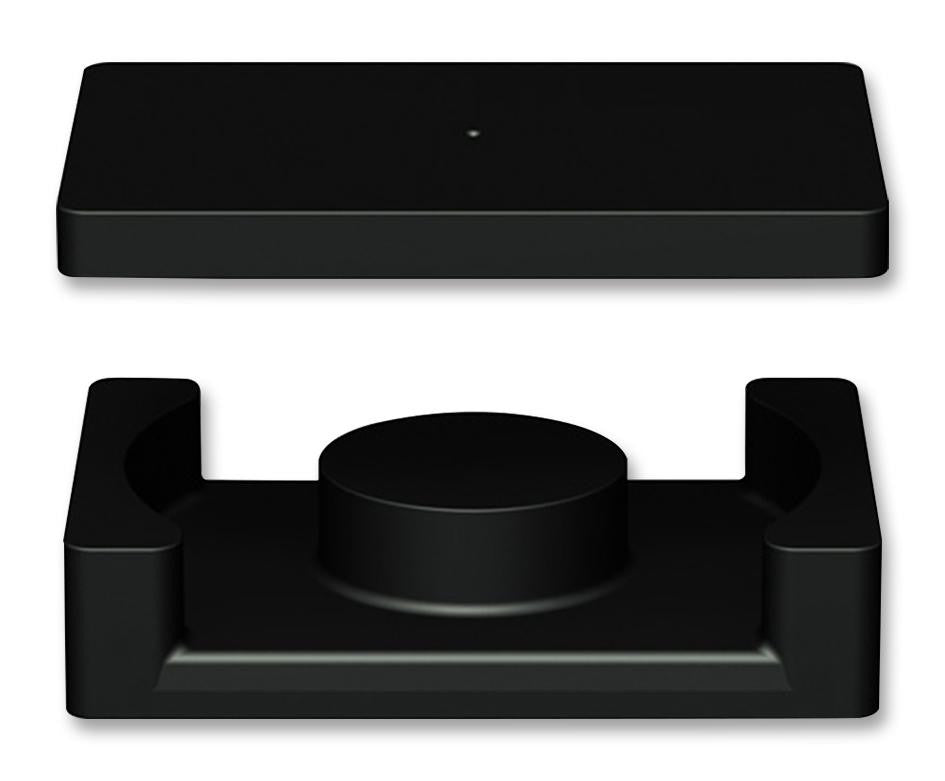

This is a Transformer Cores, EQ, EQ20/6, N97, 33.2 mm, 59 mm² product from EPCOS with the model number B66483G0000X197
Product details
| Ae Effective Cross Section Area | 59mm² |
| Effective Magnetic Path Length | 33.2mm |
| Core Material Grade | N97 |
| Core Type | EQ |
| Product Range | B66483G Series |
| For Use With | - |
| Inductance Factor Al | 3.2µH |
| Core Size | EQ20/6 |
Other details
| Brand | EPCOS |
| Part Number | B66483G0000X197 |
| Quantity | Each |
| Technical Data Sheet EN |  |
| Product Change Notice EN | |
