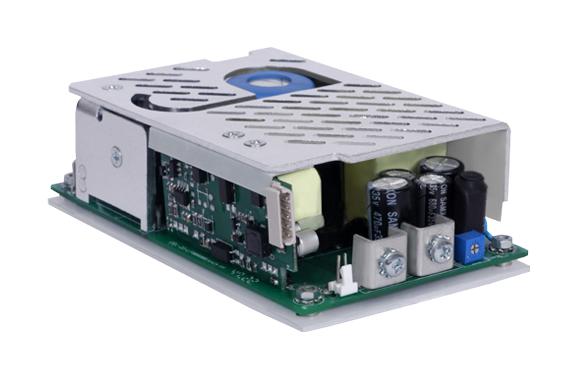

EPG500-1048 is an EPG500 series industrial AC-DC power supply. The EPG500 series can be used in a broad array of space-constrained applications in which minimal power loss and easy thermal management are required. The power supply is safety agency certified and meets the latest regulatory requirements. Typical applications include industrial process control/automation & monitoring, test & measurement/advertising signage/video walls, broadcasting/networking/telecommunication.
- New efficient GaN power technology design
- Input voltage range from 90 to 264VAC
- Output voltage is 48V
- Single output type and screw terminal connector type
- Output power 500W (forced air cooling) and 300W (convection cooling)
- Over temperature, OV, OC, SC protection and thermal shut-down
- High efficiency up to 94% and high power density of 20.83W/inch³
- Operating temperature range from -40°C to +70°C
- Form factor 127 x 76.2 x 40.64mm and mounting hole size is 115.57 x 64.77mm
- Open frame power supply
Product details
| Power Supply Applications:
ITE & Industrial
|
| No. of Outputs:
1 Output
|
| Power Rating (Forced Cooling):
500W @ 400LFM
|
| Power Rating (Convection Cooling):
300W
|
| Input Voltage VAC:
90V AC to 264V AC
|
| Power Supply Output Type:
Fixed
|
| Output Voltage - Output 1:
48V
|
| Output Current - Output 1:
6.25A
|
| Output Voltage - Output 2:
-
|
| Output Current - Output 2:
-
|
| Output Voltage - Output 3:
-
|
| Output Current - Output 3:
-
|
| Output Voltage - Output 4:
-
|
| Output Current - Output 4:
-
|
| Product Range:
EPG500 Series
|
Other details
| Brand |
EOS POWER |
| Part Number |
EPG500-1048 |
| Quantity |
Each |
| Technical Data Sheet EN |
 |
