Description
ENTTEC S-Play Overview
- 1Description
- 2Details
- 3Create and Schedule Playlists
- 4Send and Remote Trigger Options
- 5Internal and External Memory
- 6Power and Mounting Options
- 7Applications
Designed for projects that require precise automation, the S-Play Controller from ENTTEC is an all-in-one solution for light shows. Create, record, trigger, and activate shows with a built-in effects generator and intuitive onboard controls. Outputting 32 universes of Art-Net and sACN or two universes of physical DMX, this controller and lighting device lets you record, edit, schedule, and play scenes. Versatile, the S-Play creates playlists from dynamic, static, and internal effect cues. Furthermore, it allows you to play back multiple shows simultaneously and install it virtually anywhere with flexible mounting options.
Details
- Up to 32 universes of Art-Net and sACN recording and playback
- Two universes of physical DMX input or output
- Two relay outputs to control external devices
- Creates pixel effects using the built-in effects generator
- Variable Art-Net/sACN refresh rate up to 60 fps
- Four digital inputs to trigger a device from external sources

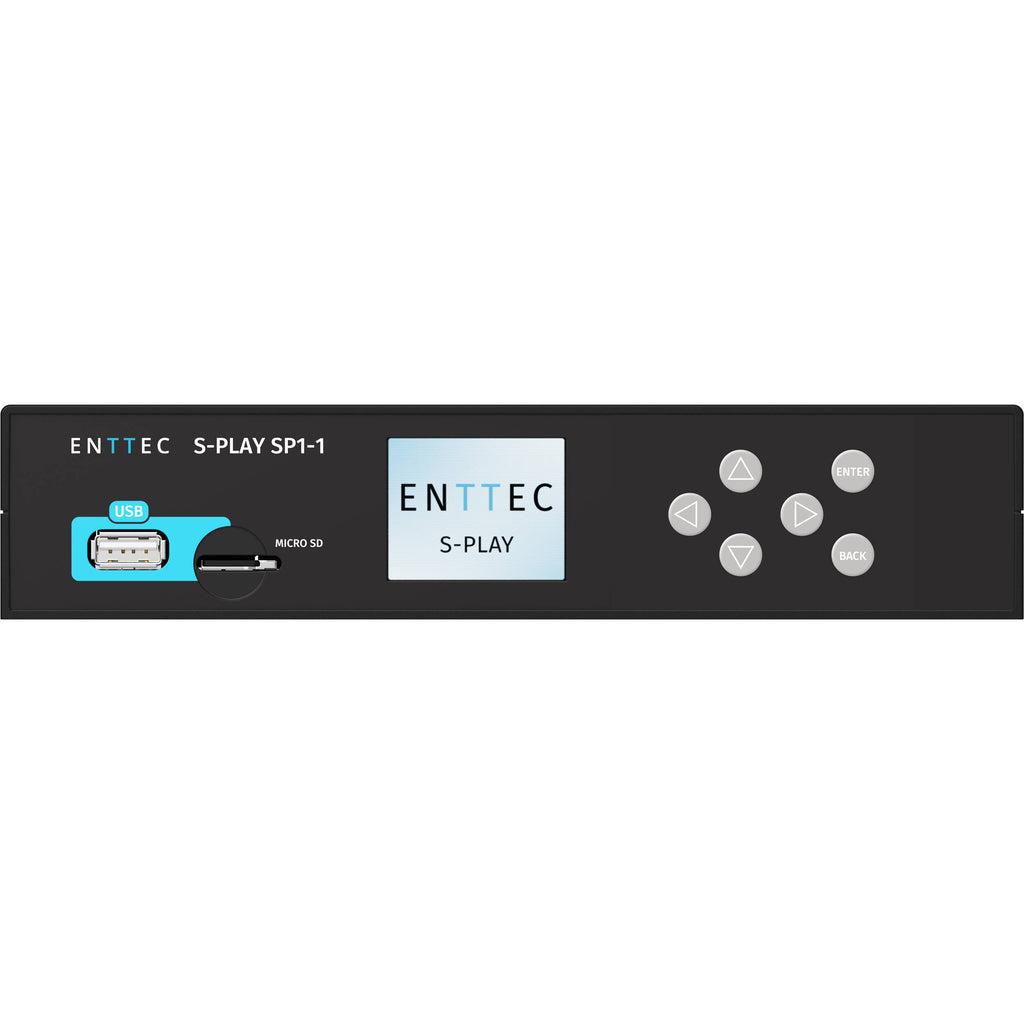

- Onboard LCD menu for accessing key functions
- You can sync multiple S-Plays together for larger installations
- Users can easily control the S-Play's shows from a remote device such as a laptop or smartphone
Create and Schedule Playlists
- Builds playlists using cues, events, and triggers as building blocks
- Controls the number of play counts, priority, fade times, and master intensities to fine-tune your playlists
- Schedules playlists to play at certain times of the day
- Custom interfaces or external triggers allow multiple and simultaneous playlists
Send and Remote Trigger Options
- Send options include RS-232, Art-Net, sACN, DMX, Relays, UDP, and OSC
- Remote trigger options includes RS-232, Art-Net, sACN, DMX, Digital Inputs, UDP, and OSC
Internal and External Memory
The S-Play's 8GB internal memory supports over 10 hours of 32 universe recording at 44 fps. To increase your storage capacity, you can add a separately available micro SD card up to 64GB.
Power and Mounting Options
Power options include PoE or 12-24 VDC input. For mounting flexibility, the S-Play allows surface, DIN, or rackmount with included mounting accessories.
Applications
The S-Play is well suited for countless applications, from theatrical or entertainment events to architectural design and smart home integrations. Not only for light shows, the device also suits non-lighting events for precise automation of other electronic equipment.
In the Box
- ENTTEC S-Play Controller
- Cat 5 Cable (6.5')
- Power Supply (12V)
- Rack Surface/DIN Mount Ears
- DIN Clips and Screws
- Limited 3-Year Manufacturer Warranty
Table of Contents
- Description
- Details
- Create and Schedule Playlists
- Send and Remote Trigger Options
- Internal and External Memory
- Power and Mounting Options
- Applications
ENTTEC S-Play Specs
Key Specs

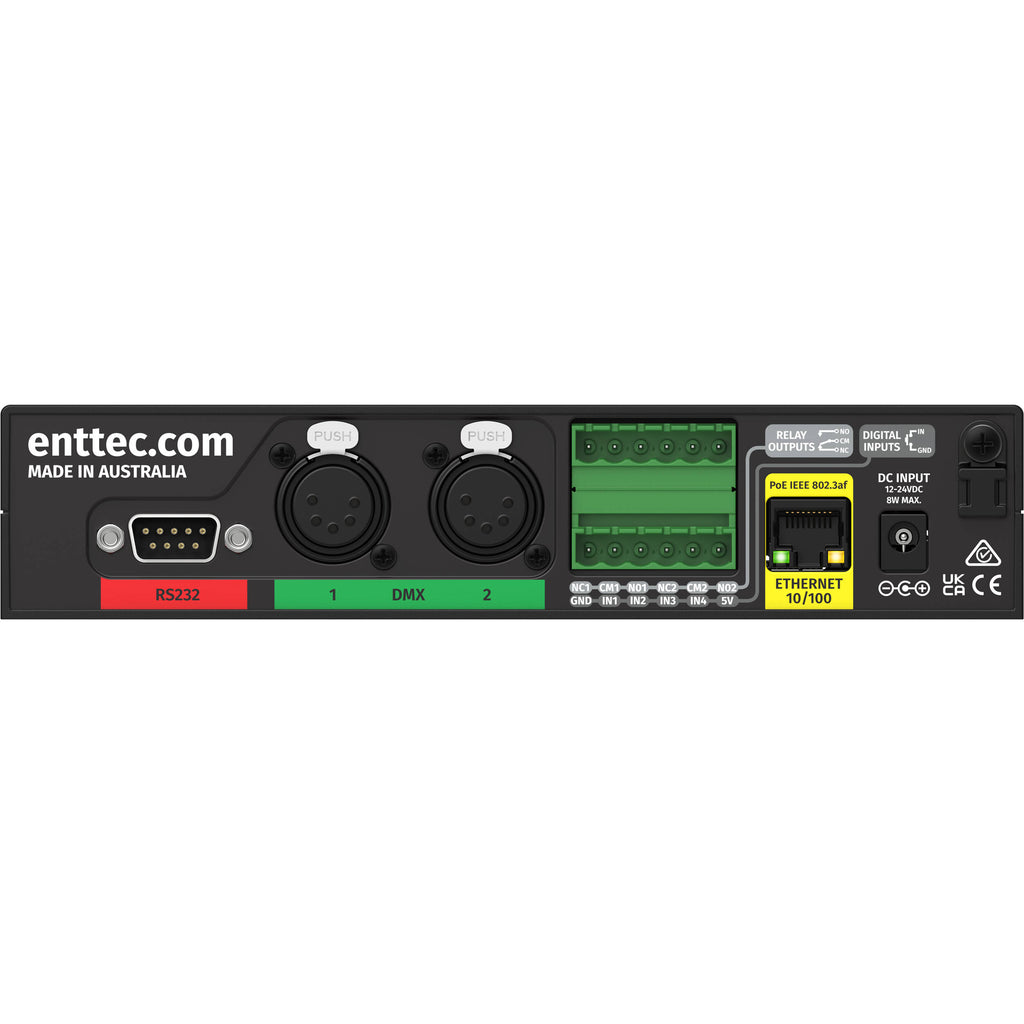

| Inputs/Outputs |
1x DC Barrel (Power) Input
2x XLR 5-Pin (DMX) Female 1x RJ14 (10/100 Ethernet) Input 1x DE-9/DB-9 Male 1x USB-A |
| Channels |
1024 (DMX)
|
| Power Source |
AC Adapter
|
| Protocol |
ArtNet, DMX512, sACN
|
General
| Inputs/Outputs |
1x DC Barrel (Power) Input
2x XLR 5-Pin (DMX) Female 1x RJ14 (10/100 Ethernet) Input 1x DE-9/DB-9 Male 1x USB-A |
| Channels |
1024 (DMX)
|
| Dimming |
Yes
|
| Cooling System |
No
|
Power
| Power Source |
AC Adapter
|
| Power Consumption |
8 W
|
| DC Input Power |
12 to 24 VDC
|
Compatibility
| Protocol |
ArtNet, DMX512, sACN
|
Environmental
| Operating Temperature |
32 to 122°F / 0 to 50°C
|
| Operating Humidity |
0 to 95%
|
| Environmental Protection |
Dust-Resistant (IP20)
|
Physical
| Material of Construction |
Aluminum-Magnesium Alloy, Plastic
|
| Rack Mount |
Yes
|
| Dimensions |
7.9 x 4.7 x 1.7" / 200.0 x 120.0 x 42.0 mm
|
| Weight |
1.87 lb / 0.85 kg
|
Packaging Info
| Package Weight |
2.48 lb
|
| Box Dimensions (LxWxH) |
13.1 x 10.4 x 3.2"
|
