Description

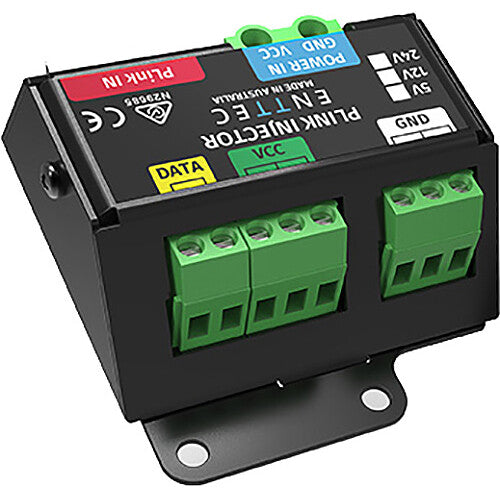

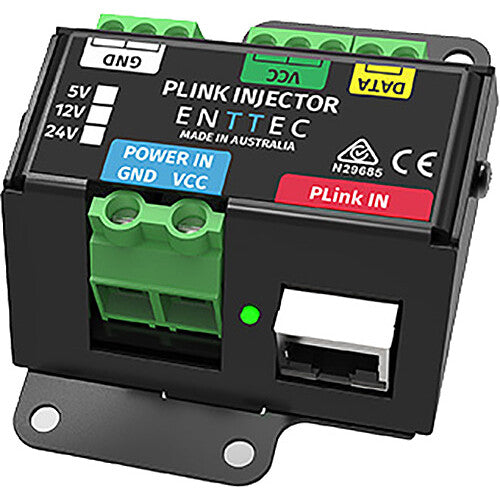

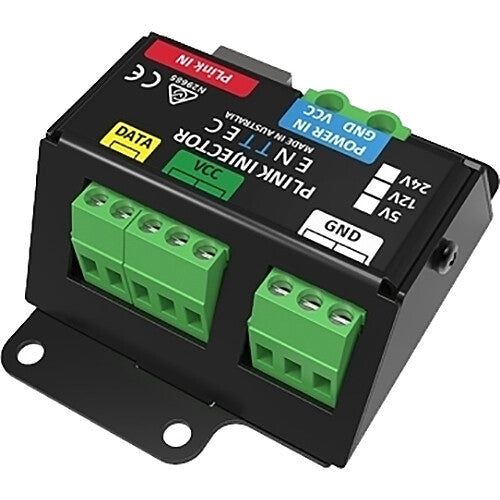

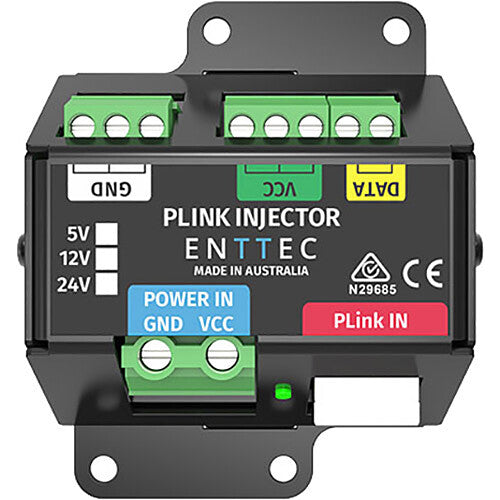

ENTTEC Plink Injector Overview
Designed to work as part of an ENTTEC Pixelator series setup and employing the PLink (pixel link) protocol, this PLink Injector 5V Pixel Controller from ENTTEC is a compact pixel data injector that can receive up to two universes of PLink data from a Pixelator family controller. The unit supports up to 340 RGB or 256 RGBW pixels.
Data can extend up to 984' using Cat 5, Cat 5e, or Cat 6 cable between the PLink Injector and a Pixelator device. The unit, which is intended for indoor use only, features two 10A rising clamp power ports, one for input and one for output, and PLink connectivity occurs via a single RJ45 connector.
In the Box
- ENTTEC PLink Injector 5V Pixel Controller
- Limited 3-Year Manufacturer Warranty
ENTTEC Plink Injector Specs
Inputs / Outputs
| Connectors |
1 x RJ45 (PLink)
1 x Rising Clamp Power Input 1 x Rising Clamp Power Output |
Power
| Power Source |
Proprietary Interface (Built-In)
|
| DC Input Power |
5 VDC
|
| Power Consumption |
50 W
|
| Operating Current |
10 A
|
Environmental
| Operating Temperature |
14 to 149°F / -10 to 65°C
|
| Operating Humidity |
5 to 95% ()
|
Physical
| Material of Construction |
Aluminum
|
| Dimensions |
3.3 x 2.9 x 1.3" / 83.5 x 73.5 x 33.7 mm
|
| Weight |
4.8 oz / 135 g
|
All product and company names are trademarks™ or registered® trademarks of their respective holders. Use of them does not imply any affiliation with or endorsement by them.
Bulk Discount
| Quantity | Price |
| 2 | ₹ 13852.3 |
| 3-5 | ₹ 13710.95 |
| 5-10 | ₹ 13428.25 |
| 10+ | ₹ 13145.55 |
Bulk discount will be automatically applied during checkout based on quantity.
