Description

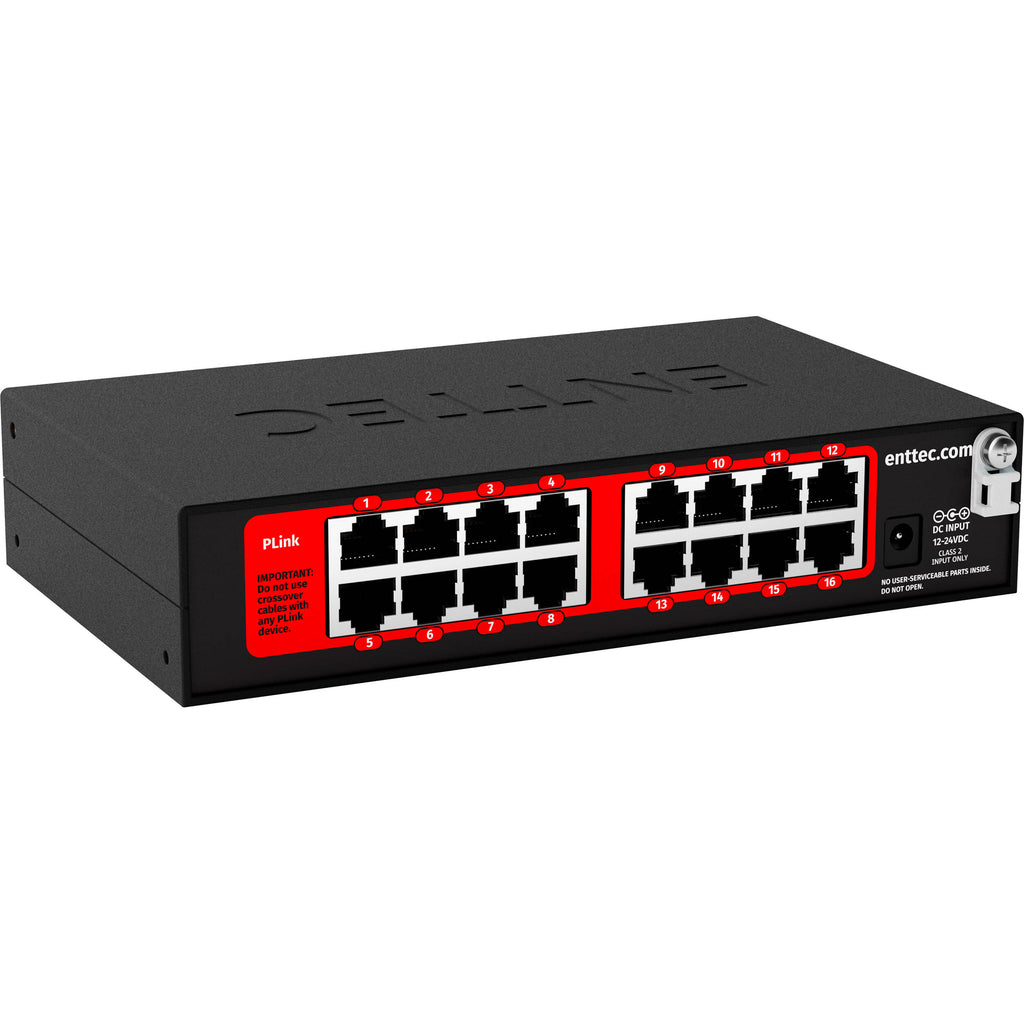

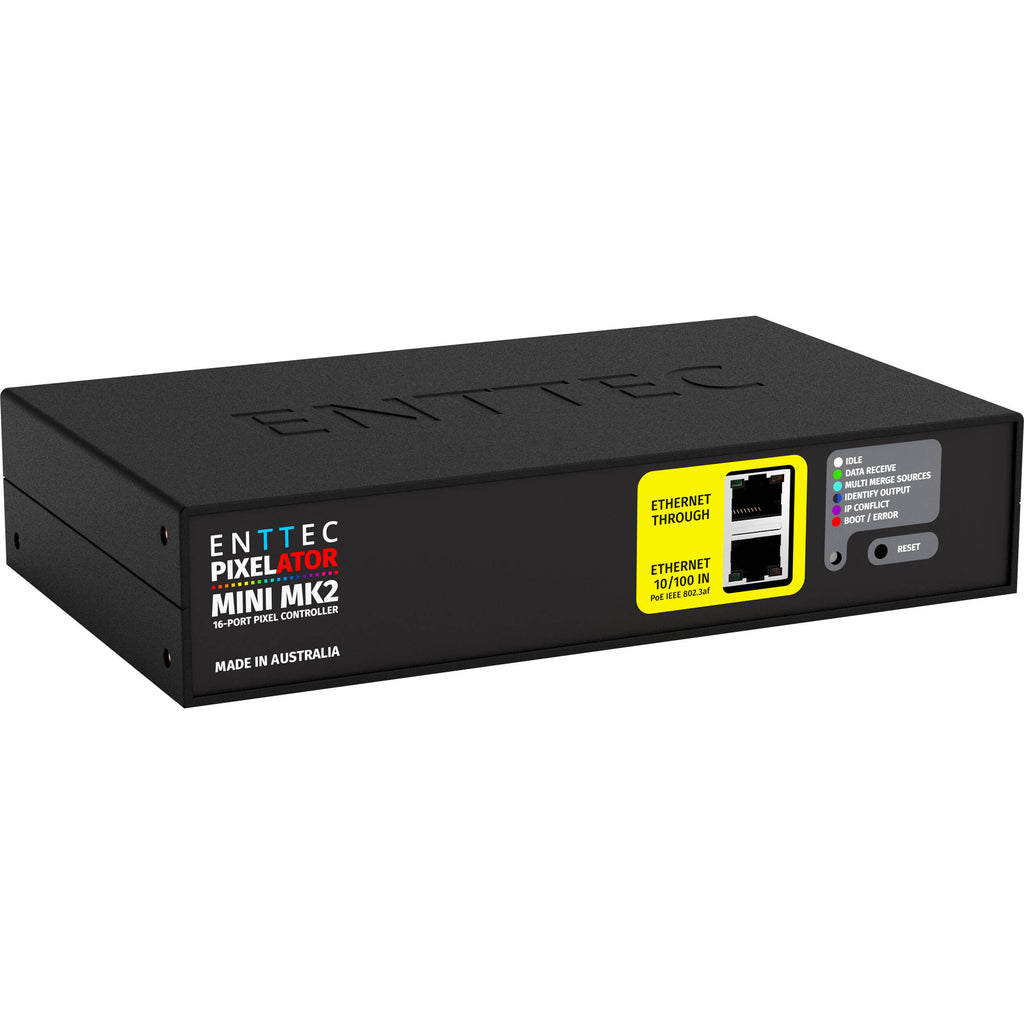

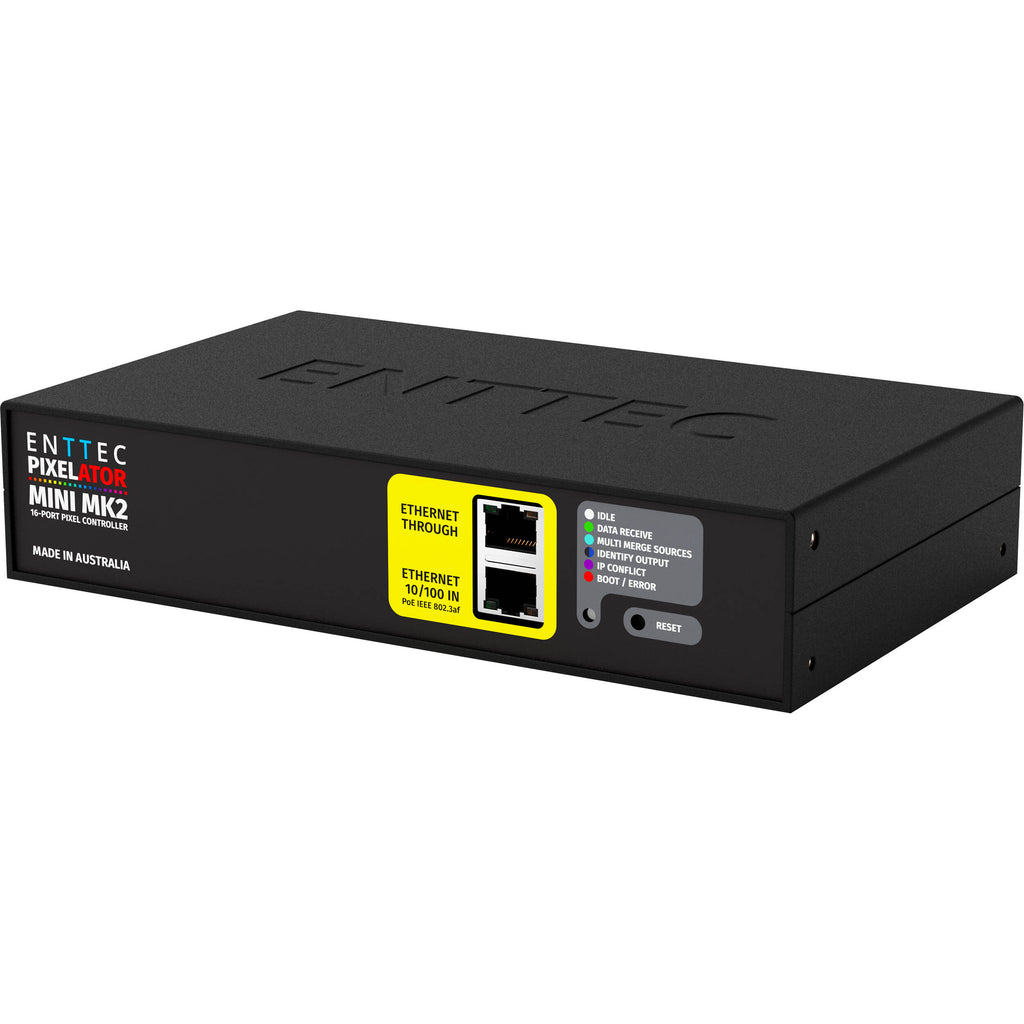

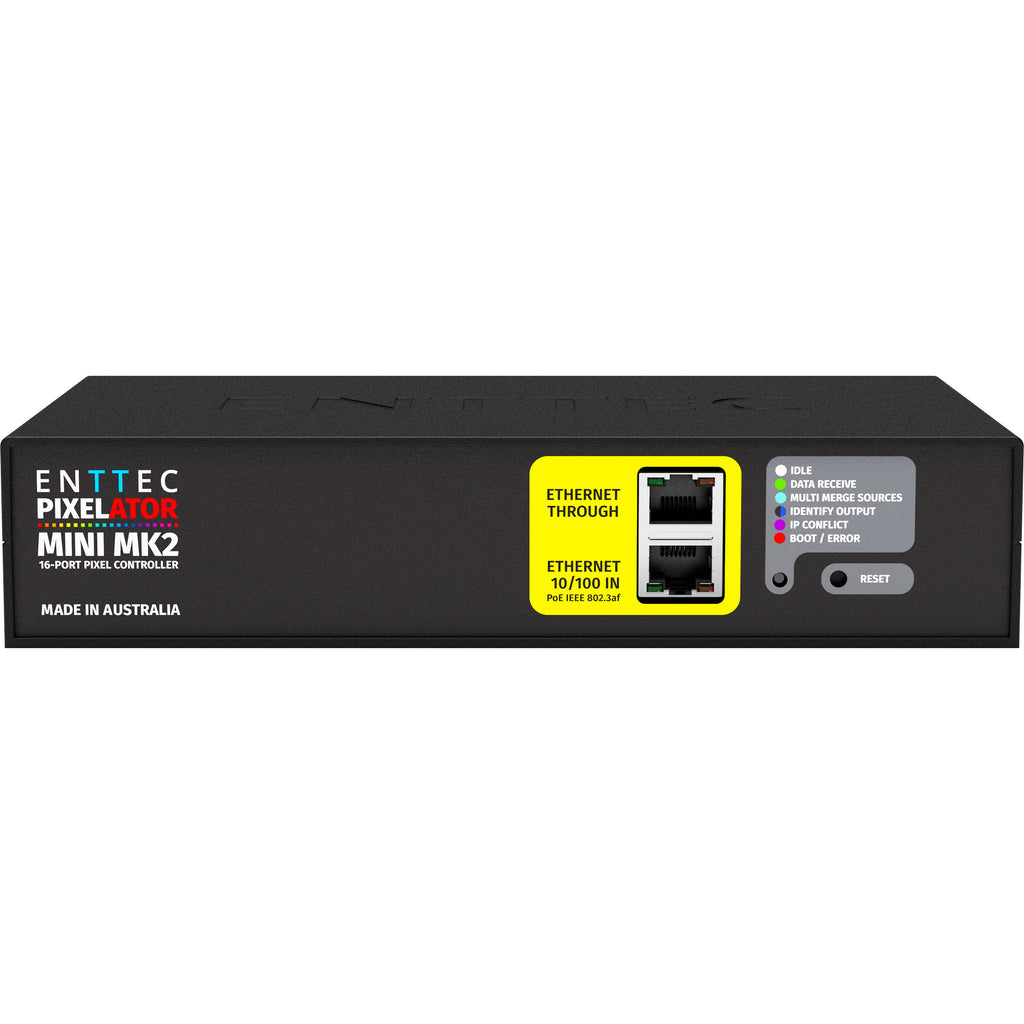

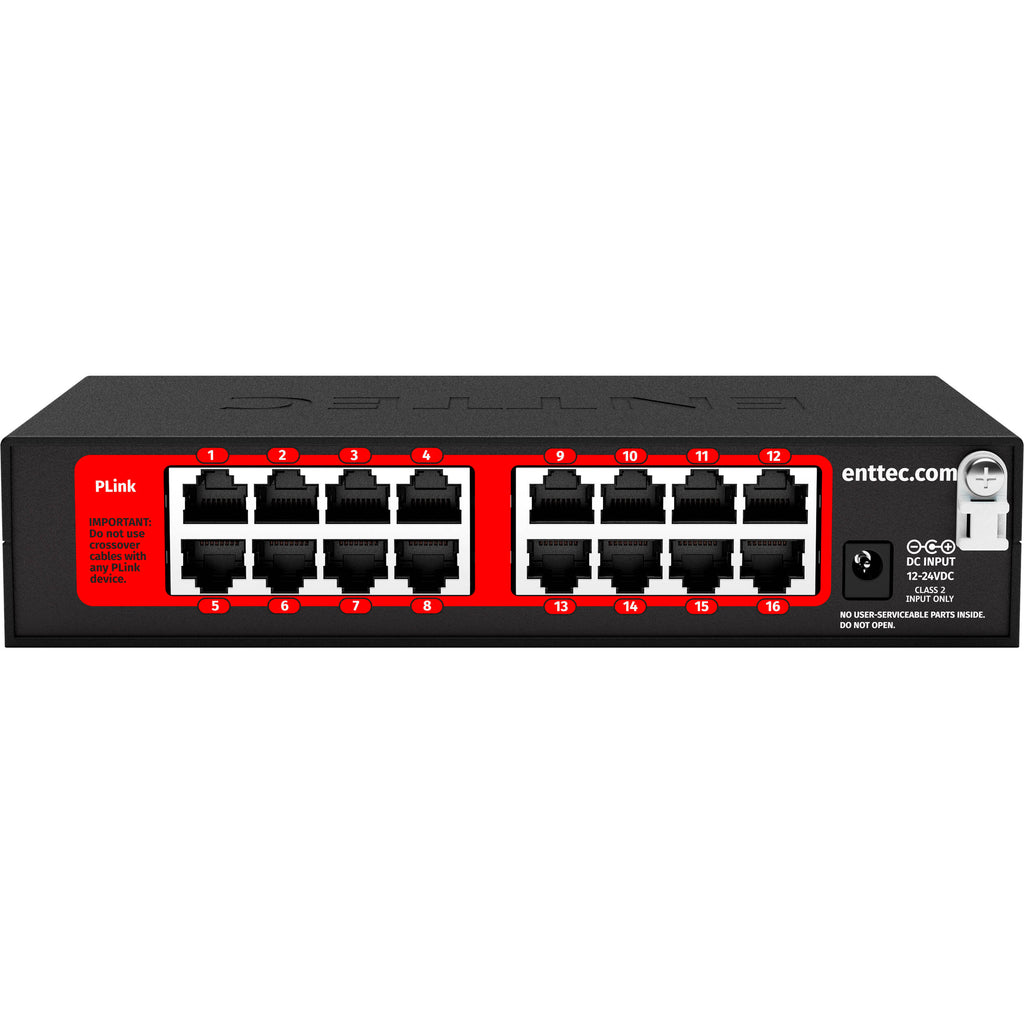

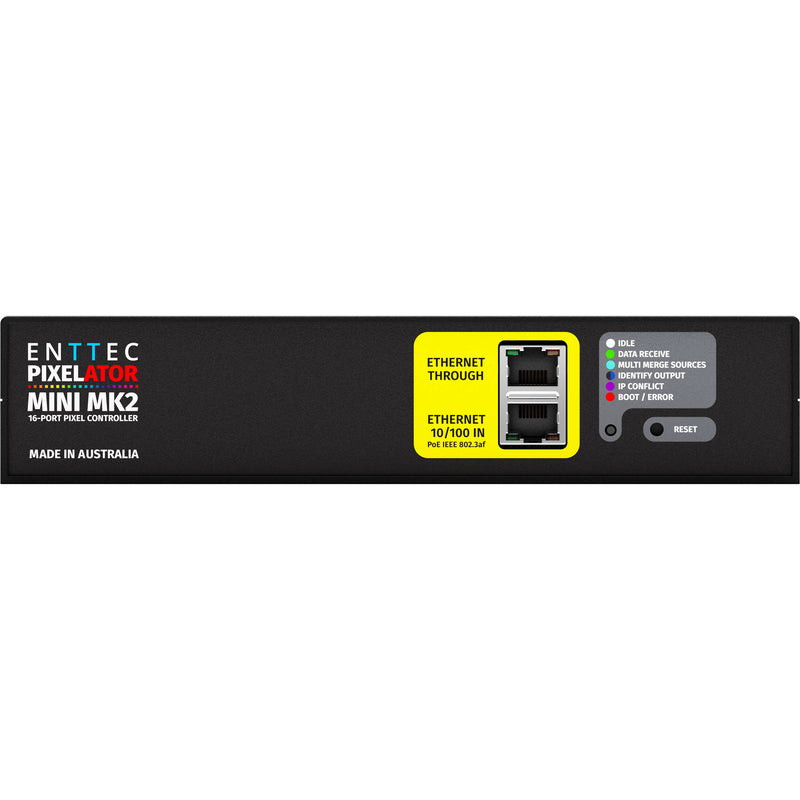

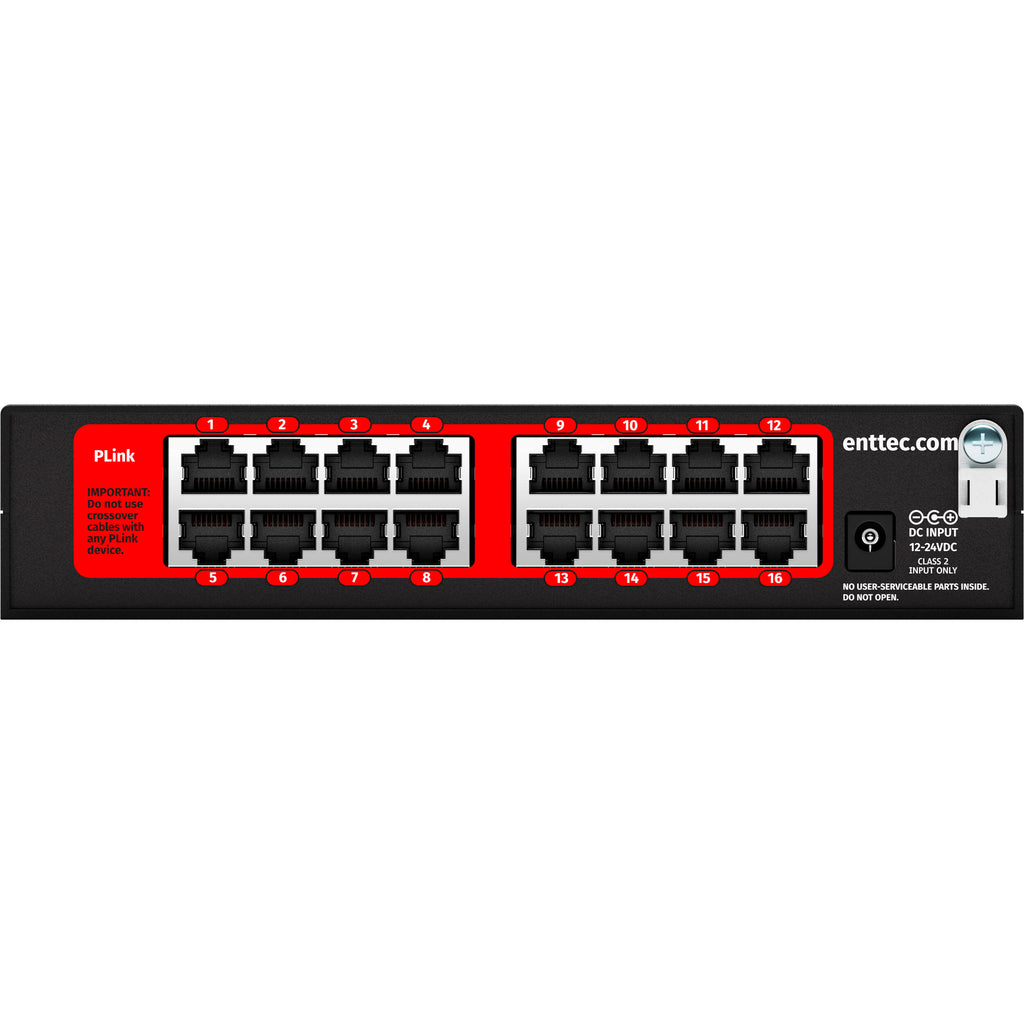

ENTTEC Pixelator Mini MK2 Overview
Using 16 Ethernet ports for SPI pixel conversion using PLink injectors, the Pixelator Mini MK2 128-Universe Ethernet to SPI Pixel Converter from ENTTEC is a light control compact rack and surface designed for large-scale LED installations. The Pixelator Mini MK2 efficiently converts up to 128 Art-Net, sACN, and ESP universes to PLink pixel data up to 984.3'. DC-powered and designed for simplifying LED pixel dot and strip control, this installation-grade hub provides a user-friendly web browser interface for seamless function and connectivity options, and ultimate surge protection for 24/7 use. This versatile DIN-rail mountable device features rack mounting options and 12-24V power ports with an integrated cable tie anchor to secure it to a DC jack.
Items Included
- ENTTEC Pixelator Mini MK2 128-Universe Ethernet to SPI Pixel Converter
- Cat5 Cable
- 12V PSU Adapter with International Plugs
- Mounting Accessory Set
- Limited 3-Year Manufacturer Warranty
Additional Resources
No additional resources available
ENTTEC Pixelator Mini MK2 Specs
| Inputs/Outputs |
1x DC Barrel (Power) Input
1x RJ45 (10/100 Ethernet) Input 1x RJ45 (10/100 Ethernet) Throughput 16x RJ45 Output |
| Channels |
65,536 (ArtNet)
|
| Power Source |
AC Adapter
|
| Protocol |
ArtNet, ESP, PLINK, sACN
|
| Inputs/Outputs |
1x DC Barrel (Power) Input
1x RJ45 (10/100 Ethernet) Input 1x RJ45 (10/100 Ethernet) Throughput 16x RJ45 Output |
| Channels |
65,536 (ArtNet)
|
| Dimming |
Optional
|
| Cooling System |
Active
|
| Power Source |
AC Adapter
|
| Power Consumption |
3.2 W
|
| Input Power |
12 to 24 VDC
|
| PoE Port Power |
Yes
|
| Protocol |
ArtNet, ESP, PLINK, sACN
|
| Operating Conditions |
32 to 122°F / 0 to 50°C at 5 to 95% Humidity
|
| Certifications |
CE, FCC, RCM, UKCA, WEEE
|
| Environmental Resistance |
Dust-Resistant (IP20)
|
| Material of Construction |
Aluminum, Plastic
|
| Rack Mount |
Yes
|
| Weight |
1 lb / 470 g
|
| Package Weight |
2.36 lb
|
| Box Dimensions (LxWxH) |
14.2 x 11 x 3"
|
