Description
ENTTEC ODE Mk3 Overview
- 1Description
- 2Details
- 3Compatibility and Integration
- 4Protocols
- 5Sync Mode
- 6Intuitive Interface
- 7Flexible Power Options
- 8Easy Configuration

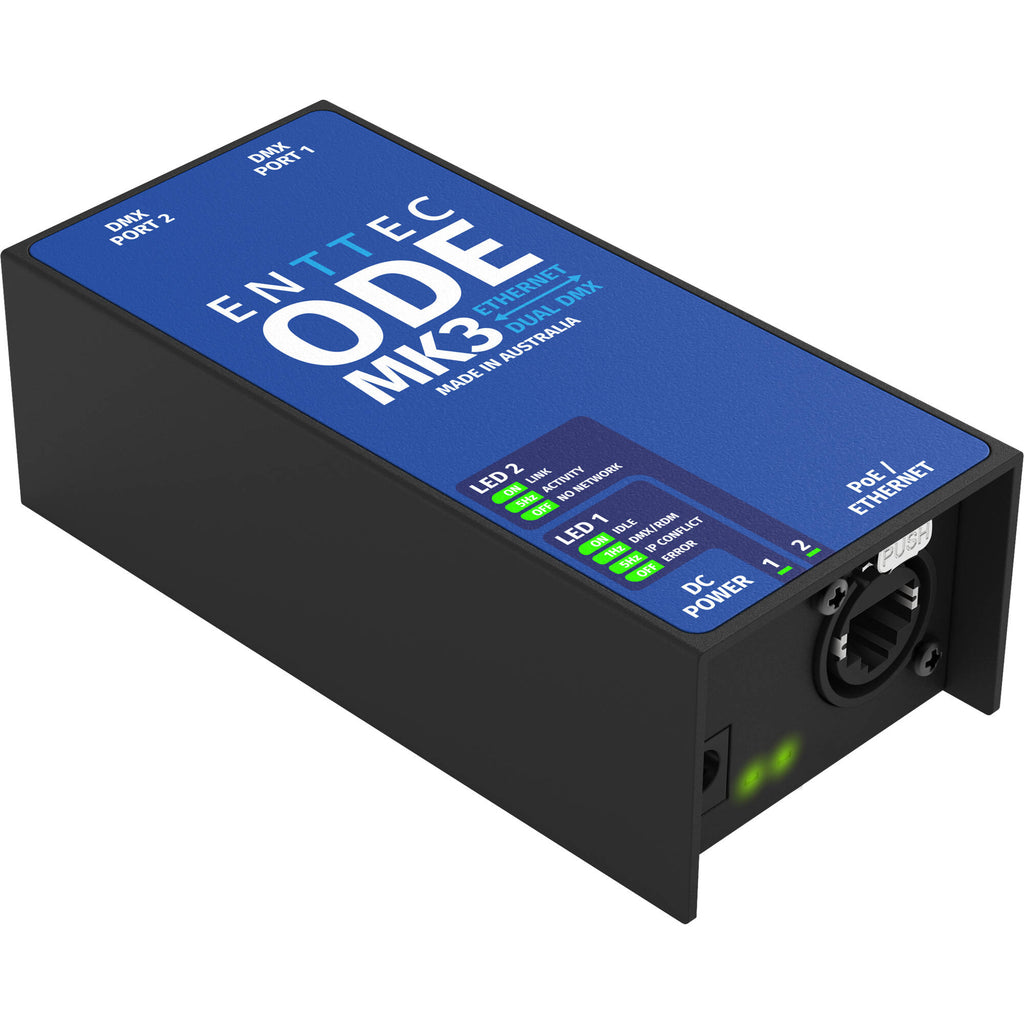

Expand your lighting projects with the ODE MK3 Ethernet DMX Interface from ENTTEC. This robust, reliable, and highly portable Ethernet to DMX converter is designed to connect DMX fixtures to your Ethernet network. With two universes of bidirectional eDMX to DMX conversion and Art-RDM support, the ODE is a practical solution for converting from a multitude of Ethernet-based lighting protocols to physical DMX and vice versa. The unit is compatible with a wide range of devices and features industry-standard 5-pin XLR ports to simplify wiring. The rugged ports can be used as either input or output and provide a secure connection for your data cabling.
Details

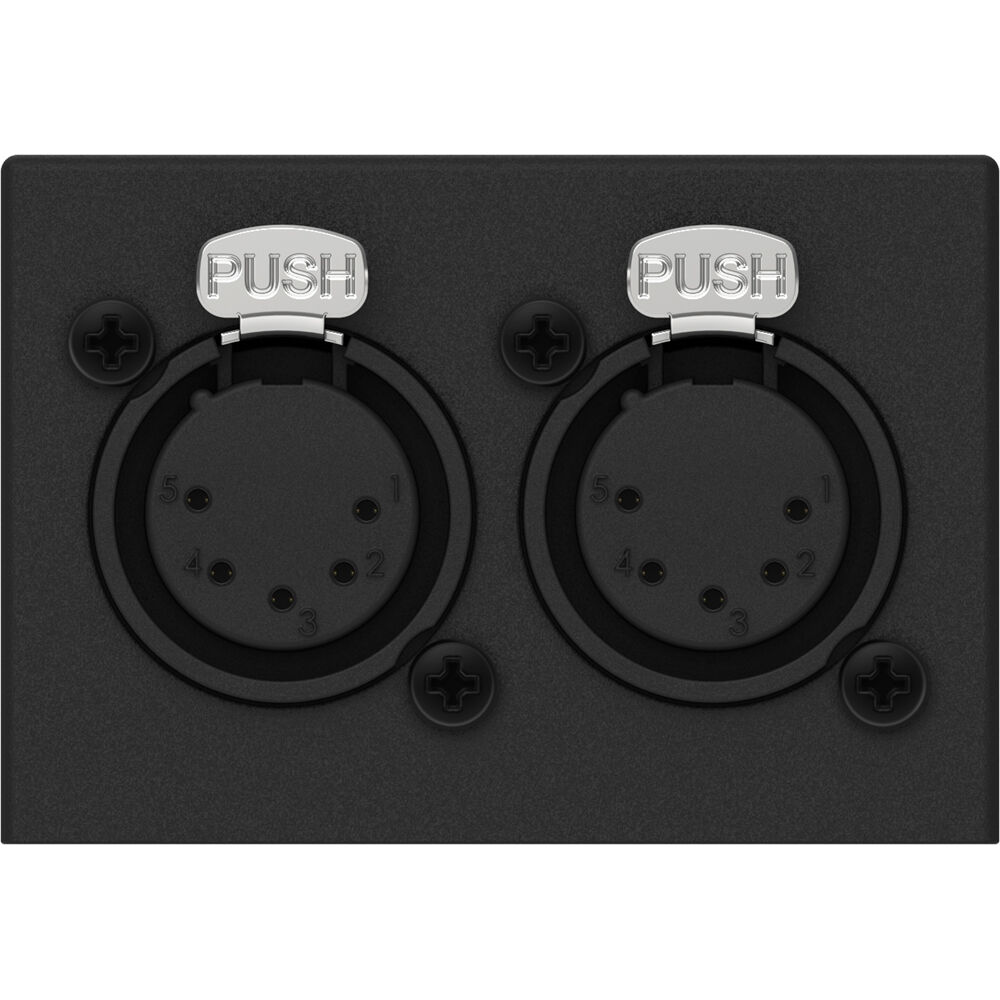

- Two bidirectional female 5-pin XLR DMX ports with optional RDM E1.20 support
- Support for Art-Net 4, sACN, and ESP to DMX conversion
- 1024 channels
- Lockable connectors for security
- HTP/LTP merging support for up to two DMX sources
- 10/100 Mb/s speed
- Configurable refresh rate
- Allows fast deployment of DMX systems

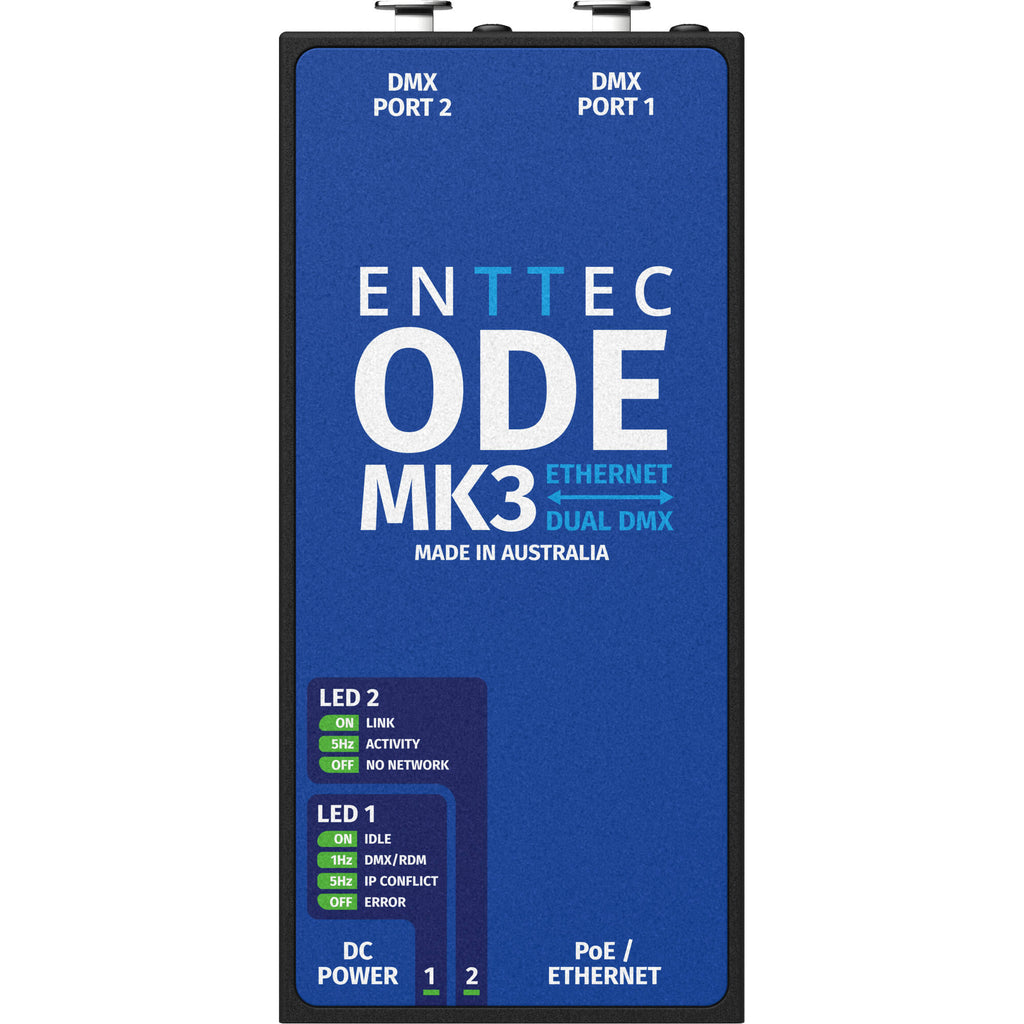

- LED indicators for monitoring the device's connectivity and status
- Conversion with no need for adapters
- Compact, highly portable form factor
Compatibility and Integration
Simply pair the ODE with automation systems using generic Art-Net or sACN drivers to send and receive DMX and RDM. Due to its compact size, the ODE suits both smaller on-the-run or larger fixed installations.
Protocols
The ODE's main function is to convert between Ethernet-DMX protocols and USITT DMX512-A (DMX).
- Art-Net to DMX with or without RDM
- DMX to Art-Net (Broadcast or Unicast)
- sACN to DMX
- DMX to sACN (Multicast or Unicast)
- ESP to DMX
- DMX to ESP (Broadcast or Unicast)
Sync Mode
Fully synchronize Art-Net data for all output ports and across your installation when receiving Art-Net from the same source.
Intuitive Interface
A Current Port Buffer allows live DMX values to be viewed from the localhost web interface to troubleshoot your installation. Upon receiving power, the device is ready for action within seconds.
Flexible Power Options
Power the ODE using Power over Ethernet (PoE) or DC 12-24V input.
Easy Configuration
Configuration is managed through the localhost web interface to simplify commissioning and updates. Consequently, the ODE can be configured from your computer.
In the Box
- ENTTEC ODE MK3 Ethernet DMX Interface
- Ethernet Cable
- Power Supply
- Limited 3-Year Manufacturer Warranty
Table of Contents
- Description
- Details
- Compatibility and Integration
- Protocols
- Sync Mode
- Intuitive Interface
- Flexible Power Options
- Easy Configuration
ENTTEC ODE Mk3 Specs
Key Specs
| Inputs/Outputs |

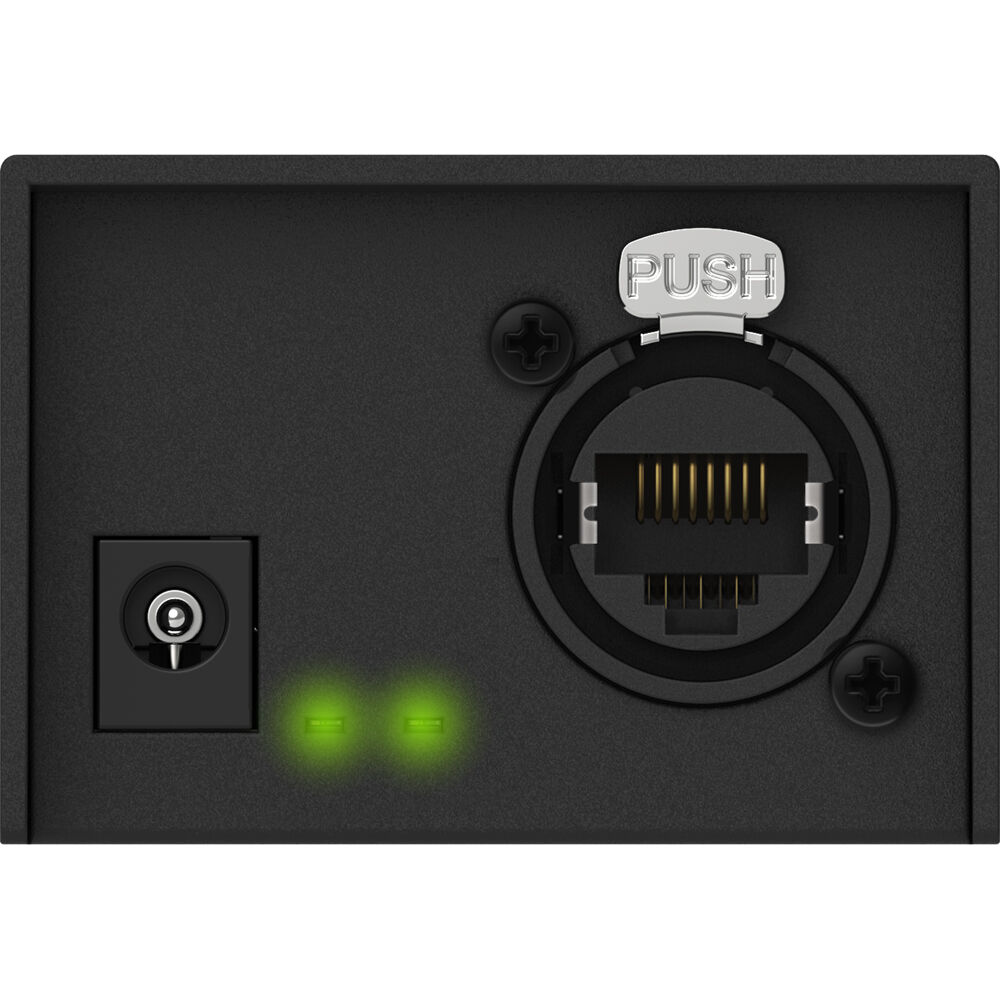

1x RJ45 (10/100 Ethernet) Female Input
2x XLR 5-Pin (DMX) Female Input/Output 1x DC Barrel (Power) Input |
| Channels |
1024
|
| Power Source |
AC Adapter
|
| Protocol |
ArtNet, DMX512, RDM, sACN
|
General
| Inputs/Outputs |
1x RJ45 (10/100 Ethernet) Female Input
2x XLR 5-Pin (DMX) Female Input/Output 1x DC Barrel (Power) Input |
| Channels |
1024
|
| Dimming |
Optional
|
| Cooling System |
No
|
Power
| Power Source |
AC Adapter
|
| Power Consumption |
7 W
|
| DC Input Power |
12 to 24 VDC
|
| PoE Port Power |
Yes
|
Compatibility
| Protocol |
ArtNet, DMX512, RDM, sACN
|
Environmental
| Operating Temperature |
32 to 122°F / 0 to 50°C
|
| Humidity |
5 to 95% Non-Condensing Operating
|
Physical
| Material of Construction |
Plastic
|
| Dimensions |
5.1 x 2.3 x 1.6" / 12.9 x 5.8 x 4.0 cm
|
| Weight |
0.22 lb / 100 g
|
Packaging Info
| Package Weight |
0.98 lb
|
| Box Dimensions (LxWxH) |
9.1 x 6.3 x 2.7"
|
