Description

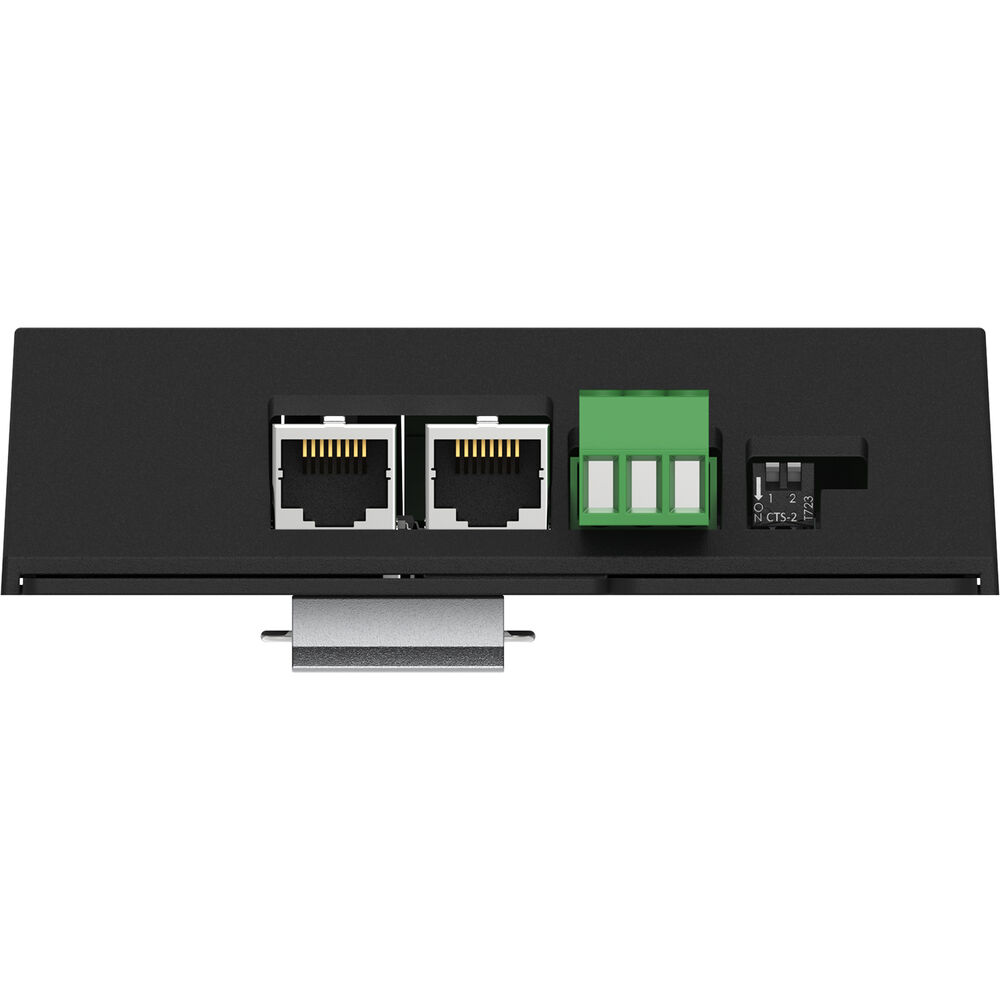

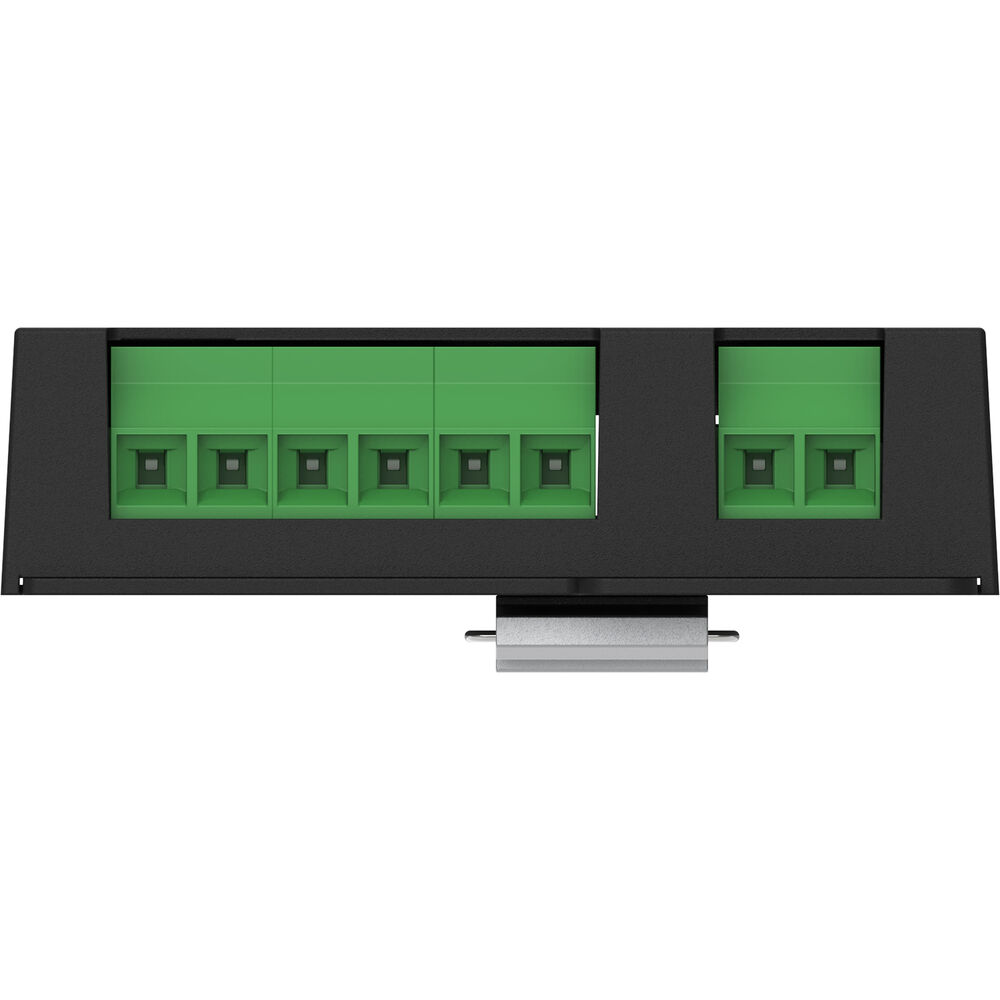

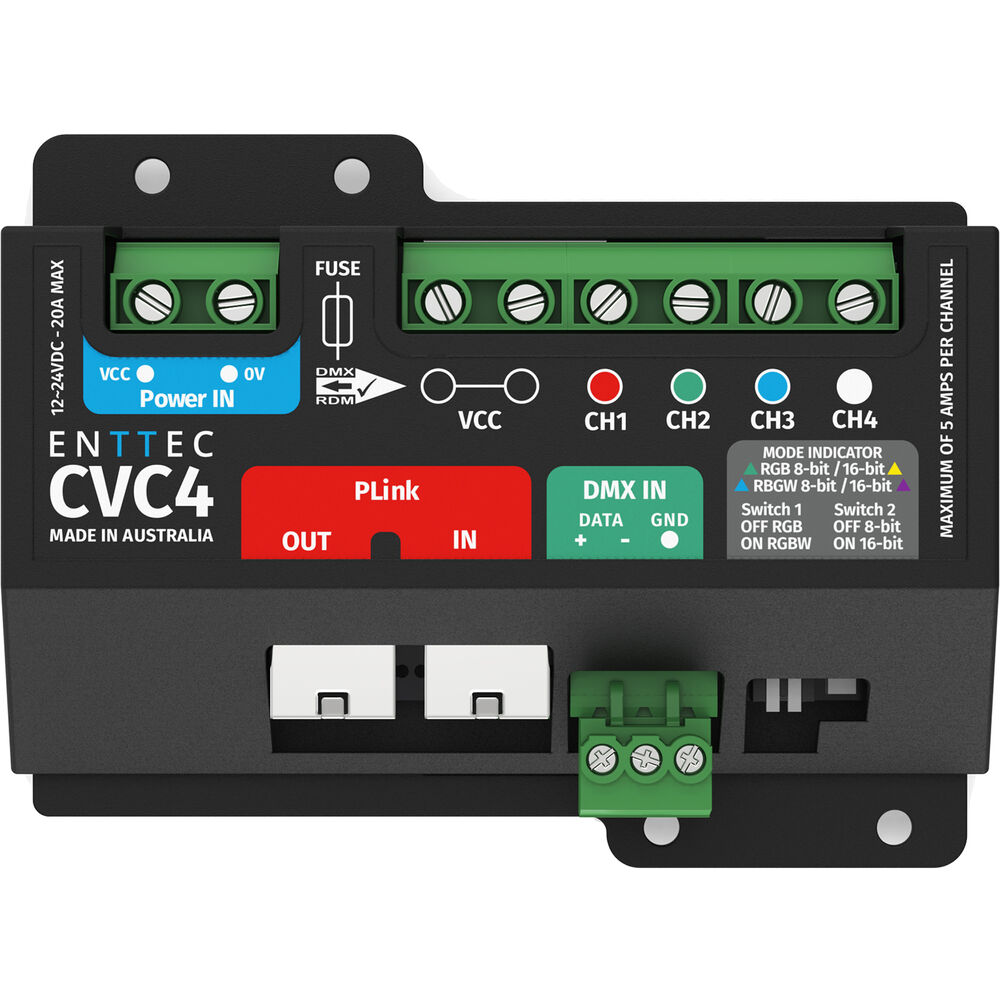

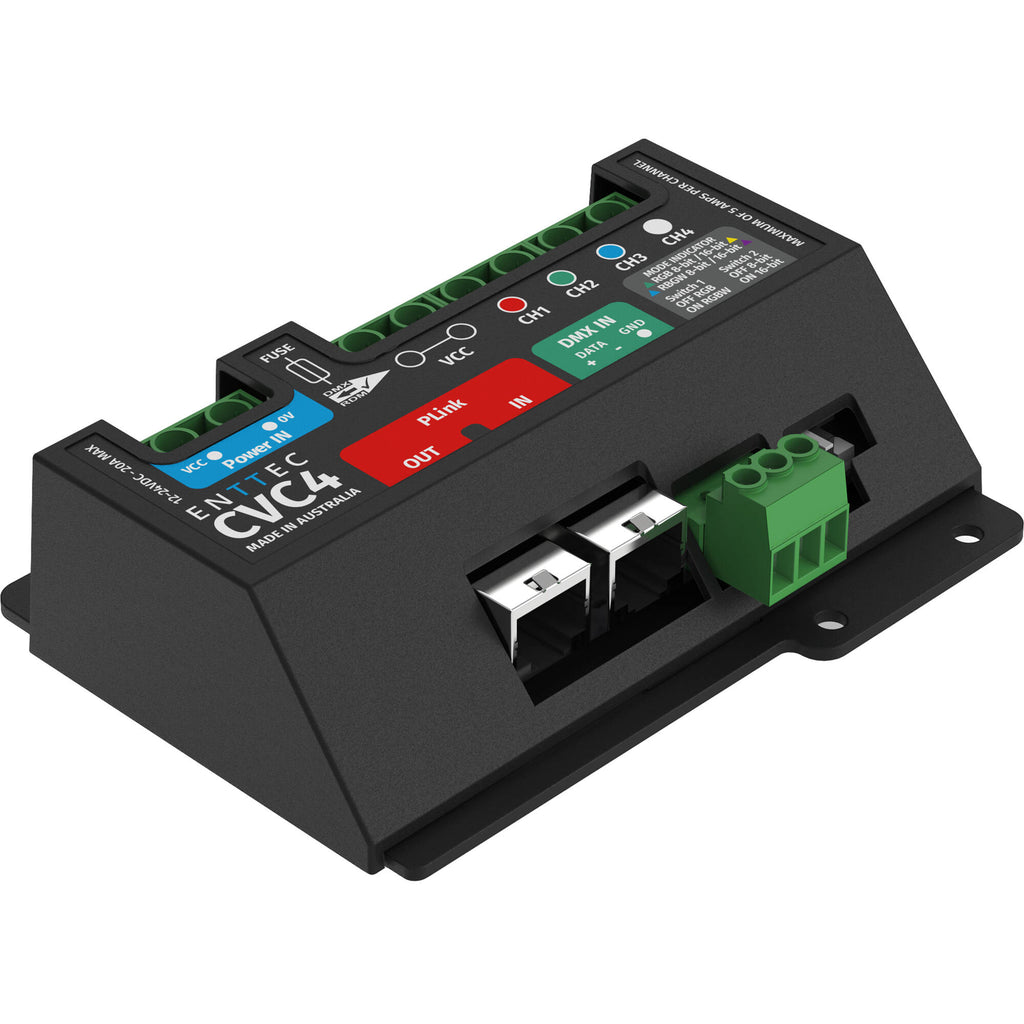

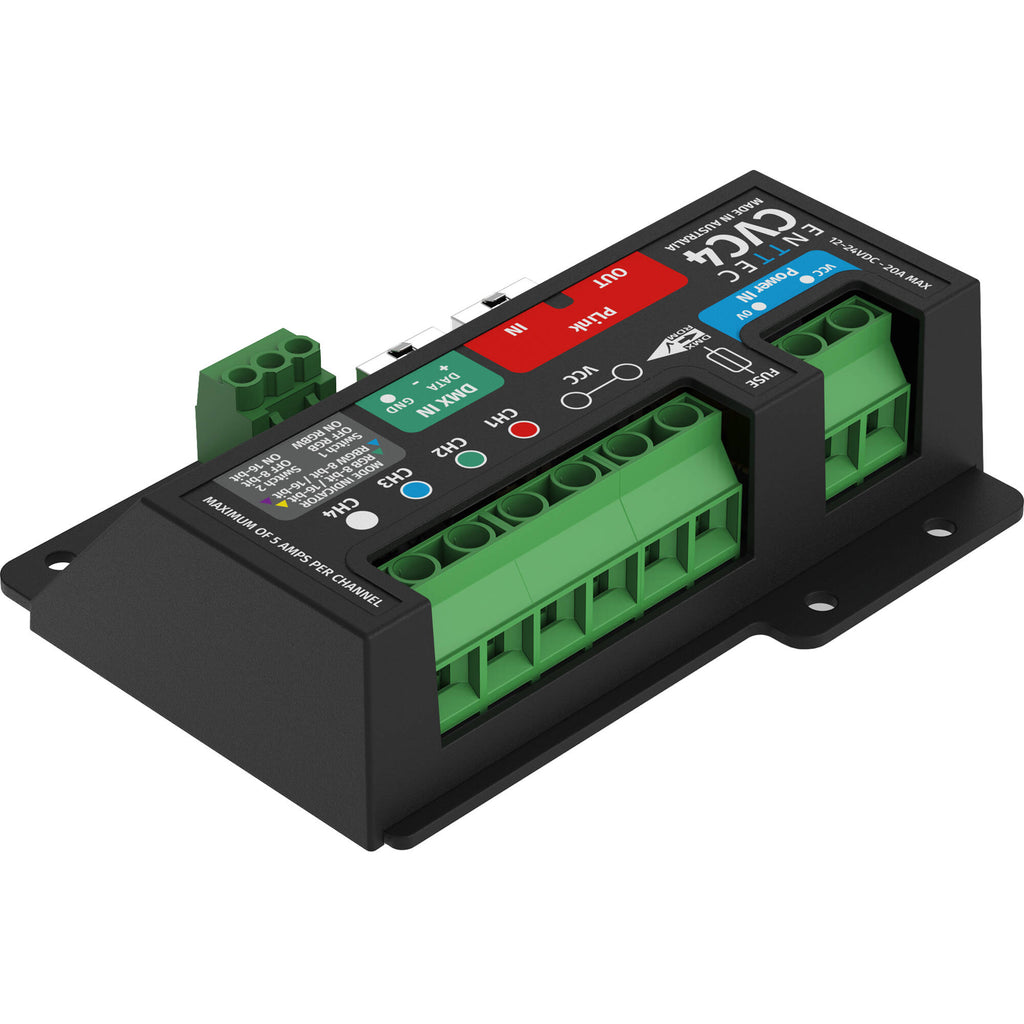

ENTTEC CVC4 Overview
Compact, robust, and reliable, the CVC4 Constant Voltage Dimmer from ENTTEC is a rugged, high-precision LED dimmer with up to four 5A channels at either a 16- or 8-bit resolution. The CVC4 offers finer control, ultra-smooth dimming, auto-addressing functionality, and a simple mode selection for intuitive operation. Status LED and mode selection DIP switch allows you to toggle between bitrate and RGB/RGBW operating modes. The unit speeds up installation time and its fanless design means the CVC4 is virtually silent when in use.
Simply connect your CVC4 using the PLink protocol, add power, and the CVC4 will all auto-address itself. The system enables users to chain one device to the next using an optional Cat6 cable up to 984' away, removing the need to manually address each CVC4. Well-suited for advanced users as well as individuals that are completely unfamiliar with DMX, this unit is capable of dimming up to 5A of LED tape per channel at 12-24V.
- Capable of controlling up to 20A across its four 5A channels
- Dim constant voltage for your LED strip projects
- Single DMX connector for DMX/RDM input or chaining between devices
- Onboard conversion from DMX to ENTTEC's PLink protocol
- Advanced users can also address and monitor each CVC4 using RDM

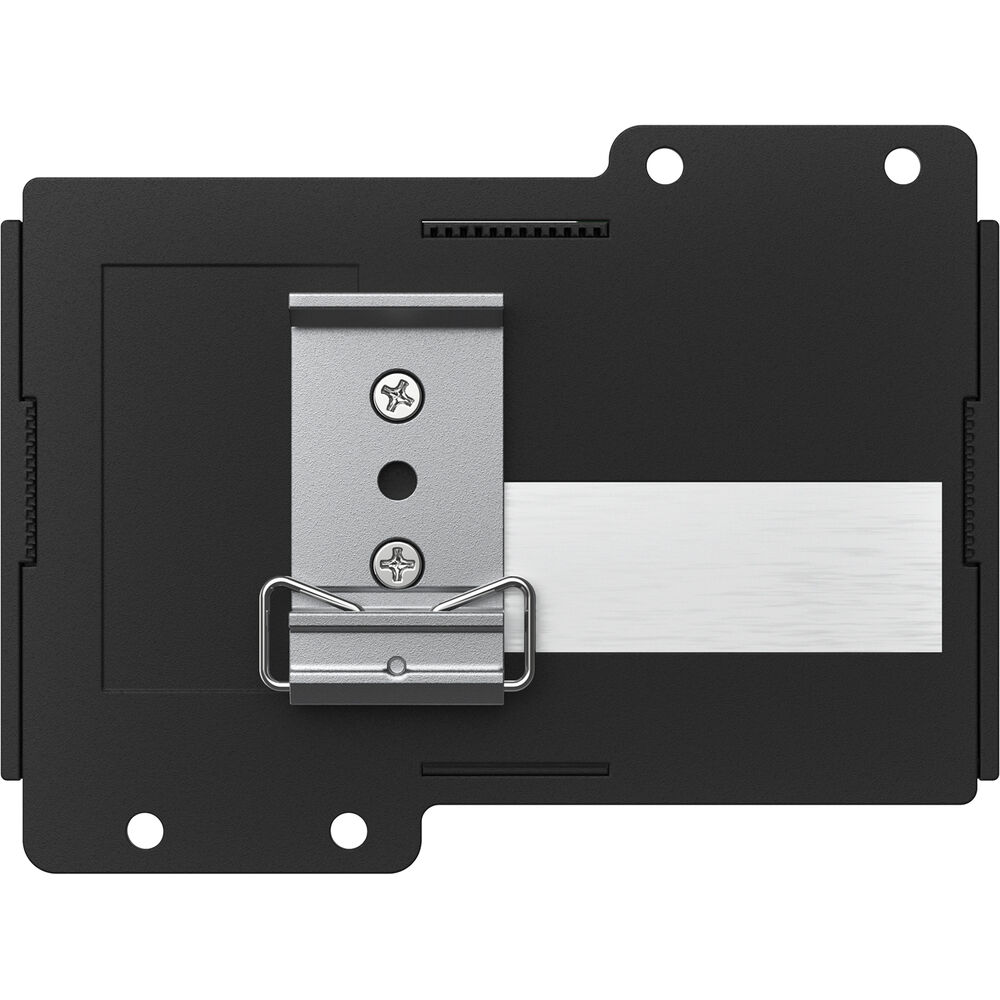

- Fast and easy to install with surface-mount tabs or the included TS35 DIN rail adapter
- Integrated M4 surface mounting holes or TS35 DIN rail mount
- Protects against short circuits and prevents overheating
- Made in Australia
In the Box
- ENTTEC CVC4 Constant Voltage Dimmer
- TS35 DIN Clip
- 2 x Din Clip Mounting Screw
- Limited 3-Year Manufacturer Warranty
Not in the Box
- Essential Lights (Not Included)
ENTTEC CVC4 Specs
| Plug Type |
1 x NEMA 5 Unspecified
|
| Total Outlets |
No
|
| Maximum Wattage |
480 W
|
| Output Voltage |
24 VDC
|
| Material of Construction |
ABS Plastic
|
| Dimensions |
4.63 x 3.5 x 1.24" / 11.75 x 8.8 x 3.15 cm
|
| Weight |
0.28 lb / 0.13 kg
|
| Operating Humidity |
5 to 95% (Non-Condensing)
|
| Operating Temperature |
-4 to 122°F / -20 to 50°C
|
| Package Weight |
0.45 lb
|
| Box Dimensions (LxWxH) |
6.7 x 5.75 x 1.85"
|
