Description

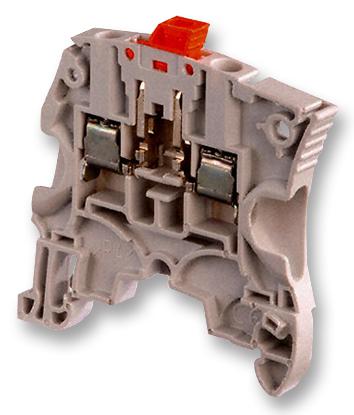

The 1SNK505310R0000 from Entrelec UK is single level, 2 position ZS4-S screw clamp disconnect blade terminal block with DIN rail mounting. This terminal block with 5.2mm pitch spacing and rated cross section area of 4mm² is suitable for wire size ranging from 24AWG to 10AWG. Disconnect terminal block should be mounted with fixed foot on top (power side) so that the disconnect knife does not partially close through gravity.
- Grey colour housing
- Dimension of terminal block is 5.2mm x 51.35mm x 53mm (W x L x H)
- Ambient operating temperature range from -55°C to 110°C
- A3-B3 gauge type
- Rated voltage of 400V and rated current of 25A
- Polyamide (PA) insulating material
- IP20 degree of protection in accordance to IEC 60529, IEC 60947-1 and EN 60529
- Pollution degree is 3
- Flammability rating meets UL94 V-0, BV, CB, CSA, cUL, DNV, EAC and RINA certified
- 8.6g weight
Industrial
Other details
| Brand | ENTRELEC - TE CONNECTIVITY |
| Part Number | 1SNK505310R0000 |
| Quantity | Each |
| Technical Data Sheet EN |  |
| Manufacturer Catalogue EN | |
