Description
Ensemble Designs NXT-950 Overview
- 1Description
- 2Connection Flexibility
- 3Color Correction
- 4Audio Levels and Channel Swapping
- 5Format and Frame Rate Conversion
- 6Web Control
- 7Monitor Output

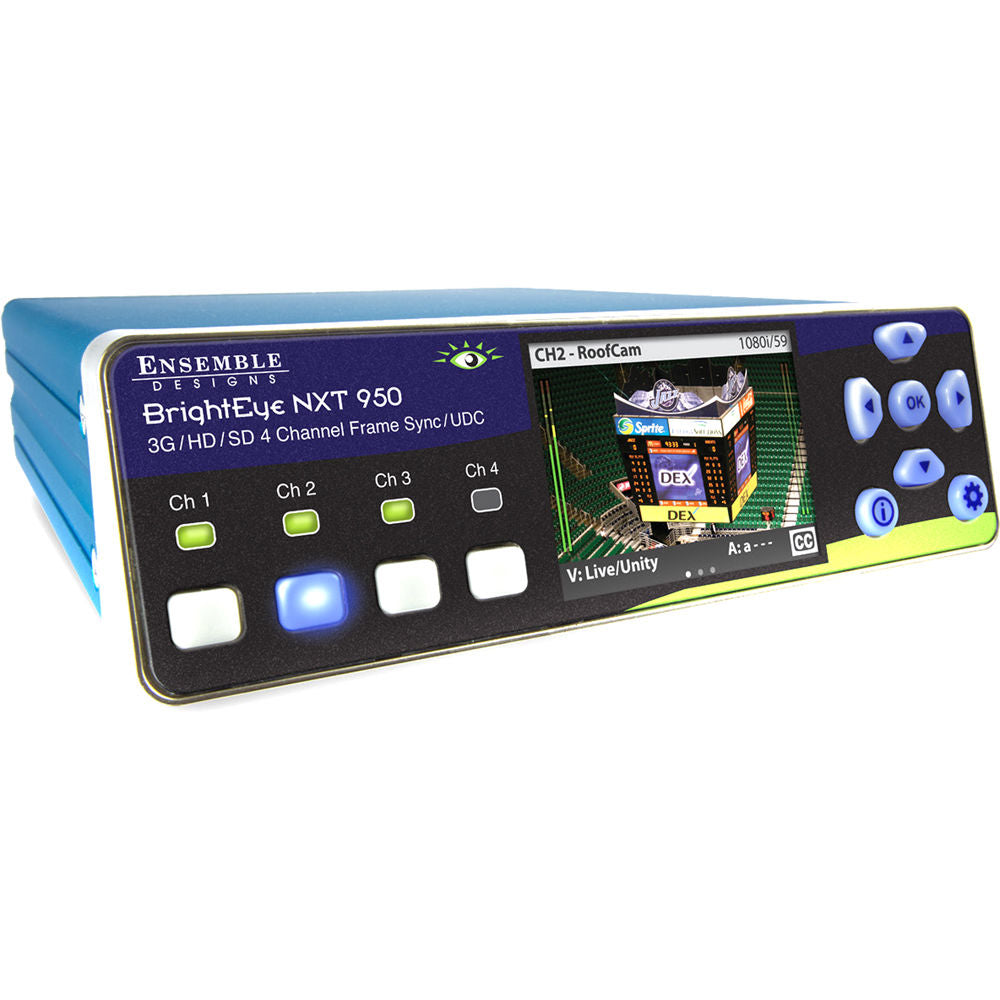

The NXT 950 4-Channel SDI Frame Sync & U/D/C from Ensemble Designs features frame synchronization and format conversion with 16 channels of embedded audio that allow to adjust levels and swap or mix channels. The NXT 950 has four BNC video inputs and four BNC independent frame synchronizers, which support automatic input format detection and conversion to your desired output format. You can adjust video and chroma gain with the built-in Proc Amp and use Color Correct to compensate for input material or to match projectors and monitors.

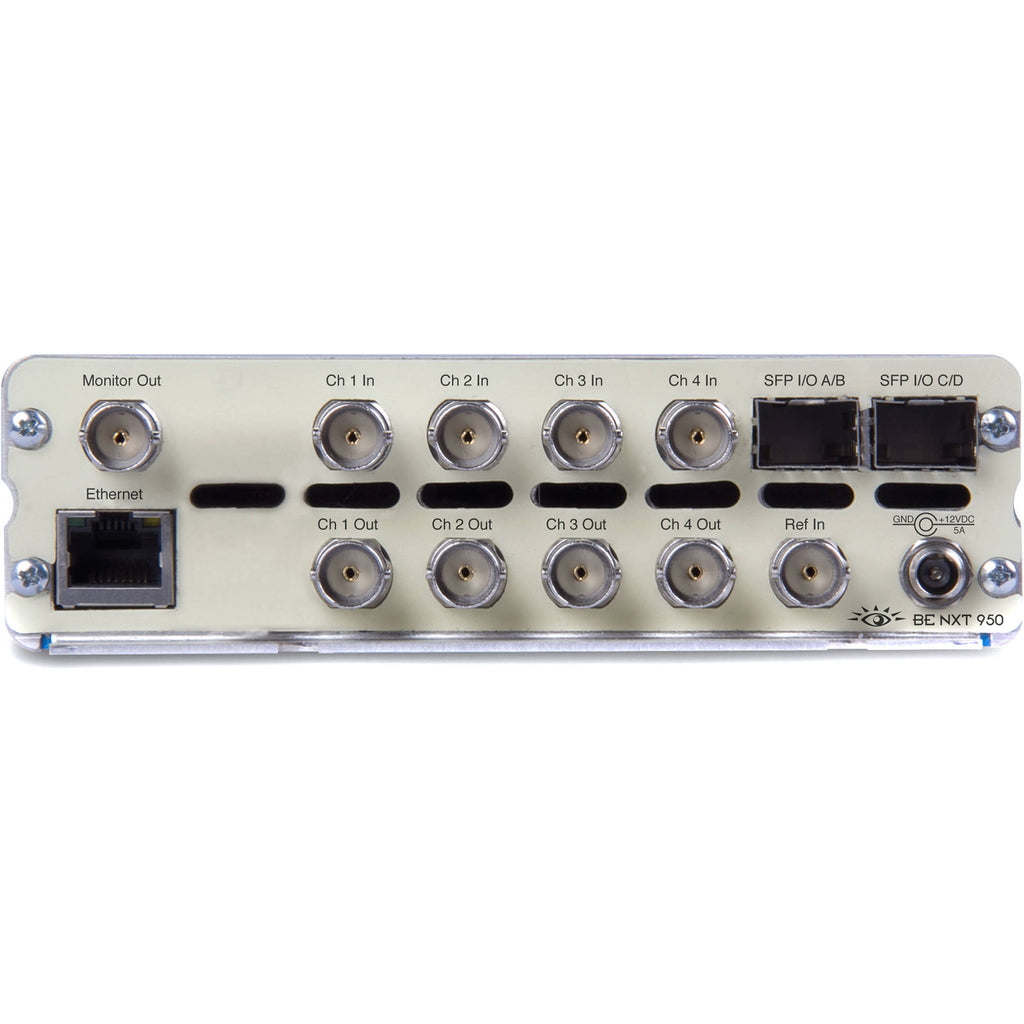

Connection Flexibility
SFP connections can serve as either Frame Sync inputs or outputs. Other connectors include SDI inputs, SDI outputs, SFP modules to add Fiber, or encapsulated SDI (SMPTE 2020) connectivity.
Color Correction
Adjust incoming feeds to correct for color balance and video levels, or use the Color Corrector to match monitors and projectors. On-set monitors will have perfect color and exposure when viewed through studio cameras.

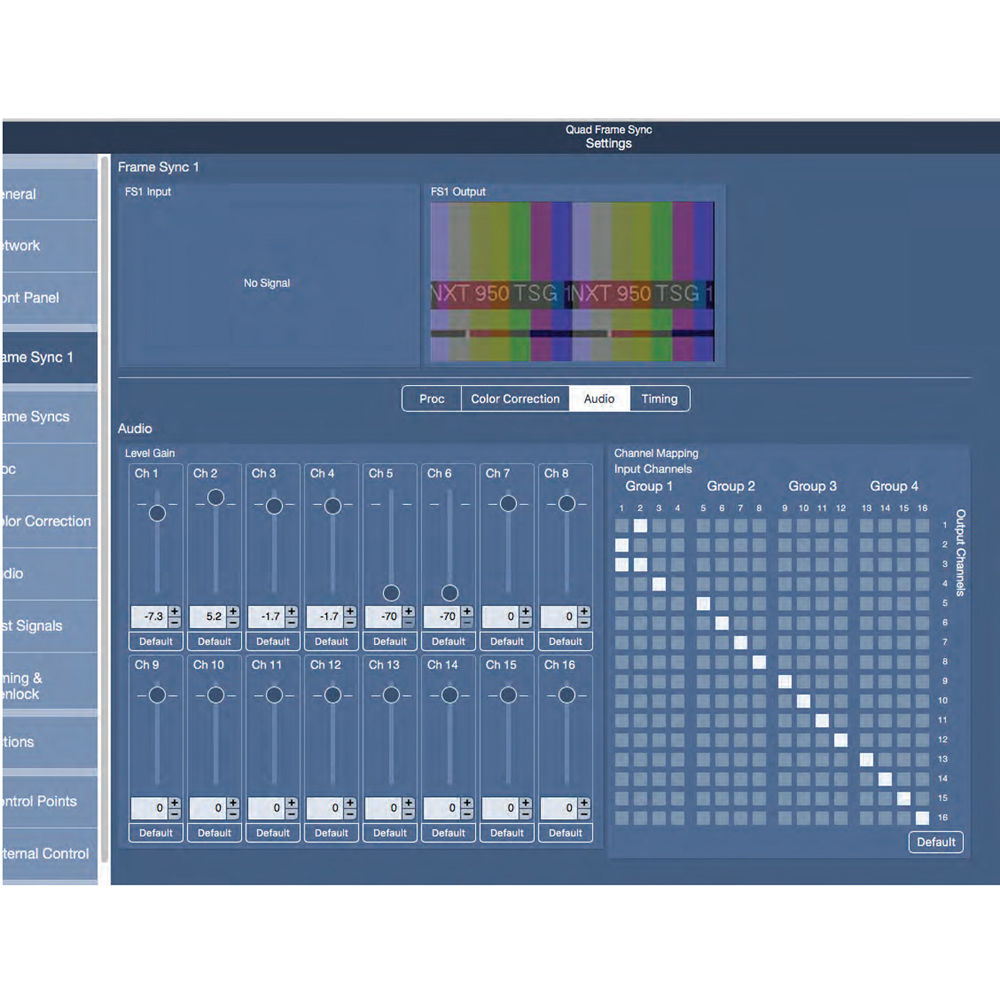

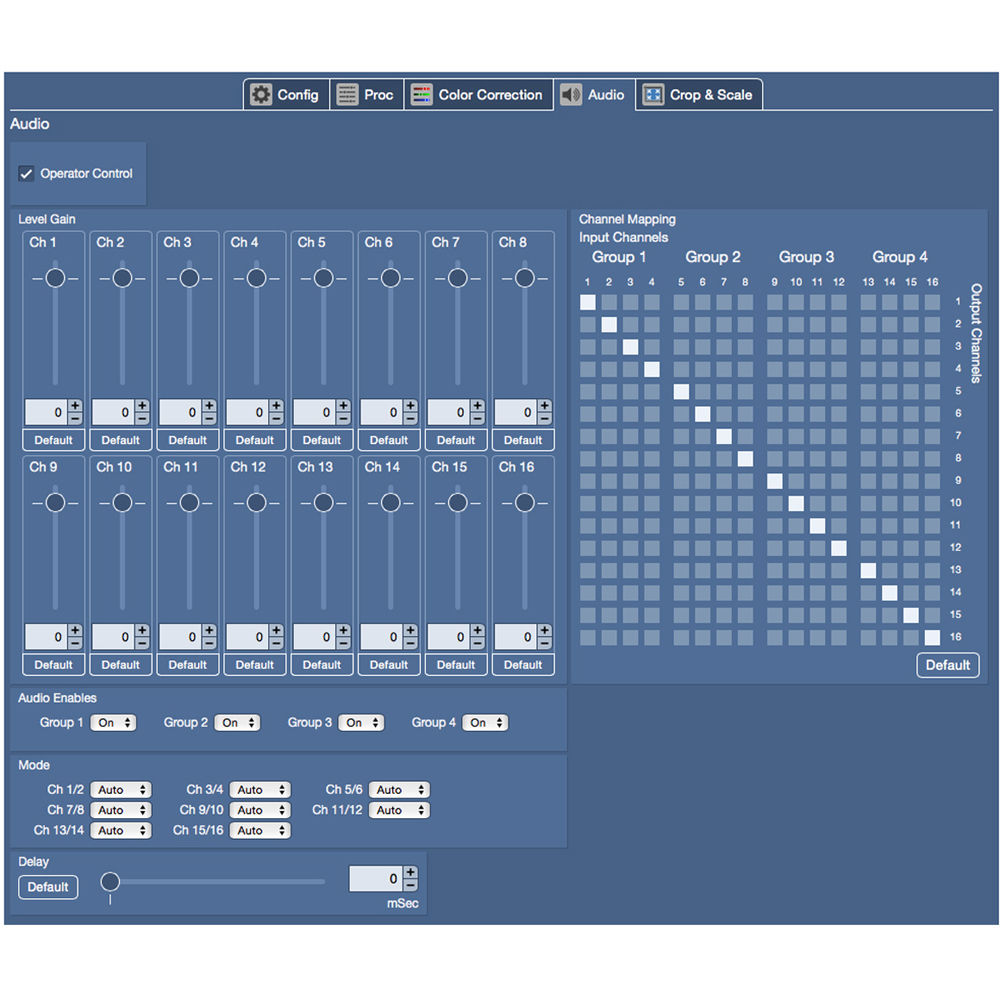

Audio Levels and Channel Swapping
Adjust the level of all 16 possible embedded audio channels and map those channels to produce any combination of swaps and mixes on the output.
Format and Frame Rate Conversion
Choose the desired output format and frame rate for each Frame Sync. Input standards are detected and the Up/Down/Cross Converter is automatically configured to conform to the output.

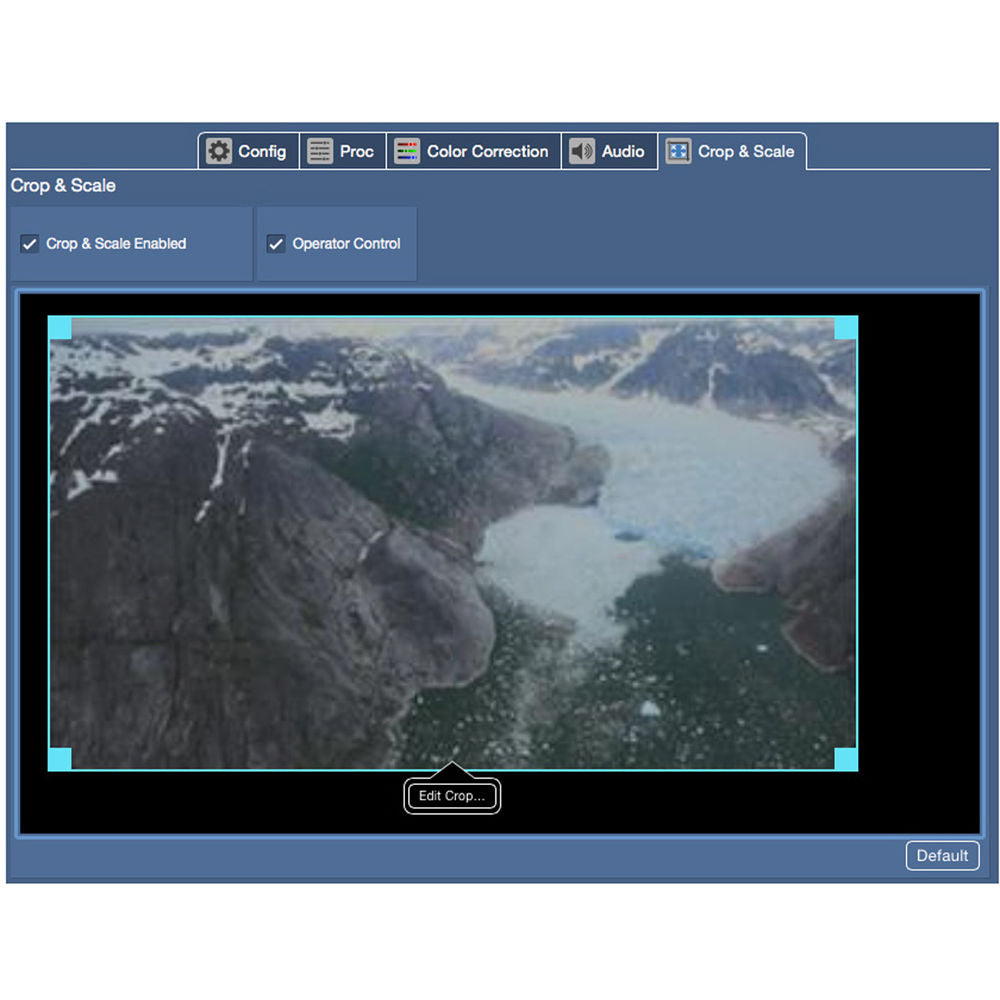

Web Control
An extensive web interface puts complete control and full signal status at the operator's fingertips�from any computer, tablet, or smartphone. Proxy thumbnails of both the input and output of each frame synchronizer give a direct view of what's happening. Configure and control from across the room, or across the globe.

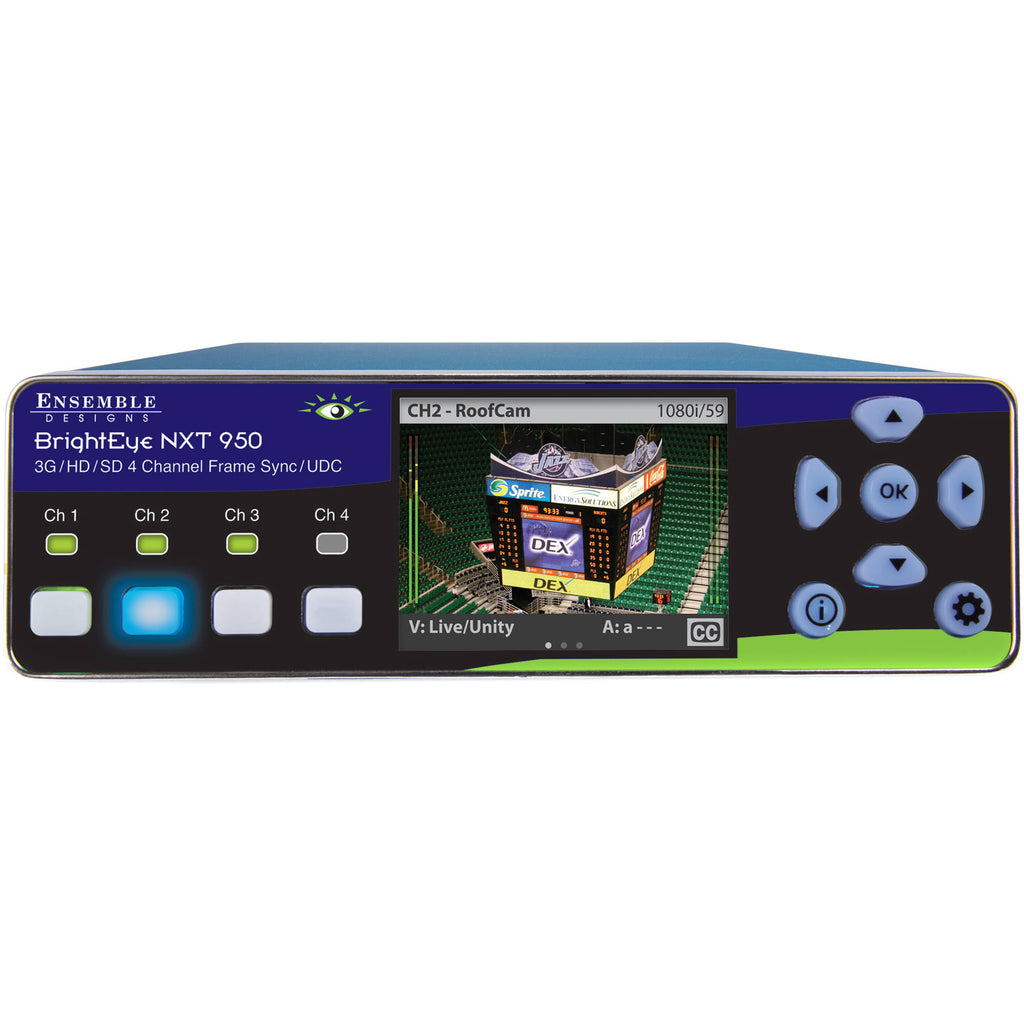

Monitor Output
Connect the Monitor Output to an external waveform and picture monitor. This feed will follow the operator's channel selection on the front of the NXT. It can display either the input or output of each frame sync. This monitor switching is built-in to the regular operation of the product.
In the Box
- Ensemble Designs NXT 950 4-Channel SDI Frame Sync & U/D/C
- 12 VDC Power Supply
- Limited 5-Year Warranty
Table of Contents
- Description
- Connection Flexibility
- Color Correction
- Audio Levels and Channel Swapping
- Format and Frame Rate Conversion
- Web Control
- Monitor Output
Ensemble Designs NXT-950 Specs
Input
| Video Input Connectors | 4 x BNC (3G-SDI) Female |
| Input Video Format | SDI 1080p: 23.98/24/25/50/59.94/60 fps 1080i: 50/59.94/60 fps 720p: 50/59.94/60 fps 1080PsF: 23.98/24/25 fps |
| Embedded Audio Input | SDI |
Output
| Video Output Connectors | 4 x BNC (3G-SDI) Female |
| Output Video Format | SDI 1080p: 23.98/24/25/50/59.94/60 fps 1080i: 50/59.94/60 fps 1080PsF: 23.98/24/25 fps 720p: 50/59.94/60 fps |
Standards
| Video Standard Compliance | SMPTE 259M/274M/292M/296M/424M-B/425M/RP-211 |
| HDCP Support | Yes |
Connectivity
| Other I/O | 1 x RJ45 |
| Expansion Slots | 2 x SFP Slot |
Hardware
| Screen Resolution | 3840 x 2160 |
Power
| Power Connector | 1 x Barrel (12 VDC) Input |
| Power Consumption | Power Supply: 100 to 230 VAC (35 W) |
Environmental
| Operating Temperature | 32 to 104°F / 0 to 40°C |
| Operating Humidity | 0 to 95% |
General
| Dimensions | 6.75 x 5.63 x 1.65" / 17.14 x 14.3 x 4.19 cm |
| Weight | 1 lb / 0.45 kg |
