Description
Ensemble Designs BrightEye 57 Overview
The BrightEye 57 3G/HD/SD/Analog Test Signal and Sync Pulse Generator from Ensemble Designs is a genlockable sync generator and test signal generator that can be used as either a slave or master reference generator. It can lock to house reference or its own internal precision standard. This unit is well suited for use in remote trucks, post-production studios, helicopters, and fly packs, among many other possible applications and settings.

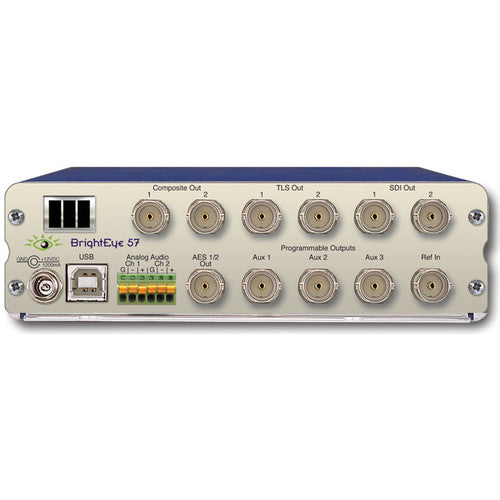

1.5Gbps HD, 3Gbps HD, or SD-SDI test signals or black with embedder is output on the SDI BNC connectors. 3G Level A and Level B are supported. Composite, HD tri-level sync, and AES digital audio outputs are also provided. There are three user-programmable outputs that are selectable between AES, LTC, Word clock, or 6Hz pulse. Analog audio and AES outputs provide tone or silence.
Signals such as Color Black, Bars, Crosshatch, Multi-burst, and SDI Checkfield (Pathogenic) are available simultaneously on the SDI and analog composite outputs. The Cyclops feature adds a motion element to the selected video test signal. An ID slate with user-programmable text can overlay the test pattern. The internal Time Code Generator feeds DVITC on the SDI outputs and VITC on the composite outputs. Time Code can also be selected in LTC form on the programmable Aux outputs.

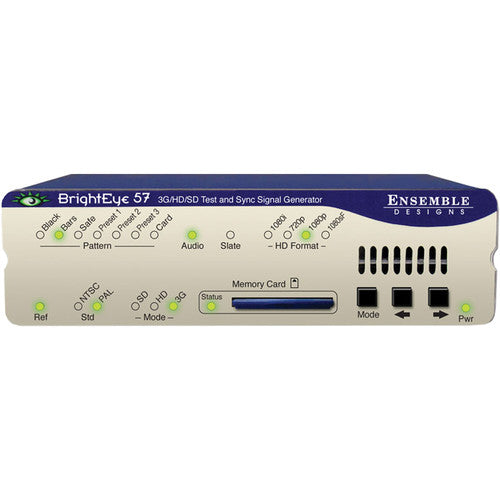

In addition to the standard suite of test patterns, users can create custom test patterns on a computer. Using BrightEye Pattern Generator software, simply transfer test patterns to the included Secure Digital Flash memory card and then insert the memory card into the front of the BrightEye 57. Test patterns can include motion and an associated audio clip such as voice over or station ID.
It supports multiple audio file formats, including .tga, .wav, .mp3, and .wma. The unit can be controlled via BrightEye software for Mac or PC.
In the Box
- Ensemble Designs BrightEye 57 3G/HD/SD/Analog Test Signal and Sync Pulse Generator
- Five-Year Warranty Against Defects In Material & Workmanship
Ensemble Designs BrightEye 57 Specs
| Inputs | Reference Input Number: one Signal Type: 1Vp-p PAL, NTSC, 10MHz or HD tri-level sync Return Loss: >40dB DC to 5.5MHz |
| Outputs | Composite Output Number: two Signal Type: NTSC / PAL Impedance: 75 Ohms Return Loss: >40dB DC to 5.5MHz Frequency Response: -0.1 dB 10KHz to 5.0MHz Output DC: +/-50 mV K Factor: <1.0% Differential Phase: <1.0 degree SCH Phase: +/-5 degrees Serial Digital Output Tri-Level Sync Output AES Audio Output Analog Audio Output Programmable Outputs |
| Performance | Gain Range: +/-6 dB Frequency Response: <+/-0.1 dB, 20Hz to 20KHz Isolation: >100dB S/N Ratio: >100dB, unweighted |
| Standards | 1080i (SMPTE 274M -4, 5, 6) 50, 59.94 or 60Hz 720p (SMPTE 296M -1, 2, 3) 50, 59.94 or 60Hz 1080p (SMPTE 274M -9, 10, 11) 23.98, 24, 25Hz 1080sF (RP211 -14, 15, 16) 23.98, 24, 25Hz 3Gbps Level A or Level B (SMPTE 424M, 425M) 625i 50, 525i 59.94, composite PAL, NTSC |
| Timing | Internal: TCXO PAL Fsc: 4.43361875MHz +/- 1Hz NTSC Fsc: 3.579545MHz +/- 1Hz 601 Fs: 27.000000MHz +/- 5Hz Long Term Drift: <1ppm/year Analog Jitter: <1ns Digital Jitter: <0.2 UI (0.13 UI typical) |
| Memory | Flash Memory Number: one Type: Secure Digital SD Flash memory card Size: 1MB card included |
| Power | 12V, 12W (100 to 230VAC modular power supply not included) |
| Dimensions (HxWxD) | 1.7 x 5.625 x 5.5" (40 x 143 x 140mm) |
| Weight | Not specified by manufacturer |
| Package Weight | 2.4 lb |
| Box Dimensions (LxWxH) | 8.7 x 8 x 1.78" |
